30mm Digital Indicator Horizontal Absolute 0.001mm Resolution With Preset/Origin/On-Off RB6 - Metav IndustryLine

Take advantage of the combination of compact dimensions, 0–30 mm measuring range and 0.001 mm display resolution for accurate short‑range inspection tasks; the absolute measuring system with 3 V power and RB 6 data output streamlines traceability and integration. Order the device directly via Metav Werkzeuge or consult our specialists for application advice.

M301.027 Digital dial indicator — horizontal, 0–30 mm, 0.001 mm resolution (Metav IndustryLine)

The M301.027 is a horizontal digital dial indicator designed for precise short‑range measurements in workshop inspection and machine‑shop quality control.

• 0–30 mm measuring range
• 0.001 mm display resolution
• Absolute measuring system, 3 V battery
• Glass scale with precision guide

Precision where it matters for small components

The digital gauge delivers a compact measuring range of 0–30 mm combined with a fine 0.001 mm display step, making it ideal for tasks that demand repeatable short‑range accuracy. With a quoted accuracy of ±0.01 mm, the instrument balances fine resolution and practical tolerance for routine quality checks. The built-in glass guide on the scale improves the scanning stability, reducing measurement noise and supporting consistent readings when inspecting small parts or precision fittings.

Digital functions that support workflow and traceability

Equipped with an absolute measuring system powered by a 3 V cell, the instrument retains its origin setting when powered off and offers ON/OFF, ORIGIN and PRESET functions for quick setup of reference points. The model includes an RB 6 data output, allowing straightforward connection to compatible readout systems for logging and statistical process control. These digital capabilities reduce manual transcription errors and speed up batch inspections, making the indicator a practical choice for structured quality processes.

Robust mounting and practical handling for daily use

Designed for workshop environments, the indicator features an 8 h6 mounting interface and a measuring force greater than 1.5 N, providing stable contact with workpieces while minimising deflection. Weighing approximately 0.29 kg, the instrument is light enough for handheld positioning yet rigid enough for fixture mounting. The combination of a protected digital display and a precision glass‑guided scale supports routine use at the bench or on test fixtures, ensuring reliable performance across repetitive measurement cycles.

Contact Metav Werkzeuge for tailored integration advice on the Metav IndustryLine M301.027 and ensure seamless connection to existing inspection systems with RB 6 data output

Technical data

• Article number: M301.027
• GTIN: 4054469146232
• ECLASS: 21170308
• ETIM: EC003591

Facts

• Measuring range: 0–30 mm
• Display resolution: 0.001 mm
• Specified accuracy: 0.01 mm
• Weight: 0.29 kg
• Measuring force: >1.5 N
• Mounting: 8 h6
• Power: 3 V (absolute measuring system)

Special features

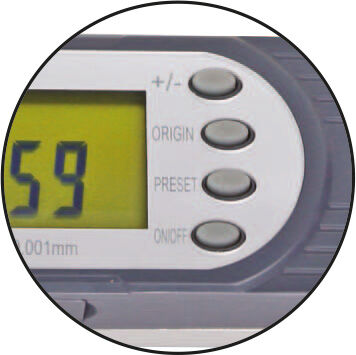

• Digital display with ON/OFF, ORIGIN, PRESET and +/- buttons
• RB 6 data output for external readout
• Glass guide on the scale for improved scanning accuracy
• Horizontal execution for lateral measurement tasks

FAQ

What is the measuring range of this indicator?
The instrument provides a measuring range of 0–30 mm, suitable for short‑range inspection and component checks with fine detail.

How fine is the displayed reading and what accuracy can be expected?
The display resolution is 0.001 mm, with a specified accuracy of ±0.01 mm, offering a balance between sub‑micrometre readability and practical industrial tolerance.

What does the RB 6 data output enable?
RB 6 is the digital data interface included with the indicator; it allows the M301.027 to deliver measurement values to compatible readout systems for logging and quality documentation.

Is the origin retained after power‑off?
Yes, the absolute measuring system with 3 V power ensures the origin setting is retained when the instrument is switched off.

How is the indicator mounted?
The instrument uses an 8 h6 mounting interface for secure attachment to stands or fixtures, facilitating repeatable positioning during serial inspections.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
