Digital dial indicator 12.7 x 0.01 mm (Max‑Min) — Metav IndustryLine

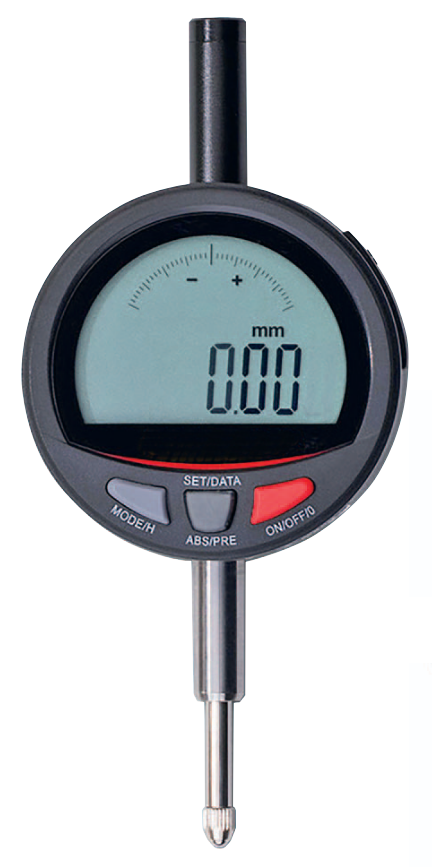

The Digital dial indicator 12.7 x 0.01 mm (Max‑Min) is a compact precision gauge for workshop and inspection‑bench use, designed for repeatable dimensional checks and quick pass/fail decisions.

• 12.7 mm range, 0.01 mm resolution
• USB‑C data output for traceable transfer
• Rechargeable lithium battery with USB cable included
• Tolerance display with red/green backlight

Accurate readings with low measuring force for repeatable checks

The instrument delivers a 0.01 mm reading capability across a 12.7 mm measuring range, making it suitable for fine dimensional control in production and inspection. The measured accuracy (0.01 mm) and the stated measuring force ≤ 2.2 N reduce influence from operator pressure, improving repeatability on small components. Reversible measuring direction and a compact 57 mm outer ring add flexibility for tight setups and confined fixturing, while the clear numeric display supports rapid assessment without interpretation errors.

Efficient data capture and automatic tolerance evaluation

Equipped with USB‑C data output, on‑board memory for Max/Min/Δ values and a tolerance function with red/green background lighting, the device streamlines quality routines and documentation. Measurements can be exported directly to inspection software or a spreadsheet, enabling traceable records and faster batch evaluations. The unit’s rechargeable lithium battery (USB cable supplied) removes frequent battery changes and keeps the gauge ready for continuous shift use; front‑panel keys (ON/OFF/0, MODE/H, SET/DATA/ABS/PRE) enable quick mode changes and data capture.

Compact design for bench and shop‑floor environments

The compact construction combines a protective outer ring with easy‑to‑operate controls to withstand routine workshop handling while remaining comfortable for handheld or fixture use. Stored maximum and minimum values support flatness and run‑out assessments without external logging, and the instrument’s straightforward interface reduces training effort for operators and inspectors. This balance of precision, data integration and robustness makes the gauge a practical choice for machinists, metrology technicians and quality engineers seeking reliable, fast measurements.

For application recommendations, batch purchasing or integration advice for Metav IndustryLine digital indicators, contact Metav Werkzeuge directly at info@metav-werkzeuge.com or call +49 2822 7131930

Technical data

• Article number: M301.056
• Manufacturer: Metav IndustryLine
• Product: Digital dial indicator 12.7 x 0.01 mm with Max‑Min function
• SKU: M301.056

Facts

• Measuring range: 12.7 mm
• Resolution / reading: 0.01 mm
• Accuracy: 0.01 mm
• Measuring force: < 2.2 N
• Outer ring diameter: 57 mm

Special features

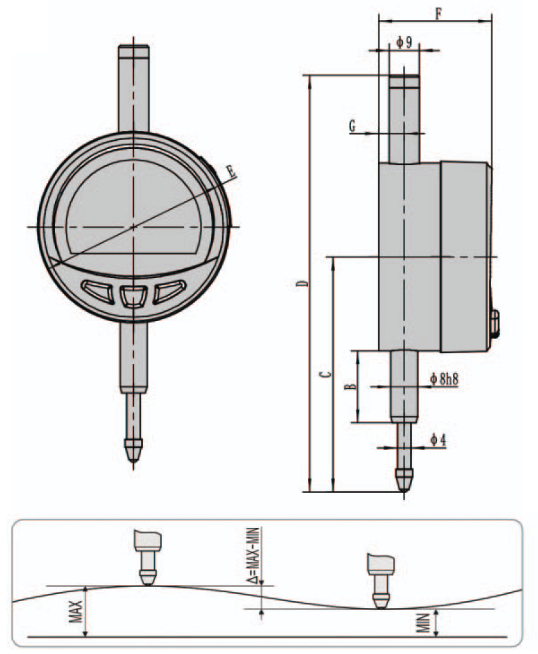

• Max/Min/Δ recording for flatness checks
• Tolerance setting with red/green background lighting
• Reversible measuring direction
• Keys: ON/OFF/0, MODE/H, SET/DATA/ABS/PRE
• Rechargeable lithium battery, USB cable included
• Data output via USB‑C
• Stores Max/Min/Δ values for quick inspections

FAQ

What is the measuring range and resolution of this indicator?
The digital dial indicator has a measuring range of 12.7 mm and a resolution/reading of 0.01 mm, with an overall stated accuracy of 0.01 mm.

How is measurement data exported for documentation?
Data is transferred via the USB‑C interface; the gauge stores Max/Min/Δ values and can stream measurements for traceable record keeping and integration into inspection software.

Does the instrument support tolerance checks and automatic pass/fail?
Yes. A programmable tolerance function provides automatic pass/fail evaluation with a red/green background light for rapid visual assessment during routine inspections.

Is the indicator suitable for portable use on the shop floor?
The compact design, rechargeable lithium battery and protective outer ring make the instrument appropriate for both bench and portable use in workshop environments.
