75-100mm Dial Bore Gauge With Counting Display 0.01mm, Matt Chrome Drum, DIN 863 - Metav IndustryLine

Combining 0.01 mm resolution with a 75–100 mm measuring range and a ratchet stop ensures precise, repeatable outside measurements for workshop quality control; order the instrument directly via Metav Werkzeuge or consult our technical advisors for application guidance.

M304.054 Micrometer (75–100 mm) — 0.01 mm graduation, ratchet stop

M304.054 is a robust outside micrometer designed for precise dimensional checks in metalworking and inspection benches, featuring an analogue 0.01 mm graduation and a mechanical counter for efficient repeated measurements

• Precision 0.01 mm graduation
• Measuring range 75–100 mm
• Ratchet stop for consistent force
• Complies with DIN 863 standard

Accurate readings for routine quality control

The outside micrometer delivers an analogue 0.01 mm division, providing the standard resolution expected in workshop metrology and enabling clear, verifiable measurements for production control. Built to DIN 863, the instrument meets recognised shop-floor standards and is suitable for serial checking of turned or milled parts. The mechanical counter simplifies repetitive tasks by helping to track incremental adjustments without interrupting the measurement workflow, reducing transcription steps and speeding up inspection cycles.

Repeatability through controlled measuring force

A built-in ratchet stop enforces a consistent contact pressure, which substantially reduces operator-induced variation and improves repeatability between readings. The spindle advances with a 0.5 mm pitch, translating hand motion into fine axial movement that is easy to control; the spindle body has a 6.5 mm diameter for stable guidance. Together with hardened measuring faces, these elements minimise wear and preserve the instrument’s zero and accuracy over extended use, so bench checks stay reliable even after sustained daily operation.

Ergonomics and durability for the workshop

The instrument combines practical ergonomics with durable finishes: a matt chrome-plated thimble resists glare and offers a tactile surface for precise adjustments, while the overall mechanical design avoids electronic failure modes common in harsh environments. As an analogue micrometer with a mechanical counter, it is particularly suited to environments where robustness and serviceability are priorities. Supplied by Metav IndustryLine, the device benefits from a European quality filter and logistics base that support predictable procurement and stocked availability for maintenance and replacement needs.

Contact Metav Werkzeuge for application advice and to secure the Metav IndustryLine M304.054 for your inspection bench — phone +49 2822 7131930 or email info@metav-werkzeuge.com

Technical Data

• Article number: M304.054
• GTIN: 4054469116143
• Category: Micrometers
• Standard: DIN 863
• Type: Analogue outside micrometer with mechanical counter

Facts

• Measuring range: 75–100 mm
• Spindle pitch: 0.5 mm
• Spindle diameter: 6.5 mm
• Reading / resolution: 0.01 mm
• Tariff number: 90173000

Special features

• Ratchet stop
• Matt chrome-plated thimble
• Hardened measuring faces

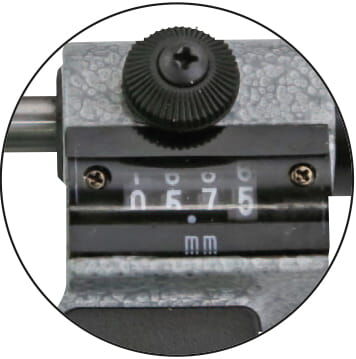

• Mechanical counter (Zählwerk)
• eClass: 21170328
• ETIM: EC003590

FAQ

What measuring range does this micrometer cover?
The M304.054 covers a measuring range of 75–100 mm, making it suitable for medium outside dimensions on production parts.

How fine is the graduation and what accuracy is expected?
The instrument has a 0.01 mm analogue graduation; as an analogue micrometer to DIN 863 it provides the standard shop-floor resolution for routine measurements.

Does the micrometer include any features to improve repeatability?
Yes — the micrometer is equipped with a ratchet stop to apply consistent measuring force and a mechanical counter to assist with repeated measuring tasks.

Are the measuring faces hardened?
The micrometer is supplied with hardened measuring faces, which increases wear resistance and helps maintain measurement reliability over time.

Which manufacturer supplies this product?
The instrument is part of the Metav IndustryLine range and is supplied via Metav Werkzeuge for dependable European distribution.
