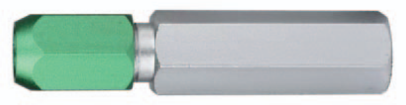

Measuring Pin Holder GO, 5–6 mm, Green Receptacle, One-sided (Metav IndustryLine)

The Measuring Pin Holder GO, 5–6 mm, Green Receptacle, One-sided provides secure mounting for measuring pins and is designed for use in inspection fixtures, gauges and test setups.

• Anodised Aluminium body for long service life
• Fits Measuring Pins 5–6 mm diameter
• Green Receptacle for clear visual identification
• One-sided design for straightforward mounting
• Compact dimensions: Length 55 mm, Width 12 mm

Precision mounting that supports reliable measurement results

The Measuring Pin Holder GO secures measuring pins with consistent alignment, reducing setup variation and improving repeatability in measurement tasks. The holder is suitable for precision inspection environments where stable pin positioning matters, supporting accurate gauge readings and fewer rechecks. By ensuring the measuring pin is held coaxially, the component helps maintain measurement integrity across repeated cycles.

Robust, lightweight construction for industrial use

Constructed from Anodised Aluminium, the holder combines corrosion resistance with low weight, making it suitable for repeated handling and fixture integration. The anodised surface protects against wear and small contaminants while preserving the dimensional stability of the part. For users this means longer service life and reduced maintenance compared with untreated components.

Clear identification and user-friendly design for efficient workflows

The Green Receptacle offers immediate visual identification within assemblies and fixtures, speeding up process checks and reducing assembly errors. The one-sided configuration simplifies installation and is particularly beneficial in compact layouts or where access is limited. These practical design choices support faster setup times and smoother operation in quality control environments.

Compact dimensions and compatibility details for planning

With a length of 55 mm and a width of 12 mm, the holder integrates easily into existing inspection rigs and custom fixtures. It accepts measuring pins with a diameter range of 5–6 mm, matching common pin sizes used in Go/No-Go and contact measurement applications. If further specification data or dimensional drawings are required for fixture design, METAV Werkzeuge offers technical support.

We recommend the Metav IndustryLine Measuring Pin Holder GO with Green Receptacle for reliable 5–6 mm probe mounting; for personalised technical advice or application questions contact METAV Werkzeuge — Email: info@metav-werkzeuge.com — Phone: +49 2822 7131930 — WhatsApp: +49 170 2837271

• Measuring Pin Holder GO, 5–6 mm, Green Receptacle, One-sided
• Brand: Metav IndustryLine
• SKU: M318.566.6
• Colour: Green
• Material: Aluminium
• Surface: Anodised
• For measuring pins: 5–6 mm
• Application: Mounting and positioning of measuring pins in inspection fixtures and gauges
• Design: One-sided
• Width: 12 mm
• Length: 55 mm
• Manufacturer / Hersteller: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; www.metav-shop.de; info@metav-werkzeuge.com

FAQ

What measuring pin sizes does the Measuring Pin Holder GO from Metav IndustryLine accept?
The Metav IndustryLine Measuring Pin Holder GO is designed for measuring pins with a diameter of 5–6 mm and provides a secure fit for those common pin sizes.

Is the Metav IndustryLine Measuring Pin Holder GO suitable for industrial fixture use?
Yes, the holder from Metav IndustryLine features an anodised aluminium construction and a compact one-sided design, making it suitable for integration into industrial fixtures and inspection rigs.

Who can I contact for further technical details about the Measuring Pin Holder GO (Metav IndustryLine)?
If additional technical data or application support is needed for the Metav IndustryLine Measuring Pin Holder GO, METAV Werkzeuge offers comprehensive advice — Email: info@metav-werkzeuge.com or Phone: +49 2822 7131930.
