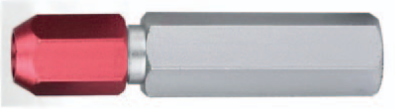

Measuring pin holder NOGO 0.1–1 mm — red, one‑sided mount (Metav IndustryLine)

Measuring pin holder NOGO 0.1–1 mm — red, one‑sided mount (Metav IndustryLine) is a compact, robust accessory designed to receive precision measuring pins for go/no‑go gauging in tight setups.

• Anodised aluminium body
• Accepts measuring pins Ø 0.1–1 mm
• Single‑side red mounting
• Compact 46 mm length for tight spaces

Reliably controlled limit checking for small‑diameter pins

The compact measuring pin holder offers a dependable solution for limit checking where space is restricted. Manufactured from anodised aluminium, the mount combines light weight with wear resistance so that repeated insertion and removal of pins introduces minimal fretting. Compatibility with measuring pins Ø 0.1–1 mm ensures a wide span of small‑diameter gauges can be used, which is especially useful for micro‑components and precision inspection tasks. The design supports consistent seating of pins, improving repeatability when used with fixture plates or handheld gauges.

Practical fit‑up and visual identification in inspection workflows

A single‑sided red mounting provides immediate visual identification of the NOGO position within a gauge set, helping to reduce setup errors and speed throughput on the inspection bench. The short 46 mm length and 9 mm body width enable placement in confined assemblies or on custom jigs without obstructing adjacent instruments. The NOGO function clarifies acceptance criteria at a glance: the holder receives the NOGO pin so that oversize parts are easily detected, streamlining pass/fail decisions and lowering the risk of false positives during serial checks.

Robust material choice and simple handling for workshop use

Using anodised aluminium gives a balance of corrosion resistance and mechanical stability while keeping the component light for manual handling and minimising additional load on fixtures. The holder is intended for the secure reception of measuring pins and is supplied as a single‑side unit in red, optimised for insertion of pins with diameters from 0.1 mm to 1 mm. Maintenance is straightforward — keep contact faces clean and avoid aggressive solvents to preserve the anodised finish. As a straightforward accessory, this holder integrates into existing gauge sets and bespoke inspection rigs without complicated adjustment.

For precision small‑diameter gauging tasks, choose the Metav IndustryLine measuring pin holder for reliable NOGO control — contact Metav Werkzeuge for tailored advice or to discuss compatible pin assortments and delivery options.

Technical data

• SKU: M318.567.1
• Label: Measuring pin holder NOGO 0.1 - 1 mm red single‑sided mount
• Brand: Metav IndustryLine

Facts

• Length: 46 mm
• Width: 9 mm
• Measuring pin range: 0.1–1 mm

Special features

• Anodised aluminium construction
• Single‑side red mounting for visual identification
• For reception of measuring pins
• NOGO type for limit checking

FAQ

What is the functional purpose of this holder?
The measuring pin holder is used to receive NOGO pins so that oversize parts can be detected quickly; the Metav IndustryLine NOGO holder M318.567.1 secures pins in the 0.1–1 mm range for clear go/no‑go checks.

Which pin diameters fit this holder?
This holder accepts measuring pins with diameters from 0.1 mm up to 1 mm; the range is specified for the Metav IndustryLine measuring pin holder M318.567.1 and covers common micro‑gauging sizes.

How does the red single‑side mount help in production?
The red single‑side mount provides fast visual identification of the NOGO position, aiding operators during inspection runs and reducing set‑up time when the Metav IndustryLine holder is integrated into gauge fixtures.

Is the holder suitable for use in confined fixtures?
Yes — the compact 46 mm length and 9 mm body width make the holder well suited to tight fixture areas where space is limited while still permitting reliable pin seating.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
