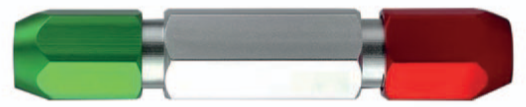

Gauge pin holder GO/NO‑GO 0.1–1 mm, double‑sided (green + red) — Metav IndustryLine

The gauge pin holder GO/NO‑GO 0.1–1 mm is a compact inspection fixture for quick pass/fail checks of small-diameter pins and precision components in bench and assembly environments.

• Double-sided GO/NO‑GO visual check
• Anodised aluminium, corrosion-resistant finish
• Accepts gauge pins 0.1–1 mm

Speed up small-part inspection with a visual GO/NO‑GO solution

Designed for straightforward, repeatable checks, this holder turns repetitive micrometrology tasks into a faster process. The double-sided GO/NO‑GO concept offers immediate visual confirmation of conformity, reducing the need for repeated micrometric measurement when a simple tolerance check suffices. With an acceptance range of 0.1–1 mm, the fixture covers a broad span of small-diameter gauge pins commonly used for pin gauges, dowels and micro‑components. The compact geometry translates into rapid handling on the shop bench and fewer tool changes during inspection runs.

Durable, lightweight construction for daily workshop use

Manufactured from anodised aluminium, the holder combines low weight with mechanical stability. The surface treatment improves wear and corrosion resistance while maintaining a precise seating for gauge pins. The green/red colour coding enhances visual clarity: green for GO and red for NO‑GO, which speeds decision‑making under production lighting. With a length of 58 mm and a width of 9 mm, the unit is small enough for crowded benches and fixtures yet sizeable enough to be gripped comfortably for manual checks. The hard-wearing finish ensures long service life in industrial environments.

Integrates simply into inspection routines and jigs

As a purpose-built fixture for gauge pins, the holder complements more elaborate metrology setups by taking over high-volume tolerance screening. It is suitable for standalone bench checks, addition to inspection trays, or as an insert in custom jigs where repeated quick verification is required. The uncomplicated design means training time is minimal and the device can be used by operators and quality staff alike to maintain throughput without sacrificing traceable screening steps. The robust aluminium body and clear visual indicators support efficient workflows and reduce the frequency of full dimensional checks where a GO/NO‑GO decision is adequate.

Choose the Metav IndustryLine gauge pin holder for reliable small‑part screening and contact Metav Werkzeuge in Emmerich for supply and application advice: info@metav-werkzeuge.com | +49 2822 7131930

Technical Data

• Article number: M318.568.1
• Brand: Metav IndustryLine
• Material: Aluminium, anodised
• For gauge pins: 0.1–1 mm
• Colour: green - red

Facts

• Width: 9 mm
• Length: 58 mm
• SKU: M318.568.1

Special features

• Double-sided GO/NO‑GO design
• For insertion of gauge pins
• Colour-coded pass/fail indication
• Lightweight and corrosion-resistant finish

FAQ

What gauge pin sizes can be used with this holder?
The holder accepts gauge pins in the 0.1–1 mm range and is designed for precise seating of pins within that span.

Is the fixture suitable for daily production checks?
Yes, the anodised aluminium construction and colour-coded GO/NO‑GO design make the unit well suited to frequent bench and assembly inspections.

Can this holder be integrated into custom jigs?
Integration is straightforward; the compact dimensions (58 mm × 9 mm) allow insertion into trays or jigs for repeated screening operations.

Does the holder provide a visual pass/fail indication?
The device uses a green/red, double-sided GO/NO‑GO arrangement to provide immediate visual confirmation of conformity.

What is the manufacturer and article number for ordering?
The product is from Metav IndustryLine, article number M318.568.1.
