0.5-1.00 mm Ceramic Gauge Pin Set 51 pcs, Step 0.01 mm, Stainless ZrO2, Antimagnetic, 50 mm Length - Metav IndustryLine

Take advantage of the combination of zirconia ceramic construction, HV 1250 hardness and < ±0.0015 mm accuracy for reliable, repeatable gauging in the workshop — order directly via Metav Werkzeuge or contact our consultants for specification advice.

Ceramic Gauge Pin Set M318.590 — Zirconia pins, ±0.0015 mm accuracy (Metav IndustryLine)

The Ceramic Gauge Pin Set M318.590 is a workshop-grade collection of zirconia gauge pins designed for precise diameter checking and setting applications in metrology and toolroom environments

• Zirconia ceramic pins HV 1250 hardness
• Accuracy < ±0.0015 mm for repeatable tests
• 0.01 mm increments across 0.5–1.00 mm range

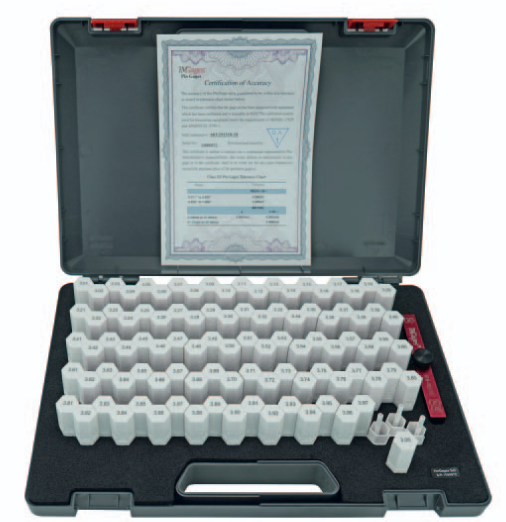

• Supplied in plastic case with probe holder

Measurement certainty for quality control

The set delivers industrial-grade measurement certainty by combining ultra-hard zirconia ceramic pins with a declared accuracy of < ±0.0015 mm. The very fine 0.01 mm increments across the 0.5–1.00 mm range allow differential selection for close-tolerance fits and go/no‑go comparisons. Ceramic material provides both wear resistance and corrosion immunity, which preserves diameter stability over many cycles and reduces the need for frequent requalification — a direct efficiency gain in production control and inspection throughput.

Built to withstand workshop use and frequent handling

Each pin in this 51-piece set is 50 mm long, offering a stable engagement length for bore checks and setting gauges. The HV 1250 rating refers to Vickers hardness and indicates exceptional surface resistance to wear and scratching; this translates into longer service life compared with softer reference pins. The pins are antimagnetic, minimising interference in sensitive checks and making them suitable for environments where magnetic pick-up would compromise results. Supplied in a plastic case with an integrated probe holder, the set stays organised and protected between uses.

Practical integration into inspection and setup routines

These pins are intended for routine use on inspection benches and in toolrooms where repeatability and traceability matter. The graduated series, in precise 0.01 mm steps, supports incremental adjustment tasks such as bore verification, setting plug gauges and matching mating parts to tolerance. The compact design and included probe holder aid rapid selection and safe handling, reducing set-up time and lowering the risk of accidental damage. For laboratories and small production lines, the combination of ceramic hardness and dimensional stability enhances long-term measurement reliability.

For workshop-grade repeatability and durable performance, choose the Metav IndustryLine ceramic gauge pin set and contact Metav Werkzeuge in Emmerich for ordering or further specification support

Technical data

• Article number: M318.590
• Designation: Ceramic gauge pin set, 51-piece, 0.5–1.00 mm, 0.01 mm steps
• Manufacturer: Metav IndustryLine

Facts

• Measuring range: 0.5–1.00 mm
• Increment: 0.01 mm
• Length: 50 mm
• Accuracy: < ±0.0015 mm
• Hardness: HV 1250
• Set size: 51 pieces

Special features

• Material: zirconia ceramic
• Antimagnetic
• Wear-resistant
• Supplied in plastic case
• Includes probe holder
• Workshop execution

FAQ

What applications are best suited to this gauge pin set?
The Ceramic Gauge Pin Set M318.590 (Metav IndustryLine) is ideal for fine internal diameter checks, setting plug-type gauges and assembly verifications where sub‑micrometre stability and wear resistance are required.

How precise are the individual pins?
Individual pins in the set are provided in 0.01 mm increments and the set is specified with an overall accuracy of < ±0.0015 mm, enabling tight tolerance comparisons and reliable repeatability.

Is the material suitable for corrosive or magnetic environments?
Yes. The pins are made from zirconia ceramic, which is corrosion‑resistant and antimagnetic, making them appropriate for environments where steel pins would be disadvantageous.

Does the set include storage and handling accessories?
The set is supplied in a plastic case and includes a probe holder to keep items organised and safe during transport and routine use.

Which industries typically use this product?
Precision workshops, metrology labs, toolrooms and small production lines commonly use this gauge pin set for inspection, calibration and assembly tasks where long‑term dimensional stability is important.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
