150mm Ceramic Gauge End Standard To DIN 861, Zirconia, HV1250 Wear-Resistant - Metav IndustryLine

Combining zirconia ceramic construction, HV 1250 hardness and DIN EN ISO 3650 accuracy, this end measure provides a stable, wear‑resistant reference for precision inspection and fixture set‑up. Order the Ceramic End Measure directly via Metav Werkzeuge or consult our specialists for application guidance.

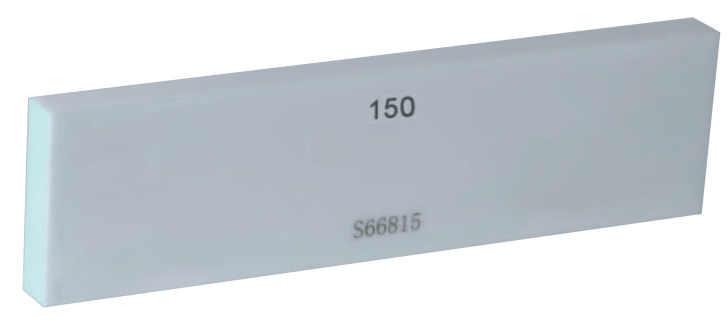

Ceramic End Measure 150 mm DIN 861 — zirconia, HV 1250

The Ceramic End Measure 150 mm DIN 861 is a compact, high‑stability reference gauge designed for precision dimensional checks and calibration tasks in workshops and laboratories.

• Zirconia ceramic, antimagnetic and wear‑resistant
• Accuracy per DIN EN ISO 3650
• Hardness HV 1250, double steel hardness
• Cross‑section 35 × 9 mm, nominal 150 mm

Stable reference values for repeatable inspection

Made from zirconia, the gauge offers exceptional dimensional stability and a surface that resists wear under regular use. Compliance with DIN EN ISO 3650 ensures the component functions as a reliable reference in inspection routines, reducing uncertainty across repeated measurements. The extreme HV 1250 hardness means minimal abrasive loss compared with metallic gauges, which preserves nominal dimensions and supports long intervals between verification checks.

Durability and mechanical stiffness where it matters

The pronounced cross‑section of 35 × 9 mm provides sufficient stiffness for handling and minimises bending during placement, while the nominal length of 150 mm suits a wide range of workshop tasks. The wear‑resistant and antimagnetic properties keep the reference surface free from magnetic interference and surface degradation, translating directly into fewer rejected parts and lower rework rates when used as a production benchmark.

Designed for integration into quality workflows

Certified to the dimensional standards indicated and marked as an end measure to DIN 861, this gauge can be used as a master for routine checks, fixture set‑up and incoming inspection. Its consistent material behaviour across temperature and contact conditions supports traceable measurements and easier documentation in quality records. Specification sheets and application advice are available from Metav IndustryLine to aid incorporation into existing calibration procedures.

Contact Metav Werkzeuge in Emmerich for specification sheets or to discuss how the Metav IndustryLine Ceramic End Measure (SKU M324.150) can secure traceable reference values for production and inspection

Technical Data

• Article number: M324.150
• Description: Ceramic End Measure 150 mm DIN 861
• Manufacturer: Metav IndustryLine

Facts

• Nominal length: 150 mm
• Cross‑section: 35 x 9 mm
• Hardness: HV 1250
• Accuracy standard: DIN EN ISO 3650

Special features

• Material: zirconia ceramic
• Antimagnetic
• Wear‑resistant surface
• Compliance: DIN 861

FAQ

What material is the gauge made from?
The Ceramic End Measure 150 mm DIN 861 is manufactured from zirconia ceramic; the material is stainless, antimagnetic and designed for wear resistance.

Which accuracy and standards apply to this reference?
Accuracy is specified according to DIN EN ISO 3650 and the product is supplied as an end measure to DIN 861 for use in calibrated inspection environments.

Is the gauge suitable for use near magnetic equipment?
Yes, the antimagnetic properties of the zirconia material prevent magnetic interference during measurements.

For which applications is this 150 mm end measure intended?
The gauge is intended as a stable reference for workshop inspection, fixture alignment and laboratory calibration where a 150 mm nominal length is appropriate.

How should the gauge be handled and stored?
Handle the ceramic gauge with care to avoid impacts; store in a dry, dust‑free environment and keep protective packaging to prevent surface contamination.
