170mm Rockwell Hardness Tester HRD-150 Auto Load Motorised Loads 558.4/980.7/1471N EN-ISO 6508 ASTM E-18 GB/T230.2

Take advantage of a motorised loading system, wide Rockwell ranges and comprehensive accessories for reliable, repeatable hardness testing across steels, cast iron and non‑ferrous metals; order directly via Metav Werkzeuge or contact the consultants for detailed application advice.

Rockwell Hardness Tester HRD-150 — automatic load, max test height 170 mm (Metav IndustryLine)

The Rockwell Hardness Tester HRD-150 is an automatic Rockwell testing instrument designed for workshop and production environments, offering standard‑compliant hardness measurement for steel, cast iron, copper and brass with a maximum specimen height of 170 mm.

• Motorised test force for reproducible results
• Measures HRA, HRB and HRC ranges
• Incl. comparison blocks and diamond indenter

Precise, standards‑oriented hardness testing that fits production

The HRD‑150 delivers repeatable Rockwell results by applying a motorised testing sequence that reduces operator variability and increases throughput. Calibrated loads of 558.4 N / 980.7 N / 1,471 N and a dedicated pre‑force of 98.07 N enable direct reading across common Rockwell scales (20–88 HRA, 20–100 HRB, 20–70 HRC). Compliance with EN‑ISO 6508, ASTM E‑18 and comparable national standards ensures that measurements integrate seamlessly into quality systems and certificates. For production lines where traceable, comparable hardness values are required, the motorised load and clear scale ranges make this tester a pragmatic choice.

Designed for reliable handling and a wide range of components

A maximum test height of 170 mm and a stable 65 kg frame provide the rigidity needed for consistent results on small castings, shafts and housings. The instrument’s configuration supports typical workshop tasks without complex setup: an included 120° diamond indenter, HM indenter Ø 1.588 mm and three support tables (Ø 150, Ø 60, V‑form) facilitate a variety of test situations from flat faces to cylindrical specimens. The solid construction combined with a compact footprint (500 x 225 x 640 mm) simplifies integration into inspection benches while maintaining the profile stiffness required for reproducible measurements.

Accessories and features that reduce process steps

Delivered with comparison blocks (4 × HRC + 1 × HRB) and the standard indenters, the tester arrives ready for verification and routine checks, reducing first‑use setup time. The automatic load cycle and standard electrical supply (230 V, 50/60 Hz) enable straightforward installation in most workshop environments. Mechanical, analogue readout elements complement the motorised load for users who require familiar handling and uncomplicated maintenance. These design choices shorten downtime and help laboratories and workshops maintain consistent QC throughput.

Clear measurement logic and practical advantages for workshop teams

The instrument’s scale coverage (HRA, HRB, HRC) makes it versatile for mixed‑material batches; operators can select the appropriate scale based on expected hardness and material class, while the motorised application of test forces diminishes the effect of manual variation. For customers accustomed to comparative methods, the supplied comparison plates provide a quick verification path, supporting in‑house checks and documentation. The combination of standard conformity, robust accessories and straightforward operation supports a predictable inspection workflow that benefits both production and incoming goods control.

Contact Metav Werkzeuge to discuss how the HRD‑150 can be configured for specific parts and to arrange prompt delivery from Emmerich.

Technical data

• Article number: M502.214
• GTIN: 4054469144405
• Weight: 65 kg
• Dimensions (W×D×H): 500×225×640 mm

Facts

• Measurement ranges: 20–88 HRA, 20–100 HRB, 20–70 HRC
• Test forces: 558.4 N / 980.7 N / 1,471 N
• Pre‑force: 98.07 N
• Maximum specimen height: 170 mm
• Power supply: 230 V, 50/60 Hz

Special features

• Motorised test force (automatic load)
• Standards: EN‑ISO 6508, ASTM E‑18, JJS Z2245, GB/T230.2
• Included accessories: comparison blocks (4×HRC + 1×HRB), 120° diamond indenter, HM indenter Ø 1.588 mm, 3 support tables (Ø150, Ø60, V‑form)

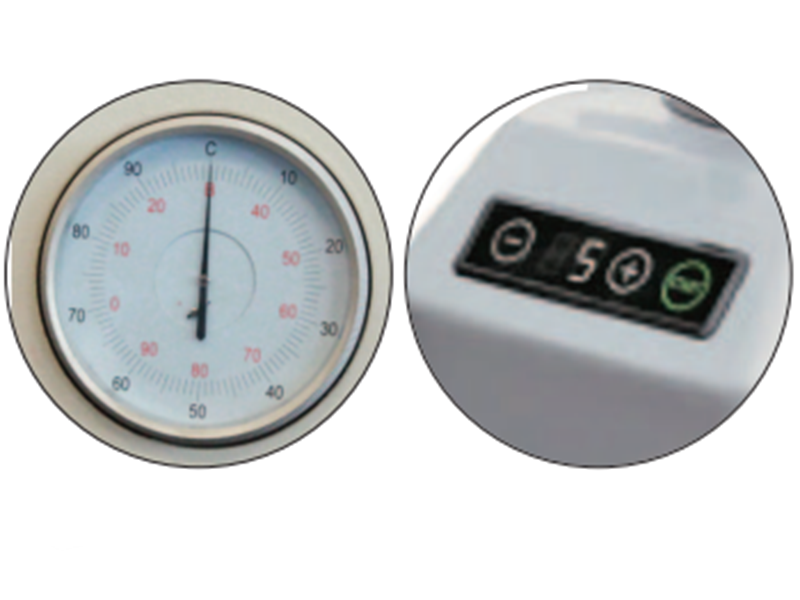

• Analogue measuring/readout system

FAQ

What Rockwell scales are covered by the instrument?
The HRD‑150 covers HRA, HRB and HRC ranges (20–88 HRA, 20–100 HRB, 20–70 HRC), allowing evaluation of a wide variety of metals with a single tester.

Is the HRD‑150 suitable for testing cast iron and non‑ferrous metals?
Yes. The machine is specified for hardness testing of steels, cast iron, copper and brass and is supplied with the appropriate indenters and comparison blocks for these materials.

What accessories are included for immediate use?
Delivery includes comparison blocks (4 × HRC + 1 × HRB), a 120° diamond indenter, an HM indenter (Ø 1.588 mm) and three support tables (Ø 150, Ø 60, V‑form) so the tester is ready for verification and common test setups.

Which standards does the tester comply with?
Measurements conform to EN‑ISO 6508, ASTM E‑18, JJS Z2245 and GB/T230.2, ensuring results are comparable with common national and international specifications.

How does the motorised load improve testing?
Motorised loading in the HRD‑150 applies the test forces consistently, reducing operator‑dependent variation and improving repeatability and throughput in production and inspection routines.

What are the electrical and installation requirements?
The tester operates from a standard 230 V, 50/60 Hz supply and has a compact footprint suitable for bench mounting in workshop and laboratory environments.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
