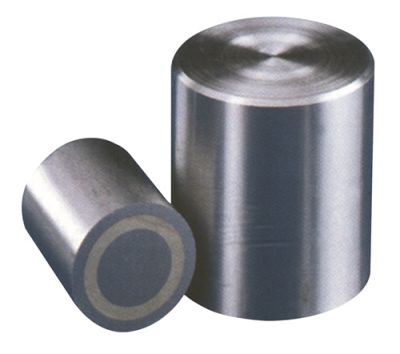

10mm Magnetic Rod Gripper D6 Smooth 2N Holding Force, Up to 450 °C - TECWERK
Compact and thermally stable magnetic holding with a 6 mm diameter and 2 N holding force enables secure retention in confined assemblies and high-temperature processes; order or request specification advice directly via Metav Werkzeuge. Magnetic rod gripper D6×H10 smooth — AlNiCo 500, 2 N holding force (TECWERK) A Magnetic rod gripper D6×H10 smooth designed for compact, high-temperature holding and precise fitting in fixtures and jigs Compact 6 mm diameter for tight spaces Stable AlNiCo 500 magnet material High-temperature capability up to 450 °C Precise h6 tolerance, dimension h: 2 mm Space‑saving hold with reliable thermal stability The compact design of the Magnetic rod gripper D6×H10 smooth offers a small footprint while delivering a 2 N holding force suitable for light retention tasks in assembly and fixturing. A 6 mm diameter and 10 mm height allow integration into tight pockets and multi-point clamps where minimal added mass is essential. Because the core material is AlNiCo 500, magnetic performance is retained under elevated temperatures, making the component applicable to processes that expose parts to heat without frequent demagnetisation. Consistent positioning through defined fit and finish Repeatable seating is provided by a defined dimension h: 2 mm together with a h6 tolerance, which ensures consistent axial location in mating bores or locating holes. This tolerance-driven fit reduces alignment variation and decreases setup time in serial production. The smooth finish minimises surface abrasion against mating parts and supports predictable contact behaviour; handling is eased and dressing or additional surface treatment is generally unnecessary. Metav’s specification team can be consulted for integration guidance. Robust material choice for long service in demanding processes Material selection emphasises endurance: AlNiCo 500 maintains useful magnetic properties to up to 450 °C, enabling use in brazing fixtures, heat-treatment stations and other high-temperature environments. The smooth execution limits particulate accumulation and is straightforward to clean during routine maintenance. Supplied as a single unit for trial fitting, the component is intended for applications that require modest magnetic retention combined with thermal resilience and compact geometry. For TECWERK magnetic gripper requirements and fast processing from Metav Werkzeuge, contact Metav Werkzeuge at +49 2822 7131930 or info@metav-werkzeuge.com for precise ordering and technical advice Technical data Article number: 4000832250NW Label: Magnetstabgreifer D6xH10mm glatt Haftkraft 2N Manufacturer: TECWERK Product type: Magnetic rod gripper Packaging unit: 1 Facts Diameter: 6 mm Height: 10 mm Holding force max: 2 N Temperature range: up to 450 °C Fit: h6; dimension h: 2 mm Special features Material: AlNiCo 500 Smooth finish Execution: smooth SKU: 4000832250NW FAQ What holding force does this magnetic rod provide? The magnetic rod gripper provides a maximum holding force of 2 N, specified for light retention tasks where modest magnetic clamping is required. Is the gripper suitable for high-temperature operations? Yes, the TECWERK magnetic rod gripper (SKU 4000832250NW) uses AlNiCo 500 and is rated for use up to 450 °C, making it suitable for elevated-temperature fixtures. How is repeatable positioning ensured? Repeatable positioning is achieved by the defined dimension h of 2 mm combined with an h6 tolerance, which ensures consistent seating in mating bores. What are the typical applications for this component? Typical uses include compact fixturing, locating aids in assemblies, brazing fixtures and heat-resistant clamping where small size and thermal stability are needed. Manufacturer/Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
10mm Magnetic Rod Gripper Smooth H16mm Holding Force 8.5N, AlNiCo 500 - TECWERK
Robust magnetic performance combined with a compact footprint and high temperature resilience ensure dependable small-part holding in demanding production environments; the combination of AlNiCo 500 construction, 8.5 N holding force and a D10 x H16 mm profile supports precise fixture integration. Order directly via Metav Werkzeuge or request specialist advice for application-specific selection. Magnetic rod gripper D10 x H16 mm smooth, holding force 8.5 N — TECWERK magnetic gripper The Magnetic rod gripper D10 x H16 mm smooth, holding force 8.5 N is a compact magnetic holding element designed for precise positioning and secure retention of small components in assembly and fixturing tasks. AlNiCo 500 magnetic alloy Compact D10 x H16 mm smooth design Holding force 8.5 N Suitable up to 450 °C, h6 fit Secure holding with temperature resilience The small magnetic element delivers a consistent holding force of 8.5 N, making it suitable for retention and light clamping tasks in assembly and handling equipment. Constructed from AlNiCo 500, the magnet retains magnetic performance at elevated temperatures — specified up to 450 °C — which reduces the need for temperature-sensitive substitutions in processes that involve heat. The compact D10 x H16 mm footprint enables installation in tight fixture pockets and minimises interference with adjacent components, supporting efficient production flow and reduced cycle times. Repeatable seating and exact positioning A defined fit dimension h = 6 mm with h6 tolerance ensures reproducible seating in housings or dowel holes, which is essential for repeatable fixturing and automated pick-and-place sequences. The smooth finish reduces abrasion against mating parts and simplifies cleaning, while the precisely machined diameter promotes reliable alignment during assembly. These characteristics translate into fewer rejects from misalignment and lower setup time when integrating the element into jigs or custom fixtures. Reliable choice for compact fixture design The compact magnetic element is engineered for low-maintenance service life thanks to stable magnetic properties of AlNiCo 500 and a robust mechanical design. The smooth version is particularly suited to applications where contact surfaces must remain unmarred and where frequent part handling occurs. For engineers and workshop managers seeking a space-efficient magnetic holding solution, this gripper offers a predictable performance profile that eases specification decisions and supports consistent production quality. For detailed application advice on the TECWERK magnetic rod gripper or to arrange rapid supply via Metav Werkzeuge, please contact Metav Werkzeuge at +49 2822 7131930 or info@metav-werkzeuge.com for personalised assistance Technical Data Article number: 4000832252NW Product type: Magnetic rod gripper Manufacturer brand: TECWERK Material: AlNiCo 500 Finish: smooth Packaging unit: 1 Facts Diameter: 10 mm Height: 16 mm Holding force (max): 8.5 N Fit dimension h: 6 mm Fit tolerance: h6 Operating temperature: up to 450 °C Special features Compact D10 x H16 mm design Smooth execution for reduced wear High-temperature-capable magnetic alloy Precise fit for fixture integration FAQ What is the maximum operating temperature for this magnetic gripper? The magnetic gripper uses AlNiCo 500 and is specified for operation up to 450 °C, allowing use in elevated-temperature environments. Which size and fit tolerance should be prepared for installation? Prepare a seating for h = 6 mm with an h6 tolerance to ensure repeatable installation and correct alignment of the gripper. How strong is the magnetic holding force? The component provides a maximum holding force of 8.5 N, suitable for light retention and positioning of small parts in fixtures. Is this product suitable for integration into compact fixtures? Yes, the compact D10 x H16 mm profile and smooth finish make the element well suited for tight fixture pockets and applications requiring minimal interference. How can Metav Werkzeuge assist with selecting the right variant? Metav Werkzeuge can advise on suitability and supply; the TECWERK magnetic rod gripper (SKU 4000832252NW) can be specified for particular assembly needs and integrated into bespoke fixtures. TECWERK: Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
13mm Flat Magnetic Gripper With Threaded Bush 10N Holding Force, Up To 200 °C - TECWERK
Compact, space-saving holding with a 13 mm diameter, M3 threaded bush and a 10 N holding force ensures dependable positioning in small fixtures; the low-profile 11.5 mm height supports tight assemblies while recommended temperatures up to 100 °C (max 200 °C) expand use cases. Order directly via Metav Werkzeuge or consult their specialists for integration advice. TECWERK Magnetic Flat Gripper D.13×H11.5mm — M3 Thread, 10 N Holding Force The magnetic flat gripper D.13×H11.5mm is a compact flat magnetic holder engineered for light-duty holding and precise positioning in assembly, fixture and small-part handling applications Compact 13 mm diameter Secure M3 threaded bush mounting Max holding force 10 N Temperature resistant up to 200 °C Space-saving holding that simplifies fixtures and jigs A low-profile design delivers efficient fixation in constrained assemblies: the 13 mm diameter and 11.5 mm height reduce interference in tight setups, while the holding force 10 N secures small components without bulky hardware. The combination of compact dimensions and measurable holding performance allows engineers to replace more complex clamping parts with a simple magnetic solution, reducing setup time and simplifying repetitive positioning tasks. This results in faster cycle times and fewer handling operations in production environments. Robust magnetic material and reliable threaded mounting Manufactured from hard ferrite, the magnet offers stable magnetic properties suited to frequent, light-duty use. The integrated M3 thread in the threaded bush enables direct, repeatable attachment to plates, brackets or small fixtures, ensuring secure mounting and straightforward integration into existing tooling. The component is recommended up to 100 °C and remains temperature resistant up to 200 °C for temporary excursions, making the unit adaptable to processes with moderate heat exposure while preserving holding performance over time. Practical applications and operational advantages Ideal for assembly, positioning of small parts, light automation end-effectors and jig construction, this flat magnetic holder reduces mechanical complexity while improving handling consistency. The simple geometry facilitates quick replacement and minimal maintenance, delivering a pragmatic way to enhance throughput without redesigning fixtures. For technical clarity and integration planning, assistance is available for selecting the correct specification and mounting approach to match specific production requirements. For tailored recommendations and local supply of TECWERK magnetic flat grippers, contact Metav Werkzeuge for professional guidance and parts provision from Emmerich. Technical data Article number: 4000832241NW Manufacturer: TECWERK Product: Magnetic flat gripper Version: with threaded bush Material: hard ferrite Facts Diameter: 13 mm Height: 11.5 mm Thread: M3 Holding force: 10 N Recommended operating temperature: up to 100 °C Maximum operating temperature: 200 °C Special features With threaded bush Hard ferrite magnet Light-duty holding and positioning Packaging unit: 10 Label: Magnetflachgreifer D.13xH11,5mm m.Gewindebuchse Haftkraft 10N FAQ What material is used for the magnet? The TECWERK magnetic flat gripper is made from hard ferrite, a stable ceramic magnet material suited to light-duty holding applications. What holding force can be expected from this gripper? The magnetic flat gripper provides a holding force of 10 N, sufficient for securing small components in positioning and fixture tasks. How is the gripper mounted? Mounting is via the integrated M3 threaded bush; the M3 thread allows secure attachment to brackets or fixture plates. Can the gripper be used at elevated temperatures? The flat magnetic gripper is recommended for continuous use up to 100 °C, with a maximum short-term resistance up to 200 °C. Which applications suit this magnetic holder best? Typical uses include assembly stations, small-part fixturing, light automation end-effectors and any setup requiring compact, repeatable magnetic holding. Manufacturer / Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
13mm Magnet Flat Gripper H4.5 No Threaded Insert Holding Force 10N - TECWERK
Take advantage of a compact, heat-resistant design combined with reliable holding power for repeatable fixturing and assembly tasks. Order the magnetic component directly via Metav Werkzeuge or consult the specialists for compatibility and supply from Emmerich. Magnetic flat gripper D13 x H4.5 mm without threaded sleeve – 10 N holding force (TECWERK) A Magnetic flat gripper D13 x H4.5 mm without threaded sleeve designed for precise, low-profile holding in assembly, jigs and fixture applications where a compact and heat-tolerant magnetic base is required Hard ferrite construction for corrosion resistance 10 N maximum holding force Compact Ø13 x H4.5 mm flat design Rated for up to 200 °C peak temperature Precise, repeatable holding in a compact form The flat magnetic base combines a hard ferrite core with a low-profile geometry to deliver consistent 10 N holding force in a space-saving package. The compact Ø13 x H4.5 mm footprint enables secure support of small ferrous parts within tight assemblies and precision jigs. The magnet’s flat design simplifies placement on planar surfaces and reduces unwanted protrusion, which benefits automated stations and manual workstation setups alike. Magnetic behaviour is predictable, aiding process planning and fixture repeatability. Thermal resilience for elevated-process applications Specified with a recommended operating temperature of up to 100 °C and a maximum peak tolerance of 200 °C, the component maintains magnetic stability during brief exposure to elevated temperatures. This characteristic supports short-duration thermal processes such as soldering or pre-heating sequences where a temporary magnetic hold is required. The temperature ratings allow integration into workflows that include heating steps, while the hard ferrite material ensures dimensional stability and long-term performance under typical workshop conditions. Easy integration and inventory efficiency The version without threaded sleeve provides a flush contact surface for direct mounting or embedding into fixtures where external threading is undesired. Supplied in packing unit 10, the item suits small-series production and maintenance replenishment without excessive stock. The plain design minimises machining effort for bespoke fixture blocks and simplifies replacement in service scenarios. Material choice and compact format contribute to a cost-effective solution for securing lightweight ferrous components during machining, inspection or assembly steps. Contact Metav Werkzeuge for specification support and supply from Emmerich — email info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: 4000832231NW SKU: 4000832231NW Product type: Magnetic flat gripper Brand: TECWERK Material: Hard ferrite Facts Diameter: 13 mm Height: 4.5 mm Holding force (max): 10 N Recommended operating temperature: up to 100 °C Maximum operating temperature (peak): 200 °C Packing unit: 10 Special features Design: Flat gripper without threaded sleeve Application: Holding / fixturing of ferrous parts Construction: Sintered ferrite magnet Usage: Suitable for compact fixtures and assembly jigs FAQ What is the maximum holding force of this magnetic flat gripper? The magnetic flat gripper offers a maximum holding force of 10 N, suitable for securing small ferrous components in fixtures and assembly stations. Which material is the magnet made from and what are the benefits? The unit is made from hard ferrite, providing good thermal stability and corrosion resistance for standard workshop environments. Can the gripper be used during heating operations? Short-term exposure is possible: recommended use is up to 100 °C with a peak tolerance of 200 °C for brief thermal steps. Is the product supplied with a threaded sleeve for fastening? This version is without threaded sleeve, offering a flush, low-profile contact surface for direct mounting or embedding. What is the packing quantity for ordering and which SKU applies? The item is supplied in a packing unit of 10 and is listed under SKU 4000832231NW (TECWERK). Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
13mm Magnetic Stub Gripper Smooth 12N Holding Force AlNiCo 500 - TECWERK
Compact, heat-resistant magnetic gripping for small parts: the combination of an AlNiCo 500 core, a compact 13 mm diameter and a 12 N holding force ensures secure positioning with minimal footprint — ideal for assembly jigs and inspection fixtures. Order the magnetic rod gripper directly via Metav Werkzeuge or consult the specialists for application advice. Magnetstabgreifer D13xH18mm glatt — magnetic rod gripper with AlNiCo 500 and 12 N holding force (TECWERK) A Magnetstabgreifer D13xH18mm glatt designed as a compact magnetic gripper for locating and holding small ferromagnetic components in elevated-temperature environments. AlNiCo 500 magnetic alloy core 12 N maximum holding force Smooth finish for gentle contact Rated for use up to 450 °C Precise holding with a compact footprint for production use The compact magnetic pin is built around an AlNiCo 500 magnet, which provides a stable magnetic field in a small volume and is especially suitable where consistent attraction is required over time. With a 13 mm diameter and a 18 mm overall height, the component is sized for tight assemblies and fixtures; the 12 N holding rating indicates the order of force available for locating or holding small components. The h6 fit tolerance and the additional dimension h: 7 mm are specified for accurate shaft fits and predictable positioning when integrated into jigs or carriers. This concise combination of dimensions and material makes the unit effective where space is limited but repeatability is essential. Reliability under heat and consistent performance in batches The magnetic gripper is specified for an operating temperature up to 450 °C, a parameter that allows the device to be deployed in processes with elevated thermal exposure without rapid demagnetisation typical of softer magnet grades. The smooth finish reduces mark risk on delicate parts and enables controlled contact, while the chosen magnet alloy maintains useful force at higher temperatures. For production planners and quality engineers, this translates into fewer process interruptions and consistent locating behaviour across repeated cycles, supporting process stability and predictable fixture performance. Integration and mounting advantages for workshop and industrial setups Sized for direct incorporation into fixtures, the gripper’s standardised h6 tolerance supports interchangeability and precise axial positioning when used in shafts or bores. The compact form factor and clearly defined 7 mm auxiliary dimension simplify CAD placement and mechanical design, reducing integration time. The robust construction and defined mechanical data mean the component can be specified in assembly instructions and procurement lists with confidence, enabling a transparent supply chain and smoother implementation on the shop floor. Contact Metav Werkzeuge for tailored advice on integrating the TECWERK magnetic rod gripper into fixtures and jigs, or request support for specifying tolerances and thermal requirements — Metav Werkzeuge is ready to assist. Technical data Article number: 4000832253NW Item: Magnet rod gripper D13×H18 mm, smooth, holding force 12 N Numbers / core technical data Diameter: 13 mm Height: 18 mm Holding force (max): 12 N Additional dimension h: 7 mm Fit tolerance: h6 Operating temperature: up to 450 °C Packaging unit: 1 Special features / materials Material: AlNiCo 500 Smooth version (glatte Ausführung) Manufacturer brand: TECWERK SKU: 4000832253NW FAQ Is the magnetic rod gripper suitable for elevated-temperature operations? The Magnetstabgreifer D13xH18mm glatt is specified for use up to 450 °C, which supports applications with higher thermal exposure while retaining functional magnetic performance. What is the maximum holding force and what does it imply? The device offers a 12 N maximum holding force; this value describes the peak attractive force under defined conditions and is intended for locating and holding small ferromagnetic parts rather than heavy load-bearing tasks. Which material is used for the magnet and what are its benefits? The rod contains AlNiCo 500, a high-temperature-capable magnetic alloy that provides stable magnetic performance at elevated temperatures and good long-term stability in repeated thermal cycles. How does the fit tolerance affect integration into fixtures? The h6 fit tolerance ensures a precise shaft fit and repeatable axial positioning when the gripper is installed in bores or holders, simplifying fixture design and interchangeability. Can the smooth finish be used on delicate surfaces? The smooth finish is intended to minimise marking and enable gentler contact with components; it suits applications where surface protection is a consideration. Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund

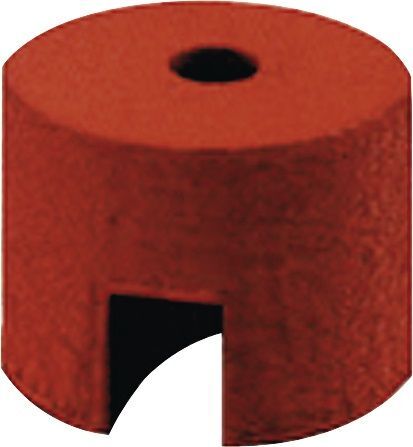

15.9mm Precision Button Magnet D25.4 With Split Contact Face And Through Hole, 34 N Holding Force - TECWERK
Take advantage of the combination of a compact design, a 34 N holding force and high thermal stability for reliable small-part fixturing; order the button magnet directly via Metav Werkzeuge or consult the Metav team for application support. Button magnet Ø25.4 x H15.9 mm – split contact surface, holding force 34 N (TECWERK) Button magnet Ø25.4 x H15.9 mm – split contact surface and through‑hole for fast mounting Split contact surface for even force distribution Holding force 34 N for secure small-part clamping AlNiCo 500 alloy tolerates high operating temperatures Through-hole Ø4.8 mm for screw mounting Secure clamping with compact footprint The button magnet offers focused clamping power in a small package: with a holding force of 34 N and a diameter of Ø25.4 mm, the unit is designed for reliable retention of small components in assembly, jigs and fixtures. The split contact surface reduces shifting under lateral loads by evening out contact pressure, which is particularly useful where precise alignment matters. The integrated through‑hole (Ø4.8 mm) allows straightforward mechanical fastening for permanent or semi‑permanent installations, combining magnetic fixing with a screw or bolt for enhanced security. Reliable performance at elevated temperatures Constructed from AlNiCo 500, this magnetic element maintains magnetic stability where many permanent magnets lose strength. The material choice delivers maximum operating temperature 450 °C, making the magnet suitable for applications exposed to elevated heat, such as heat‑treatment jigs or fixtures near ovens. A coating bake temperature of 200 °C is compatible with common lacquer processes, permitting secondary surface finishes without compromising magnetic performance. Simple integration into workshop processes The compact height of H15.9 mm and the small diameter keep the magnet unobtrusive while enabling precise placement in toolmaking and small‑parts handling. The through‑hole permits repeatable mounting, facilitating modular fixture design and quick replacement during maintenance. The design supports both permanent mounting and temporary clamping solutions where a mechanical backup is required for safety or positioning accuracy. Practical benefits for production and assembly Supplied as a single unit in a practical packaging size, the component suits small runs and prototyping as well as series production where consistent magnetic behaviour is required. The use of AlNiCo 500 ensures predictable performance over temperature cycles, while the split contact surface minimises lateral slip, reducing rework and downtime. The product is therefore attractive for workshops, toolrooms and light industrial assembly lines seeking compact, heat‑resistant magnetic clamps. Contact Metav Werkzeuge for tailored technical advice or to request a specification sheet; eMail: info@metav-werkzeuge.com | Tel: +49 2822 7131930 Technical data Article number: 4000832267NW SKU / UID: 4000832267NW Label: Knopfmagnet D25,4xH15,9mm m.geteilter Haftfläche Haftkraft 34 N Manufacturer: TECWERK Product type: Knopfmagnet Material: AlNiCo 500 Execution: with split contact surface and through‑hole Packaging unit: 1 Specifications Diameter: Ø25.4 mm Height: 15.9 mm Holding force (max): 34 N Through‑hole diameter: Ø4.8 mm Maximum operating temperature (magnet): 450 °C Coating bake temperature: 200 °C Features Split contact surface for even pressure distribution Through‑hole for screw mounting Compact button design for tight spaces High thermal resistance due to AlNiCo 500 alloy FAQ What is the measured holding force of this magnet? The holding force is specified as 34 N for the TECWERK button magnet under standard test conditions. Can this magnet be mounted with a screw? Yes, the product includes a through‑hole Ø4.8 mm for screw or bolt fastening to combine magnetic retention with mechanical fixation. Is the magnet suitable for high‑temperature applications? The magnet is made from AlNiCo 500 and is rated for a maximum operating temperature of 450 °C, making it appropriate for many heat‑exposed fixtures. How does the split contact surface help in practice? The split contact surface evens out contact pressure and reduces lateral movement of the clamped part, improving positional stability in small‑part fixturing. What are the primary use cases for this component? Typical applications include small assembly jigs, toolroom fixtures and situations requiring compact, heat‑resistant magnetic retention. Manufacturer / Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund

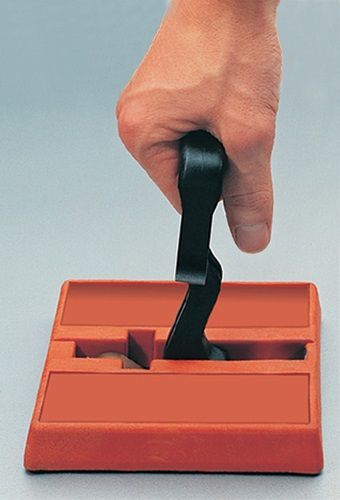

160mm Lifting Plate Magnet With Eccentric D-Handle 0.9 kN Holding Force - TECWERK
Take advantage of the combination of compact dimensions, a secure eccentric lock and a clear specification for sheet thickness to streamline handling of ferrous plates. Order the unit directly via Metav Werkzeuge or consult our specialists for application matching. Plate lifting magnet L160 x 150 x 25 mm with eccentric on D-handle — TECWERK (0.9 kN) Plate lifting magnet L160 x 150 x 25 mm with eccentric on D-handle — a compact manual magnet for safe handling and short transfers of ferrous sheets in workshops and light industry Compact flat design 160 x 150 x 25 mm Holding force 0.9 kN at 10 mm steel Eccentric lock on D-handle for secure grip Suitable for sheet thickness from 2 mm Faster, safer handling for short material transfers The plate lifting magnet offers a reliable, low-complexity method to move ferrous sheets where crane or vacuum solutions are disproportionate. With a rated holding force of 900 N, specified at 10 mm sheet thickness, the device reduces manual strain and speeds up small lifting tasks. The compact 160 x 150 x 25 mm footprint allows use in confined spaces and on crowded benches, improving workflow without adding significant infrastructure. The specification for minimum sheet usage from 2 mm supports predictable performance planning and helps avoid misuse on unsuitable thin materials. Secure operation through eccentric locking and robust mechanics Operation is simplified by the built-in eccentric lock on the D-handle, which converts a short lever action into a positive magnetic engagement and disengagement. This mechanical solution ensures consistent clamping behaviour and reduces the risk of accidental release during transit. The compact construction emphasises mechanical reliability over electronics, yielding low maintenance needs and clear inspection points for safety checks. For teams unfamiliar with magnetic lifting, the eccentric mechanism provides an intuitive, reproducible action that is easy to train on and to integrate into standard operating procedures. Practical integration into workshop routines and specification clarity Designed for routine workshop use, this magnet supports repeatable handling tasks with minimal setup. The combination of a clearly stated holding force and recommended sheet thickness simplifies material planning: procurement and shop-floor staff can match the magnet to the intended sheet stock without lengthy trials. The straightforward design reduces downtime: there are no batteries or sensors to monitor, and inspection is limited to visual checks of the housing and the D-handle mechanism. Where traceable specification is required for process documentation, the unit’s numeric data enables quick entries into work orders or tool lists. Contact Metav Werkzeuge today to discuss how the TECWERK plate lifting magnet can be deployed in your workshop, including confirmation of suitability for specific sheet stocks — eMail info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: 4000832300NW Product type: Plate lifting magnet Dimensions: 160 x 150 x 25 mm Version: with eccentric on D-handle Holding force max: 900 N Total height: 175 mm Packaging unit: 1 Manufacturer: TECWERK Numbers / Core technical data Holding force specified at 10 mm sheet: 900 N Dimensions (L x W x H): 160 x 150 x 25 mm Minimum suitable sheet thickness: from 2 mm Total height: 175 mm Designs / Special features Eccentric lock on D-handle Compact flat housing Manual magnetic actuation Suitable for handling ferrous sheets FAQ What is the maximum holding force of this magnet? The maximum holding force is 900 N, as specified for a 10 mm steel sheet for the TECWERK plate lifting magnet. Can the magnet be used on thin sheets? The device is suitable for sheets from 2 mm thickness upward; the specified holding force applies at 10 mm, so thinner material will reduce the effective grip. How is the magnet engaged and released? Engagement and release are performed via the eccentric lock built into the D-handle, providing a simple mechanical action for reliable operation. Is the magnet suitable for continuous or heavy overhead lifting? This unit is designed for short transfers and workshop handling rather than prolonged overhead suspension; selection should follow the stated holding values and intended use. Which standard checks are recommended before use? Visual inspection of the housing and D-handle mechanism and verification of intended sheet thickness against the specified holding force are recommended before each operation. Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
16mm Magnetic Flat Gripper 18N Holding Force, Hartferrite, Without Threaded Bush - TECWERK
Take advantage of a compact, low-profile magnetic solution that combines a 16 mm diameter, 4.5 mm height and a reliable 18 N holding force for light-duty fixturing; supplied in practical packs of ten for straightforward stock handling — order or request availability via Metav Werkzeuge for fast delivery and technical guidance. Flat Magnetic Gripper D16 x H4.5 mm – 18 N holding force (TECWERK) A Flat Magnetic Gripper designed for light holding and fixturing in compact assemblies, supplied without a threaded bush for versatile surface integration Compact 16 mm diameter, 4.5 mm height Ceramic hard-ferrite magnetic material 18 N holding force for light-duty fixturing Temperature resistance up to 200 °C Space-saving design for tight fixtures and assemblies The small circular form factor with a 16 mm diameter and 4.5 mm height delivers a noticeably reduced footprint compared with bulkier magnets, enabling integration where space is limited. The slim profile simplifies placement into shallow recesses or narrow pockets on jigs and fixtures, while the flat face supports even contact with mating ferrous surfaces. This compact geometry reduces obstruction in automated handling systems and helps maintain clearances in dense assemblies, offering a practical solution for engineers and operators seeking efficient use of mounting area without compromising basic magnetic performance. Predictable holding performance and temperature resilience Manufactured from hard ferrite, the unit provides a stable magnetic field suitable for repeatable light holding tasks; the rated 18 N holding force offers a clear, measurable reference for design calculations and process planning. The component is specified with a recommended operating temperature up to 100 °C and a maximum of 200 °C, which allows selection for applications exposed to elevated temperatures that would impair many polymer-bonded magnets. Stating these limits helps maintenance planners and process engineers assess longevity under thermal load and avoid premature demagnetisation in high-heat processes. Integration flexibility and logistical convenience The delivery format as a pack of 10 supports predictable inventory control for workshops and production cells, reducing procurement frequency for frequently used small components. Supplied without a threaded bush, the part is intended for direct surface mounting or for combination with separate mounting hardware, offering flexibility for bespoke fixtures or adhesive attachment methods. Sourcing through a specialist supplier standardises quality and simplifies procurement—this is particularly valuable where consistent magnetic performance is required across multiple assembly lines or service kits. Request stock availability and tailored advice for the TECWERK flat magnetic gripper from Metav Werkzeuge — email info@metav-werkzeuge.com or call +49 2822 7131930 for product information and delivery options Technical data Article number: 4000832232NW Manufacturer: TECWERK Product type: Flat magnetic gripper Core technical data Diameter: 16 mm Height: 4.5 mm Holding force (max): 18 N Recommended operating temperature: up to 100 °C Maximum operating temperature: 200 °C Special features Material: hard ferrite Design: without threaded bush Packaging unit: 10 UID: 4000832232NW FAQ What is the typical use for this flat magnetic gripper? The TECWERK flat magnetic gripper (SKU 4000832232NW) is intended for light holding and fixturing tasks where a compact magnetic solution is required, such as small-part assembly, positioning aids and jigs. Can the magnet be used at elevated temperatures? Yes; the component is rated with a recommended operating temperature up to 100 °C and a maximum of 200 °C, allowing use in processes with moderate thermal exposure. How strong is the magnetic hold in practical terms? The nominal holding force is 18 N, providing a quantifiable basis for selecting the magnet for light-duty retention and positioning applications; real-world pull values depend on contact area and surface condition. What mounting options are available given the lack of a threaded bush? Since the unit is supplied without a threaded bush, it is suitable for direct surface mounting, adhesive bonding or incorporation into fixture plates where separate mounting hardware can be applied. Is the magnet material suitable for corrosive environments? The gripper is made from hard ferrite, a ceramic magnetic material with good stability; for corrosive or wet environments, consider additional surface protection or consult Metav Werkzeuge for compatible alternatives. Manufacturer/Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
16mm Magnetic Flat Gripper With Threaded Bushing, Holding Force 18N, M3 - TECWERK
Take advantage of a compact, high-temperature-capable magnetic clamping solution that combines a small footprint with dependable holding power; its hard ferrite construction and integrated M3 threaded socket facilitate quick assembly and reliable positioning. Order the magnetic flat gripper directly via Metav Werkzeuge or ask our consultants if needed. Magnetic flat gripper D.16 x H11.5 mm with M3 threaded socket – TECWERK The Magnetic flat gripper D.16 x H11.5 mm with threaded socket is a compact magnetic clamping element for secure holding of small ferrous parts in fixtures and assemblies. Compact diameter 16 mm design Integrated M3 threaded socket for easy fastening Hard ferrite magnetic core for stable magnetism Holding force 18 N and high-temperature rating Space-saving design that simplifies fixture layouts The compact 16 mm diameter and 11.5 mm height provide a small installation footprint while delivering practical clamping performance for light-duty applications. This reduced profile enables closer element spacing in jigs and fixtures, which helps to increase usable work area on assembly plates. The compact geometry also supports repeatable positioning where accurate local holding is required, reducing the need for larger, more intrusive clamping hardware. Predictable holding under heat for robust process control Constructed from hard ferrite, the component maintains magnetic properties across an extended temperature range, offering a recommended operating temperature up to 100 °C and a maximum of 200 °C. The rated holding force of 18 N gives a clear, measurable parameter for process planning, enabling engineers to calculate safety margins and fixture layouts with confidence. Explaining these figures in simple terms: the specified Newton value represents the axial pull the magnet can sustain on a flat steel contact, which is useful when assessing suitability for light-retention tasks. Quick integration with standard M3 mounting An integrated M3 threaded socket allows immediate mounting with common fasteners and adapters, shortening assembly time and simplifying retrofits into existing tooling. The thread interface provides a secure mechanical link so the magnetic element can be positioned and replaced without special tools. For designers this means fewer bespoke components and a faster route from prototype to production, supporting efficient maintenance cycles and lower downtime in routine operations. Contact Metav Werkzeuge for a specification check or order coordination — phone +49 2822 7131930 or email info@metav-werkzeuge.com Technical data Article number: 4000832242NW SKU: 4000832242NW Brand: TECWERK Facts Diameter: 16 mm Height: 11.5 mm Thread: M3 Holding force: 18 N Recommended operating temperature: up to 100 °C Maximum operating temperature: 200 °C Special features Material: hard ferrite Version: with threaded socket Product type: magnetic flat gripper Packaging unit: 10 FAQ What is the axial holding force of this magnetic element? The magnetic flat gripper provides a holding force of 18 N, which is the axial pull measured on a flat steel contact. Which thread is provided for mounting? Mounting is via an integrated M3 threaded socket, allowing direct fastening with standard M3 screws or adapters. What operating temperatures are possible with this gripper? The component has a recommended operating temperature up to 100 °C and can tolerate up to 200 °C for short periods or specialised applications. What material is the magnet made from and what does that mean for use? The core is made from hard ferrite, offering stable magnetic performance at elevated temperatures and suitability for general-purpose clamping of ferrous parts. How is the product typically used in fixtures? This compact magnetic element is used for light holding and positioning of small ferrous workpieces in jigs, assembly fixtures, and instrumentation where a low-profile clamp is required. Manufacturer/Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund

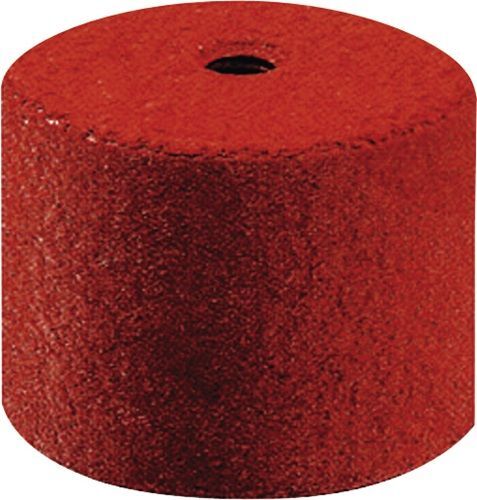

17.5mm Pot Magnet With M6 Threaded Countersunk Hole Holding Force 26 N, Max Temp 450 °C - TECWERK
Take advantage of the combination of compact dimensions, AlNiCo 500 high-temperature resistance and a secure M6 fixing for reliable, repeatable retention in assembly and jig applications; order via Metav Werkzeuge or consult our technical advisers for precise selection and delivery. TECWERK Pot magnet, 17.5 mm Ø × 16 mm H with M6 threaded blind hole The pot magnet is a compact retention solution designed for securing lightweight components where space is limited and elevated operating temperatures are expected. Compact pot magnet, Ø 17.5 mm, H 16 mm AlNiCo 500 material for high-temperature use Integrated M6 threaded blind hole Holding force up to 26 N Consistent retention at elevated temperatures for smoother production This compact retention element, made from AlNiCo 500, offers stable magnetic properties at elevated temperatures, with a specified maximum operating temperature of 450 °C. The rated holding force of 26 N provides predictable retention for lightweight fixtures and positioning tasks, reducing the need for repeated adjustments. Where thermal processes are part of the workflow, the magnet’s material choice ensures that magnetic performance remains dependable, which contributes to fewer stoppages and a more consistent production flow. Space-saving design that simplifies assembly and mounting With an outer diameter of 17.5 mm and a height of 16 mm, the magnetic base is tailored for installations in confined assemblies. The threaded blind hole (M6) allows secure fastening without protruding fixings, enabling flush or recessed mounting in jigs and brackets. The small footprint and neat fixing option speed up integration into existing tooling, minimise obstruction in tight assemblies and reduce the need for custom fixtures, thereby saving time during machine setup and part changeover. Durable behaviour and predictable handling across processes The pot construction delivers repeatable contact behaviour, helping to locate and hold parts consistently during handling or light clamping. The product’s specifications also note a lacquer-bake tolerance of 200 °C, which supports processes that include painting or coating cycles before final assembly. Combined with robust material selection and a standard M6 thread, this component suits repeatable industrial use where predictable, low-force retention is required and where corrosion resistance and thermal endurance are beneficial. For tailored advice on selecting the right pot magnet for a specific application or to arrange supply from stock, contact Metav Werkzeuge — Metav is ready to assist with technical guidance and reliable delivery from Emmerich: info@metav-werkzeuge.com / +49 2822 7131930 Technical Data Article number: 4000832275NW Manufacturer: TECWERK Product type: Pot magnet SKU: 4000832275NW Facts Diameter: 17.5 mm Height: 16 mm Thread: M6 Holding force: 26 N Maximum operating temperature: 450 °C Lacquer/bake temperature: 200 °C Material: AlNiCo 500 Packaging unit: 10 Special features With threaded blind hole Compact pot construction Suitable for high-temperature environments FAQ What is the maximum holding force of this pot magnet? The pot magnet from TECWERK provides a maximum holding force of 26 N, appropriate for securing lightweight components and fixtures. Can the magnet be used in high-temperature processes? Yes. The AlNiCo 500 material has a maximum operating temperature of 450 °C, and the component withstands lacquer baking up to 200 °C, making it suitable for many thermal process steps. How is the magnet fixed in place? Fixing is via the integrated M6 threaded blind hole, allowing recessed or flush mounting without exposed fixings. Which product should be ordered for consistent supply? Order the TECWERK pot magnet, SKU 4000832275NW, via Metav Werkzeuge for assured availability and supply from stock. Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
19.1mm Button Magnet With Split Holding Face And Through Hole, 19 N Holding Force, AlNiCo 500 - TECWERK
The combination of heat-resistant AlNiCo 500 alloy and a reliable 19 N holding force delivers consistent performance for high-temperature fastening tasks; the integrated 4.8 mm through-hole and split contact surface ensure secure, simple mounting. Order the component directly via Metav Werkzeuge or consult our specialists for application advice. Button magnet D19.1 x H12.7 mm with split contact surface, 19 N – TECWERK button magnet D19.1 x H12.7 mm designed for high-temperature holding and straightforward screw mounting in fixtures and assembly jigs AlNiCo 500 for stable magnetic performance Split contact surface for flexible attachment 4.8 mm through-hole for easy fastening Withstands up to 450 °C operating temperature Precise magnetic performance for hot processes Made from AlNiCo 500, this small yet robust component provides a steady magnetic field where thermal stability is required. The material choice explains the magnet’s ability to maintain attraction at elevated temperatures, with a rated 450 °C maximum operating temperature. The 19 N holding force is a measured indication of how securely the part will retain ferrous items under normal workshop conditions, making it suitable for fixture points that must resist displacement during handling or light machining operations. This predictability reduces rework and supports a smoother production flow. Simple, secure mounting for repeatable positioning The combination of a split contact surface and a centred 4.8 mm through-hole enables versatile fastening options: the through-hole permits screw mounting for permanent or semi-permanent installations, while the divided contact face improves grip on uneven or slightly curved substrates. This design minimises lateral movement and simplifies alignment when used in jigs, holding fixtures or assembly aids. For engineers seeking reliable repeatability, the mechanical fixing option complements the magnetic retention and reduces reliance on adhesive or complex clamping. Process-ready durability and coating tolerance The magnet is specified with a lacquer-bake tolerance of 200 °C, allowing integration into assemblies that undergo standard paint or coating cycles without degrading magnetic properties. The construction resists common workshop stresses and thermal exposure associated with many finishing operations. Supplied in a practical packaging unit of 10, the component supports small-batch replenishment and organised inventory control in production environments where consistent part performance is essential. Trusted sourcing and technical backing for industrial use Sourcing precision components from a reliable partner reduces procurement risk and shortens lead times for production teams. Metav combines broad stock availability with technical expertise to help define suitable mounting strategies and material pairings for demanding applications. If design integration or material compatibility questions arise during planning, technical advisors can clarify assembly implications and suggest optimal use cases for the magnet while keeping delivery dependable and traceable. Contact Metav Werkzeuge for technical guidance and to secure TECWERK button magnets from stock in Emmerich; specialists are available via info@metav-werkzeuge.com or +49 2822 7131930 Technical Data Article number: 4000832266NW SKU: 4000832266NW Product type: Button magnet Manufacturer: TECWERK Facts Diameter: 19.1 mm Height: 12.7 mm Through-hole diameter: 4.8 mm Holding force: 19 N Maximum operating temperature: 450 °C Lacquer bake temperature: 200 °C Packaging unit: 10 Special features Material: AlNiCo 500 With split contact surface and through-hole Suitable for screw fastening Compact button-style housing FAQ What is the maximum temperature at which this magnet can be used? The TECWERK button magnet is rated for use up to 450 °C, making it suitable for high-temperature fixture applications. How is the magnet fastened in assemblies? Fastening is possible via the 4.8 mm through-hole for screw mounting; the split contact surface supports improved grip in fixed positions. What holding capacity can be expected from this component? The part provides a 19 N holding force, which is appropriate for securing small ferrous parts in jigs and light assembly tasks. Which material is the magnet made of and why is it relevant? The magnet is manufactured from AlNiCo 500, chosen for its thermal stability and consistent magnetic performance at elevated temperatures. Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund

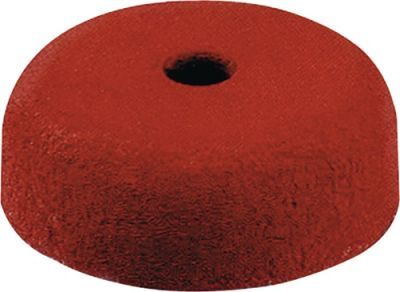

19.1mm Flat Pot Magnet With Through Hole And Countersink, 30 N Holding Force, AlNiCo 500 - TECWERK
Combine compact design with reliable high-temperature performance: the AlNiCo 500 pot magnet offers a secure 30 N hold and a countersunk through hole for straightforward screw mounting; order the unit directly via Metav Werkzeuge or consult our specialists for application advice. Flat countersunk pot magnet D19.1 mm H7.5 mm with through hole, holding force 30 N – TECWERK The flat countersunk pot magnet D19.1 H7.5 is a compact AlNiCo 500 cup magnet designed for secure, high-temperature fastening in jigs, fixtures and light assembly tasks AlNiCo 500 alloy for high-temperature use Countersunk through hole, bore Ø 3.7 mm Compact Ø 19.1 mm × H 7.5 mm design Holding force 30 N for secure attachment High-temperature stability for reliable fixing The core advantage of this component is its AlNiCo 500 construction, which provides stable magnetic properties at elevated temperatures up to 450 °C. For applications involving heat or proximity to baking processes, the magnet maintains performance where many ferrite or rare-earth magnets would demagnetise. The 30 N retention force supplies a predictable, repeatable hold for light securing and positioning tasks, making the component suitable for small fixtures and temporary jigs in production environments. This section focuses on measurable performance and explains why material choice matters for thermal resilience. Small footprint for precise positioning in assemblies With an external diameter of Ø 19.1 mm and a height of 7.5 mm, the unit occupies minimal space while offering a flat contact face for reliable engagement. The Ø 3.7 mm central bore with countersink permits recessed screw mounting so fasteners sit flush, reducing profile interference and improving repeatability when used in alignment or locating applications. The compact geometry supports integration into tight assemblies and tool stations where minimal disturbance of adjacent components is important. Practical benefits include easier handling in confined jigs and stable placement during repetitive operations. Practical mounting and production considerations The magnet is supplied in packaging unit: 10 and is executed with through hole and countersink to suit conventional countersunk screw fixation. During component manufacture, the magnet’s coating processes can be exposed to a baking stage up to 200 °C, as indicated by production parameters; this is relevant for bespoke surface treatments or assembly steps that involve elevated temperatures. For installation, select a countersunk screw that matches the 3.7 mm bore and the desired clamping torque, and avoid impacts that could impair the magnet’s seating. The combination of compact form and a recessed fixing point streamlines assembly workflows without compromising hold. Contact Metav Werkzeuge for tailored advice on integrating this TECWERK pot magnet into specific fixtures and to arrange delivery or technical consultation at our Emmerich centre Technical data Article number: 4000832270NW UID: 4000832270NW Manufacturer: TECWERK Product type: Flat countersunk pot magnet Dimensions & performance Diameter: 19.1 mm Height: 7.5 mm Bore diameter: 3.7 mm Holding force: 30 N Max operating temperature (magnet): 450 °C Coating bake temperature: 200 °C Materials & features Material: AlNiCo 500 Execution: with through hole and countersink Packaging unit: 10 Label: Flachtopfmagnet D.19,1mm H.7,5mm m.Durchgangsbohrung Haftkraft 30 N BELOH FAQ What material is the magnet made from and why does it matter? The magnet is produced from AlNiCo 500, chosen for its thermal stability and predictable magnetic performance at elevated temperatures, which makes the flat countersunk pot magnet D19.1 H7.5 suitable for heated environments. What holding capacity can be expected from this cup magnet? The device provides a holding force of 30 N, offering a reliable grip for light securing and positioning tasks in fixtures and small assemblies using the TECWERK flat countersunk pot magnet (SKU 4000832270NW). How is the magnet mounted in an application? Mounting is via the central Ø 3.7 mm through hole with countersink so a countersunk screw sits flush, ensuring a low profile and repeatable fixing when used in jigs or tooling. Are there any temperature limits for use or processing? The magnet maintains magnetic properties up to 450 °C; manufacturing or coating processes may include a baking stage up to 200 °C, which should be considered during component processing. Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund

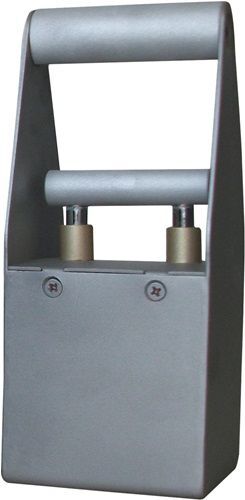

190mm Switchable Permanent Magnet 110x110mm Holding Surface 12kg Capacity - TECWERK
Take advantage of the combination of a switchable magnetic function, a compact 110 x 110 mm holding surface and reliable 12 kg lifting capacity for faster set-ups and repeatable positioning—order directly via Metav Werkzeuge or consult the team for application advice. Permanent magnet L110 x 110 x 190 mm, switchable – TECWERK magnetic lifter with 110 x 110 mm holding face and 12 kg capacity Permanent magnet L110 x 110 x 190 mm is a compact, switchable magnetic lifter designed for secure holding and simple on/off operation in metalworking and assembly applications. Switchable magnetic operation for fast clamping Holding surface 110 x 110 mm Max lifting capacity 12 kg Compact height 190 mm, portable at 2.4 kg Faster set-ups with mechanically switchable magnetic holding A switchable magnet removes the need for repeated mechanical clamping when processing small steel parts. The mechanical on/off mechanism delivers immediate activation and reliable release without tools or power supply, which speeds repetitive tasks and reduces cycle times. With a defined holding surface of 110 x 110 mm and a clear maximum lifting capacity of 12 kg, the device offers predictable performance for fixturing, positioning and light lifting tasks. This predictability increases throughput and reduces set-up errors in routine production steps. Compact form factor for tight workspaces and portable handling The compact overall height of 190 mm and a mass of 2.4 kg make the tool simple to manoeuvre and store between operations. A small footprint combined with a flat 110 x 110 mm contact face supports accurate placement on flat ferrous components and holds pieces steadily during drilling, tapping or assembly work. The lightweight design encourages ergonomic handling while still providing a secure magnetic interface, enabling rapid repositioning on benches, fixtures and jigs. Safe, energy-free operation that integrates into workshop workflows The purely mechanical switching function provides energy-free operation, eliminating reliance on batteries or mains power and reducing maintenance points. The magnet’s on/off control improves safety during part loading and unloading: magnets can be deactivated for removal and reactivated for subsequent process steps. For workshop integration, the device supports common manual and semi-automated workflows where reliable magnetic holding of ferrous materials is required, contributing to smoother work sequences and lower operator effort. Durable, low-maintenance solution for routine use Designed for straightforward handling rather than complex maintenance, the unit delivers long service life through simple mechanics rather than electronic complexity. The absence of electrical components minimises downtime and inspection requirements, providing a practical holding tool for everyday tasks. Combined with an intuitive on/off control and standardised contact dimensions, the product supports efficient stock management and predictable replacement cycles in busy production or repair environments. For reliable magnetic lifting from TECWERK, contact Metav Werkzeuge in Emmerich for tailored advice and secure procurement via info@metav-werkzeuge.com or call +49 2822 7131930 Technical data SKU: 4000832303NW Product type: Permanent magnet Version: switchable Packaging unit: 1 Manufacturer: TECWERK Facts Total height: 190 mm Holding surface: 110 x 110 mm Maximum lifting capacity: 12 kg Weight: 2.4 kg Special features Switchable magnetic function (mechanical on/off) Compact footprint for limited space Energy-free operation Suitable for holding ferrous materials FAQ What is the maximum lifting capacity of this magnetic lifter? The Permanent magnet L110 x 110 x 190 mm has a maximum lifting capacity of 12 kg. How is the magnet switched on and off? The unit uses a mechanical switchable mechanism that activates and deactivates the magnetic field without power. Which materials can be held with this magnet? The device is intended for ferrous materials; non-ferrous metals such as aluminium will not be attracted. What are the key dimensions of the product? The lifter offers a holding face of 110 x 110 mm and a total height of 190 mm. Is the product portable for bench work? Yes, the compact design and weight of 2.4 kg make it suitable for portable use on workbenches and in small workshops. Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
190mm Switchable Permanent Magnet 80x80mm Holding Surface 7kg Capacity - TECWERK
Take advantage of a switchable device with an 80 x 80 mm holding face and a compact footprint to speed handling of small ferrous parts; the magnetic on/off function and a 7 kg maximum lifting capacity ensure efficient, safe temporary clamping. Order the unit directly via Metav Werkzeuge or consult their specialists for application advice. TECWERK Switchable Permanent Magnet — 80 x 80 mm holding face, 7 kg capacity The TECWERK switchable permanent magnet provides temporary magnetic holding and lifting for small workshop and assembly tasks, combining controlled magnetic release with a compact form factor. Switchable on/off magnet Holding face 80 x 80 mm Max lifting capacity 7 kg Compact total height 190 mm Faster, more reliable temporary holding for small components The switchable mechanism provides immediate magnetic engagement and safe release without tools, reducing handling time and minimising the risk of part damage during repositioning. With a holding face of 80 x 80 mm and a rated 7 kg lifting capacity, the device is suited for a wide range of light assembly, trimming and positioning operations where controlled magnetic clamping improves throughput. The design supports repeatable placement, which helps maintain consistent process quality and reduces rework. Compact dimensions that optimise workstation layout A compact total height of 190 mm and a low mass of 1.4 kg make this unit easy to position and relocate across workbenches and fixtures, supporting flexible production setups. The reduced size allows integration into tight jigs and fixturing scenarios where space is limited, while the modest weight aids manual handling and ergonomic operation. The compact profile therefore contributes directly to smoother workflows and faster changeovers in small-batch or mixed-production environments. Durable function and uncomplicated operation for everyday use Built as a practical workshop tool, the permanent magnet delivers consistent magnetic holding with a simple on/off control that requires no external power source, lowering operating complexity. The robust form supports routine use in assembly and light fabrication contexts, and the straightforward switching reduces training requirements for staff. The combination of reliability and simplicity helps to maintain production continuity and supports measurable efficiency gains in repetitive holding tasks. For enquiries about the TECWERK switchable permanent magnet or to place an order through Metav Werkzeuge, please contact Metav Werkzeuge GmbH at info@metav-werkzeuge.com or call +49 2822 7131930 for specialist advice and fast supply. Technical Data Article number: 4000832302NW Product type: Permanent magnet Manufacturer: TECWERK Execution: switchable Facts Holding face: 80 x 80 mm Total height: 190 mm Weight: 1.4 kg Max lifting capacity: 7 kg Special features Switchable magnetic operation Compact design for small components Suitable for temporary clamping and lifting FAQ What is the maximum lifting capacity of this switchable unit? The TECWERK switchable permanent magnet (SKU 4000832302NW) has a maximum lifting capacity of 7 kg when applied on a suitable ferrous surface under recommended conditions. Which surface area provides the rated holding force? The rated holding force is specified for a flat 80 x 80 mm holding face; optimal contact between the magnet face and the part improves performance. Is any power source required to operate the magnetic switch? No external power is required; the magnetic on/off control is mechanical, enabling engagement and release without electricity. Can the magnet be used for positioning during light machining? Yes, the compact design and reliable magnetic holding make it appropriate for positioning and temporary clamping during light machining and assembly tasks. How portable is the device for use at different workstations? With a total height of 190 mm and a weight of 1.4 kg, the unit is lightweight and easy to move between workstations for flexible use. Manufacturer/Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
19mm Top Pot Magnet With M6 Blind Thread Hole 40 N Hold, AlNiCo 500 - TECWERK
Compact, heat-resistant magnetic fixing with reliable mounting: the combination of AlNiCo 500 material and an M6 threaded blind hole delivers a stable 40 N holding force for demanding industrial applications. Order the component directly via Metav Werkzeuge or consult our specialists if technical clarification is required. Topfmagnet D.20,6mm H.19mm mit Gewindesacklochbohrung – pot magnet, M6 thread, 40 N (TECWERK) The Topfmagnet D.20,6mm H.19mm mit Gewindesacklochbohrung is a compact pot magnet designed for secure attachments in elevated-temperature environments and threaded mounting applications. High-temperature resistance up to 450 °C Holding force 40 N AlNiCo 500 magnetic material M6 threaded blind-hole mounting Reliable magnetic fixing for high-temperature processes The pot magnet is manufactured from AlNiCo 500, a nickel–cobalt–aluminium alloy known for excellent thermal stability. This composition maintains magnetic performance at elevated temperatures, allowing reliable use up to 450 °C without rapid demagnetisation. For production processes that involve intermittent heating or proximity to ovens and furnaces, this magnetic holder offers stability where many permanent magnets lose strength. The material choice also reduces the need for frequent replacements, improving uptime in workshop and industrial settings. Compact, threaded design for secure installation With a diameter of 20.6 mm, a height of 19 mm and an M6 threaded blind hole, the unit is tailored for easy integration into fixtures, jigs and small assemblies. The 40 N holding force supplies predictable retention for light components and positioning tasks; this level of force is suitable for temporary anchoring and locating aids in assembly operations. The blind-hole thread allows a concealed, flush fit which simplifies mounting on metal plates or tool holders while preserving a neat appearance and minimising protrusion. Coating and processing compatibility for workshop use The component supports a coating process up to 200 °C, enabling lacquer or paint application without compromising the magnet’s integrity during finishing. The construction and finish make it suitable for repetitive handling and machine-side mounting where a small, robust magnetic fixing is required. Supplied as a single unit, the pot magnet is compact and ready for retrofitting into existing assemblies or inclusion in newly designed clamps. Its design balances compactness and function, offering an economic solution for fixtures that must tolerate elevated temperatures. For heat-resistant magnetic fixing in production or maintenance, specify the TECWERK pot magnet (SKU 4000832276NW) and contact Metav Werkzeuge in Emmerich for expert advice and ordering: info@metav-werkzeuge.com / +49 2822 7131930. Technical data Article number: 4000832276NW Product type: Pot magnet Manufacturer: TECWERK Packaging unit: 1 Facts Diameter: 20.6 mm Height: 19 mm Thread: M6 Holding force: 40 N Maximum magnet temperature: 450 °C Coating temperature: 200 °C Special features Material: AlNiCo 500 With threaded blind-hole bore Compact pot-style housing FAQ What maximum temperature can this pot magnet withstand? The TECWERK pot magnet can be used at temperatures up to 450 °C, thanks to its AlNiCo 500 composition, which preserves magnetic properties at elevated heat. Is the thread suitable for standard metric fastenings? Yes, the unit features an M6 threaded blind hole designed for conventional metric screws and secure mounting in fixtures. How strong is the magnetic hold in practical terms? The rated holding force is 40 N, offering reliable retention for light locating and temporary fixturing tasks within its compact dimensions. Can the magnet be painted or lacquered during production? The magnet supports a coating temperature up to 200 °C, allowing lacquer or paint application processes that do not exceed this temperature threshold. What is the product SKU for ordering or reference? The item is listed as SKU 4000832276NW, sold as a single unit (packaging unit 1). Manufacturer / Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
20mm Flat Magnetic Gripper H6 Without Threaded Bush Holding Force 30N, Temp up to 200°C - TECWERK
Take advantage of a compact, high-temperature tolerant clamp with hard ferrite construction and a holding force of 30 N for reliable fixation of light components; order the magnetic flat gripper directly via Metav Werkzeuge or request advice from our consultants for application-specific guidance. Magnetic Flat Gripper Ø20 x H6 mm — TECWERK The Magnetic Flat Gripper Ø20 x H6 mm is a compact clamping magnet designed for secure, space-saving fixation of small parts in assembly, jigs and light-duty fixtures. Compact Ø20 x H6 design Hard ferrite magnet material Holding force 30 N for small parts Rated to 200 °C peak temperature Reliable holding for precise small-part clamping With a rated holding force 30 N, this compact flat magnet provides consistent adhesion for light components and small tools where repeated, secure contact is required. The low-profile Ø20 x H6 mm format minimises obstruction in tight assemblies and enables closer tolerances in fixturing. In practical terms, 30 N corresponds to a predictable retention suitable for aligning, holding and positioning operations; the numerical value supports rational selection when calculating safety margins and handling requirements. Durable construction with thermal resilience Manufactured from hard ferrite, the gripper retains stable magnetic properties and resists demagnetisation under normal workshop stresses. The component is specified with a recommended operating temperature up to 100 °C and a maximum of 200 °C, which indicates suitability for processes that involve elevated temperatures or intermittent heating. Hard ferrite also offers corrosion resistance and long-term magnetic stability, translating into lower replacement frequency and predictable performance over the product lifetime. Space-saving design for straightforward integration The version supplied without a threaded bush is optimised for flush mounting or incorporation into custom fixtures where a low profile is essential. Its simple geometry supports rapid layout and repeatable placement in modular tooling or vacuum tables, reducing overall system complexity. The ceramic magnetic core keeps maintenance needs minimal, while the compact footprint supports dense part arrays and micro-assembly tasks without significant redesign of existing tooling. For technical integration advice or to discuss supply options from Metav Werkzeuge, contact Metav Werkzeuge at info@metav-werkzeuge.com or call +49 2822 7131930 for prompt, specialist support. Technical data Article number: 4000832233NW Product type: Magnetic flat gripper Manufacturer: TECWERK Material: Hard ferrite Version: without threaded bush Dimensions & performance Diameter: 20 mm Height: 6 mm Holding force: 30 N Recommended operating temperature: up to 100 °C Maximum operating temperature: 200 °C Packaging unit: 10 Features & applications Compact flat clamping magnet Suitable for light-part fixation and positioning Ceramic hard ferrite magnet material Designed for direct flat mounting (no threaded bush) Low-profile solution for space-constrained fixtures FAQ What is the maximum holding capacity of this gripper? The gripper provides a holding force of 30 N as specified for the Magnetic Flat Gripper Ø20 x H6 mm (TECWERK, SKU 4000832233NW). Can this magnet be used at elevated temperatures? Yes, the unit is rated with a recommended operating temperature up to 100 °C and a maximum temperature tolerance of 200 °C. Is the gripper supplied with a threaded mounting option? This version is supplied without a threaded bush; it is intended for flat or bespoke mounting solutions. What material is the magnetic core made from? The core material is hard ferrite, selected for stable magnetic properties and resistance to demagnetisation. For which tasks is this flat magnet most suitable? The device is ideal for holding, aligning and light-fixture duties where a compact, low-profile magnetic clamp is required Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
20mm Flat Magnetic Gripper M3 Threaded Bush Holding Force 30N, Up to 200°C - TECWERK
Take advantage of compact, reliable magnetic holding with simple threaded mounting and temperature resilience; ideal for small fixtures and assembly jigs. Order TECWERK magnetic flat holders directly via Metav Werkzeuge or request technical advice from our consultants. TECWERK Magnetic flat holder D20 × H13 mm, M3 threaded bushing The magnetic flat holder D20×H13 mm is a compact magnetic fixing element designed for secure, space-saving attachment in light assembly and fixturing applications Compact magnetic holder, Ø20 mm, H13 mm Solid hard-ferrite magnet material Integrated M3 threaded bushing Holding force 30 N, high-temperature tolerant Reliable holding for light assembly and fixture tasks The magnetic flat holder delivers a consistent 30 N holding force, making it suitable for small part retention, positioning jigs and temporary fixtures where controlled magnetic adhesion is required. The specified holding force refers to the maximum axial pull under ideal contact conditions; in practice, surface finish and contact area influence the effective grip. The hard-ferrite composition ensures stable magnetic properties across a wide temperature range, providing dependable performance for repetitive assembly cycles without active maintenance. Space-saving mounting with threaded bushing for secure fixing With an outer diameter of Ø20 × H13 mm and an integrated M3 threaded bushing, this compact component enables straightforward mechanical fastening into fixtures, housings or tooling plates. The threaded insert permits simple screw attachment, reducing installation time and eliminating the need for additional adhesive bonding. The slim profile is particularly advantageous where clearance is limited, allowing magnetic fixing to be combined with precise mechanical alignment in tightly packed assemblies. Material selection and thermal behaviour for workshop environments Made from hard ferrite, the magnetic flat holder offers good magnetic stability and corrosion resistance typical of ceramic magnets, while remaining cost-effective for bulk use in workshops. The supplier guidance notes a recommended operating temperature up to 100 °C and a maximum of 200 °C, so the component is suitable for many industrial processes that involve raised temperatures, but should be kept away from direct heat sources exceeding the maximum rating. The brittle nature of ferrite ceramics should be considered during handling and assembly to avoid impacts that could cause chipping. For dependable small-part holding in workshop and light industrial applications, choose the TECWERK magnetic flat holder from Metav Werkzeuge — technical advice and local supply are available via info@metav-werkzeuge.com or by phone on +49 2822 7131930 Technical data Article number: 4000832243NW Product type: Magnetic flat holder Material: Hard ferrite Diameter: 20 mm Height: 13 mm Thread: M3 Execution: with threaded bushing Holding force: 30 N Recommended operating temperature: up to 100 °C Maximum operating temperature: 200 °C Packaging unit: 10 Facts Ø20 mm H13 mm M3 thread 30 N holding force Recommended up to 100 °C Maximum 200 °C Special features Integrated threaded bushing Compact flat design Hard-ferrite magnet material SKU 4000832243NW FAQ What holding force can be expected from this magnetic flat holder? The TECWERK magnetic flat holder provides a maximum holding force of 30 N; actual grip depends on contact surface and alignment. Can the holder be bolted directly into fixtures? Yes, the integrated M3 threaded bushing allows direct screw mounting into fixtures or tooling plates for secure attachment. Is the material suitable for elevated temperatures? The component, manufactured from hard ferrite, is recommended for use up to 100 °C and rated to a maximum of 200 °C under specific conditions. Are these holders suitable for heavy-duty magnetic clamping? This product is intended for light assembly and positioning tasks; for heavy-duty clamping, devices with higher rated holding forces should be selected. TECWERK: Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
25mm Flat Magnetic Holder With M4 Threaded Bush, 40N Holding Force, Up To 200°C - TECWERK
Combine compact dimensions with a reliable 40 N holding force and robust hard-ferrite construction for dependable, space-saving fixing in assemblies and jigs — order the magnet directly via Metav Werkzeuge or consult our advisors for application support. Flat magnetic holder D25×H15 mm with threaded bush — M4, 40 N, hard ferrite The flat magnetic holder D25×H15 mm is a compact magnetic mounting solution designed for secure, repeatable fixing in small fixtures, jigs and tooling applications. *Compact 25 mm diameter × 15 mm height *40 N holding force for small fixtures *Hard-ferrite magnet construction *Integrated M4 threaded bush for secure mounting Secure fixing in the smallest of spaces The compact 25 mm diameter and 15 mm height deliver a space-saving solution where conventional clamps cannot fit. Despite its small footprint, the component provides a holding force of 40 N, which is sufficient for light fixturing, positioning sensors and holding thin workpieces during assembly. The short profile reduces protrusion from the mounting surface and enables close packing of several magnetic holders for modular jigs. The robust hard-ferrite magnet material ensures stable magnetic performance and long service life in routine workshop use. Threaded fastening for precise alignment and repeatability An M4 threaded bush is integrated into the design so the holder can be mounted directly to fixtures, sensor brackets or tooling plates without additional adapters. The threaded interface supports repeatable alignment and straightforward replacement if a magnetic element needs changing. Installation is quick and reduces setup variability, which supports consistent process results and minimises downtime during tool changes or jig adjustments. Designed for workshop temperatures and short-term exposure The holder is specified with a recommended operating temperature of up to 100 °C and a maximum temperature tolerance of 200 °C, making it suitable for many production environments where elevated temperatures occur intermittently. This thermal resilience means the magnetic retention remains reliable during soldering near the fixture, heat-affected assembly steps or when used close to warm tooling, while prolonged exposure to the absolute maximum should be avoided to preserve magnetic strength. Practical uses and quick integration into existing tooling This flat magnetic component is ideal for applications such as temporary fixturing, locating small parts prior to fastening, or stabilising sensors and gauges during measurement. The low profile and threaded mounting make integration into custom fixtures straightforward, enabling flexible placement on jigs, machine guards or assembly benches. The compact magnet is a pragmatic choice where a discreet, reliable magnetic hold is required without heavy clamping equipment. For compact, reliable magnetic fixing contact Metav Werkzeuge for stock availability and tailored application advice — Metav Werkzeuge in Emmerich provides fast dispatch and expert consultancy via info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: 4000832244NW Label: Magnet flat holder D25×H15 mm with threaded bush Material: hard ferrite Execution: with threaded bush Diameter: 25 mm Height: 15 mm Thread: M4 Holding force: 40 N Recommended operating temperature: up to 100 °C Maximum operating temperature: 200 °C Packaging unit: 10 Facts Diameter: 25 mm Height: 15 mm Holding force: 40 N Thread: M4 Packaging unit: 10 Special features Hard-ferrite magnet material Integrated M4 threaded bush Compact flat profile for space-limited mounting Temperature tolerance up to 200 °C (short-term) Suitable for light fixturing and sensor mounting FAQ What holding capacity does the flat magnetic holder provide? The flat magnetic holder delivers a maximum holding force of 40 N, suitable for light fixturing and positioning tasks where a compact magnetic hold is required. How is the magnet mounted to a fixture? Mounting is via the integrated M4 threaded bush; the thread supports secure fastening and repeatable alignment when used in jigs or tooling plates. Which material is the magnet made from and what does that mean for longevity? The device uses hard-ferrite material, which offers stable magnetic performance and long service life for general workshop applications under normal conditions. What temperatures can the magnetic holder withstand? The holder has a recommended operating temperature up to 100 °C and a maximum short-term limit of 200 °C; prolonged exposure to the maximum should be avoided to preserve magnetic strength. Is the magnet suitable for heavy-duty clamping? This compact flat magnet is intended for light to medium fixturing tasks; applications requiring heavy clamping should use larger or higher-capacity magnetic systems. Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
25mm Flat Magnetic Mount Without Threaded Bush 40N Holding Force, Max 200°C - TECWERK
Take advantage of the compact dimensions and reliable 40 N holding force for consistent part retention in production processes; the hard‑ferrite magnet offers temperature resilience up to 200 °C, while Metav Werkzeuge provides fast supply and specialist advice for seamless integration. TECWERK Magnetic flat holder D25 × H7 mm, 40 N holding force The TECWERK magnetic flat holder delivers a compact magnetic clamping solution for fixtures, jigs and small component handling in workshops and light industrial settings Compact D25 × H7 mm design Holding force 40 N Hard ferrite material Suitable up to 200 °C Accurate holding in a space‑saving format The hard ferrite construction provides a reliable magnetic field in a minimal footprint, making this component ideal where space is limited. With a diameter of 25 mm and a height of 7 mm, the unit achieves a holding force of 40 N, enabling secure retention of small parts during assembly or light machining. The compact dimensions reduce interference with neighbouring fixtures and help maintain clear access to workpieces, while the ferrite composition ensures wear‑resistant performance during repetitive use. Temperature resilience that supports process stability Designed for industrial environments, the magnet is specified with a recommended operating temperature of up to 100 °C and a maximum temperature of 200 °C, allowing use near heat‑generating processes. This thermal tolerance minimises loss of magnetic performance under warm conditions and supports consistent clamping force over cycles. For applications requiring heat exposure, the thermal data helps planners select suitable placement and cooling strategies to maintain operational integrity. Easy integration and dependable function without threaded bush Delivered without a threaded bush, the component simplifies direct bonding or press‑fit installation into fixtures and tooling plates, reducing design complexity for bespoke assemblies. The non‑threaded variant suits adhesive mounting or insertion into precision recesses and supports rapid retrofit into existing jigs. Backed by Metav's emphasis on traceable supply and quality control, the part contributes to predictable production outcomes and reduced rework rates. For ordering or technical consultation on the TECWERK magnetic flat holder, contact Metav Werkzeuge in Emmerich by e‑mail at info@metav-werkzeuge.com or by telephone on +49 2822 7131930 for prompt delivery and expert advice. Technical Data Article number: 4000832234NW Product type: Magnetic flat holder Diameter: 25 mm Height: 7 mm Material: Hard ferrite Design: without threaded bush Holding force: 40 N Recommended operating temperature: up to 100 °C Maximum temperature: 200 °C Packaging unit: 10 Facts SKU: 4000832234NW Manufacturer: TECWERK Product category: Magnetic clamping element Special features Compact form factor for tight fixtures Suitable for adhesives or press fit installation Ferrite magnet for stable magnetic properties Engineered for repetitive holding tasks FAQ What is the holding capacity of this magnetic flat holder? The TECWERK magnetic flat holder provides a holding force of 40 N, suitable for securing small components in jigs and light assembly operations. Which materials is the magnet made from and how does that affect use? The unit is manufactured from hard ferrite, which offers good magnetic stability and wear resistance; ferrite is particularly appropriate where corrosion resistance and cost efficiency are required. Can the magnet be used near heat sources? Yes. The device has a recommended operating temperature up to 100 °C and can withstand a maximum of 200 °C, making it suitable for many warm industrial environments with appropriate placement. Manufacturer / Responsible: NORDWEST Handel AG, Robert‑Schuman‑Straße 17, 44263 Dortmund
25mm Magnetic Rod Gripper Smooth, Holding Force 40N, AlNiCo 500 - TECWERK
Reliable compact holding that copes with high temperatures and confined spaces: a compact Ø 20 mm body combined with a 40 N maximum holding force and AlNiCo 500 magnet material supports secure short-term fixation in assembly and tooling. Order directly via Metav Werkzeuge or consult our specialists for application-specific advice. Magnetic rod gripper D20×H25 mm — smooth, 40 N holding force (TECWERK) The Magnetic rod gripper D20×H25 mm smooth is a compact magnetic clamp designed for precise positioning and temporary holding of small ferrous components in production, assembly and inspection tasks. Smooth AlNiCo 500 surface Compact Ø 20 mm design Holding force 40 N Temperature resistance up to 450 °C Secure small-part holding with measurable performance The compact format provides a predictable holding characteristic: a cylindrical body with Ø 20 mm and a total height of 25 mm gives a stable contact area for small fixtures while keeping the footprint minimal. The specified 40 N holding force describes the peak pull capability under standard test conditions and translates into reliable short-term fixation for light assemblies, jigs or pick-and-place operations. This measured value supports process planning and reduces trial-and-error during fixture design. Material selection for thermal stability and magnetic consistency Built from AlNiCo 500, the magnet core offers stable magnetic properties at elevated temperatures and good demagnetisation resistance compared with standard ferrite magnets. AlNiCo 500 retains useful magnetic strength where heat is present, allowing operation up to 450 °C without rapid loss of performance. For production environments that include heat cycles or near-heat processes, this material choice reduces the need for frequent replacement and maintains holding performance over time. Precision fit and installation advantages Additional geometric data includes a dedicated dimension h: 5 mm with a h6 tolerance class; this defines a close-fitting datum for press or slip fits and ensures repeatable positioning in housings or tool plates. The h6 tolerance indicates a tight shaft fit commonly used in precision assemblies, reducing play and improving repeatability in repetitive operations. Clear dimensional control lowers setup time and contributes to consistent assembly quality. Gentle contact and versatile application range The smooth finish prevents unnecessary marking on mating parts and is therefore suitable for short-term contact with prepared surfaces. The combination of compact geometry and thermal resistance makes the component well suited to fixture points, temporary tacking in welding pre-assembly and sorting tasks where gentle magnetic support is required. The TECWERK magnetic rod gripper balances low profile design with practical holding capacity for everyday workshop and small-scale industrial tasks. For robust high-temperature magnetic holding choose the TECWERK magnetic rod gripper and contact Metav Werkzeuge for procurement and technical advice from Emmerich: info@metav-werkzeuge.com | +49 2822 7131930 Technical data Article number: 4000832255NW Product: Magnetic rod gripper Manufacturer: TECWERK Material: AlNiCo 500 Finish: smooth Packaging unit: 1 Facts Diameter: 20 mm Height: 25 mm Holding force: 40 N Operating temperature: up to 450 °C Dimension h: 5 mm; tolerance: h6 Special features Smooth execution AlNiCo 500 magnet material Compact design Packaging unit 1 FAQ What types of parts are suitable for magnetic holding? The magnetic rod gripper is designed primarily for ferrous components and supports temporary fixation of steel parts and similar magnetic materials. What is the maximum operating temperature? TECWERK specifies an operating temperature up to 450 °C for this magnetic rod gripper, reflecting the thermal resilience of the AlNiCo 500 material. What does the h6 tolerance mean for installation? A h6 tolerance indicates a close shaft fit; it ensures a snug installation with minimal play when the 5 mm h dimension is used as a locating feature. How strong is the grip in practical terms? The device provides a maximum holding force of 40 N, suitable for short-term holding and light fixture duties rather than heavy lifting. Will the finish mark delicate surfaces? The smooth execution reduces point marking and is intended for short-term contact where minimal surface impact is required. Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
27mm Precision Pot Magnet 25mm Height M6 Threaded Blind Hole 61 N Holding Force, Max 450°C - TECWERK
Take advantage of the compact design, AlNiCo 500 construction and 61 N holding force for dependable clamping even at elevated temperatures; order directly via Metav Werkzeuge or ask our consultants for integration advice. Pot magnet Ø27 mm × H25 mm with M6 threaded blind hole — AlNiCo 500, 61 N (TECWERK) The Pot magnet Ø27 × H25 with M6 threaded blind hole is a compact magnetic clamping element suitable for fixtures and assembly aids in demanding industrial environments. Compact Ø27 mm, 25 mm height M6 threaded blind hole for secure fixing AlNiCo 500 alloy for high-temperature use Holding force 61 N for reliable clamping Robust clamping in a compact footprint The compact Ø27 mm diameter and 25 mm height deliver a small form factor that still provides meaningful clamping capacity. With a specified 61 N holding force and an internal M6 thread, the component is optimised for space-constrained fixtures where predictable magnetic retention is required. The combination of size and rated holding force supports precise positioning tasks and lightweight jigs, reducing the need for larger, more cumbersome clamping hardware while preserving mechanical reliability. High-temperature stability for process resilience Constructed from AlNiCo 500, the magnet sustains elevated operating conditions, with a maximum magnet temperature of 450 °C and a recommended coating bake temperature of 200 °C. This thermal tolerance makes the element suitable for processes that involve heat exposure, such as coating, curing or near-soldering operations, where magnetic properties must remain stable. The material choice ensures minimal demagnetisation under heat, maintaining consistent performance during thermal cycles typical in industrial workflows. Simple, secure integration into assemblies The tapped blind hole (threaded blind hole) with M6 threading enables straightforward mechanical attachment into assemblies and fixtures without through-holes, preserving component integrity and facilitating flush mounting. The design reduces installation time and simplifies retrofitting into existing tooling. Where repeatability and fast changeovers are required, the pot-style magnet offers a practical compromise between permanent fastening and adjustable clamping, enabling efficient fixture design and serviceability. Practical applications and user benefits Ideal for light-duty holding, positioning of small parts, temporary fixturing and sensor mounting, the pot-style magnet suits workshop and production-line environments that demand compact, heat-resistant magnetic elements. The compact design minimises interference with neighbouring components while the alloy selection supports long-term magnetic stability. For suppliers and production engineers, the element reduces fixture complexity, contributing to shorter set-up times and increased throughput on repetitive tasks. For availability, technical fitting advice and supply direct from Emmerich, request assistance from Metav Werkzeuge — our consultants at Metav Werkzeuge will advise on suitability, integration and delivery from stock; email info@metav-werkzeuge.com or call +49 2822 7131930 Technical data Article number: 4000832277NW Product label: Pot magnet D.27mm H.25mm with threaded blind hole, 61 N BELOH Facts Diameter: 27 mm Height: 25 mm Holding force: 61 N Thread: M6 Special features Material: AlNiCo 500 Version: with threaded blind hole Max. magnet operating temperature: 450 °C Coating bake temperature: 200 °C Packaging unit: 1 FAQ What maximum temperature can this pot magnet withstand? The pot magnet, made from AlNiCo 500, has a maximum magnet operating temperature of 450 °C, with a coating bake temperature specified at 200 °C. How is the magnet mounted into a fixture? Mounting is via the internal M6 threaded blind hole; the threaded blind hole permits secure fixing without a through-hole, simplifying flush installation. What holding capacity can be expected in practice? The specified holding force is 61 N, suitable for light-duty clamping and positioning tasks where compact magnetic retention is required. Is the material suitable for high-reliability industrial use? Yes, the AlNiCo 500 construction provides thermal stability and consistent magnetic performance for repetitive industrial applications. Which applications are typical for this pot-style magnet? Typical uses include temporary fixturing, small-part positioning, sensor mounting and fixtures in workshops and production environments that require compact, heat-resistant magnetic elements. Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
28.6mm Flat Pot Magnet 50 N Holding Force With Through Hole And Countersink, AlNiCo 500 - TECWERK
Take advantage of a compact magnetic fixing that combines durable AlNiCo 500 construction, a holding force of 50 N and a user-friendly through-hole with countersink for flush mounting; efficient installation and reliable high‑temperature performance help keep small assembly and fixturing tasks precise and repeatable. Order or request guidance via Metav Werkzeuge or consult their specialists for application support. Flat pot magnet D28.6 × H8.5 mm, AlNiCo 500 (TECWERK) A flat pot magnet suitable for compact fixings, light fixturing and high‑temperature applications High-temperature stability up to 450 °C Solid AlNiCo 500 construction Through-hole with 4.8 mm bore and countersink Holding force 50 N for light fixtures Consistent magnetic performance for small‑scale fixturing The Flat pot magnet D28.6 × H8.5 mm is built from AlNiCo 500, an alloy chosen for its resistance to thermal demagnetisation, delivering a reliable holding force of 50 N in repeatable applications. In production environments where consistent clamping and short heat exposure occur, the material’s stability reduces the need for frequent recalibration. The specification supports small assembly, positioning and light fixturing tasks where predictable magnetic behaviour is a priority. Secure, low‑profile mounting with countersunk through‑hole The integrated through-hole with a 4.8 mm bore and corresponding countersink enables flush fixing so the magnetic face remains unobstructed and contact with workpieces is maximised. This arrangement permits secure attachment using standard fasteners, minimising added profile and simplifying replacement when repositioning or maintenance is required. The design supports streamlined assembly workflows and reduces mechanical interference in compact setups. Compact dimensions and industrial thermal suitability With a 28.6 mm diameter and 8.5 mm height, the magnet offers a compact footprint suited to constrained spaces in workshops and light‑manufacturing cells. The component tolerates a maximum operating temperature of 450 °C, and a paint‑bake compatibility up to 200 °C, which is useful where fixtures undergo subsequent coating or thermal processing. These thermal figures enable deployment in operations that involve short high‑temperature cycles while maintaining magnetic function. Contact Metav Werkzeuge for tailored advice on the TECWERK flat pot magnet and fast supply from Emmerich; consultants can confirm suitability for specific applications and advise on installation options. Technical Data Article number: 4000832271NW Product type: Flat pot magnet Brand: TECWERK Material: AlNiCo 500 Execution: with through-hole and countersink Facts Diameter: 28.6 mm Height: 8.5 mm Bore diameter: 4.8 mm Holding force: 50 N Maximum operating temperature: 450 °C Paint-bake temperature: 200 °C Packaging unit: 1 Special features Compact footprint for tight assemblies Through-hole and countersink for flush fixing Stable magnetisation at elevated temperatures Suited to light fixturing and fastening tasks FAQ What maximum temperature can the magnet withstand? The TECWERK flat pot magnet (SKU 4000832271NW) is specified for a maximum operating temperature of 450 °C, with a separate paint‑bake compatibility listed at 200 °C. Which fasteners are compatible with the mounting hole? The device features a 4.8 mm through‑hole with countersink to accept standard fasteners and allow flush mounting; this keeps the magnetic face clear for optimal contact. Is the magnet suitable for outdoor or corrosive environments? The product is made from AlNiCo 500, but the data provided does not specify any external corrosion protection; for outdoor or corrosive conditions additional surface treatment or protective measures should be considered. What applications suit a 50 N holding force? A holding force of 50 N makes this magnet appropriate for light fixtures, repeatable positioning tasks and small assembly aids where moderate retention is sufficient without bulky hardware. Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
30mm x 20mm x 20mm Horseshoe Magnet AlNiCo 500 45N Holding Force, 5.2mm Bore - TECWERK
Take advantage of the compact AlNiCo 500 construction and 45 N holding force for reliable fixture and positioning tasks; the compact dimensions and 5.2 mm mounting hole enable quick integration into confined assemblies. Order the part directly via Metav Werkzeuge or consult our specialists for application advice. Horseshoe magnet L30 x 20 x 20 mm – AlNiCo 500, 45 N holding force (TECWERK) A horseshoe magnet L30 x 20 x 20 mm engineered for precise holding and positioning in workshop jigs, assembly fixtures and light industrial applications. Strong 45 N holding force for reliable fixing Compact dimensions 30 x 20 x 20 mm for tight spaces 5.2 mm mounting hole for secure attachment Reliable holding where space is limited The compact cast of this magnet combines a low installation footprint with a measurable holding force of 45 N, making it suitable for small jigs, temporary fixturing and component retention. The small overall size 30 x 20 x 20 mm minimises intrusion into assemblies and allows integration where larger magnets would be impractical. The clear numerical specification of the hold gives planners and technicians a predictable basis for fixture design, reducing trial-and-error during assembly layout and improving throughput in repetitive tasks. Simple, durable mounting and installation A dedicated 5.2 mm mounting hole provides a standardised fixing point for screws or studs, speeding up installation and ensuring repeatable alignment in production setups. The presence of a defined mounting aperture means the magnet can be anchored securely without bespoke adaptors, which shortens setup time and lowers the complexity of retrofits. The data also shows a lacquer curing temperature of 200 °C, which is relevant when the part is exposed to elevated temperatures during assembly processes that include painted or baked components. High-temperature capability and material clarity Constructed from AlNiCo 500, this magnet features a specified maximum operating temperature of 450 °C, allowing use in hotter environments where standard ferrite magnets would lose performance. That rated temperature provides a clear technical advantage for fixtures exposed to heat or for processes that include thermal steps. The explicit material listing and temperature figures help maintenance and design teams choose the correct magnetic solution without ambiguity, supporting long-term reliability in demanding conditions. Practical benefits for workshop and light industrial use Compact size, measurable holding force and a standardised mounting option translate into tangible savings in assembly time and fixture complexity. Where repeatable positioning and easy replacement are priorities, the physical specifications make decisions straightforward: planners can calculate expected retention, fit the magnet with standard fasteners and plan for thermal exposure up to the stated limit. The product’s concise technical data supports procurement and inventory decisions and reduces the need for specialist conversion parts. For temperature-critical fixtures or compact retention needs, consider the TECWERK horseshoe magnet and contact Metav Werkzeuge for tailored advice and availability — email info@metav-werkzeuge.com or call +49 2822 7131930 for precise application support Technical Data Article number: 4000832261NW SKU: 4000832261NW Brand: TECWERK Product type: Horseshoe magnet Facts Dimensions: 30 x 20 x 20 mm Holding force: 45 N Mounting hole diameter: 5.2 mm Maximum operating temperature: 450 °C Lacquer curing temperature: 200 °C Packaging unit: 1 Special features Material: AlNiCo 500 Compact horseshoe design Suitable for high-temperature applications Standardised mounting hole for simple fixing FAQ What is the holding capacity of this magnet? The magnet provides a holding force of 45 N, specified for the TECWERK horseshoe magnet (SKU 4000832261NW). Can this magnet be used in high-temperature environments? Yes. The magnet is made from AlNiCo 500 and is rated for a maximum operating temperature of 450 °C, which allows use in many elevated-temperature applications. How is the magnet mounted in an assembly? A 5.2 mm mounting hole is provided for secure attachment with standard screws or studs; the compact 30 x 20 x 20 mm form factor aids installation in confined spaces. Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
31.8mm Button Magnet With Split Contact Area And Through-Hole, Holding Force 48 N, Max Temp 450 °C - TECWERK
Take advantage of a compact magnetic fastening solution that combines AlNiCo 500 temperature resistance and a reliable holding force of 48 N for stable fixture work; order directly via Metav Werkzeuge or consult our specialists for delivery from Emmerich. Button magnet D31.8×H25.4 mm – TECWERK with split contact face and through-hole, high-temperature resistant The Button magnet D31.8×H25.4 mm by TECWERK is a compact magnetic fastening element designed for industrial fixtures and tooling where elevated temperatures and secure fixing are required. AlNiCo 500 magnet material for high-temp use Split contact surface for improved grip Through-hole Ø7.1 mm for secure fixing Holding force 48 N for compact fastening High-temperature performance for demanding applications Made from AlNiCo 500, this round magnetic element is engineered to maintain magnetic stability at elevated temperatures, enabling use in processes where heat resistance is essential. The specification of a maximum operating temperature of 450 °C means the magnet can be integrated into fixtures exposed to heat during soldering, brazing or thermal processing. Explaining the material: AlNiCo alloys combine aluminium, nickel and cobalt to provide predictable magnetic behaviour under heat; this reduces the risk of sudden demagnetisation and supports consistent performance in industrial cycles. Secure fixing thanks to split contact face and through-hole The combination of a split contact surface and a through-hole Ø7.1 mm offers both improved surface contact and reliable mechanical fastening. The divided face increases real contact area on uneven surfaces, improving shear resistance, while the central through-hole permits the use of a screw or pin for positive location. Together these features reduce slippage and make the element suitable for jigs, small fixtures and clamping aids where repeatable positioning and mechanical restraint are required. Compact design with dependable holding power Despite its modest size, this circular magnet delivers a holding force of 48 N, providing secure retention for small tooling parts and workpieces. The combination of compact geometry and magnetic strength allows integration into confined assemblies or retrofit of existing fixtures without major changes. In practice, the element serves as a space-efficient magnetic fastener when a balance of grip and compactness is required, and it performs best where moderate clamping is needed rather than heavy structural loads. Practical notes for installation and material handling The part is supplied individually and includes a through-hole for mechanical fixing, simplifying installation into plates or brackets. The product accepts a coating bake temperature of 200 °C, enabling painted or lacquered assemblies without compromising magnetic behaviour when following the stated bake limits. For procurement and delivery, the item is available as a single unit, and its features support use in production, assembly jigs and thermal process environments where a durable, compact magnetic solution is required. For high-temperature fixture needs, choose the TECWERK button magnet and contact Metav Werkzeuge for expert advice and reliable supply from Emmerich — eMail: info@metav-werkzeuge.com, Phone: +49 2822 7131930 Technical data Article number: 4000832268NW Product type: Button magnet Material: AlNiCo 500 Execution: with split contact surface and through-hole Manufacturer: TECWERK Facts Diameter: 31.8 mm Height: 25.4 mm Through-hole diameter: 7.1 mm Holding force: 48 N Maximum operating temperature: 450 °C Coating bake temperature: 200 °C Packaging unit: 1 Special features Split contact surface Through-hole Ø7.1 mm for mechanical fixing High temperature resistance (AlNiCo 500) Suitable for heat-exposed fixtures and tooling FAQ What material is the magnet made from and why does that matter? The magnet is manufactured from AlNiCo 500; this alloy maintains magnetic stability at elevated temperatures, which is why the Button magnet D31.8×H25.4 mm (TECWERK, SKU 4000832268NW) is specified for applications up to 450 °C. How strong is the magnetic holding force? The component provides a holding force of 48 N, offering secure retention for light to medium clamping tasks in jigs and small fixtures. Can the magnet be mechanically secured? Yes — the device features a through-hole of 7.1 mm diameter that allows mechanical fixing with a screw or pin for positive location and improved resistance to shear forces. What are the temperature limits for use and coating? Maximum operating temperature for the magnet is 450 °C; the permitted coating bake temperature is 200 °C, so painting or lacquering processes must respect this limit. How is the product supplied? The item is supplied as a single unit (packaging unit 1); the SKU is 4000832268NW and the product type is a button magnet from TECWERK. TECWERK: Manufacturer / Responsible: NORDWEST Handel AG, Robert-Schuman-Straße 17, 44263 Dortmund
