Turning Holder — PWLNR 1616 for WNMG 0604 Inserts by Teknik Makina

Turning Holder for secure clamping of WNMG 0604 indexable inserts, designed for right-hand turning operations and versatile workshop use.

• For WNMG 0604 indexable inserts
• 95° cutting angle for secure engagement
• 16 × 16 mm shank for stable mounting
• 100 mm overall length for versatile reach

Secure clamping for consistent Turning results

A robust clamp concept delivers the primary benefit: Stable Clamping reduces insert movement and vibration during heavy cuts. The holder's PWLNR 1616 ISO design ensures reliable seating of WNMG 0604 inserts, so Chip Formation and Surface Finish remain consistent. This stability translates into fewer reworks and longer Insert life, improving overall Workshop Efficiency without complex adjustments.

Geometry tuned for precise machining performance

The tool geometry supports a 95° Cutting Angle, optimised for predictable Tool Engagement and controlled cutting forces. Combined with the Right-Hand Cutting orientation, this geometry helps to maintain concentricity and repeatability on turned parts. For machinists focused on precision, the holder's measured angles and head dimensions simplify setup and deliver reproducible results across serial production.

Compatibility and practical dimensions for everyday use

Designed specifically for WNMG 0604 indexable inserts, the holder features a 20 mm Cutting-Head Width and compact 16 mm Width and Height, making it suitable for many standard lathes and tool posts. The 100 mm Overall Length offers a balance between reach and stiffness, enabling both facing and light profiling tasks. Clear compatibility reduces setup time and helps select the right tooling combination quickly.

Installation, maintenance and who benefits most

Assembly is straightforward: the holder accepts standard screws and the Insert sits in the proven clamp seat, enabling quick replacement and service. Shops that perform frequent Insert changes or run mixed batch production will appreciate the fast handling and predictable behaviour. For technicians and production planners, this holder represents a practical upgrade that supports reliable cycle times and reduced scrap.

Strong recommendation to choose the Teknik Makina Turning Holder PWLNR 1616 for demanding turning tasks — for personal advice and ordering assistance please contact METAV Werkzeuge at info@metav-werkzeuge.com or +49 2822 7131930; WhatsApp +49 170 2837271.

• Bezeichnung: Turning Holder (Klemmhalter)
• Marke: Teknik Makina
• SKU: P158TM
• Suitable Inserts: WNMG 0604
• ISO Designation: PWLNR 1616
• Secondary Designation: H06

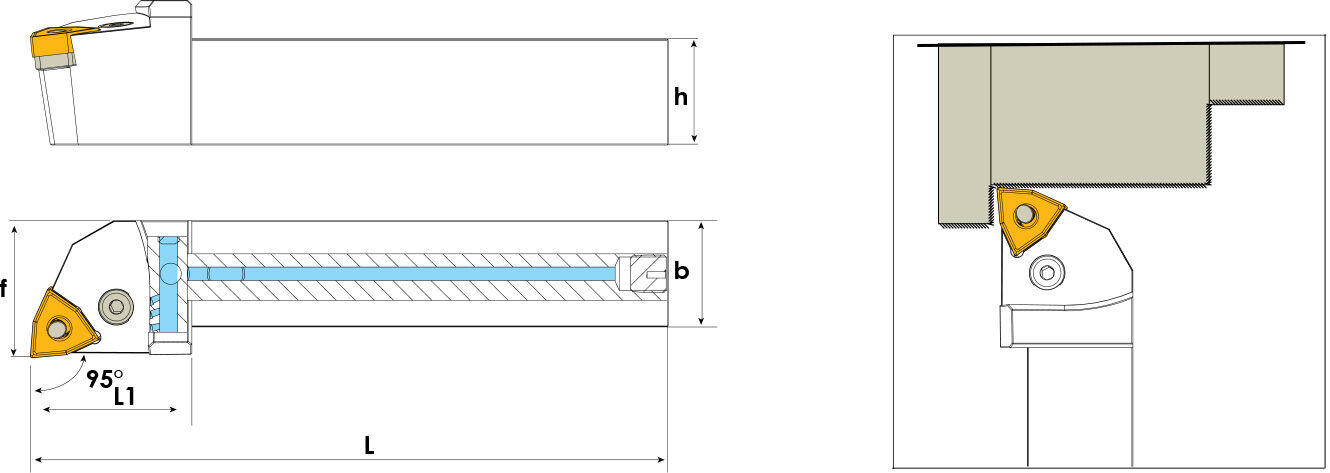

• Overall Length: 100 mm
• Shank Width: 16 mm
• Shank Height: 16 mm
• Cutting-Head Width: 20 mm
• Cutting Height: 30 mm
• Cutting Direction: Right
• Cutting Angle: 95°
• Weight: 0.223 kg
• GTIN: 4061905149955
• Availability: in Stock
• Condition: New
• Manufacturer: Teknik Makina, Nolu Sokak, No 9, Selcuklu, Türkiye, eMail: info@teknik-makina.com
• Responsible Person: Metav Werkzeuge GmbH, Parkring 45, 46446 Emmerich, eMail: info@metav-werkzeuge.com

FAQ

What inserts are compatible with the Turning Holder from Teknik Makina?
The Turning Holder from Teknik Makina is designed for WNMG 0604 indexable inserts and seats them in the PWLNR 1616 clamp, ensuring correct fit and secure retention during right-hand turning.

Can the Teknik Makina Turning Holder be used for profiling and facing?
Yes, the Teknik Makina Turning Holder with its 100 mm Overall Length and robust head geometry is suitable for both facing and light profiling, offering a balance between Reach and stiffness.

How does the PWLNR 1616 design affect insert changeover?
The PWLNR 1616 design of this Turning Holder simplifies Insert seating and clamp engagement, enabling quick and repeatable Insert changes which reduce machine downtime and increase productivity.

Who should choose the Teknik Makina Turning Holder PWLNR 1616?
Workshops and production environments that require reliable Right-Hand Cutting performance and consistent Insert clamping will benefit from the Teknik Makina Turning Holder PWLNR 1616; METAV Werkzeuge provides competent consultation if further technical data are needed.
