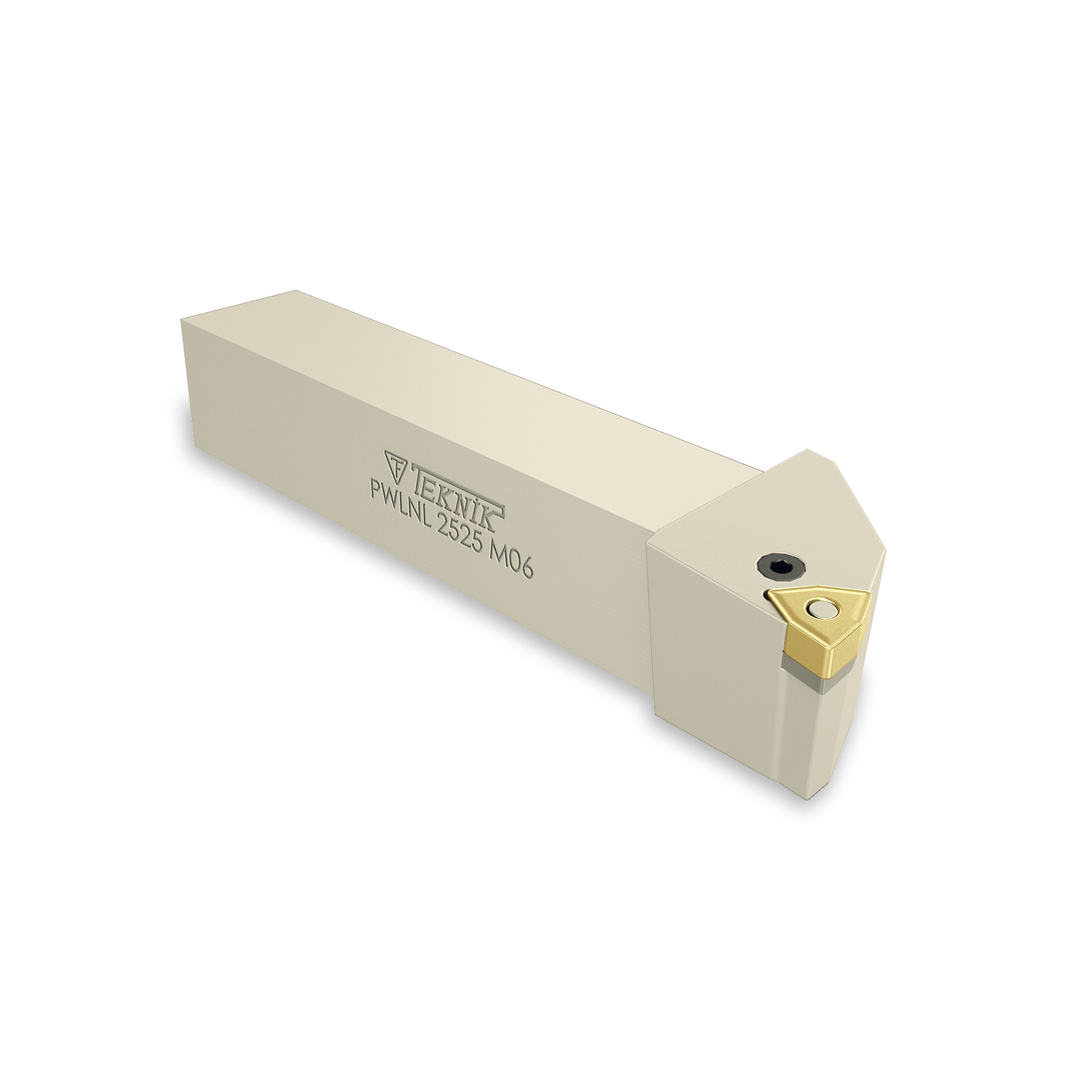

100mm PWLN Holder for WNMG 0604 Inserts, 95° Cutting Angle, Left - Teknik Makina

Turning Holder — Clamping Holder for WNMG 0604 Inserts by Teknik Makina

Turning Holder is a precision clamping holder designed for WNMG 0604 indexable inserts, optimised for stable left-hand turning in demanding metalworking applications.

• Turning Holder for WNMG 0604 inserts
• 100 mm overall length for deep reach
• 95° cutting angle for stable engagement
• Left-hand cutting direction
• ISO PWLNL 1616 robust clamping design

Precision and Stability that Boosts Productivity

The 95° cutting angle and the compact 100 mm overall length deliver a predictable cutting geometry that reduces chatter and improves surface quality. By matching the holder to WNMG 0604 indexable inserts, the assembly ensures consistent Insert Seating and secure clamping, which translates into fewer interruptions for rework and higher throughput on repetitive turning tasks. This combination provides a measurable advantage in cycle-time critical production environments.

Secure Clamping for Accurate Tooling

Designed to the PWLNL 1616 ISO designation, the clamping mechanism is engineered to keep the insert in exact position under cutting forces. The precise Insert Support and stable Seat Angle mean cutting forces are transmitted reliably, which protects the Insert Edge from premature damage and sustains cutting performance. The Left-hand orientation is suitable for operations requiring reverse tool geometry and is clearly marked to avoid setup errors.

Ideal for Workshops and CNC Turning Centres

This clamping holder addresses the needs of small job shops and larger CNC turning centres that require dependable tooling for medium-duty turning. The robust design supports repeatable setups and simplifies Insert Changes, reducing downtime between batches. Operators benefit from straightforward mounting and the ability to use widely available WNMG 0604 inserts, making this holder a practical choice for manufacturers prioritising flexibility and uptime.

Built for Industrial Use and Easy Integration

Manufactured by Teknik Makina, the holder is dimensioned to fit standardized tool posts and offers a compact Schneidkopf width of 20 mm for close-quarter work. The specified 30 mm cutting height supports correct insert projection and alignment with common tool geometries. The holder’s clear specifications simplify tool selection and integration into existing tool inventories without guesswork.

Strongly recommended for applications that demand reliable clamping and predictable cutting performance; contact METAV Werkzeuge for expert advice and ordering assistance — Email: info@metav-werkzeuge.com, Phone: +49 2822 7131930, WhatsApp: +49 170 2837271

• Designation: Turning Holder (Clamping Holder)
• Brand: Teknik Makina
• SKU: P164TM
• Compatible Indexable Inserts: WNMG 0604
• Overall Length: 100 mm
• Width: 16 mm
• Height: 16 mm
• Cutting Head Width: 20 mm
• Cutting Height: 30 mm
• Cutting Angle: 95°
• Cutting Direction: Left
• ISO Designation: PWLNL 1616
• Secondary Designation: H06
• Weight: 0.223 kg
• GTIN: 4061905149986
• ECLASS: 21181004
• Manufacturer: Teknik Makina, Nolu Sokak, No 9, Selcuklu, Türkei, eMail: info@teknik-makina.com
• Responsible Person: Metav Werkzeuge GmbH, Parkring 45, 46446 Emmerich, eMail: info@metav-werkzeuge.com

FAQ

What inserts are compatible with the Turning Holder from Teknik Makina?
The Turning Holder by Teknik Makina is designed for WNMG 0604 indexable inserts; this compatibility ensures correct seating and clamping for typical turning operations.

Can the Turning Holder be used for left- and right-hand turning?
The Teknik Makina Turning Holder is specified for left-hand cutting direction; for right-hand operations, a holder with the opposite orientation should be selected.

How long is the Turning Holder and what does that mean for reach?
With an overall length of 100 mm, the Teknik Makina Turning Holder provides increased reach for deeper cuts while maintaining the rigidity required for stable machining.

Who can advise if the Turning Holder meets specific machining requirements?
METAV Werkzeuge offers comprehensive, expert advice for tooling selection; contact info@metav-werkzeuge.com or call +49 2822 7131930 for personalised support regarding the Teknik Makina Turning Holder.
