16mm PSSNL 1616 PSSN for SNMG Indexable Inserts For SNMG 1204 Inserts Innenkühlung Linksschneidend - Teknik Makina

Take advantage of the combination of secure clamping, compact rigidity and precise left-hand cutting geometry for consistent turning results; order the tool directly via Metav Werkzeuge or contact the consultants for tailored application advice.

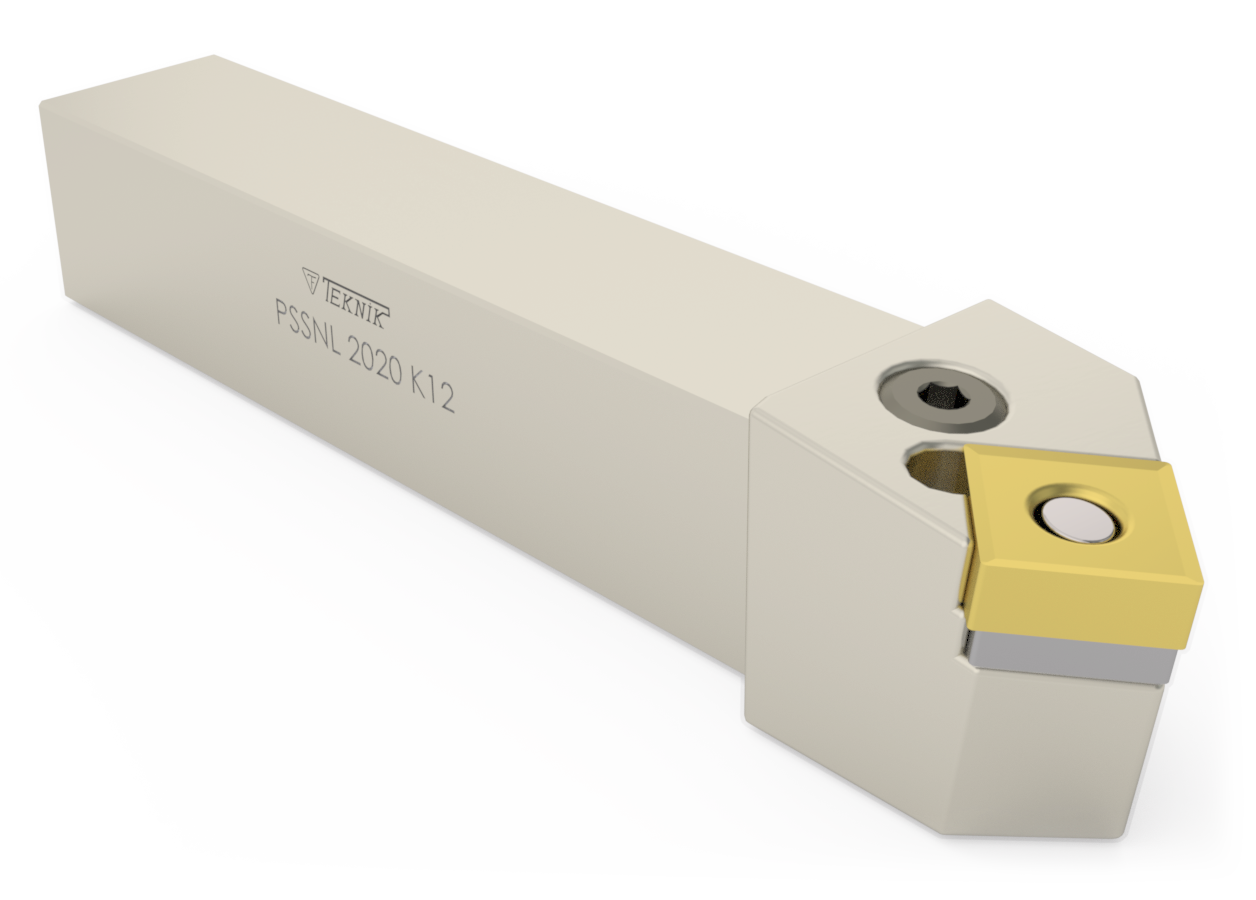

PSSN clamping holder for SNMG indexable inserts (left-hand, 45°) by Teknik Makina

The PSSN clamping holder is a left-hand turning toolholder engineered for SNMG 1204 indexable inserts, designed to deliver stable external turning and accessible cutting at a 45° approach.

• Left-hand turning orientation
• For SNMG 1204 indexable inserts
• Clamping height 16 mm for secure hold
• 45° cutting angle with 100 mm overall length

Stable clamping for consistent tool life

The holder provides a clamping height of 16 mm and a body width of 16 mm, creating a compact yet rigid interface between insert and shank. A 20 mm cutting-head width increases the contact surface for the insert seat, which reduces micro-movement during heavy cuts and improves repeatability. The low mass of 0.218 kg supports quicker tool-indexing and reduces inertial loads on the turret, contributing to steadier surface finish without sacrificing stability.

Designed for SNMG 1204 inserts and left-hand operations

Designed specifically for SNMG 1204 indexable inserts, this toolholder uses a 45° approach so that the cutting forces are directed for efficient chip formation and reduced radial vibration. The left-hand orientation is suited to lathe configurations that require reverse-tool rotation or specific fixture layouts. The indexable concept means inserts can be rotated or replaced independently of the holder, enabling rapid recovery from wear and minimising machine downtime while maintaining process consistency.

Simple integration and concise installation

The holder carries the ISO designation PSSNL 1616, compatible with common turret and bore-bar interfaces, and a shank identification of H12, simplifying tool management in mixed fleets. With an overall length of 100 mm, the tool offers a balance between reach and rigidity, allowing access to deeper profiles without excessive overhang. These standard references aid toolroom organisation and accelerate setup times during changeovers.

Practical benefits for the workshop and supply assurance

The compact design supports productive external turning where controlled chip flow and repeatable geometry are priorities. As part of a reliable supply chain, the item is offered through Metav Werkzeuge, which combines broad product availability with workshop-focused service and an established European distribution hub. For operations requiring dependable toolholding and quick insert exchange, this holder aligns performance with practical workshop logistics.

For tailored application advice or to secure this Teknik Makina PSSN clamping holder through Metav Werkzeuge, contact info@metav-werkzeuge.com or call +49 2822 7131930 for precise compatibility guidance and order support.

Technical Data

• Article number: P180TM
• Product: PSSN clamping holder for SNMG indexable inserts
• Brand: Teknik Makina

Facts

• Clamping height: 16 mm
• Cutting-head width: 20 mm
• Holder width: 16 mm
• Cutting-edge height: 30 mm
• Cutting direction: left-hand
• Cutting angle: 45°
• Overall length: 100 mm
• Weight: 0.218 kg
• Suitable for inserts: SNMG 1204

Special features

• ISO designation: PSSNL 1616
• Shank/reference: H12
• Left-hand turning orientation
• Designed for indexable insert system

FAQ

Which inserts fit this holder?
The holder is designed for SNMG 1204 indexable inserts; the seat and clamping geometry match that insert format for secure seating and correct chip control.

Is the holder suitable for left-hand turning only?
Yes, the tool has a left-hand cutting orientation and is intended for reverse-direction external turning operations.

What is the ISO designation and why does it matter?
The ISO designation PSSNL 1616 identifies the holder's shank format and mounting standard, aiding compatibility checks with turrets and tool posts.

What is the overall length and how does it affect rigidity?
The 100 mm overall length balances reach and stiffness; shorter overhangs aid rigidity, while this length provides access for deeper external features without excessive vibration.

How does the clamping height influence performance?
A 16 mm clamping height ensures a compact clamp engagement that enhances insert stability, reduces micro-movements and supports consistent surface finish.

Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
