10mm Shank Cutter For RDMW 0501 Indexable Inserts, 2 Flutes, 34mm Cutting Length - Teknik Makina

Take advantage of precise insert compatibility and compact design for reliable milling performance; the cutter combines a 10 mm cutting diameter, a 12 mm shank and a quick clamping solution for short downtimes — order via Metav Werkzeuge or consult the experts for application-specific advice.

Schaftfräser R082TM — Insert cutter body for RDMW 0501, Ø10 mm (Teknik Makina)

The Schaftfräser R082TM is an insert milling cutter body intended for light to medium milling tasks with RDMW 0501 indexable inserts, suitable for workshop and production environments

• For RDMW 0501 indexable inserts
• 10 mm cutting diameter
• Shank diameter 12 mm
• Torx screw M2×4.2, key T6

Precision and fit that reduce setup variables

The R082TM cutter body is built for repeatable mounting of RDMW 0501 indexable inserts, ensuring consistent geometry across tool changes. By combining a compact Ø10 mm cutting diameter with a 12 mm shank, the tool delivers a stable connection between spindle and cutting edge while keeping the assembly lightweight at 0.076 kg. Indexable inserts are removable cutting tips that can be rotated or replaced without remounting the entire tool; this design reduces inventory costs and shortens maintenance cycles while maintaining cutting-edge tolerance.

Faster insert changes and predictable machining cycles

A straightforward clamping system with an M2×4.2 Torx screw and T6 key enables rapid insert replacement and secure seating. For operations where minimal downtime matters, this arrangement reduces intervention time and improves overall equipment effectiveness. The cutter body’s 80 mm overall length and 34 mm cutting length are balanced for accessibility in confined setups and for work that requires controlled reach; the 2 cutting edges provide a predictable cut pattern, making the tool well suited for standard milling routines that rely on indexable tooling strategies.

Suitability for workshop and small-series manufacturing

Designed to accept inserts from established manufacturers such as Taegutec, this cutter body supports a modular tooling approach: replace worn inserts rather than complete tools to lower running costs. The compact form factor and compatibility make the unit appropriate for both trade workshops and production lines that favour fast turnaround and simple stock management. For technical enquiries about compatibility, clamping torque or machining recommendations, Metav’s specialists can advise on integrating the tool into existing toolholders and workflows.

Contact Metav Werkzeuge for application-specific guidance on the Teknik Makina R082TM insert cutter body — call +49 2822 7131930 or email info@metav-werkzeuge.com to confirm fit and delivery options

Technical Data

• Article number: R082TM
• Manufacturer: Teknik Makina
• Product name: Schaftfräser for RDMW 0501 indexable inserts
• SKU: R082TM
• Eclass: 21180806
• ETIM: EC011860

Core technical data

• Cutting diameter: 10 mm
• Number of cutting edges: 2
• Overall length: 80 mm
• Cutting length (shank): 34 mm
• Shank diameter: 12 mm
• Weight: 0.076 kg
• Torx screw: M2×4.2
• Torx key size: T6

Special features

• For indexable inserts: RDMW 0501
• Compatible with inserts by Taegutec
• Designed for use as insert milling cutter body
• Files: 62de7e4f33927e49dbf32748, 62de7ee50f56dbb4de4dbf57

FAQ

Is this cutter body compatible with Taegutec inserts?
Yes. The cutter body is specified for RDMW 0501 indexable inserts and lists compatibility with inserts from Taegutec.

What are the key dimensions to check for holder fit?

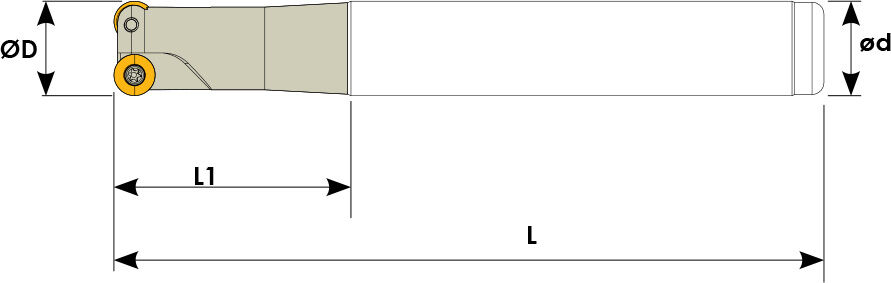

Check the 10 mm cutting diameter, 12 mm shank diameter and 80 mm overall length; these determine holder clearance and reach.

How is the insert secured in the cutter body?
Insertion is secured with an M2×4.2 Torx screw using a T6 key to clamp the RDMW 0501 insert in the seat.

Can the R082TM be used for light production series?
Yes. The modular insert system and quick-change clamping make the R082TM suitable for small-series production where rapid insert replacement is beneficial.
