150mm Shank Milling Cutter For ENMX 0604 Indexable Inserts, 2 Cutting Edges, 150mm Overall Length - Teknik Makina

Benefit from a robust combination of compatibility with ENMX 0604 indexable inserts, a 16 mm shank and a 150 mm overall length to maintain steady production and reduced downtime; order the tool body directly via Metav Werkzeuge or consult our technical advisors for application support.

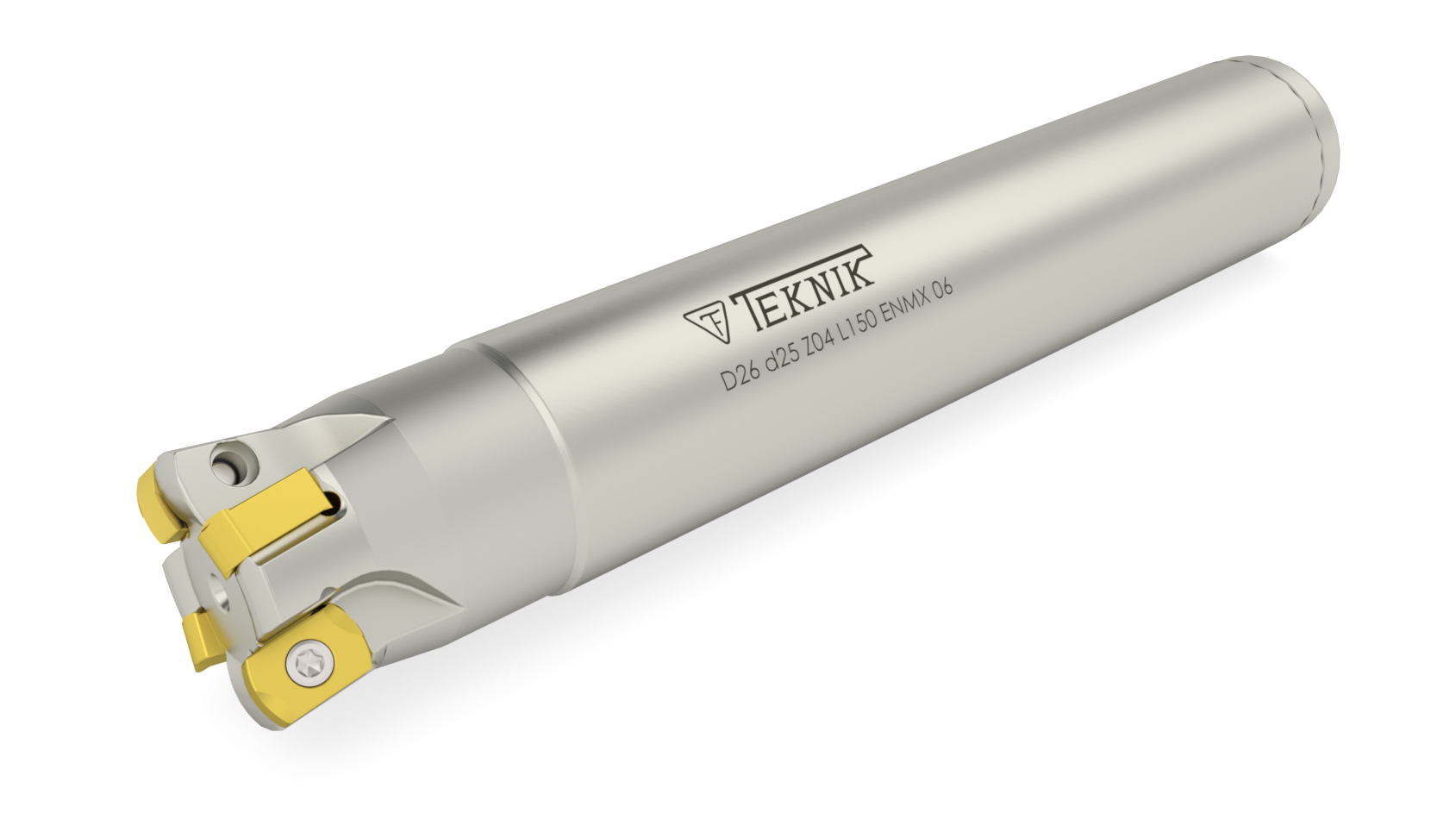

Shank milling cutter S106TM — for ENMX 0604 indexable inserts, 16 mm shank (Teknik Makina)

Shank milling cutter S106TM designed as a modular milling body for use with ENMX 0604 indexable inserts; suited to retrofit into existing insert-based tool systems for efficient milling operations

• Compatible with ENMX 0604 indexable inserts
• 16 mm shank diameter for secure collet grip
• 150 mm overall length for extended reach
• Secured with M2.5x7 Torx screw (T8)

Greater material removal with predictable cycle times

The S106TM tool body delivers consistent chip formation and efficient cut removal thanks to its design for ENMX 0604 indexable inserts. By pairing an insert-based cutter body with a compact profile, the tool body supports predictable cycle times and repeatable results in multi-shift production. The combination of an insert system and a solid mounting interface permits quick insert changes, which reduces machine downtime and improves overall throughput while keeping process control straightforward.

Secure clamping for improved runout and repeatability

A 16 mm shank and secure fixing system reduce tool movement during machining, resulting in high repeatability and stable cutting conditions. The insert is retained by an M2.5x7 Torx screw tightened with a T8 key, which provides a compact and robust clamping method. Secure clamping minimises axial and radial play, so the tool body maintains concentricity and helps extend insert life through consistent cutting geometry rather than compensating for tool wobble.

Extended reach with workshop-friendly geometry

The cutter’s 150 mm overall length gives additional reach for operations in deeper pockets or on larger components while keeping a compact toolholder footprint. This geometry supports access to recessed features without resorting to excessively long, flexible tooling that compromises stiffness. The 2‑edge configuration reduces cutting forces per edge while preserving throughput, so the design balances reach with machining stability for practical workshop use.

Fast maintenance and straightforward system integration

Designed for systems using ENMX 0604 inserts and compatible with YG‑1‑type plates, the tool body simplifies spare-part planning and inventory management. Insert replacement requires only the specified Torx screw and key, enabling quick interventions at the machine without specialised equipment. The modular nature of the cutter body supports rapid integration into existing tool tables and helps maintain steady production with a low learning curve for operators.

Contact Metav Werkzeuge for precise application advice on the Teknik Cutting Tools S106TM shank milling cutter and to confirm insert availability or fitment at Metav Werkzeuge in Emmerich: info@metav-werkzeuge.com or +49 2822 7131930

Technical data

• Article number: S106TM
• Manufacturer: Teknik Cutting Tools (Teknik Makina)
• Article description: Shank milling cutter for ENMX 0604 indexable inserts
• ECLASS: 21180806
• ETIM: EC011860

Facts

• Shank diameter: 16 mm
• Cutting diameter: 16 mm
• Overall length: 150 mm
• Number of cutting edges: 2
• Torx screw: M2.5x7
• Torx key: T8

Special features

• Compatible with ENMX 0604 indexable inserts
• Compatible insert manufacturer: YG‑1
• Secure clamping via M2.5x7 Torx screw
• Brand: Teknik Cutting Tools (Teknik Makina)

FAQ

Which insert type does this cutter body accept?
The S106TM accepts ENMX 0604 indexable inserts and is specified for use with plates following that format; compatibility with YG‑1 inserts is indicated.

What are the shank and overall dimensions?
The shank diameter is 16 mm and the overall length is 150 mm, providing a compact yet extended‑reach tool body.

How many cutting edges are fitted on the tool body?
The tool body is designed for 2 cutting edges when equipped with the appropriate ENMX 0604 inserts.

Which screw and key are required for insert clamping?
Insert retention uses an M2.5x7 Torx screw tightened with a T8 key for secure and compact fixation.

Can the S106TM be used with standard 16 mm toolholders?
Yes, the S106TM’s 16 mm shank is intended to fit standard 16 mm toolholders and collet systems that accept a 16 mm shank.

Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
