40mm Shell Mill For BDMT 1704 Indexable Inserts, 4 Flutes 150mm Overall Length, 32mm Shank - Teknik Makina

Take advantage of the cutter's combination of a Ø 40 mm cutting diameter and a 32 mm shank for robust material removal, together with secure fastening using an M4x10 Torx screw (T15) for fast insert changes; order directly via Metav Werkzeuge or consult our specialists for insert pairing and setup.

Shank milling cutter S585TM by Teknik Makina — Ø 40 mm, for BDMT 1704 indexable inserts

A shank milling cutter S585TM built for indexable-insert milling tasks, engineered to accept BDMT 1704 inserts and to deliver stable, repeatable cuts in routine production and rework operations.

• Ø 40 mm cutter diameter
• 32 mm shank diameter
• Compatible with BDMT 1704 inserts (Kyocera)
• 4 cutting edges, 90° cutting angle

Higher removal rates with defined insert compatibility

The S585TM body is optimised for efficient material removal by combining a Ø 40 mm cutting circle with a dedicated cutting length of 40 mm, enabling substantial metal removal per pass while maintaining control. Acceptance of BDMT 1704 indexable inserts simplifies tooling logistics and reduces changeover time compared with brazed or solid-carbide cutters. The supplied M4x10 Torx screw secured with a T15 key ensures reliable clamping of each insert, which helps to maintain consistent cutting geometry and reduces the need for frequent readjustment. These features translate into a measurable throughput advantage on repetitive milling operations.

Robust design for vibration resistance and steady finishing

A 32 mm shank increases the effective stiffness between tool and spindle, reducing deflection under load and supporting stable cutting behaviour across the available 150 mm overall length. The cutter's four cutting edges spread the cutting force evenly, which diminishes vibration and supports a better surface quality on the machined component. The 90° cutting angle provides a neutral approach to face and shoulder milling, offering predictable engagement conditions that simplify cycle planning. Overall, the combination of shank size, edge count and geometry leads to improved process reliability and fewer rejects in serial production.

Fast insert handling and workshop integration

Tool maintenance and insert replacement are accomplished with standard workshop tools: the M4x10 Torx screw (T15) secures inserts quickly and repeatably, reducing downtime during set-up. Compatibility with Kyocera BDMT 1704 inserts expands sourcing options and allows users to match grades for specific materials or cutting conditions. The tool's near-1 kg mass (0.985 kg) and balanced geometry aid in stable running at moderate spindle speeds, while the available data class codes (ECLASS and ETIM) support procurement and ERP integration. For further technical queries or to confirm insert grades and clamping torques, Metav's application advisors can provide tailored recommendations.

Choose the Teknik Makina S585TM shank milling cutter for reliable insert milling and contact Metav Werkzeuge for matching BDMT 1704 inserts and expert setup guidance via info@metav-werkzeuge.com or call +49 2822 7131930

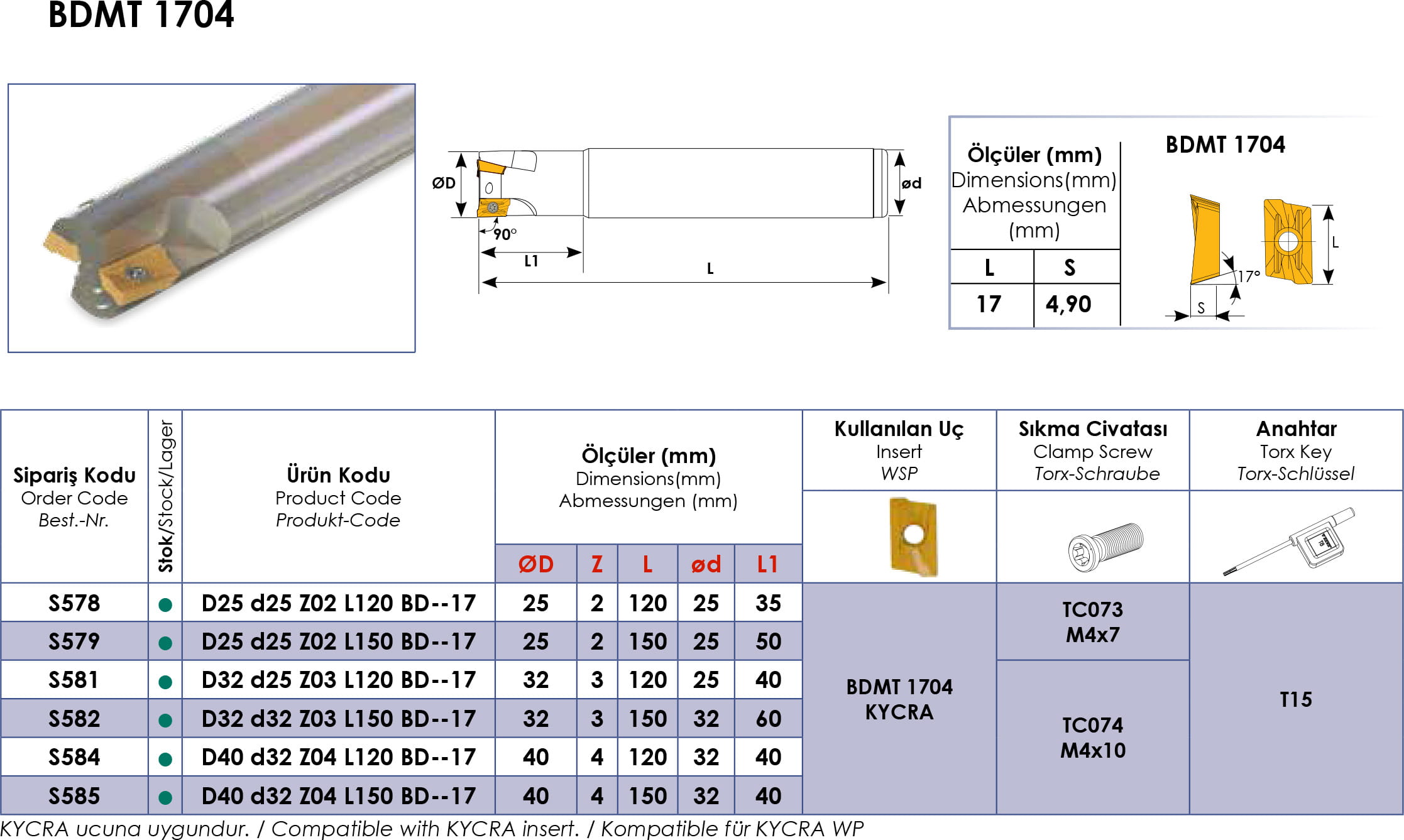

Technical data

• Article number: S585TM
• Manufacturer: Teknik Makina
• ECLASS: 21180806
• ETIM: EC011860

Facts

• Diameter: 40 mm
• Shank diameter: 32 mm
• Cutting length: 40 mm
• Total length: 150 mm
• Number of cutting edges: 4
• Cutting angle: 90°
• Weight: 0.985 kg

Special features

• Compatible inserts: BDMT 1704
• Compatible insert manufacturer: Kyocera
• Torx screw: M4x10
• Torx key size: T15
• Designed for indexable insert milling

FAQ

What inserts fit this milling cutter?
The cutter accepts BDMT 1704 indexable inserts; the S585TM is specified for that insert type and is compatible with Kyocera-sourced grades.

Which toolholder dimensions are required for safe clamping?
A holder that accepts a 32 mm shank and supports a total tool projection suitable for a 150 mm overall length is recommended to preserve rigidity and effective cutting performance.

How are inserts secured and changed?
Inserts are clamped with an M4x10 Torx screw tightened with a T15 key, enabling quick and repeatable exchange of BDMT 1704 inserts without specialised equipment.

What machining tasks suit this cutter best?
The tool body is intended for indexable-insert milling where a Ø 40 mm cutter with a 90° cutting angle and four edges offers efficient face and shoulder operations in production environments.

Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
