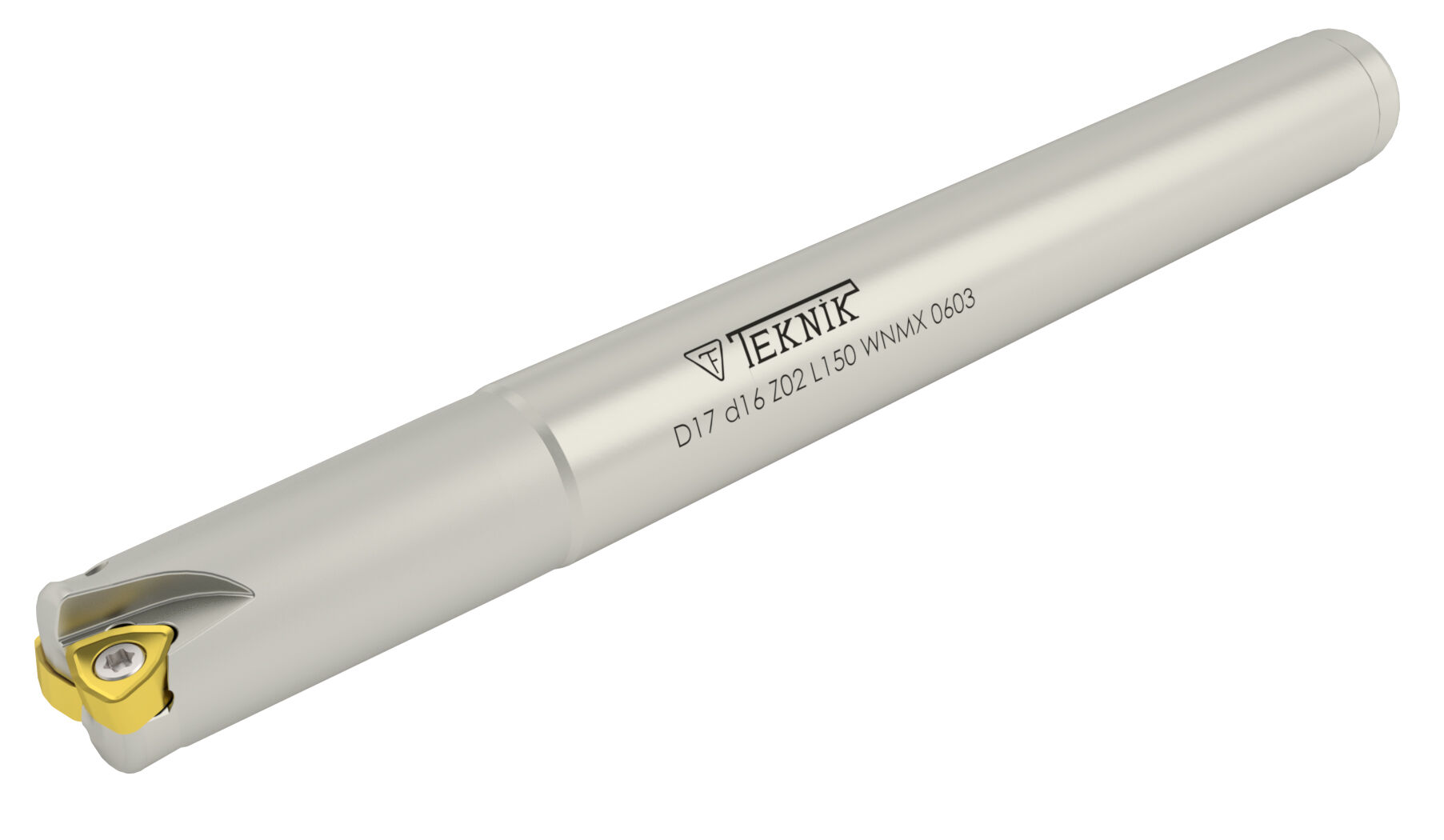

S903TM shank milling cutter by Teknik Makina — Ø17 mm, 2 flutes, for WNMX 0603 inserts

The S903TM is a shank milling cutter designed to accept WNMX 0603 indexable inserts, engineered for secure clamping and consistent chip control in general machining and light to medium milling operations.

• Compatible with WNMX 0603 inserts
• 17 mm cutting diameter for compact machining
• 40 mm cutting length for extended engagement
• Torx clamp M2.5 x 5.5 with T8 key

Repeatable accuracy for series production

The tool provides consistent cutting geometry through its precision shank and insert interface, which reduces runout and stabilises tool behaviour during repeating cycles. The combination of a Ø17 mm cutter body and a 40 mm cutting length delivers a balance between reach and rigidity, meaning fewer reworks and a more predictable process flow. For operations where component tolerances matter, this construction minimises vibration and helps keep surface finish within tighter specifications.

Fast insert changes and secure clamping for uptime

A clear benefit of the design is the Torx clamping system (M2.5 x 5.5) requiring a T8 key, which enables swift insert replacement and precise torque application. Quick, repeatable clamping shortens tool-change intervals and makes tool handling more efficient on busy shop floors. The two-flute geometry supports reliable chip evacuation, so each insert maintains cutting performance longer and tool change frequency is reduced — directly supporting higher overall equipment effectiveness.

Versatile compatibility and straightforward integration

Designed to accept WNMX 0603 indexable inserts and compatible with Korloy plate types, the cutter fits existing insert inventories and makes retrofitting simple. The shank diameter of 16 mm and an overall length of 150 mm give a compact footprint while remaining adaptable to common collet and holder systems. This ease of integration means reduced setup time when switching between operations and a faster return to full production.

Practical advantages for the workshop

Lightweight at 0.24 kg yet robust in build, the cutter is a pragmatic choice for workshops seeking a dependable insert-holder that keeps spindles and holders in their nominal working ranges. The 90° cutting angle provides predictable engagement for face and peripheral milling alike, while the two cutting edges present a cost-effective solution where tool inventory management and rapid turnarounds are priorities. The tool’s simple geometry makes inspection and maintenance straightforward, reducing downtime for routine checks.

For reliable high-performance milling backed by Teknik Makina engineering, contact Metav Werkzeuge in Emmerich for precise product guidance and prompt supply: info@metav-werkzeuge.com / +49 2822 7131930

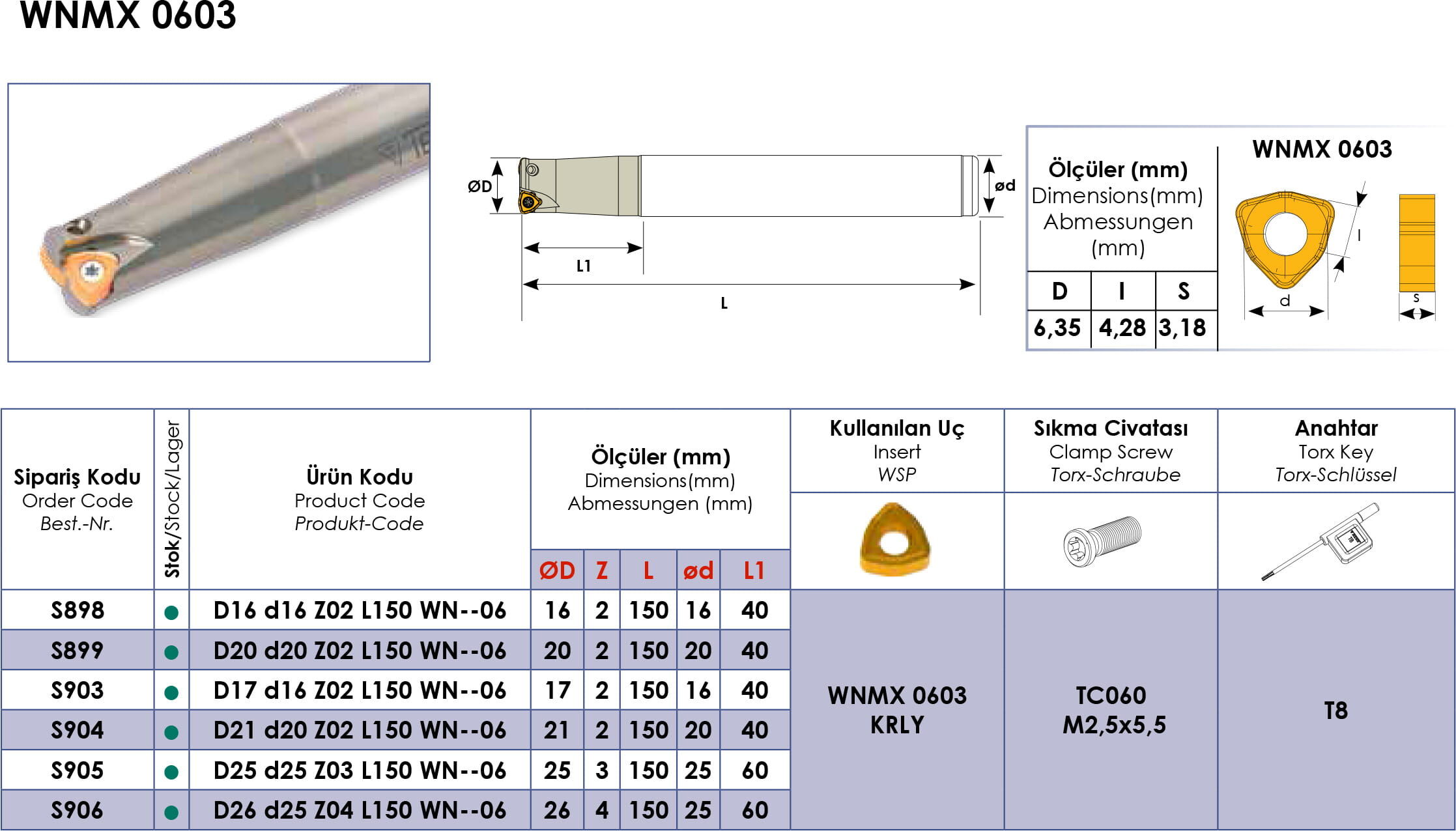

Technical data

• SKU: S903TM

• Product: Shank milling cutter for WNMX 0603 indexable inserts

• Manufacturer: Teknik Makina

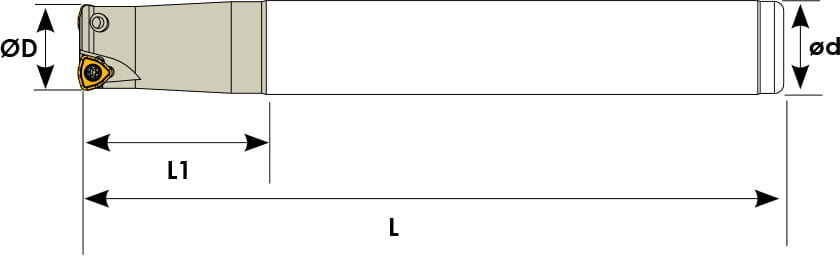

• Ø cutting diameter: 17 mm

• Shaft diameter: 16 mm

• Cutting length: 40 mm

• Overall length: 150 mm

• Number of flutes: 2

• Weight: 0.24 kg

• Cutting angle: 90°

• Torx screw: M2.5 x 5.5

• Torx key: T8

• Compatible inserts: WNMX 0603

• Recommended insert maker: Korloy

• Flute count: 2

• Shank form: straight shank

• Application: indexable-insert milling

FAQ

What insert type fits this cutter?
The cutter accepts WNMX 0603 indexable inserts; it is set up to work with Korloy-type plates so existing WNMX 0603 stocks can be used.

What is the cutting diameter and overall length?
The tool offers a 17 mm cutting diameter with an overall length of 150 mm, delivering a compact solution for confined set-ups.

How is the insert secured and maintained?
Inserts are clamped with a Torx screw (M2.5 x 5.5) tightened with a T8 key, allowing quick, repeatable insert changes and secure clamping for stable cutting.

Which applications suit this shank cutter?
The shank milling cutter is suited to light and medium milling tasks that benefit from an indexable-insert strategy, where quick insert swaps and cost-effective cutting edges are required.
