Take advantage of a robust, indexable solution that combines reliable chip evacuation, consistent cutting performance and easy reconditioning; the result is steady throughput and predictable tool life — order the tool directly via Metav Werkzeuge or consult our specialists for integration advice.

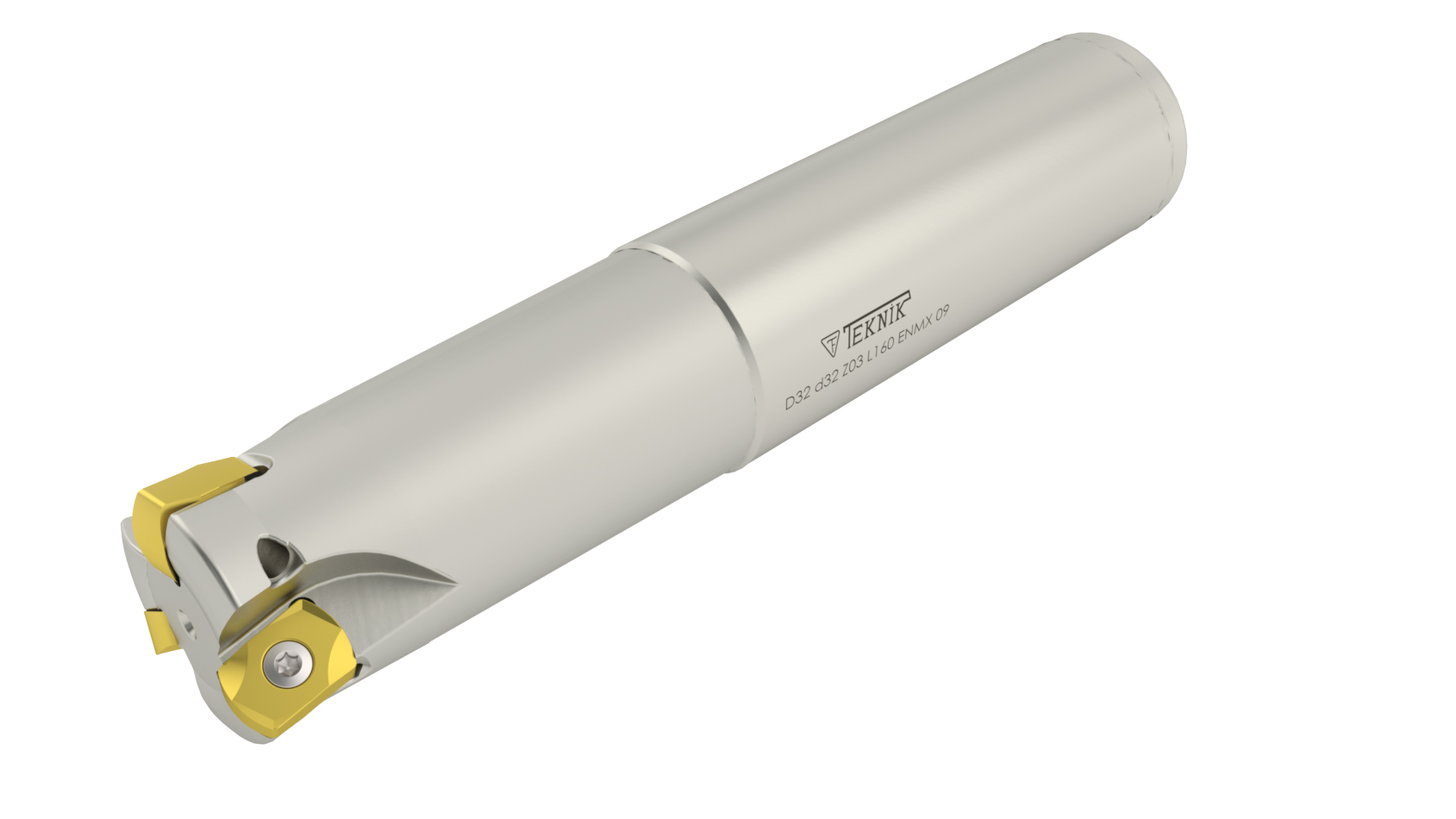

Shank milling cutter S936TM — 40 mm diameter, for ENMX 0905 indexable inserts (Teknik Makina)

A versatile shank milling cutter S936TM designed for roughing and semi-finishing applications, compatible with ENMX 0905 indexable inserts and optimised for stable, high-volume milling in workshop and light production environments

• Compatible with ENMX 0905 indexable inserts
• 40 mm cutting diameter
• 32 mm shank for rigid clamping
• Five cutting edges for stable removal
• Torx M3.5x8.7 screw, T17 key

Higher throughput through stable cutting geometry

The tool is engineered to deliver a high material removal rate while maintaining dimensional control. The combination of a 40 mm cutting diameter and five cutting edges reduces vibration and evens out load per tooth, which translates into fewer tool changes and more continuous production. Where batch sizes and cycle times matter, this design reduces the need for frequent intervention and supports predictable machining schedules. The result is a measurable efficiency gain in metal removal tasks without sacrificing surface quality.

Secure clamping and straightforward maintenance

A 32 mm shank offers a firm interface with common toolholders, improving concentricity and reducing runout during aggressive passes. The insert seat uses a Torx M3.5x8.7 fastening arrangement secured with a T17 key, enabling consistent torque and fast replacement of worn inserts. Reconditioning is limited to swapping indexable inserts and retorquing the screw, so maintenance remains quick and repeatable. This approach keeps downtime low and maintenance predictable for production environments.

Wide compatibility and clear application range

The cutter is explicitly designed for ENMX 0905 indexable inserts and is compatible with YG-1 insert variants, ensuring access to a broad selection of grades and geometries for different materials. The modular nature of indexable tooling allows the same body to be used across aluminium, steel and cast-iron applications when matched with the correct insert grade, delivering flexibility across job shops and specialist workshops. Choosing the right insert grade optimises wear resistance or chip control depending on the material.

Practical benefits for workshop and small-series production

By concentrating wear on replaceable inserts rather than on a monolithic cutter body, this system reduces ongoing tooling costs and simplifies inventory: keep a small range of inserts in stock and adapt performance quickly. The robust shank and multiple cutting edges support process stability under varying feeds and depths of cut, which is especially valuable for small-series production where set-up time must be minimised. The overall design supports consistent part quality with less operator adjustment.

For tailored advice on integrating the Teknik Makina S936TM into existing tool setups or to discuss suitable insert grades, contact Metav Werkzeuge GmbH at info@metav-werkzeuge.com or call +49 2822 7131930 to arrange specification support and delivery from Emmerich

Technical Data

• Article number: S936TM
• Designation: Shank milling cutter for ENMX 0905 indexable inserts
• Manufacturer: Teknik Makina
• Compatible inserts: ENMX 0905 (YG-1 compatible)
• Fastening: Torx M3.5x8.7, T17

Numbers / Core Technical Data

• Diameter: 40 mm
• Overall length: 180 mm
• Shank diameter (A): 32 mm
• Cutting edges: 5
• ECLASS: 21180806
• ETIM: EC011860

Special features / Versions

• Indexable insert system: ENMX 0905
• Insert compatibility: YG-1
• Torx screw fastening for repeatable clamping
• Suitable for roughing and semi-finishing operations

FAQ

What insert type does the cutter accept? The cutter accepts ENMX 0905 indexable inserts; compatible variants from YG-1 are commonly used with this tool.

How is the insert secured in the tool? Inserts are secured with a Torx M3.5x8.7 screw tightened using a T17 key, ensuring consistent clamping force.

What clamping interface does the tool require? The tool uses a 32 mm shank designed for rigid clamping in standard toolholders; appropriate holder selection improves concentricity.

Is the cutter suitable for finishing passes? The design is primarily aimed at roughing and semi-finishing; fine finishing will depend on the chosen insert grade and machining parameters.

Which manufacturer produces the tool and who is responsible for supply? The tool is produced by Teknik Makina and supplied via Metav Werkzeuge for European distribution.

Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
