40mm Corner Turning Head 90° For VCGT 1604 Indexable Inserts, M4x10 Torx Screw - Teknik Makina

Take advantage of the combination of precise 90° cutting geometry, durable construction and straightforward fastening for reliable shoulder turning and profiling; order the component via Metav Werkzeuge or request application guidance from the consultants at Metav Werkzeuge GmbH.

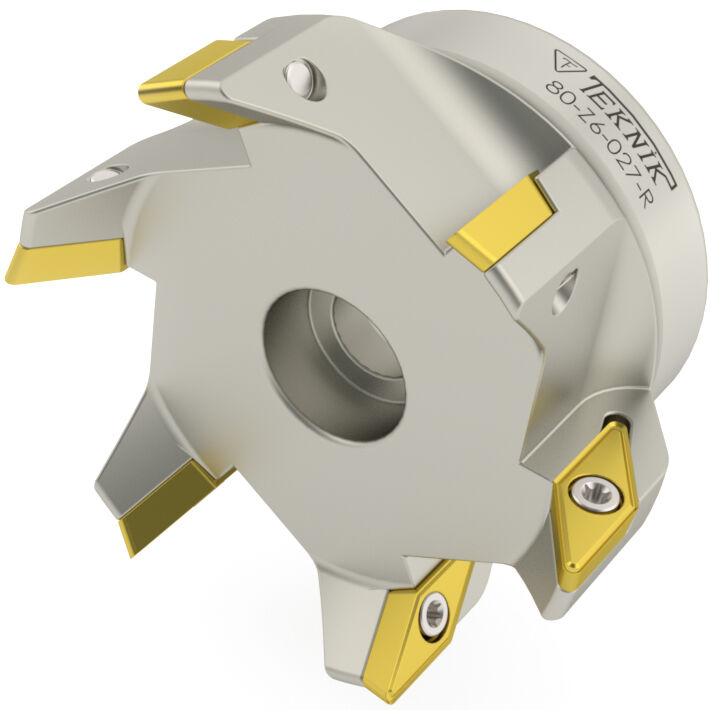

Eckmesserkopf T498TM – 90° indexable insert holder for VCGT 1604, Ø 40 mm (Teknik Makina)

The Eckmesserkopf T498TM is a 90° insert holder engineered for precision external turning and square-shoulder operations with VCGT 1604 indexable inserts.

• 90° cutting angle for square shoulder turning
• Designed for VCGT 1604 indexable inserts
• 40 mm head diameter, robust construction
• Torx M4x10 fastening, T15 key required

Higher process reliability through defined geometry and build

The 90° corner geometry delivers consistent shoulder profiles and predictable chip flow even in repeat production. Manufactured for CNC turning applications, this tool head combines a 40 mm head diameter with a compact overall length of 52 mm to provide stability in tight setups. The result is reduced vibration and improved surface finish, which shortens downstream rework and keeps cycle times steady.

Fast, secure clamping for efficient insert changes

Clamping is handled by a Torx screw M4x10 with a T15 key, enabling quick insert replacement and consistent seating without elaborate adjustments. The shank Ø 16 mm ensures a solid connection to common tool holders in small-to-medium turning stations. These features promote predictable tool life and minimise downtime during shift changes, supporting continuous production in busy workshops.

Clear compatibility and application scope for planners

Designed specifically for VCGT 1604 indexable inserts, the head offers a straightforward solution for profiling, shoulder turning and parting-related face work where a defined 90° edge is required. The component’s modest mass (approx. 0.277 kg) and standardised fastening mean effortless integration into existing tool portfolios and easy inventory management for maintenance teams and purchasing agents alike.

Built for workshop endurance and straightforward logistics

The construction emphasises robustness and repeatability rather than novelty: straightforward fastening geometry, standard Torx hardware and an industry-standard insert size help to keep spare-part lists short. For production planners this translates into predictable stocking, fewer special tools and quicker turnarounds when replacing worn components—factors that support stable throughput and lower total cost of ownership over time.

For application advice and reliable supply from Emmerich, contact Metav Werkzeuge GmbH by phone or e‑mail to discuss the suitability of the Teknik Makina Eckmesserkopf T498TM for specific machining tasks.

Technical data

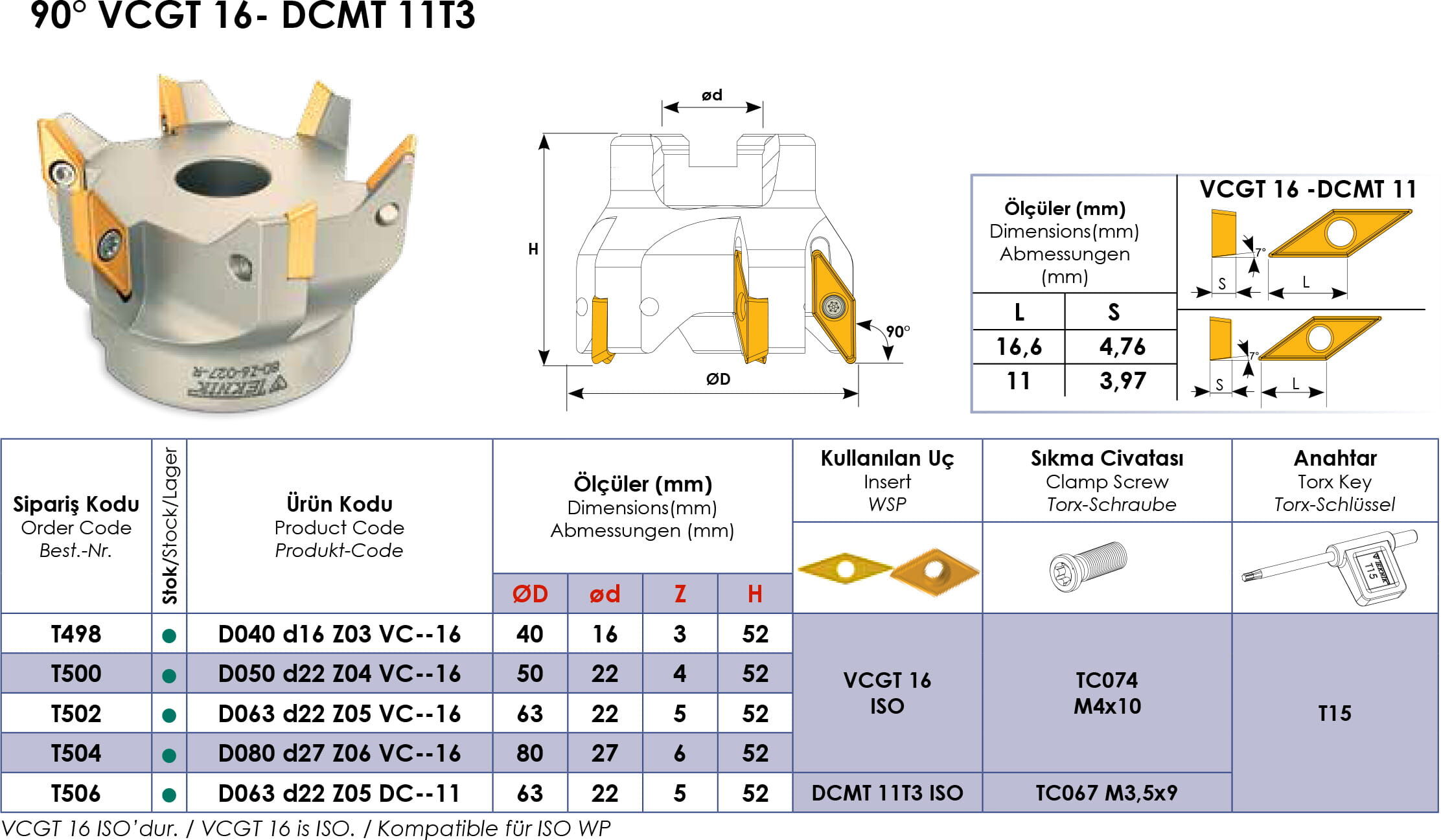

• Article number: T498TM
• Manufacturer: Teknik Makina
• For inserts: VCGT 1604 Indexable Inserts
• Torx screw: M4x10
• Torx key: T15

Facts

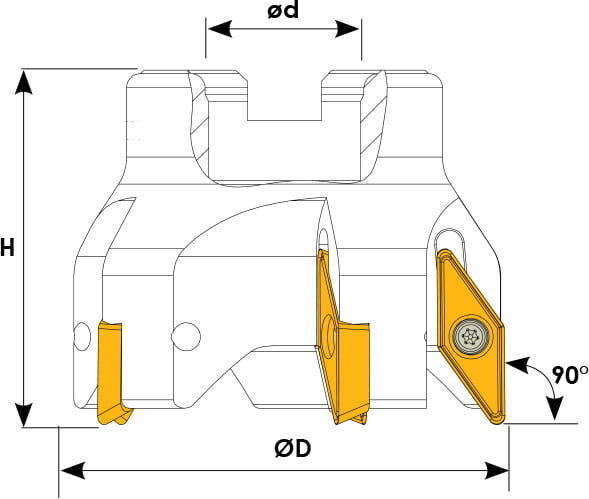

• Head diameter: 40 mm
• Shank diameter (aufnahme): 16 mm
• Overall length: 52 mm
• Weight: 0.277 kg
• Cutting angle: 90°

Special features

• For VCGT 1604 indexable inserts
• Torx M4x10 fastening
• T15 key required
• Three cutting edges
• 90° corner tool head

FAQ

Which inserts fit this holder?
The holder is designed for VCGT 1604 indexable inserts; the Eckmesserkopf T498TM secures these inserts for standard shoulder and profiling operations.

What fastening hardware is required?
Fastening is performed with a Torx M4x10 screw; a T15 Torx key is recommended for correct torque and repeatable seating.

Is the tool head compatible with standard 16 mm shanks?
Yes, the tool accepts a 16 mm shank connection, making it compatible with common compact tool posts and holders.

What benefits does the 90° geometry provide?
A 90° cutting angle gives exact square shoulders and stable cutting forces, improving surface finish and enabling consistent repeatability in series production.

What is the overall length and weight for setup planning?
The component has an overall length of 52 mm and a weight of approximately 0.277 kg, facilitating balance and fixture calculations.

Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
