40mm T-Nut Cutter 4 Flute, 20mm Shank 100mm Overall Length, M3.5 Lock Screw - Teknik Makina

Take advantage of a precise, durable tooling solution that combines a Ø40 mm cutting diameter with 4 cutting edges and a rigid 20 mm shank for steady T-slot production; order the cutter via Metav Werkzeuge or request tailored advice from our consultants.

T-slot cutter TKC200TM — compatible with Ingersoll RHKW 1003, Ø40 mm, 4 flutes (Teknik Makina)

T-slot cutter TKC200TM designed for machining T-slots and T-nuts with indexable inserts, suitable for industrial milling and CNC setups

• T-slot cutter TKC200TM by Teknik Makina
• Compatible with Ingersoll RHKW 1003 inserts
• Ø40 mm diameter with 4 cutting edges
• 20 mm shank and secure Torx M4x10 fixing

Consistent T-slot geometry with indexable inserts

The TKC200TM is built to deliver repeatable T-slot profiles by using indexable inserts (RHKW 1003), which allow fast edge changes and consistent geometry without regrinding. The combination of a Ø40 mm cutter body and 4 cutting edges ensures a balanced cut, reducing chatter and producing clean slot walls. Indexable inserts reduce downtime because worn edges are simply rotated or replaced, making this tooling choice efficient for batch production and repeated set-ups.

Stable clamping for reduced vibration and improved tool life

A 20 mm shank provides the rigidity required for stable milling, particularly when working on medium-duty steel components. The cutter is secured using a Torx M4x10 screw and a M3.5 locking screw, tightened with a T15 Torx key, which ensures a reliable clamp of the insert seat and minimises the risk of movement under load. The result is improved surface quality and extended insert life, achieved through a mechanically robust connection between cutter, insert and toolholder.

Smooth integration into CNC tool systems and production workflows

Designed for straightforward integration with common milling interfaces, this cutter is compatible with Ingersoll-manufactured inserts, simplifying procurement and tool management in mixed-tool shops. The modular nature of using indexable inserts means tooling inventories can be reduced while maintaining flexibility. Technical teams benefit from predictable set-up times and easy reconditioning of tooling components, supporting continuous production with minimal interruption.

Contact Metav Werkzeuge for specification matching and to arrange the TKC200TM with the correct Ingersoll RHKW 1003 inserts — call +49 2822 7131930 or email info@metav-werkzeuge.com

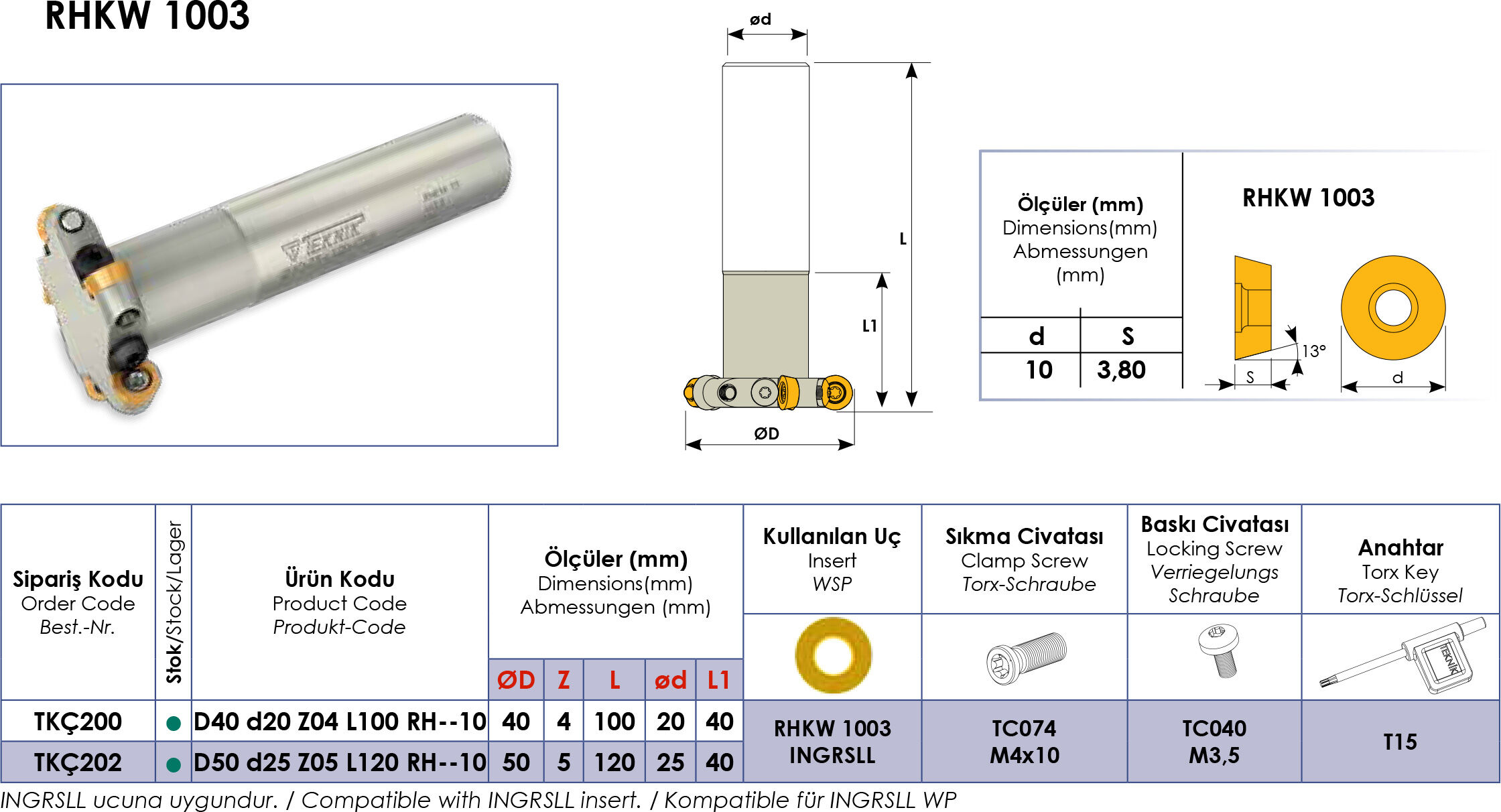

Technical data

• Article number: TKC200TM

• Manufacturer: Teknik Makina

• Brand: Teknik Makina

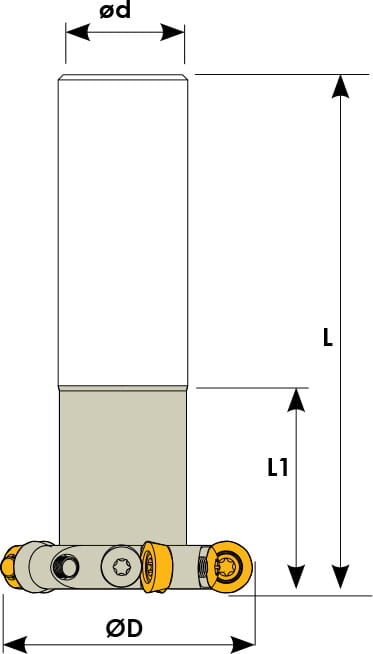

• Diameter: 40 mm

• Cutting edges: 4

• Overall length: 100 mm

• Shank diameter: 20 mm

• Weight: 0.285 kg

• Insert type: RHKW 1003

• Compatible insert maker: Ingersoll

• Locking screw: M3.5

• Torx screw: M4x10

• Torx key: T15

• Application: T-slot / T-nut milling

FAQ

What inserts are recommended for this cutter? The cutter is specified for Ingersoll RHKW 1003 indexable inserts; these inserts are compatible with the cutter geometry and deliver the expected performance.

Can the cutter be used in CNC milling machines? Yes, the TKC200TM is suitable for CNC milling when mounted in the correct toolholder and run at appropriate speeds for the selected insert grade and workpiece material.

How is the insert secured in the cutter? An M4x10 Torx screw secures the insert seat while an M3.5 locking screw provides additional retention; a T15 Torx key is used for tightening.

What benefits do indexable inserts provide over solid cutters? Indexable inserts allow rapid edge changes, predictable geometry, and lower downtime compared with solid cutters; replacement inserts restore cutting performance without regrinding.

Is the shank size compatible with standard collets? The cutter features a 20 mm shank, which is compatible with standard collet and chuck systems designed for that shank diameter.

Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
