17mm Solid Carbide Through Drill 51mm Cut Length 56mm Shank Length 127mm Overall - Teknik Makina

Take advantage of a compact, exchangeable‑insert drilling solution that combines precision with economical tooling: the tool offers a 17 mm cutting diameter, a 51 mm cutting length and a 25 mm shank for secure clamping. Order or request technical advice through Metav Werkzeuge for reliable supply and expert support.

Teknik Makina solid drill U012TM — 17 mm, SPMT 0602 indexable insert compatible

The solid drill U012TM is a precision drilling tool designed for use with SPMT 0602 indexable inserts and medium‑depth holemaking in industrial machining environments.

• 17 mm cutting diameter
• Compatible with SPMT 0602 inserts
• 25 mm shank diameter
• 127 mm overall length

Precision and productivity in one compact tool

The U012TM delivers a focused combination of cutting diameter and secure shank geometry that supports repeatable hole quality and reduced setup time. With a 17 mm diameter and 51 mm cutting length, this tool is aimed at operations where consistent accuracy and economical indexable inserts are preferred to solid carbide alternatives. The 25 mm shank ensures stable clamping in standard toolholders, minimising vibration and improving surface finish. The result is a dependable balance of tool life and cost efficiency that supports continuous production runs.

Quick indexable‑insert serviceability for less downtime

Designed for SPMT 0602 indexable inserts, the drill accepts widely available Korloy inserts, allowing fast re‑indexing and low per‑hole tooling cost. Using interchangeable inserts reduces the need for full‑tool replacement and speeds up maintenance cycles, which has a direct effect on overall equipment effectiveness. The insert compatibility also facilitates inventory management across toolrooms that already stock Korloy plates, simplifying replenishment and decreasing machine downtime during tool changeovers.

Practical handling, mounting and workshop fit

The tool’s 127 mm overall length and a shank engagement length of 56 mm suits medium‑reach drilling while keeping overhang manageable for conventional CNC turret or spindle setups. Weighing 0.313 kg, the component is easy to handle and manoeuvre during loading and clamping operations. The combination of a standardised 25 mm shank and a compact overall profile allows flexible deployment across various toolholders without the need for special adaptors, helping maintain throughput in busy metalworking environments.

Contact Metav Werkzeuge for personalised technical advice on the Teknik Cutting Tools solid drill U012TM and secure dependable supply from Emmerich for your next production cycle

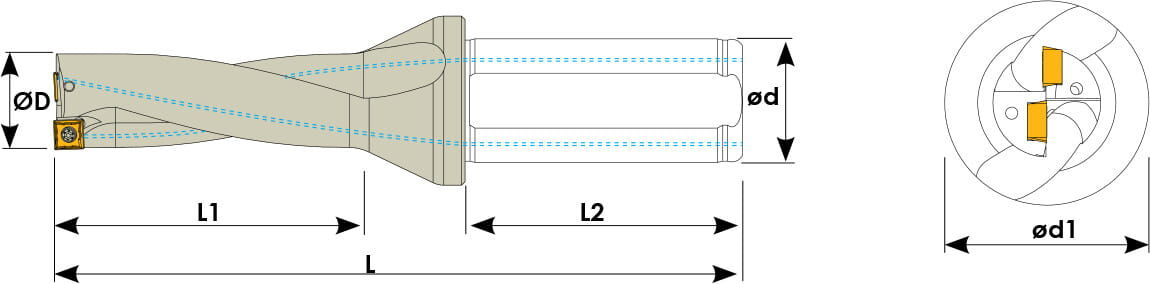

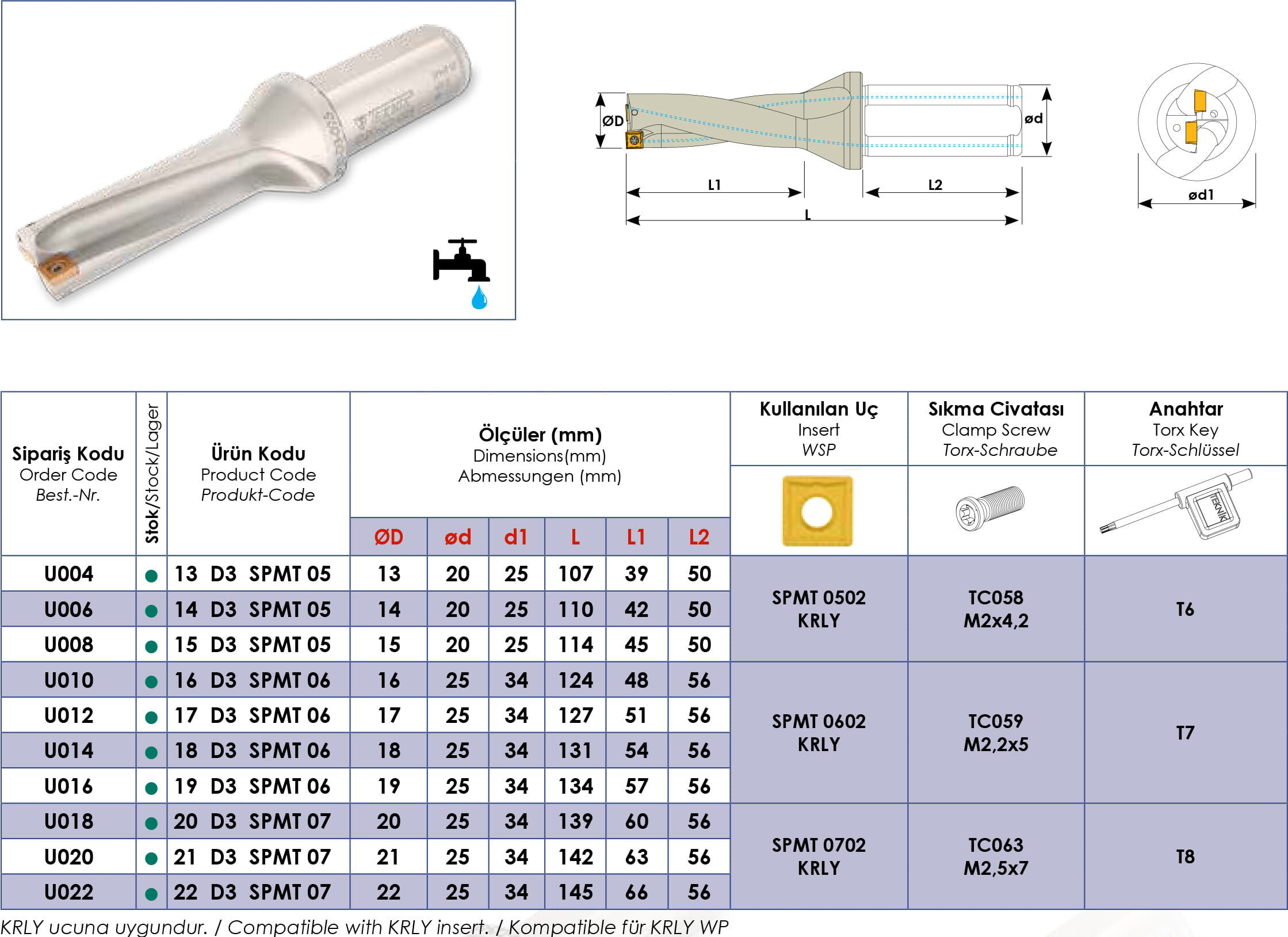

Technical data

• Article number: U012TM

• Manufacturer: Teknik Makina

• Diameter: 17 mm

• Cutting length: 51 mm

• Shank diameter: 25 mm

• Shank engagement length: 56 mm

• Overall length: 127 mm

• Weight: 0.313 kg

Special features

• Compatible insert type: SPMT 0602
• Compatible insert manufacturer: Korloy
• Files available: 2 (IDs: 62de7dd60f56dbb4de4dbedc, 62de7ec2148ec6b71020ffa4)

FAQ

What insert type does this drill use?
The drill is specified for SPMT 0602 indexable inserts; Korloy inserts are suitable and widely supported for this shank and seat design.

Which shank size is required for secure clamping?
A 25 mm shank diameter is standard for this tool, providing stable clamping in compatible holders and reducing runout during drilling.

What is the usable cutting length?
The tool provides a 51 mm cutting length, which is suitable for medium‑depth holes while keeping overhang low.
