Insert drill U105TM — indexable insert drill body, Ø 17 mm, 34 mm cutting length (Teknik Makina)

The Insert drill U105TM is an indexable drill body engineered for reliable hole production in CNC and workshop environments, accepting Korloy WCM‑0302 inserts for efficient chip control and rapid insert changes.

• Ø 17 mm diameter for standard hole sizes
• 34 mm effective cutting length
• Compatible with Korloy WCM‑0302 inserts

Consistent hole quality for uninterrupted production

The drill body delivers repeatable results thanks to its Ø 17 mm nominal diameter and a 34 mm cutting length, which together provide a reliable cutting engagement for medium‑depth holes. The geometry of the indexable system ensures predictable chip evacuation and a steady cutting force, helping to maintain bore tolerance and surface finish. Where tolerance consistency is essential for downstream assembly, this design reduces the need for rework and supports a smoother production flow.

Greater stability reduces tool wear and chatter

A solid clamping interface with a 25 mm shank diameter and a 56 mm shank length improves rigidity in the toolholder, enabling higher feed stability and better vibration damping. The 110 mm overall length balances reach with stiffness, limiting overhang while still allowing access to typical workpieces. Improved stiffness lowers insert stress, extending insert life and cutting performance, which in turn reduces tooling costs and maintenance intervals.

Fast insert changes and material‑flexible performance

Compatibility with Korloy WCM‑0302 indexable inserts simplifies logistics and shortens changeover times; replacement inserts can be mounted quickly to restore cutting capacity. The insert system is suited to standard metalcutting workflows and supports efficient operations where rapid tool turnaround is prioritized. For workshops that rely on indexable tooling to keep cycle times low, the insert drill body provides a pragmatic balance between flexibility and throughput.

Reliable supply and pragmatic workshop support

Manufactured by Teknik Makina and supplied under SKU U105TM, the component weighs 0.293 kg, offering a compact solution that is easy to handle and fit in common toolholders. Partnering this tool with Metav Werkzeuge provides the benefits of an experienced distributor that focuses on accessible precision: broad inventory, tested quality and direct logistics from Emmerich ensure reliable replenishment and consistent product standards for industry and craft alike.

Contact Metav Werkzeuge for tailored application guidance and to secure the Teknik Cutting Tools insert drill U105TM from our Emmerich stock for dependable production support

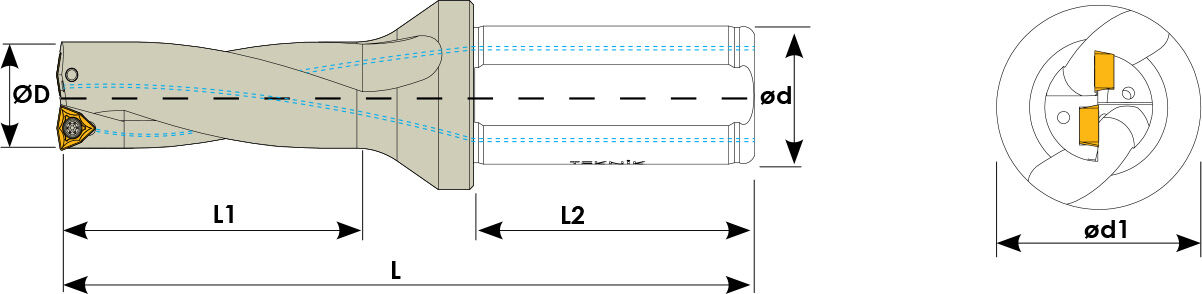

Technical data

• SKU: U105TM
• Manufacturer: Teknik Makina

Facts

• Diameter: 17 mm
• Cutting length: 34 mm
• Shank diameter: 25 mm
• Shank length: 56 mm
• Overall length: 110 mm
• Weight: 0.293 kg

Special features

• Compatible inserts: WCM‑0302
• Insert manufacturer compatibility: Korloy
• Tool type: indexable insert drill body
• Brand: Teknik Makina

FAQ

What insert size does this drill accept?
The U105TM insert drill body accepts Korloy WCM‑0302 indexable inserts as specified for efficient replacement and chip control.

Can the drill body reach deeper bores with extension holders?
Extended setups can be used, but the U105TM is optimised for its 110 mm overall length to balance reach and stiffness for stable cutting.

Which shank diameter is required for clamping?
The tool is supplied with a 25 mm shank, which should be matched to a compatible toolholder for secure clamping and reduced runout.

Is the U105TM suitable for automated CNC toolchanging?
Yes, the indexable insert system and compact weight of 0.293 kg make the drill body suitable for CNC toolchanger environments where quick insert swaps are required.

How does the insert system affect production uptime?
Using Korloy WCM‑0302 inserts with the U105TM allows fast insert replacement, reducing downtime and maintaining consistent cycle times in production.
