17mm Solid Carbide Through Drill 68mm Cutting Length, 25mm Shank - Teknik Makina

Take advantage of a compact combination of precise bore control, quick insert replacement and secure clamping: the tool’s 17 mm cutting diameter with a 25 mm shank ensures stable spindle engagement while the 68 mm cutting length keeps chip evacuation predictable and efficient — order via Metav Werkzeuge or contact our consultants for tailored cutting data and process advice.

Solid drill U602TM — 17 mm, 25 mm shank (Teknik Makina)

The Solid drill U602TM is intended for industrial drilling tasks where repeatable hole quality and rapid insert servicing are required, compatible with Korloy insert systems for flexible workshop use

• 17 mm diameter for precise holemaking
• 68 mm cutting length for medium-deep holes
• 25 mm shank for secure clamping

Greater throughput with consistent hole quality

The U602TM is engineered to deliver reliable concentricity and reduced runout thanks to its rigid shank geometry and balanced overall length. A stable clamping interface provided by the 25 mm shank translates into less vibration at the spindle, which improves surface finish and extends tool life. For production environments where cycle time and repeatability matter, the combination of a precise 17 mm diameter and controlled chip formation helps to keep rejects and rework to a minimum while maintaining machining efficiency.

Reduced downtime through replaceable inserts

Compatibility with Korloy WCM-0302 inserts allows fast, on-machine edge changes instead of full-tool replacement. The insert concept means cutting edges can be renewed in seconds, reducing inventory cost and machine downtime. For teams unfamiliar with indexable systems: replaceable inserts are small carbide cutting pieces mounted into the drill tip; worn inserts are removed and replaced, restoring cutting geometry without regrinding. This approach yields a clear cost-per-hole advantage for medium- to high-volume batches.

Designed for workshop robustness and control

With an overall length of 144 mm and a measured weight of 0.328 kg, the tool offers a practical balance between reach and rigidity for general industrial applications. The 68 mm cutting length is optimised for medium-depth bores where chip evacuation and coolant access must be managed. The tool’s compact mass aids stability, while the standardised 25 mm mounting diameter ensures compatibility with common collet and chuck systems used across modern machine shops.

Practical application notes and set-up guidance

To exploit the tool’s capabilities, ensure correct clamping torque for the 25 mm shank and confirm insert seating for the WCM-0302 indexable cutters. Proper coolant flow and appropriate feed per revolution will support chip control and prevent premature edge wear; for exact cutting parameters and material-specific recommendations, consult the supplied technical datasheet or Metav Werkzeuge’s advisory service. The construction reduces handling time and supports uninterrupted production runs when paired with systematic insert stock management.

For reliable integration into production, choose the Teknik Makina U602TM via Metav Werkzeuge — contact our consultants at Metav Werkzeuge for specific cutting data and application support.

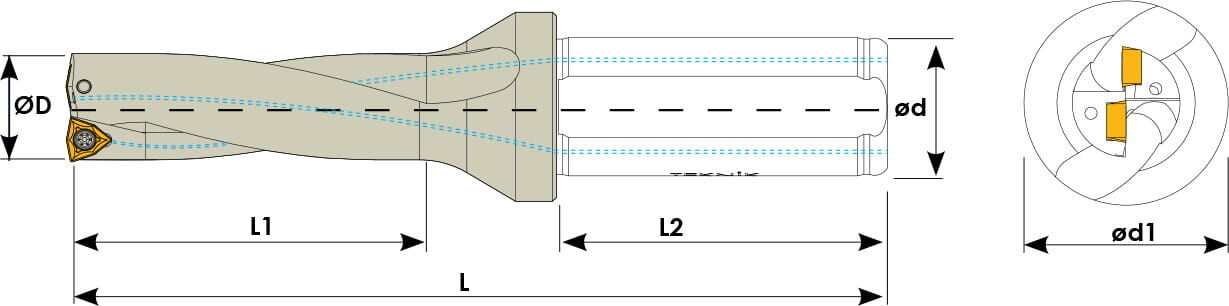

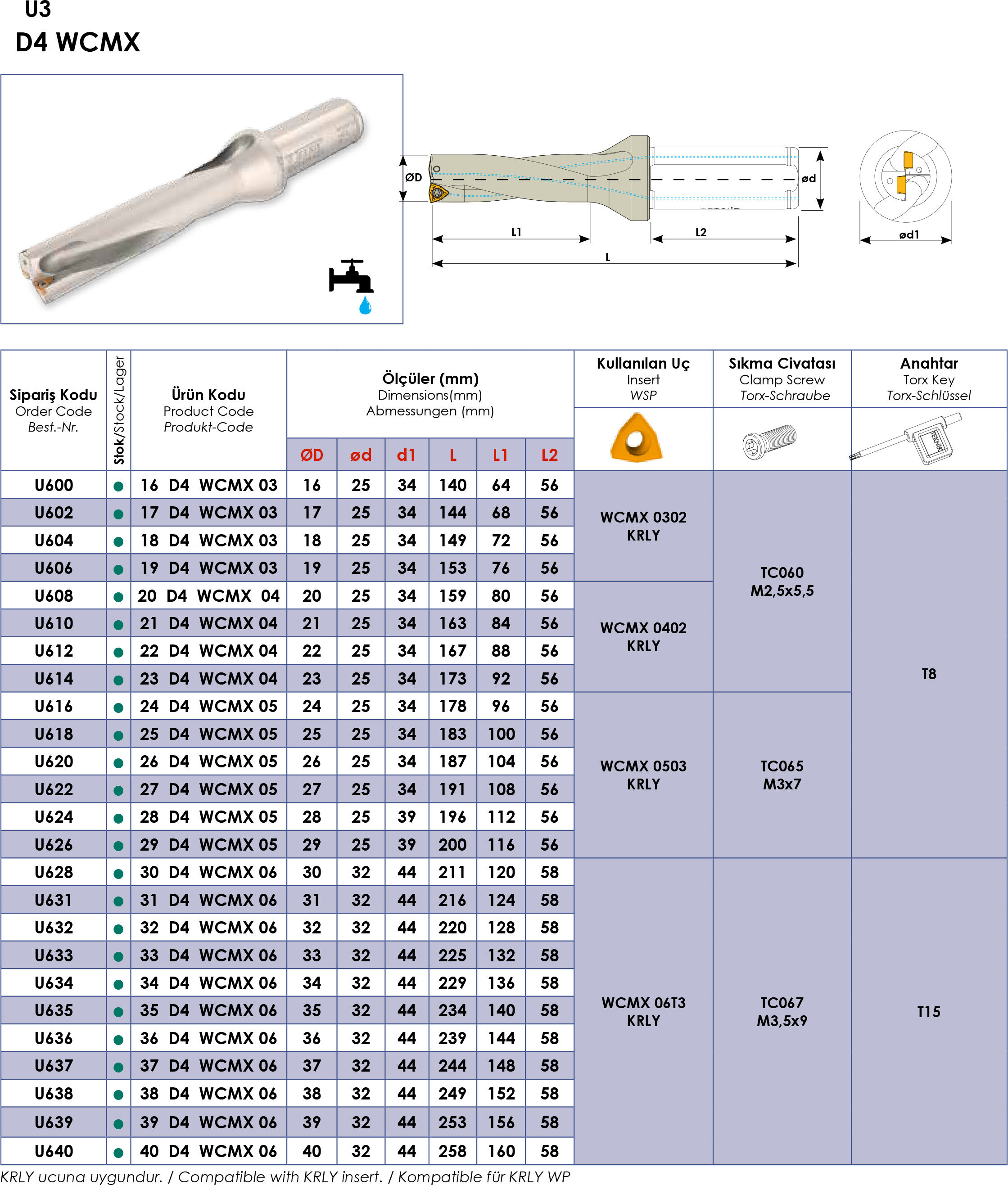

Technical data

• Article number: U602TM
• Manufacturer: Teknik Makina
• Product name: Solid drill (Vollbohrer)
• Compatible insert: WCM-0302
• Compatible insert manufacturer: Korloy
• Shank diameter: 25 mm
• Cutting length: 68 mm
• Shank length: 56 mm
• Diameter: 17 mm
• Overall length: 144 mm
• Weight: 0.328 kg

Core data

• Diameter: 17 mm
• Cutting length: 68 mm
• Shank diameter: 25 mm
• Shank length: 56 mm
• Overall length: 144 mm
• Weight: 0.328 kg

Features & compatibility

• Compatible insert type: WCM-0302
• Insert supplier: Korloy
• Indexable-insert system for fast edge changes
• Suitable for medium-deep bores
• Standard shank for common clamping systems

FAQ

What insert type does the tool use?
The tool accepts WCM-0302 inserts; matching inserts from Korloy are recommended for best fit and performance with the U602TM.

Is the shank compatible with standard collets?
Yes, the 25 mm shank is a standard diameter that fits common collets and chucks used in general machining centres.

What hole depth is recommended for this drill?
The drill provides a 68 mm cutting length, which is optimised for medium-deep bores; depth should be planned to allow effective chip evacuation within that cutting zone.

How does the insert system reduce operating cost?
Replaceable inserts allow worn cutting edges to be exchanged quickly without replacing the full tool body, lowering tool inventory cost and reducing machine downtime for the U602TM.

Can the drill be used for high-volume production?
Yes — the combination of replaceable inserts and a rigid 25 mm shank supports repeatable results and efficient exchange cycles suited to batch production.
