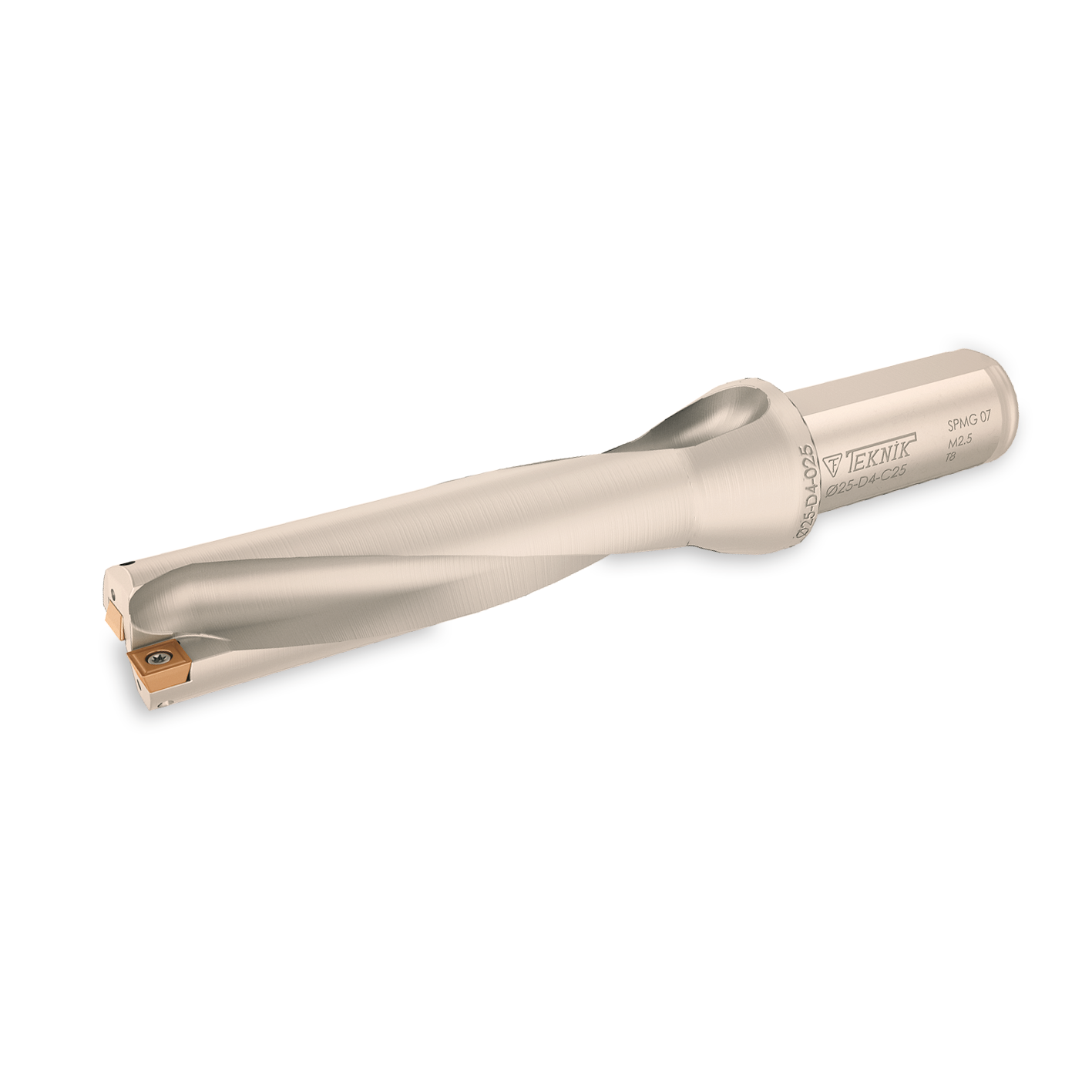

Indexable insert drill — Ø17 mm, 25 mm shank (Teknik Makina)

The indexable insert drill for precision drilling in industrial CNC and toolroom environments, designed for use with SPMG 0602 inserts and compatible with common insert brands

• Indexable for SPMG 0602 inserts
• Ø17 mm cutting diameter
• 25 mm shank for secure clamping
• 68 mm cutting length for deep holes

Consistent hole quality for uninterrupted production

The indexable insert drill delivers repeatable hole geometry by combining a defined cutting edge form with a stable tool body. Using SPMG 0602 inserts keeps the cutting geometry constant across insert changes, reducing variability between holes and lowering scrap rates. With a Ø17 mm cutting diameter and a 68 mm cutting length, the tool is engineered to maintain concentricity and surface finish in standard production runs while facilitating predictable machining parameters for cycle-time planning.

Robust mounting to protect spindle investment

A substantial 25 mm shank and an extended shank engagement of 56 mm ensure secure clamping in industrial toolholders and reduce the risk of vibration under load. The combination of a solid mounting interface and a 144 mm overall length provides the necessary reach without compromising rigidity, which is crucial when running long series or when working close to fixturing. The measured mass of 0.333 kg also contributes to stable dynamic behaviour during high‑speed cycles.

Fast changeovers and broad insert compatibility

Designed for indexable cutting, the tool accepts SPMG 0602 inserts and is compatible with inserts from established manufacturers such as Taegutec and YG‑1. This flexibility simplifies stocking strategy and minimises downtime: worn inserts are replaced quickly, restoring cutting performance without regrinding. Spare inserts and alternative grades can be selected to match material demands or to favour longer life or higher metal removal rates, depending on production priorities.

Practical fit for workshop and CNC environments

This drill is suitable where reliability and straightforward maintenance are priorities. The combination of proven insert geometry and a standard shank size makes the tool an efficient choice for shops that need good repeatability and ease of service. For assemblies and tool cabinets where changeability and compatibility are critical, the product reduces the number of specialised drills required and supports streamlined inventory management.

For application advice or to secure this Teknik Cutting Tools indexable insert drill (SKU U717TM) for your production line, contact Metav Werkzeuge in Emmerich by phone +49 2822 7131930 or by email at info@metav-werkzeuge.com for tailored guidance and next‑day shipping options

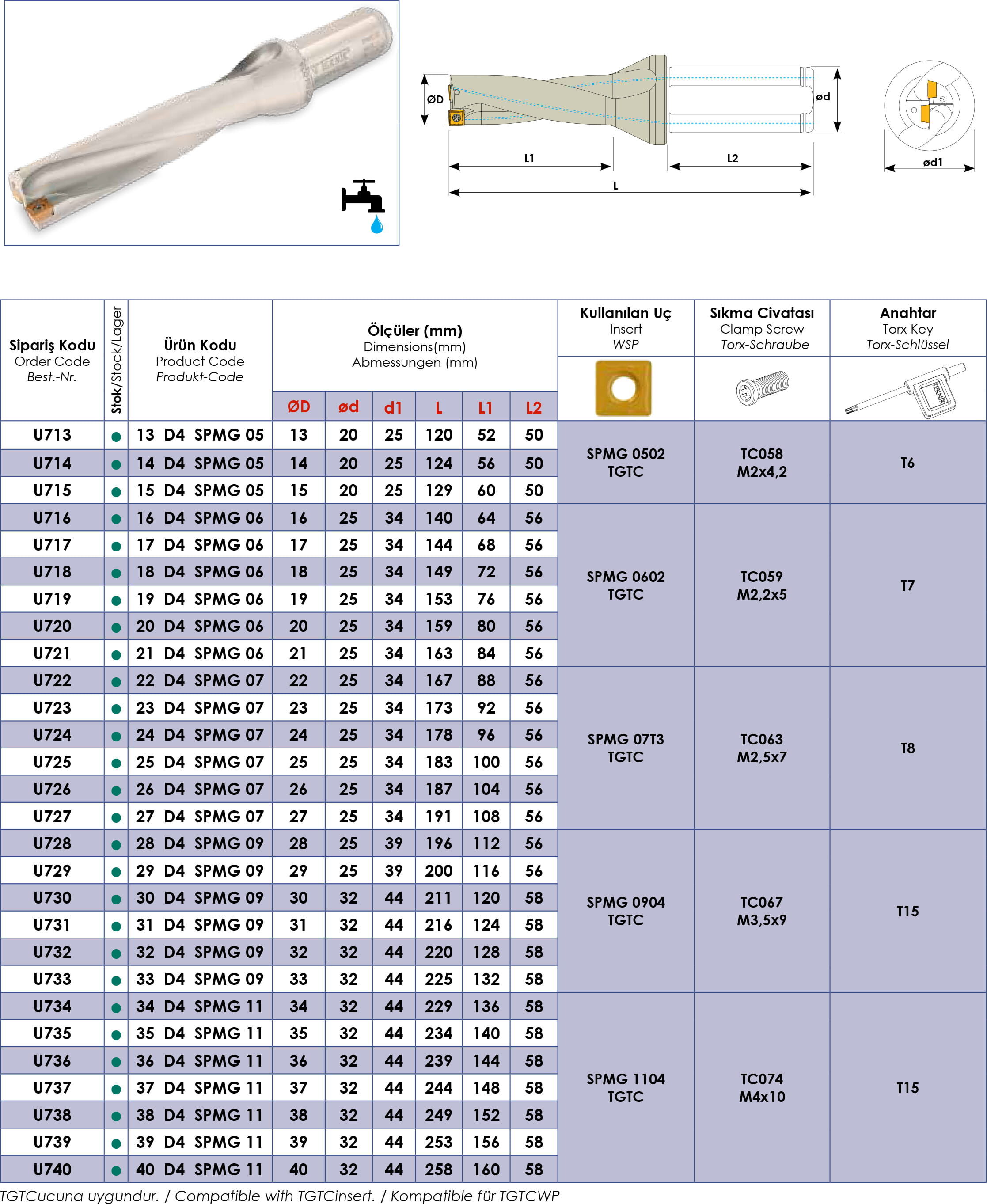

Technical data

• SKU: U717TM
• Name: Indexable insert drill
• Manufacturer: Teknik Makina
• Designation: Vollbohrer

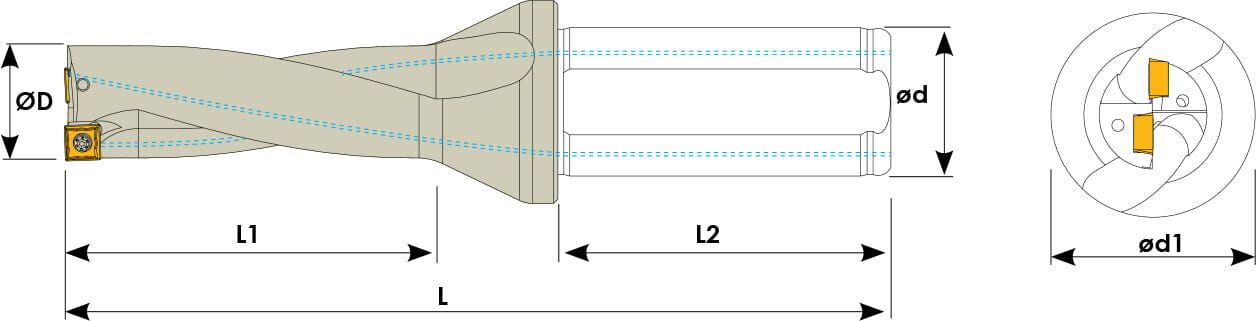

Core data

• Cutting diameter: 17 mm
• Cutting length: 68 mm
• Shank diameter: 25 mm
• Shank length: 56 mm
• Overall length: 144 mm
• Weight: 0.333 kg

Special features

• Compatible inserts: SPMG 0602
• Compatible insert manufacturers: Taegutec, YG‑1

FAQ

Which inserts fit this drill?
The tool is specified for SPMG 0602 inserts; compatible grades and sizes from Taegutec and YG‑1 are suitable and commonly used.

What is the exact cutting diameter and reach?
The cutting diameter is 17 mm with a cutting length of 68 mm and an overall length of 144 mm.

Is the shank suitable for standard toolholders?
Yes. The 25 mm shank and its 56 mm engagement length are designed for secure clamping in standard industrial holders.

What is the SKU for ordering or reordering?
Order using SKU U717TM to ensure the correct indexable insert drill configuration.

Can different insert grades be used for specific materials?
Different grades for SPMG 0602 inserts may be selected to optimise life or cutting performance; consult available grades from Taegutec or YG‑1 for suitability.
