17mm Solid Drill With 85mm Cutting Length, 56mm Shank Length - Teknik Makina

Take advantage of a compact tool body that combines a 17 mm cutting diameter with an 85 mm cutting length for stable, repeatable holemaking; the 25 mm shank and 161 mm overall length give secure clamping and reach for most workshop fixtures — order directly via Metav Werkzeuge or consult our technical team for application matching.

Vollbohrer — Solid drill with 17 mm diameter and Korloy insert compatibility (Teknik Makina)

Vollbohrer designed as a precision metalworking drill body for workshop and CNC applications, compatible with Korloy indexable inserts for efficient production.

• 17 mm cutting diameter
• 85 mm usable cutting length
• 25 mm shank for rigid clamping
• Compatible with Korloy WCM-0302 inserts

Improve machining reliability with consistent diameter control

The compact design ensures consistent hole diameters throughout the tool life, thanks to the specified 17 mm nominal size and an effective 85 mm cutting length. In practice, a stable cutting length reduces runout and taper, which means fewer rework cycles and tighter tolerances on finished parts. For buyers unfamiliar with indexable systems: the tool body accepts replaceable cutting faces rather than requiring whole-tool replacement, so geometric accuracy is maintained while operating costs fall.

Faster tool changes and reduced inventory through standard insert fit

Compatibility with Korloy inserts of type WCM-0302 allows rapid insert swapping and leverages readily available grades from a major insert manufacturer. The use of indexable inserts simplifies tooling logistics — keeping a small stock of inserts covers many jobs without multiple complete cutters. This approach supports lean workshop management and shortens machine downtime during maintenance intervals.

Rigid clamping and reach for secure, vibration-free cuts

The 25 mm shank diameter and a shank engagement length of 56 mm provide a secure interface with collets or holders, improving stiffness under load. With an overall length of 161 mm and a lightweight body at 0.468 kg, the tool balances reach and stability to suit medium-reach drilling tasks on mills and machining centres. Reduced vibration not only improves surface finish but also extends insert life, yielding better long-term economy.

Practical applications and recommended use cases

This drill body is aimed at production and repair shops that require repeatable, indexable drilling solutions for a range of metalworking tasks. The combination of a standard 17 mm size, Korloy insert compatibility and a modest overall length makes the tool suitable for batch production, prototype work and fixtures where access is limited. For detailed application matching or material-specific recommendations, Metav Werkzeuge provides tailored advice and can supply the correct insert grades and holder options for the required machining conditions.

Contact Metav Werkzeuge today to discuss Teknik Cutting Tools' 17 mm drill body (SKU U777TM), confirm Korloy WCM-0302 insert choice and request the technical documentation by phone +49 2822 7131930 or email info@metav-werkzeuge.com

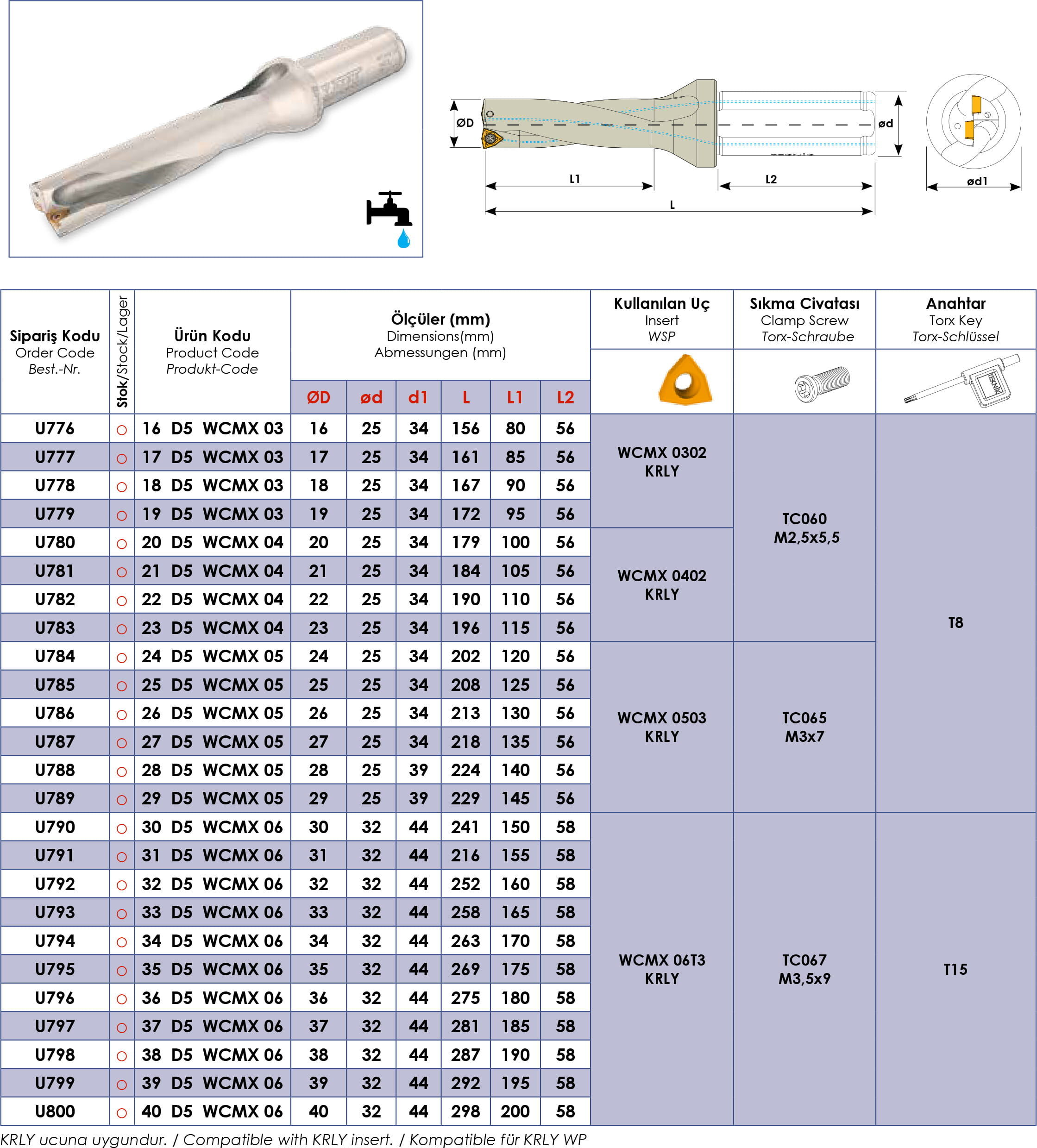

Technical data

• SKU: U777TM
• Manufacturer: Teknik Makina
• Product name: Vollbohrer
• ECLASS: 21180201

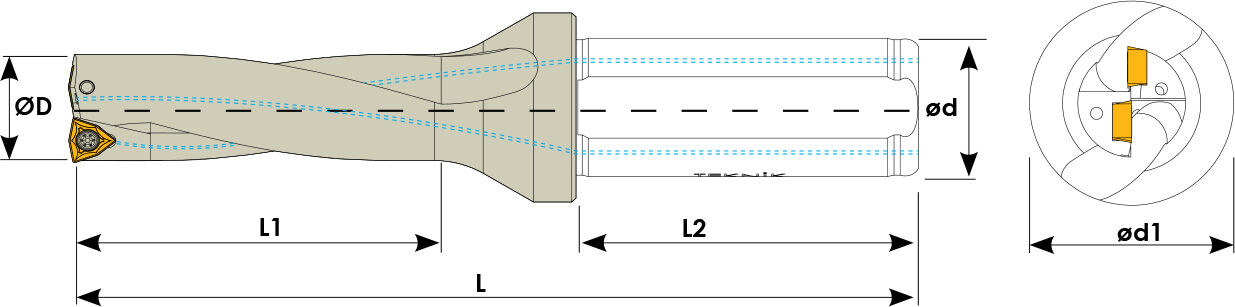

Core dimensions

• Diameter: 17 mm
• Cutting length: 85 mm
• Shank diameter: 25 mm
• Shank length: 56 mm
• Overall length: 161 mm
• Weight: 0.468 kg

Compatibility and features

• Compatible inserts: WCM-0302
• Insert manufacturer compatibility: Korloy
• Files: 62de7ec30aced56449540eb2, 62de7dd80aced56449540e82
• Story trigger: vollbohrer

FAQ

What inserts fit this drill body?
The drill body accepts Korloy inserts of type WCM-0302; matching grades should be chosen according to workpiece material and cutting conditions.

Is the shank suitable for standard collet chucks?
Yes, with a 25 mm shank diameter the tool is intended for secure clamping in common collets and holder systems used on milling machines and machining centres.

What is the usable cutting length?
The usable cutting length is 85 mm, which provides sufficient depth for most medium-reach drilling operations while maintaining stability.

Which SKU should be referenced when ordering or requesting documentation?
Reference SKU U777TM when enquiring about this drill body; Teknik Cutting Tools is the manufacturer listed for this item.

Can this tool be used on a CNC lathe or only on milling machines?
The tool body is primarily specified for stationary spindle applications such as milling machines and machining centres; suitability for turning centres depends on the machine setup and holder compatibility.

Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
