17mm Solid Drill 34mm Cutting Length 56mm Shank Length, For SPMG 0602 Inserts - Teknik Makina

Combine reliable insert compatibility with compact geometry and robust clamping for consistent hole quality in medium‑depth machining; order the indexable drill body directly via Metav Werkzeuge or consult our specialists for tailored advice.

Indexable drill body U917TM – Ø 17 mm, 25 mm shank (Teknik Makina)

A precise indexable drill body U917TM engineered for insert drilling with SPMG 0602 inserts, ideal for production shops and toolrooms requiring fast insert changes and steady machining performance

• Compatible with SPMG 0602 inserts
• Ø 17 mm drill diameter
• 25 mm shank for secure clamping
• 34 mm cutting length for effective depth

Consistent hole quality thanks to insert compatibility

The design centres on compatibility with SPMG 0602 indexable inserts, delivering repeatable edge geometry and predictable chip control. Matching the body to widely available insert grades from Taegutec and YG‑1 reduces set‑up variation and shortens qualification time for new operations. For production environments, this means fewer scrap cycles and a more consistent process window when replacing worn edges.

Stable machining from compact, rigid geometry

A 25 mm shank and slim overall profile combine to provide improved rigidity at the toolholder interface; the result is reduced vibration and better runout behaviour compared with longer, unsupported tools. The tool’s Ø 17 mm cutting diameter and 34 mm cutting length are balanced to offer a secure cutting zone for through‑holes and moderate depths while keeping the dynamic load on the spindle low. This geometry supports stable feeds and extends insert life where hole tolerances matter.

Lower operating cost through indexable inserts

Using an indexable concept simplifies maintenance: only the cutting inserts require replacement rather than the entire tool blank. The modular approach shortens machine downtime and reduces per‑hole tooling cost, delivering measurable economy for repetitive drilling tasks. The combination of widely available insert formats and a serviceable drill body promotes efficient inventory management in the workshop.

Practical application and workshop fit

The body is intended for metalworking shops and industrial production where reproducibility and quick intervention matter. With an overall length of 110 mm and a compact mass of 0.291 kg, the component is manageable in automated tool changers and manual set‑ups alike. Compatibility notes — interchangeable with insert grades from Taegutec and YG‑1 — ensure access to a broad range of cutting materials and geometries, supporting different workpiece materials and machining strategies.

Contact Metav Werkzeuge for expert advice on the Teknik Makina U917TM indexable drill body and to arrange supply directly from Emmerich for seamless integration into the production line

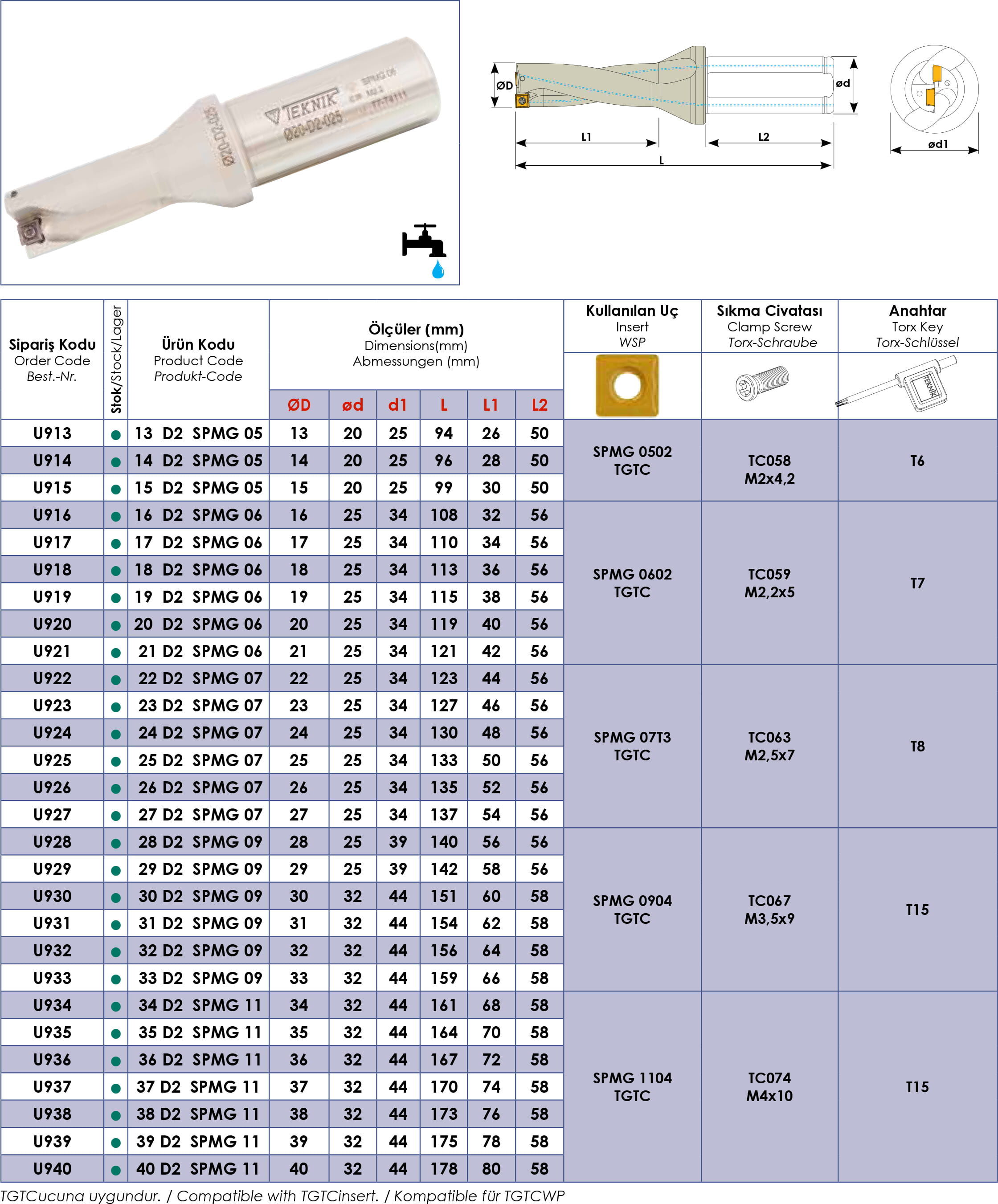

Technical data

• Article number: U917TM
• Manufacturer: Teknik Makina
• Designation: Indexable drill body (Vollbohrer)

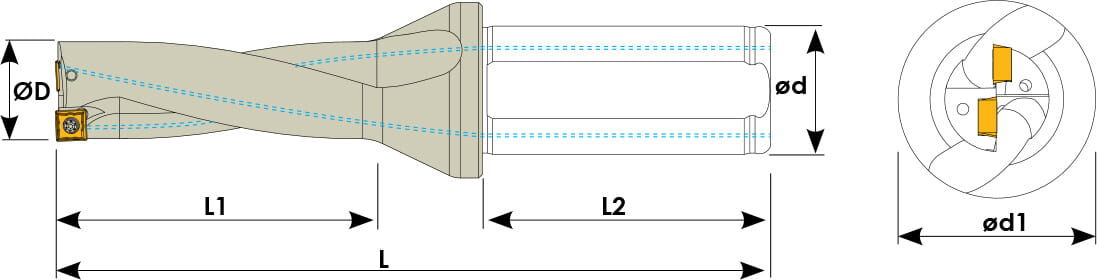

Facts

• Diameter: 17 mm
• Shank diameter: 25 mm
• Cutting length: 34 mm
• Shank length: 56 mm
• Overall length: 110 mm
• Weight: 0.291 kg
• Compatible inserts: SPMG 0602
• Compatible insert manufacturers: Taegutec, YG‑1

Special features

• Indexable insert concept for quick insert changes
• Compact overall length for reduced overhang
• Balanced mass for stable rotation
• Suitable for production and workshop environments

FAQ

What insert size does the drill body accept?
The drill body accepts SPMG 0602 indexable inserts as stated; compatible grades from Taegutec and YG‑1 are commonly used with this body.

Is the shank suitable for standard toolholders?
The 25 mm shank is designed for secure clamping in standard holders that accept a 25 mm diameter connection.

What is the effective cutting length?
The effective cutting length is 34 mm, making the body suitable for medium‑depth drilling operations.
