0-85mm Swivel Machine Vice Tilt Base 700kgf Clamping Force, 268mm Height - Vertex

Take advantage of the combination of 700 kgf clamping force, 0.01 mm precision, and a stable swivelling and tilting design for reliable workholding and repeatable machining results. Order the vice directly via Metav Werkzeuge or consult our product specialists for tailored advice.

VAV-3 Machine Vice by Vertex — Swivelling, Tilting Vice with 700 kgf Clamping Force

The VAV-3 machine vice is a swivelling and tilting workholding device designed for general machining tasks where robust clamping and precise positioning are required on milling machines and drill presses

• High clamping force 700 kgf
• Precision 0.01 mm repeatability
• Opening range 0–85 mm
• Stable base 140 x 190 mm

Robust clamping that improves cycle reliability

The vice’s 700 kgf clamping force secures workpieces firmly for heavy cuts and interrupted machining without shifting. A solid construction and a 140 x 190 mm base distribute forces evenly to the machine table, reducing vibration transfer and improving tool life. This level of gripping power is particularly beneficial in batch production or when machining tougher materials, where consistent clamping reduces rework and scrap. The result is a measurable improvement in process reliability and throughput.

Precision alignment for repeatable setups

With a declared accuracy of 0.01 mm, the device supports fine positioning and repeatable setups across multiple parts. The specification refers to the vice’s capacity to maintain position under load and after reclamping; for unfamiliar terms, accuracy denotes the permitted deviation in clamping position relative to a set reference. The combination of close tolerances and a rigid spindle leads to fewer adjustment cycles between setups, saving time during fixture changes and helping to meet tight dimensional tolerances on finished components.

Versatile swivelling and tilting for complex fixturing

The swivelling and tilting functionality lets operators present the workpiece at optimal angles without additional fixtures. This reduces handling steps and enables angled operations such as inclined drilling or machining compound features. The rotating design aids flexible fixturing for small series and prototype work where quick reorientation is needed. Paired with conventional machine clamping points, the vice becomes a multi-purpose workholding solution that streamlines small-batch production and job-shop flexibility.

Compact footprint with substantial mass for stability

Measuring approximately 82 x 230 mm and weighing 17.6 kg, the vice provides a compact footprint while offering the mass needed to resist cutting forces. The 0–85 mm opening range suits a wide variety of stock sizes without excessive overhang, and the well-dimensioned base helps maintain table access for clamps or T-slot fixtures. The moderate weight supports quick mounting and repositioning yet gives enough inertia to support heavier cuts, balancing portability and machine stability.

Discuss the Vertex VAV-3 with Metav Werkzeuge in Emmerich for a precise match to workshop requirements or request detailed technical information via info@metav-werkzeuge.com

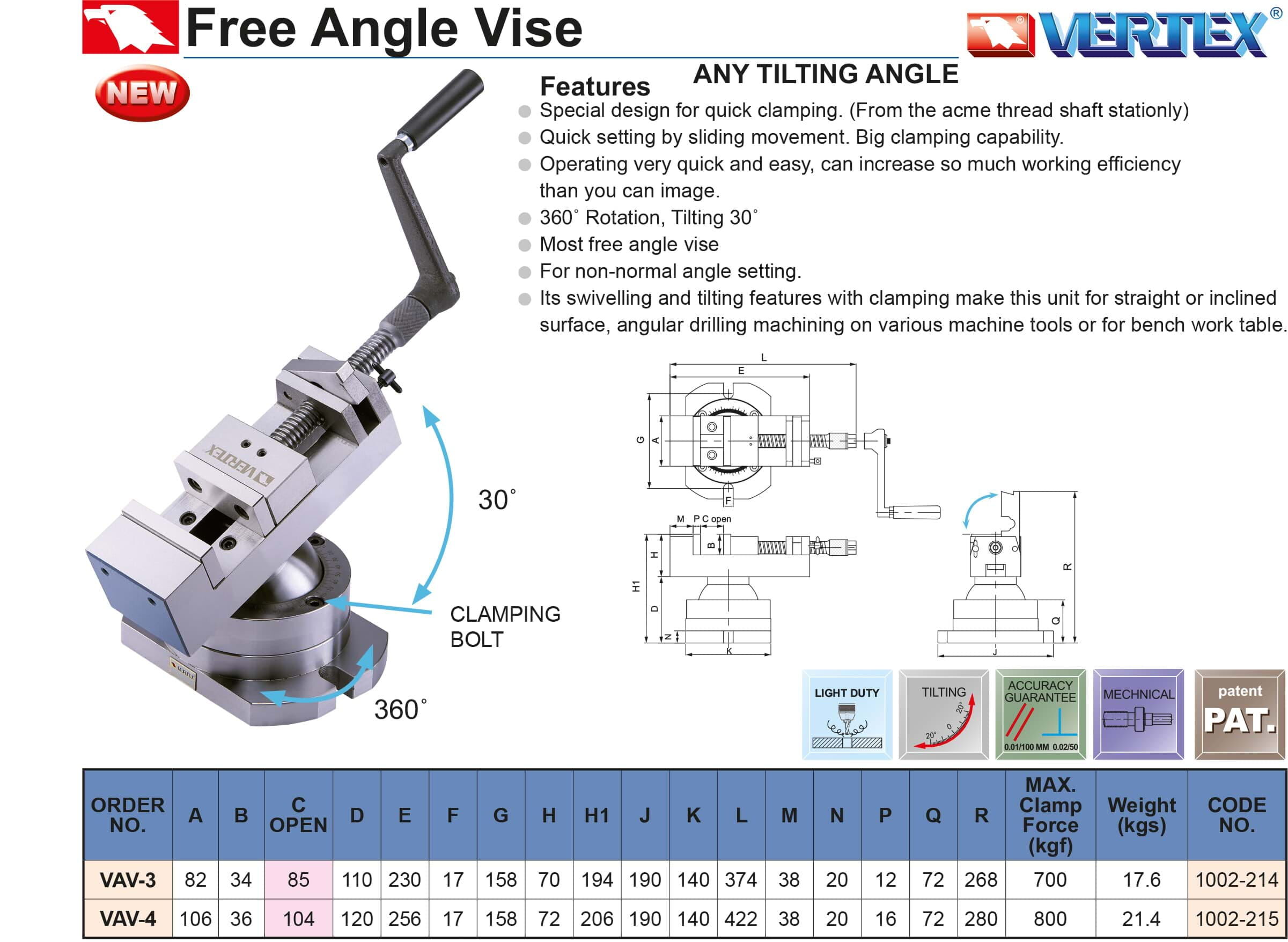

Technical data

• SKU: VAV-3
• GTIN: 4061905084997
• ECLASS: 21020601
• ETIM: EC002173

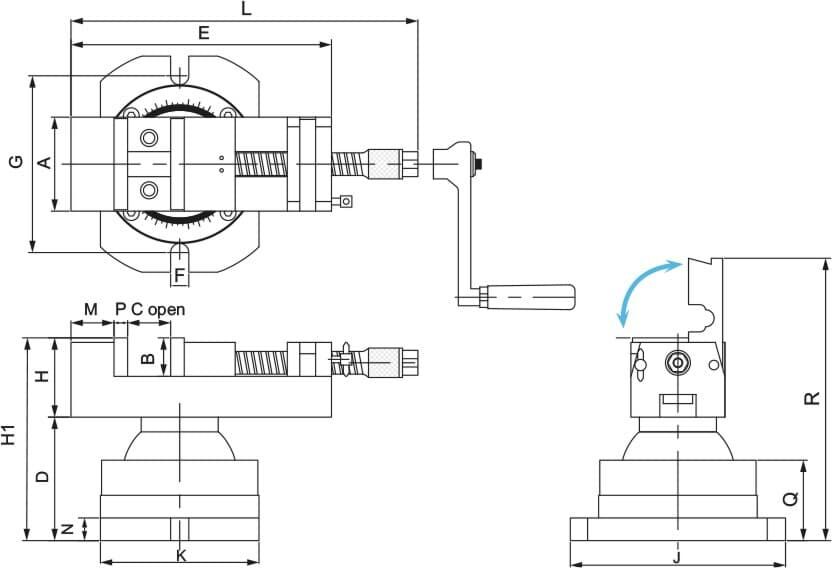

Dimensions & performance

• Overall dimensions: 82 x 230 mm
• Opening range: 0–85 mm
• Height: 268 mm
• Base: 140 x 190 mm
• Weight: 17.6 kg
• Clamping force: 700 kgf
• Accuracy: 0.01 mm

Special features

• Swivelling and tilting vice
• Free rotating type
• Designed for general machining workholding
• Brand: Vertex

FAQ

Is this vice suitable for milling and drilling operations?
Yes. The VAV-3 machine vice is intended for milling and drilling where a robust clamping force and accurate positioning are required.

What does the 700 kgf clamping force mean in practice?
A clamping force of 700 kgf indicates the maximum gripping capacity; on the VAV-3 this translates into stable fixation for heavy cuts and interrupted machining without workpiece movement.

How precise is the vice for repeat setups?
The device offers an accuracy of 0.01 mm, which supports repeatable setups and helps maintain dimensional tolerances across batches.

Can the vice be rotated and tilted on the machine table?
Yes. The VAV-3 is a swivelling and tilting vice, allowing angled and rotated setups without additional dedicated fixtures.

What mounting area is required on the machine table?
The vice sits on a 140 x 190 mm base and occupies roughly 82 x 230 mm of table space, leaving room for typical clamp arrangements.

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
