140mm Angle Clamp With Free-Angle Rotary Plate, 15 Kg Load Capacity - Vertex

Benefit from a combination of precision, reliable load capacity and flexible orientation to keep setups fast and repeatable; the clamping solution delivers consistent positioning and robust support for machining and inspection. Order directly via Metav Werkzeuge or consult our advisors for tailored recommendations.

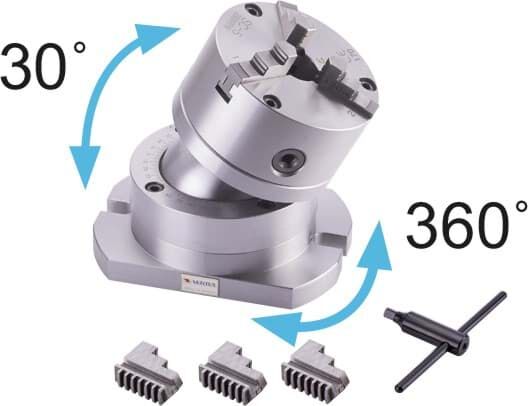

VAV-4J clamping angle with free-angle rotary plate — 0.01 mm accuracy, 15 kg load

The VAV-4J is a clamping angle with a free-angle rotary plate designed for precise workholding and flexible orientation in machining, measurement and inspection applications.

• 0.01 mm positioning accuracy
• 15 kg maximum load capacity
• 140 mm rotary plate diameter
• Robust 16 kg construction for stability

High-precision positioning for repeatable setups

The device provides 0.01 mm of repeatable positioning, which secures consistent alignment across multiple setups and reduces rework. The finely machined indexing surfaces and tight tolerances mean that the angle can be used as a reference element in both production and quality-control environments. For operations where small deviations cause downstream issues, this level of precision shortens inspection cycles and supports reliable component interchangeability.

Flexible orientation reduces setup time

A continuous free-angle rotary plate with a 140 mm diameter allows rapid adjustment of the clamped workpiece without the need to reposition ancillary fixtures. The smooth swivel action simplifies angular alignment, so machining programmes or measuring sequences can proceed with minimal interruption. This flexibility translates into fewer changeovers, lower setup overhead and a more efficient workflow when varied angles are required within a single production batch.

Robust build for vibration-free clamping

A solid construction of 16 kg mass combined with a 15 kg rated load capacity provides the rigidity needed to minimise vibration during machining and measurement. The elevated stability reduces chatter and improves surface finish, while the compact 203 mm profile offers a secure footprint on the machine bed or inspection table. Reduced movement under cutting forces helps protect both the workpiece and cutting tools, extending tool life and improving overall process economy.

Suited for workshop and inspection environments

Engineered for general-purpose clamping and metrology tasks, this angle plate supports a range of production and lab applications. The combination of accurate indexing and a robust platform makes it suitable for repeatable setups, demanding inspection fixtures or small-series machining. Where traceable positioning is important, the VAV-4J offers a pragmatic balance between precise orientation and everyday usability, making it a dependable component in both maintenance shops and quality departments.

Contact Metav Werkzeuge in Emmerich for tailored advice on integrating the Vertex clamping angle into existing workflows — eMail info@metav-werkzeuge.com or call +49 2822 7131930 to discuss specifications and delivery.

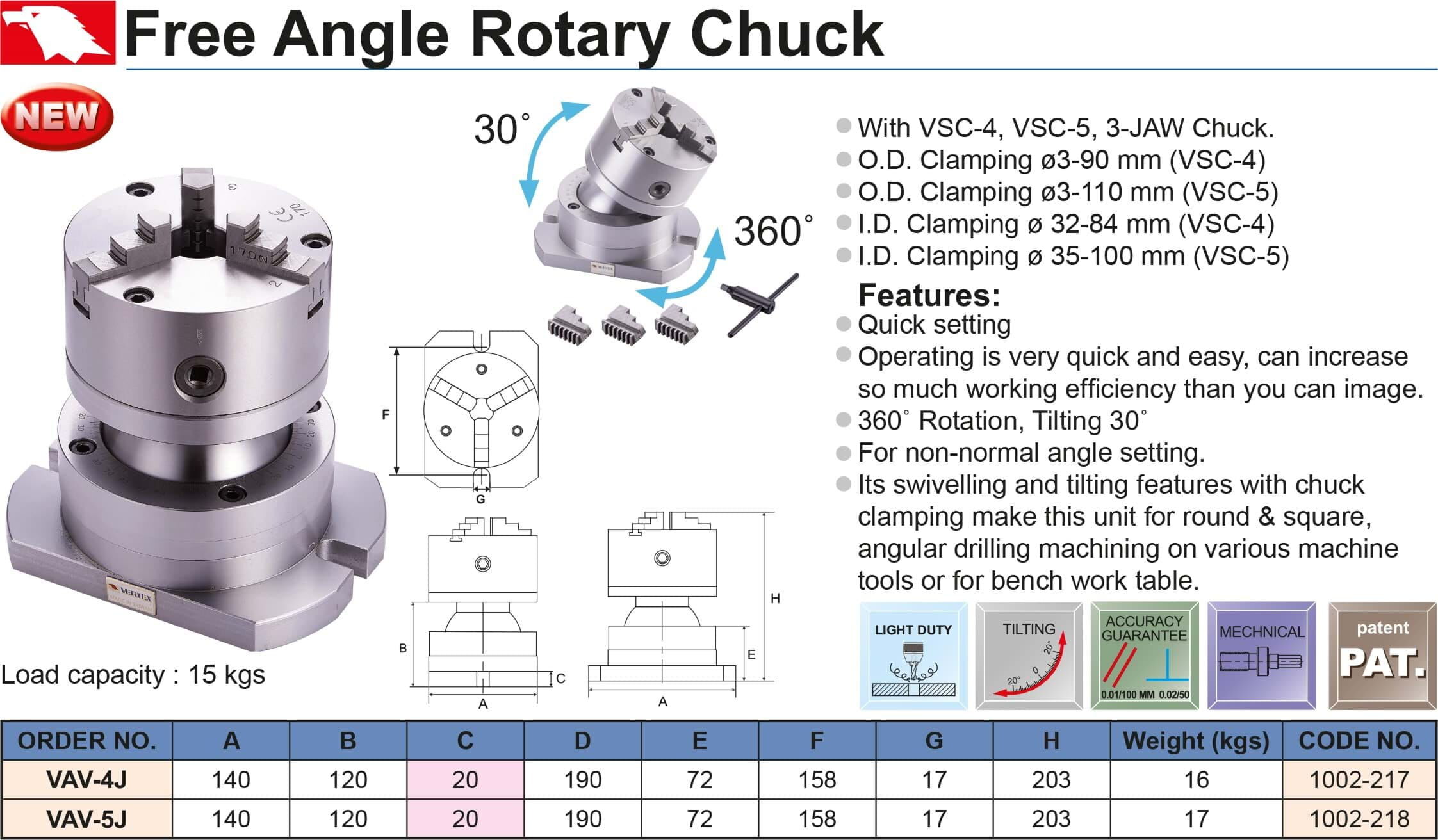

Technical Data

• Article number: VAV-4J
• GTIN: 4061905084843
• Manufacturer: Vertex

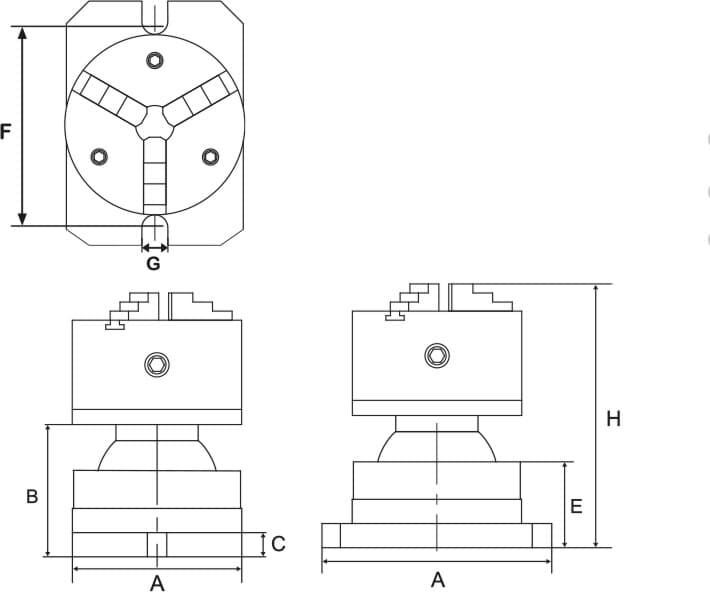

Facts

• Rotary plate diameter: 140 mm
• Height: 203 mm
• Weight: 16 kg
• Maximum load: 15 kg
• Accuracy: 0.01 mm
• ECLASS: 21020601

Special features

• Clamping angle with free-angle rotary plate
• Designed for precision workholding and inspection
• Brand: Vertex

FAQ

What positioning accuracy can be expected with this clamping angle?
The clamping angle delivers an accuracy of 0.01 mm, enabling precise and repeatable setups for measurement and machining tasks.

What load can the rotary plate support?
The rotary plate supports a maximum load of 15 kg while the overall construction weight is 16 kg to ensure stable clamping.

Which applications are appropriate for this device?
Typical uses include workholding for small-series machining, fixture setups and inspection tasks where controlled orientation and repeatability are required.

How does the free-angle rotary plate improve workflow?
The continuous rotation of the plate simplifies angular alignment and reduces the need for repositioning, shortening setup times and lowering changeover effort.

Which brand and SKU identify this product?
This product is the Vertex clamping angle, SKU VAV-4J, supplied for precision workholding in workshop and inspection environments.

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
