0-180 mm Machine Vice VCM-47 450 kgf Clamp Force, 108x470x98mm - Vertex

Take advantage of a combination of high clamping force and wide opening for dependable workholding; the robust mechanical construction supports stable machining and consistent results. Order the vice directly via Metav Werkzeuge or request personalised advice from our consultants in Emmerich for specification checks.

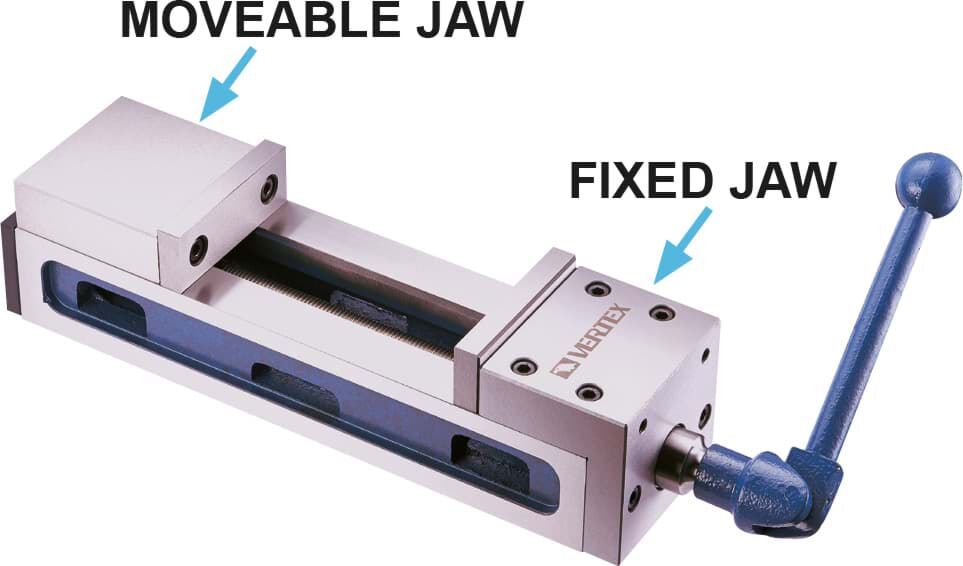

VCM-47 mechanical machine vice — 450 kgf clamping force, 0–180 mm opening

The VCM-47 is a mechanical machine vice designed for secure clamping in milling and general machining applications, offering a wide opening and precise hold for diverse workpieces.

• 450 kgf clamping force for secure gripping
• 0–180 mm opening to accept varied workpiece sizes
• Accuracy 0.01 mm for precise machining
• Robust 17.7 kg body for vibration damping

Secure, reliable workholding for consistent machining results

The vice excels where repeatable clamping and process reliability matter. With a 450 kgf rated clamping capacity and a 0–180 mm jaw opening, the unit keeps components firmly located during cutting and finishing operations. This level of hold reduces workpiece movement and tool wear, supporting higher throughput and fewer rejects. The design suits bench-mounted and machine-table applications where a dependable machine vice is required for milling, drilling or light planing tasks.

Precision and stability that support tight tolerances

A guaranteed positioning accuracy of 0.01 mm underlines the vice's suitability for jobs demanding fine tolerances. The substantial mass — 17.7 kg — contributes to stability by damping machine vibrations and preventing micro-movements during machining. For customers new to metrology terms: the accuracy figure denotes the repeatability of the jaw position, ensuring identical set-ups across multiple runs and predictable surface finishes. The combined effect is fewer reworks and improved process control.

Simple integration and durable mechanical design for the workshop

The mechanically driven construction provides a maintenance-friendly alternative to complex hydraulic or pneumatic systems, reducing potential downtime. The mechanical design uses proven components for long service life and straightforward adjustments at the workbench. Supplied dimensions make planning for fixture layouts simple — the compact footprint aids in mounting on standard machine tables while the robust build supports heavy-duty clamping cycles. As a partner, Metav Werkzeuge offers practical purchasing and logistics support from its Emmerich location to streamline supply into the workshop.

For tailored specification support or to arrange supply through Metav Werkzeuge in Emmerich, please contact our sales team via info@metav-werkzeuge.com or call +49 2822 7131930

Technical Data

• Article number / SKU: VCM-47
• GTIN: 4061905083259
• Type: Mechanical
• ECLASS: 21020601
• ETIM: EC002173

Facts

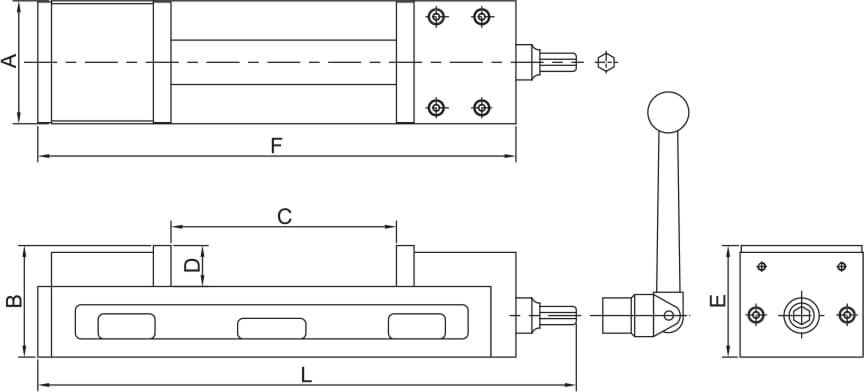

• Dimensions: 108 × 470 × 98 mm
• Weight: 17.7 kg
• Clamping force: 450 kgf
• Opening range: 0–180 mm
• Accuracy: 0.01 mm

Special features

• Mechanical vice for machine table use
• Robust construction for vibration damping
• Suitable for milling and general machining
• Brand: Vertex

FAQ

What clamping capacity does the vice offer? The vice provides a clamping force of 450 kgf, ensuring secure gripping of workpieces during machining operations with the VCM-47 mechanical machine vice.

What is the usable jaw opening range? The jaw opening spans 0–180 mm, allowing versatile accommodation of components of different widths for various machining tasks.

How precise is the positioning of the jaws? The unit is specified to an accuracy of 0.01 mm, offering repeatable positioning suitable for tasks requiring close tolerances.

Is the vice suitable for heavy-duty milling? The robust 17.7 kg construction and high clamping force make the vice well suited to demanding milling operations where vibration damping and secure workholding are required.

Can the vice be mounted on standard machine tables? Yes, the compact dimensions and mechanical design facilitate mounting on common machine tables and fixture setups for straightforward integration.

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
