Product information "300x300mm Precision Indexing Table 15° Rotation Bidirectional, 14mm T‑Slot - Vertex"
Compact and reliable: the combination of a 300 x 300 mm table and 15° indexing provides precise, repeatable angular positioning for machining and assembly tasks. Order the precision indexing table directly via Metav Werkzeuge or ask the consultants for tailored advice.
VIT-300-15 Precision Indexing Table — 300 x 300 mm tabletop, 15° indexing — Vertex
A VIT-300-15 is a precision indexing table designed for repeatable angular positioning in workshop and production environments.
- 300 x 300 mm rigid table surface
- 15° indexing for quick repositioning
- Rotates clockwise and counter-clockwise
- 14 mm T-slots for secure clamping
Precision that keeps production on schedule
The unit delivers consistent angular steps thanks to its 15° indexing, enabling fast, repeatable set-ups that reduce non-productive time. With an emphasis on measurable accuracy (listed as accuracy class 3), the rotary solution supports processes where positional certainty is essential. The generous 300 x 300 mm working surface simplifies fixture placement and, when combined with the indexing mechanism, decreases cycle variability—resulting in improved throughput and predictable component quality.
Robust workholding for reliable processes
Built for stability, the table’s substantial mass (94 kg) and integrated 14 mm T-slots provide a secure platform for clamping standard tooling and workpieces. The design allows rotation clockwise and counter-clockwise, which supports flexible machining sequences and eases toolpath planning in both manual and automated workflows. These mechanical properties translate into fewer re-clamps, reduced vibration during operation and a lower risk of setup-related rejects, so production runs remain consistent.
Integration and set-up made straightforward
The indexing table is engineered for straightforward integration into existing benches and machines, providing repeatable angular positioning without complex adjustments. Explanation: indexing means the table stops at defined angular increments (here 15°), so cuts, drilling or measuring steps can be executed with minimal alignment effort. The compact footprint and standard clamping interfaces support quick installation and compatibility with common workshop fixtures, helping to maintain a steady production flow with minimal training required.
Contact Metav Werkzeuge for tailored technical advice and order handling; phone +49 2822 7131930 or email info@metav-werkzeuge.com

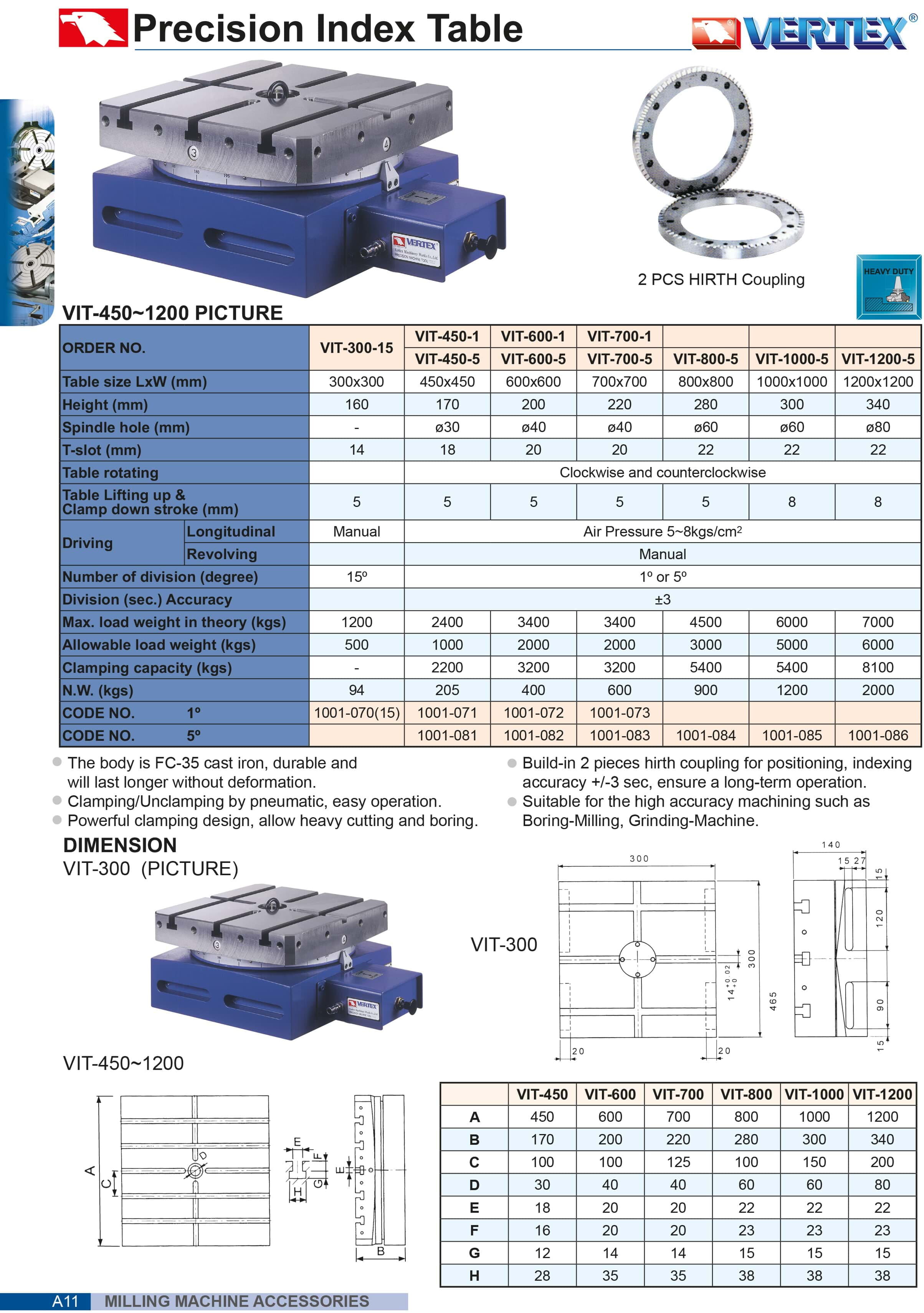

Technical Data
- SKU: VIT-300-15
- GTIN: 4061905084492
- Eclass: 36600310
- Manufacturer: Vertex
Facts
- Table dimensions: 300 x 300 mm
- Height: 160 mm
- Indexing step: 15°
- T-slot width: 14 mm
- Weight: 94 kg
- Accuracy class: 3
Special features
- Rotates clockwise and counter-clockwise
- Precision indexing for repeatable angular positioning
- Rigid table surface for stable clamping
- Suitable for workshop and production environments
FAQ
What indexing increment does the table provide?
The VIT-300-15 provides a 15° indexing increment for defined angular steps, suitable for rapid repositioning during machining and assembly.
Can the table rotate in both directions?
Yes, the Vertex precision indexing table rotates clockwise and counter-clockwise, enabling flexible operation sequences and easier alignment.
What are the tabletop dimensions and clamping options?
The tabletop measures 300 x 300 mm and includes 14 mm T-slots for secure attachment of fixtures and standard clamps.
How heavy is the unit and what stability does that give?
At 94 kg, the device offers a stable base that reduces vibration and improves repeatability, supporting reliable machining cycles.
Is the table suitable for both manual and CNC-assisted setups?
The precision index table from Vertex is designed for workshop and production use, integrating easily with manual benches and automated systems where repeatable angular positioning is required.
Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
