125mm Precision Machine Vice Hydraulic Boosted Compact Clamp 3000kgf, Cast Iron - Vertex
€2,214.11
Product information "125mm Precision Machine Vice Hydraulic Boosted Compact Clamp 3000kgf, Cast Iron - Vertex"
Taking advantage of 3000 kgf clamping force, compact cast iron construction and a precise 0–125 mm jaw travel ensures stable, repeatable machining and a long service life; order directly via Metav Werkzeuge or consult the team for application-specific advice.
VMC-100HV Precision machine vice — compact, power-enhanced clamping for machining centres (Vertex)
VMC-100HV is a precision machine vice designed for secure clamping in milling and machining applications, combining a compact footprint with high clamping capacity for demanding repeatability.
- 3,000 kgf clamping force for secure fixation
- Compact cast iron construction, 27 kg mass
- 0–125 mm adjustable jaw opening range
- Mechanical and hydraulic operation options
Stable machining through high clamping force and mass
The vice delivers a 3,000 kgf clamping force, providing a firm hold that minimises part movement during aggressive cutting. Combined with a 27 kg mass and cast iron body, vibration is damped effectively, which reduces tool wear and improves surface finish. This stability translates into fewer rejects and lower rework rates, making the device a pragmatic choice for production environments where consistency matters.
Precision features that reduce setup time and ensure repeatability
With an adjustable jaw travel of 0–125 mm and a stated accuracy of 0.01, the unit supports tight tolerances and repeatable positioning for serial work. The mechanical layout is engineered for straightforward alignment on machine tables, so fixture times are economical and cycle variability is reduced. The compact design keeps the vice accessible on most machining centres without compromising the available working envelope.
Flexible operation to match workshop workflows
The hybrid mechanical and hydraulic design allows integration into diverse shopfloor setups: hydraulic actuation offers rapid, even clamping for higher throughput, while mechanical control provides a simple, serviceable option for lower-volume tasks. The combination of operation modes gives procurement and maintenance teams choice without the need to invest in multiple vice types, supporting a lean tooling strategy.
Robust materials and design for long service life
Constructed from cast iron and engineered for machine-room durability, the vice resists deformation under load and maintains clamping stability over time. The compact dimensions support dense fixture layouts on pallets and smaller tables, while the overall build quality reduces the need for frequent replacement—an indirect saving that benefits total cost of ownership.
Contact Metav Werkzeuge for tailored advice on integrating the VMC-100HV into existing setups and to discuss fast delivery from our Emmerich warehouse

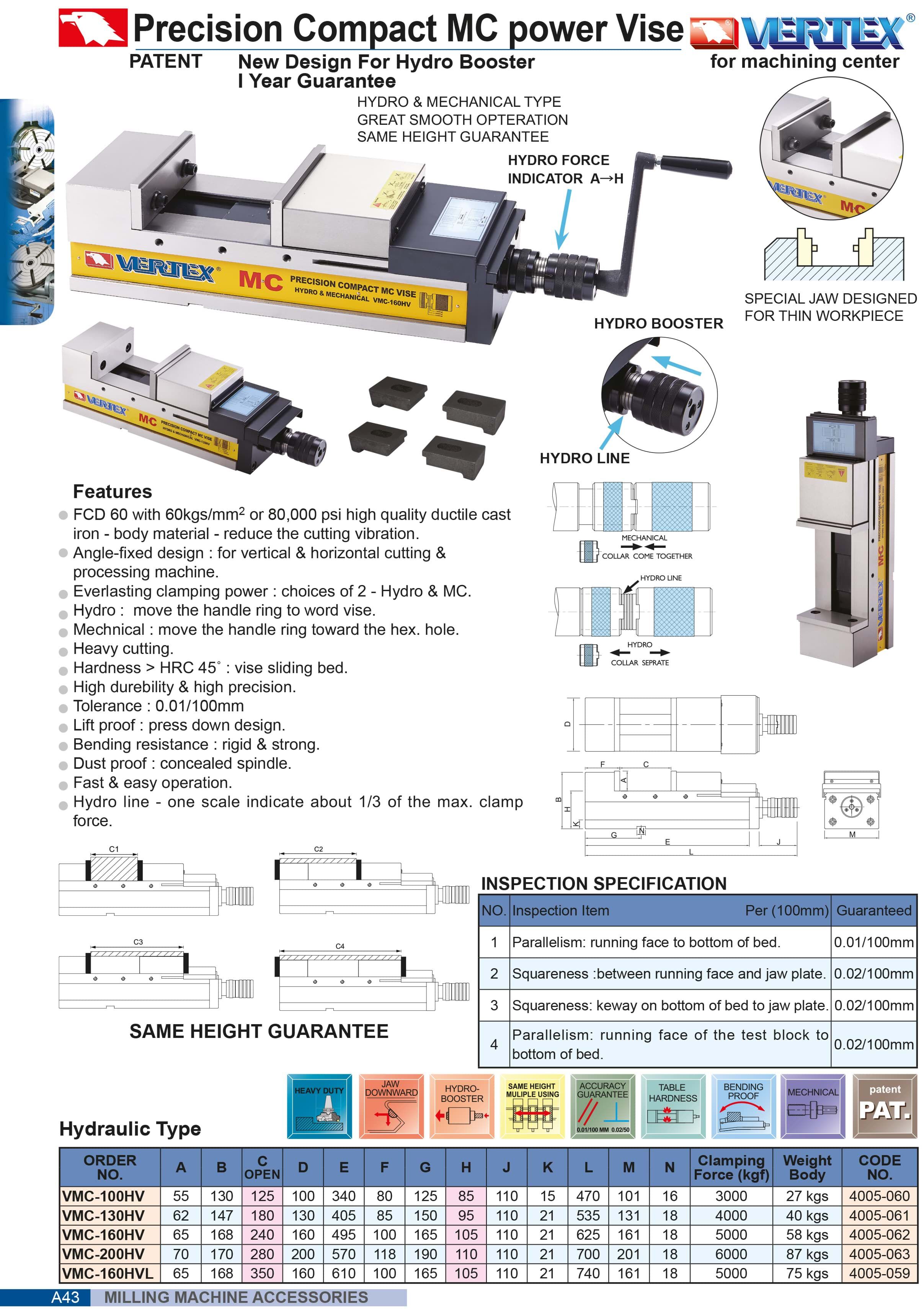

Technical data
- SKU: VMC-100HV
- GTIN: 4061905083785
- ECLASS: 21020601
- ETIM: EC002173
Facts

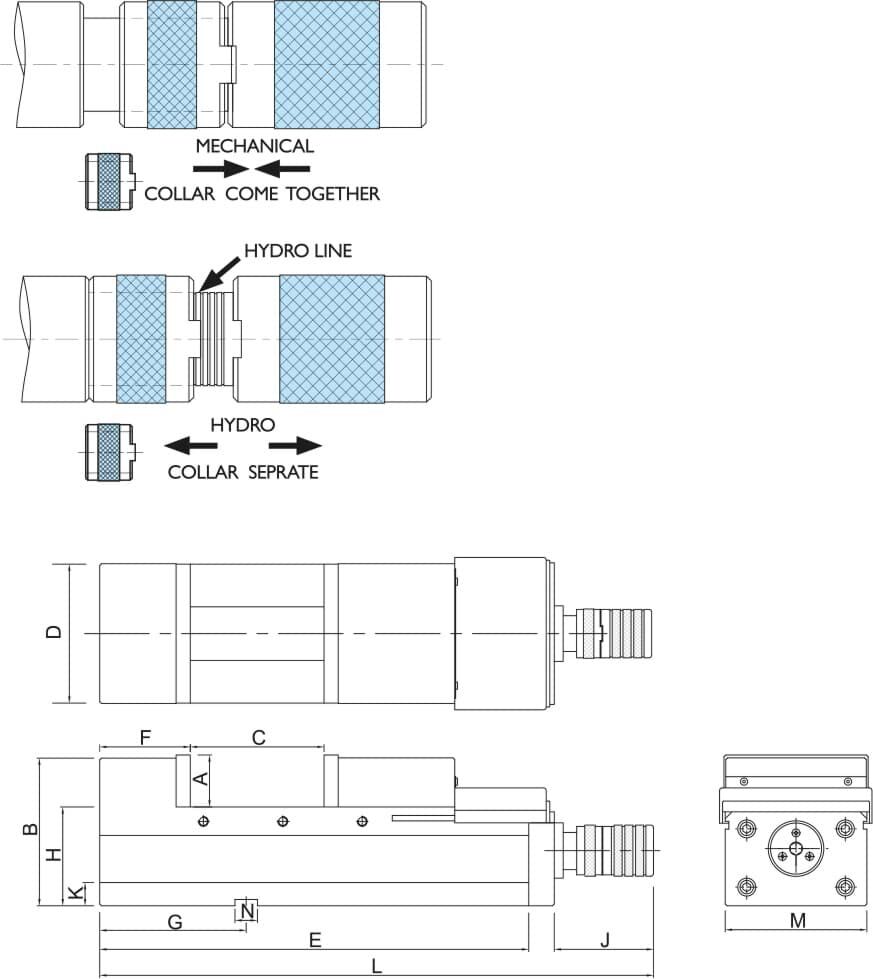

- Dimensions: 100x470x130 mm
- Jaw opening: 0–125 mm
- Clamping force: 3000 kgf
- Weight: 27 kg
- Accuracy: 0.01
Special features
- Material: Cast iron
- Type: Mechanical and hydraulic
- Design: Compact, power-enhanced
- Brand: Vertex
FAQ
What is the maximum jaw opening of the vice?
The vice offers a jaw opening of 0–125 mm, suitable for a broad range of workpiece sizes.
How much clamping force does the unit provide?
Clamping force is specified at 3,000 kgf, which ensures secure fixation for heavy cutting operations.
Is the vice suitable for production use on machining centres?
The VMC-100HV is built for machine applications; its combination of mass, precision and clamping force supports serial machining with consistent results.
What materials is the vice constructed from?
The main body is cast iron, chosen for its damping properties and long-term dimensional stability.
Does the vice support hydraulic and mechanical actuation?
Yes, the model features both mechanical and hydraulic operation options to fit different workshop workflows.
Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
