0-203 mm Machine Vice VMC-4L Three-Point Mechanical, 450 kgf Clamping Force - Vertex

Take advantage of 0.01 mm repeatability, 450 kgf clamping force and a generous 0–203 mm jaw opening to improve machining reliability and reduce rework. Order the VMC-4L directly via Metav Werkzeuge or ask our consultants if needed.

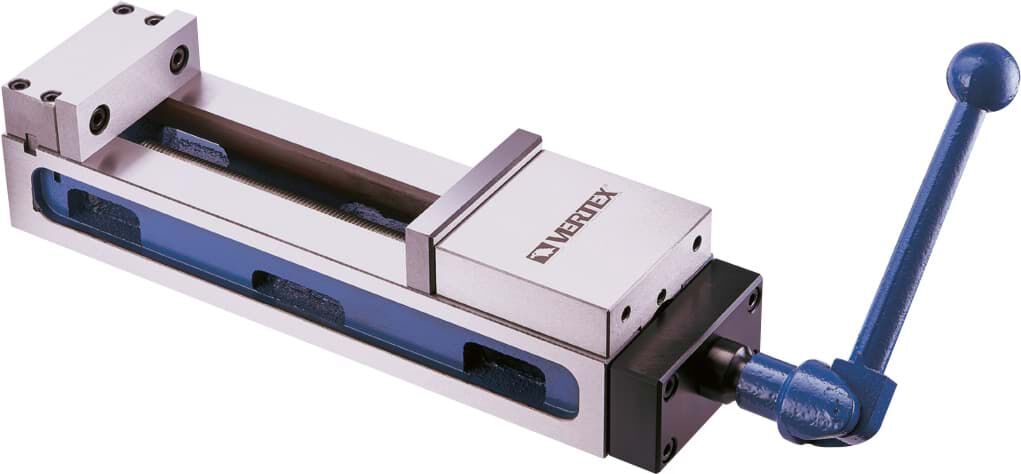

VMC-4L Machine vice by Vertex — 450 kgf clamping force, 0–203 mm opening

A VMC-4L mechanical machine vice designed for secure, repeatable clamping in milling and general machining applications

• High 450 kgf clamping force
• Wide 0–203 mm jaw opening
• Precision to 0.01 mm
• Stable 17.3 kg mass for secure clamping

Consistent precision for repeatable results

The vice delivers 0.01 mm positioning accuracy, ensuring repeated setups hold within narrow tolerances. Such precision reduces the need for downstream adjustments and minimises scrap rates in batch production. For users unfamiliar with the figure: 0.01 mm corresponds to one hundredth of a millimetre, a level of repeatability that supports fine finishing and tight-tolerance features on machined parts. The mechanical design is optimised to maintain this accuracy under typical milling loads, supporting steady throughput and process reliability.

Strong clamping and flexible workpiece handling

With a rated clamping force of 450 kgf and an adjustable jaw opening from 0–203 mm, the vice accommodates a broad range of workpiece sizes while maintaining secure hold during high-torque operations. The specified clamping force refers to kilogram-force (kgf), a unit indicating the downward holding capability; this capacity helps prevent slippage during aggressive feeds or deep cuts. The wide opening range supports both small fixtures and larger blocks, offering a versatile workholding solution that shortens changeover times and increases machine utilisation.

Robust build to support workshop productivity

The vice’s 17.3 kg mass contributes to inherent stability on the machine table, damping chatter and improving surface finish during demanding cuts. As a mechanical machine vice, it operates without hydraulic systems, simplifying maintenance and integration into standard tooling regimes. The compact footprint (see technical data) permits close fixturing and multi-part setups on typical vertical machining centres. This combination of mass, mechanical simplicity and repeatable clamping promotes uninterrupted production and predictable part quality.

Contact Metav Werkzeuge for an application assessment and specify the VMC-4L by Vertex to ensure rapid integration into existing machining processes

Technical data

• • SKU: VMC-4L
• • GTIN: 4061905083860
• • Type: Mechanical

Facts

• • Accuracy: 0.01 mm
• • Clamping force: 450 kgf
• • Jaw opening: 0–203 mm
• • Weight: 17.3 kg

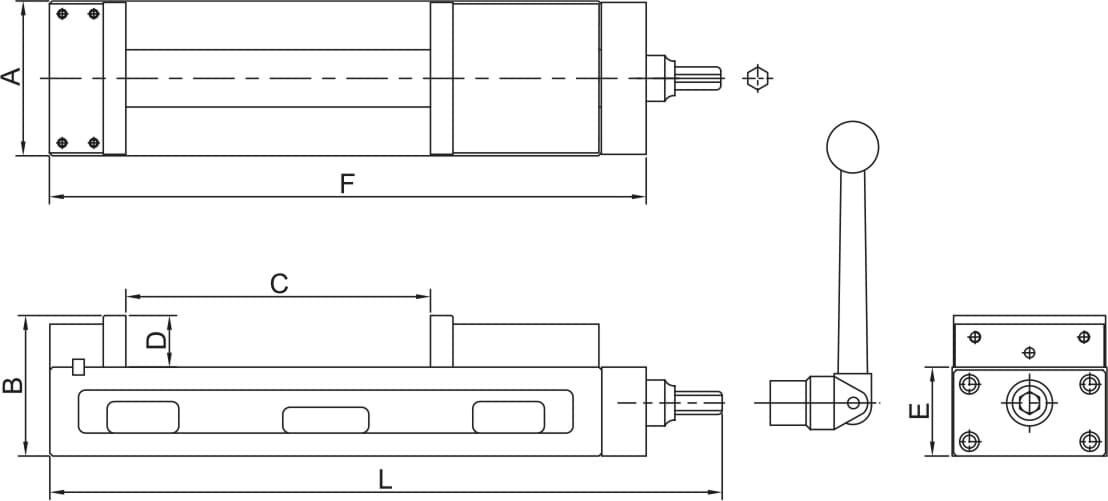

• • Dimensions: 108 x 470 x 98 mm
• • ECLASS: 21020601
• • ETIM: EC002173

Special features

• • Mechanical operation for low maintenance
• • Compact footprint for versatile fixturing
• • Designed for milling and general machining applications

FAQ

What level of accuracy can be expected from this vice?
The VMC-4L machine vice by Vertex provides 0.01 mm repeatability, suitable for fine finishing and tight-tolerance machining.

What is the maximum clamping force and why does it matter?
The vice offers 450 kgf clamping force; higher holding force reduces workpiece movement under load and improves surface consistency.

Which workpiece sizes fit in the vice?
Jaw opening from 0–203 mm allows the vice to accept a wide range of component sizes for milling and machining tasks.

Is the vice hydraulic or mechanical?
This is a mechanical vice; the VMC-4L uses mechanical clamping to simplify maintenance and integration.

What is the product identifier for ordering or stock checks?
Refer to SKU VMC-4L and GTIN 4061905083860 when specifying the Vertex machine vice

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
