0-100mm Pneumatic Precision Machine Vice Double-Opening 4000 kgf, Cast Iron - Vertex

Combine accuracy 0.01 mm, 4,000 kgf clamping force and a 0–100 mm opening for dependable, repeatable workholding; order the VMC-6PD directly via Metav Werkzeuge or consult our advisers for specification support.

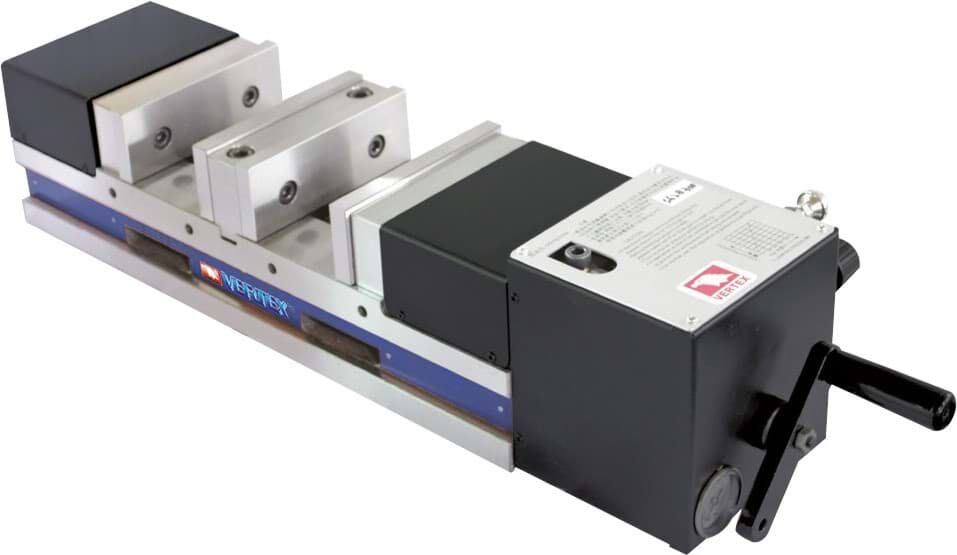

VMC-6PD Pneumatic Precision Machine Vice — 4,000 kgf Clamping, 0–100 mm Opening by Vertex

VMC-6PD is a pneumatic precision machine vice designed for secure clamping in CNC and production machining environments, offering a compact footprint and double-opening function for efficient part handling.

• 4,000 kgf clamping force
• 0–100 mm versatile opening
• Accuracy 0.01 mm repeatability
• Cast-iron body for vibration damping

Consistent precision that reduces rework

The vice delivers industrial-grade accuracy 0.01 mm, providing stable positioning for serial machining tasks. High clamping integrity from the 4,000 kgf rating minimises workpiece movement during heavy cuts, which reduces scrap rates and downstream rework. The result is a measurable improvement in first-pass yield and reproducible results across batches, making the vice a rational choice for shops seeking predictable throughput and lower non‑productive time.

Faster cycle times with pneumatic double opening

Pneumatic actuation enables rapid clamp and release cycles, streamlining automated workflows. The pneumatic actuation and double-opening design shorten handling times by allowing jaws to open on either side, which is particularly advantageous in indexed or palletised systems. The 0–100 mm opening range supports a broad part size spectrum without frequent setup changes. For operations migrating from manual to automated clamping, the vice’s repeatable air-driven mechanism simplifies integration and increases net productive time on the machine.

Robust construction for stable machining and long service life

A cast iron body provides mass and damping, absorbing cutting forces and vibrations for improved surface finish and tool life. The vice’s substantial mass (approx. 63 kg) contributes to stable clamping on the machine table and reduces micro‑movement under load. Designed for workshop environments, the vice combines durable materials with straightforward maintenance routines, supporting continuous operation in both batch production and precision jobbing applications.

Contact Metav Werkzeuge in Emmerich for project-specific advice on the Vertex VMC-6PD pneumatic precision vice, request CAD data or technical sheets via info@metav-werkzeuge.com or call +49 2822 7131930

Technical Data

• SKU: VMC-6PD
• GTIN: 4061905093814
• Manufacturer: Vertex
• Type: Pneumatic, double opening
• EClass: 21020601
• ETIM: EC002173

Core specifications

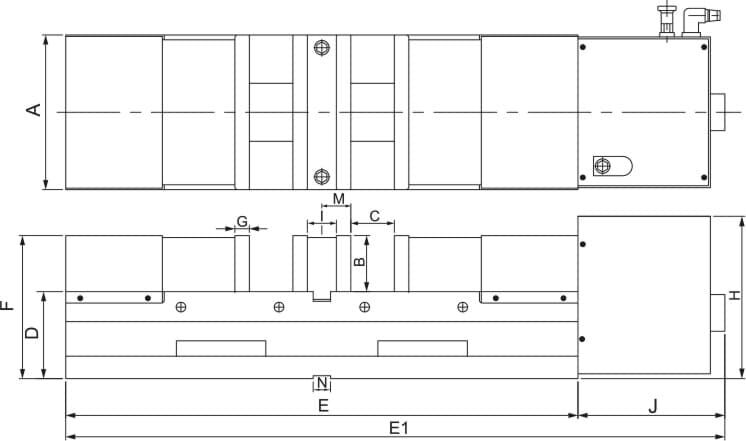

• Dimensions: 160 x 682 x 148 mm
• Weight: 63 kg
• Clamping force: 4000 kgf
• Opening range: 0–100 mm
• Accuracy: 0.01 mm

Materials & functions

• Body material: Cast iron
• Actuation: Pneumatic
• Design: Double-opening vice
• Intended use: Precision machine clamping

FAQ

What is the maximum clamping force of this vice?
The VMC-6PD provides a clamping force of 4,000 kgf, giving strong, repeatable holding power for demanding machining operations.

Which opening range is supported for different workpieces?
The vice supports an opening range of 0–100 mm, allowing flexible clamping of small to medium-sized components on the machine table.

Is the VMC-6PD suitable for automated pallet systems?
Yes; the pneumatic actuation and double-opening design of the Vertex VMC-6PD make it well suited to palletised and automated loading systems where fast cycle times are required.

How does the material of the vice affect machining performance?
The cast iron construction of the vice improves vibration damping and stability, which helps to maintain surface finish and extend tool life during machining.

What accuracy can be expected for positioning and clamping?
The vice is specified with an accuracy of 0.01 mm, supporting precision requirements in serial and prototype workholding.

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
