150mm Precision Parallels Set 18 Pieces, 0.01mm Accuracy, 4.5kg - Vertex

Take advantage of the combination of 0.01 mm accuracy and an 18-piece configuration with metric widths from 19–44 mm for fast, repeatable setup and fine alignment in the toolroom; compact dimensions and a clear contents list ensure organised storage and simple selection. Order the VP-064 directly via Metav Werkzeuge or ask our consultants if needed.

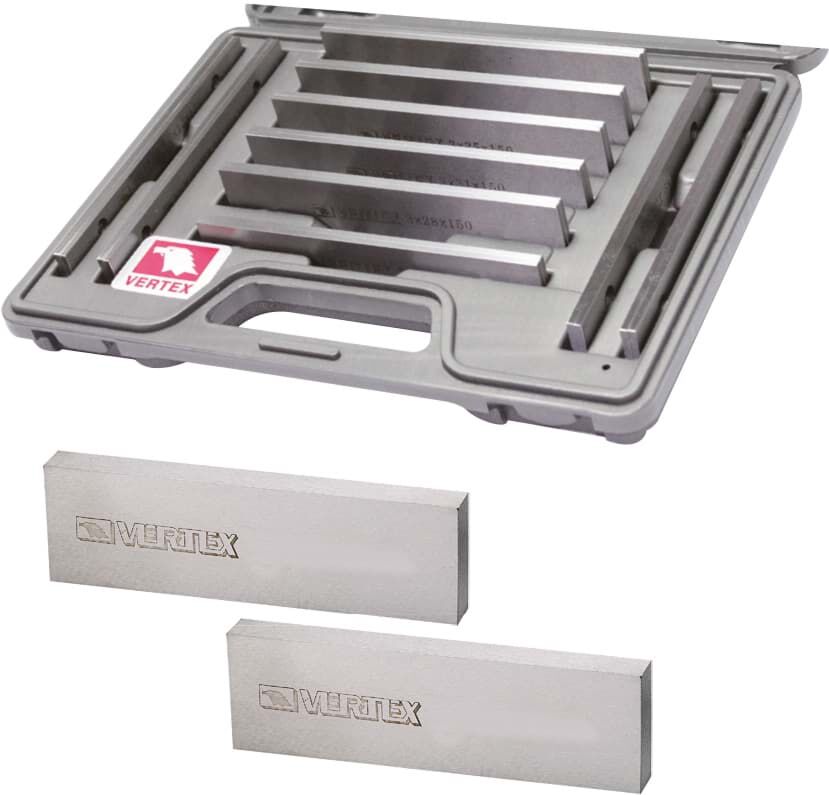

VP-064 Precision Parallel Shim Set by Vertex — 0.01 mm accuracy, 18 pieces

The VP-064 Precision Parallel Shim Set is a compact set of parallel shims designed for precise spacing, alignment and setup tasks in workshops and assembly stations.

• High precision: 0.01 mm accuracy
• 18-piece metric shim set
• Widths 19–44 mm, length 150 mm
• Uniform thickness of 6 mm for stacked adjustments

Reliable accuracy for repeatable setups

The VP-064 delivers 0.01 mm nominal accuracy, giving measurable repeatability when fine shimming is required. High tolerances reduce the need for trial-and-error adjustments and support consistent fixturing and measurement procedures. For operations where small positional changes affect part quality, the precision of each shim helps to stabilise processes and cut setup time, supporting throughput and reducing scrap.

Versatile widths for controlled alignment

The set contains an 18-piece assortment with widths spanning 19–44 mm and a uniform length of 150 mm, enabling stepwise compensation and fine adjustment without machining. Each shim is sized to combine quickly into the required overall thickness; the standard 6 mm thickness per plate allows predictable stacking increments. This configuration simplifies alignment of fixtures, gauges and components in mechanical assembly and inspection tasks.

Compact handling that suits the workshop

With compact external dimensions of 288 x 228 x 75 mm and a total weight of 4.5 kg, the set is easy to store at a workstation or in a tool trolley while remaining substantial enough for daily industrial use. The organised assortment reduces search time and supports orderly tool management. Supplied as a matched set, the shims are ready for immediate deployment in maintenance, setup and calibration workflows.

Integrates with established shop procedures

Designed for routine use in toolrooms and production support, this parallel shim set works alongside standard metrology and clamping equipment to refine part position and eliminate play. The clear contents and consistent sizing assist teams in documenting adjustments and maintaining traceable setup records. Supplied through Metav Werkzeuge, the set benefits from a distributor that emphasises quality control and dependable European supply channels.

Choose Vertex’s VP-064 for reliable, workshop-ready shimming — contact Metav Werkzeuge in Emmerich for tailored advice and a secure supply solution

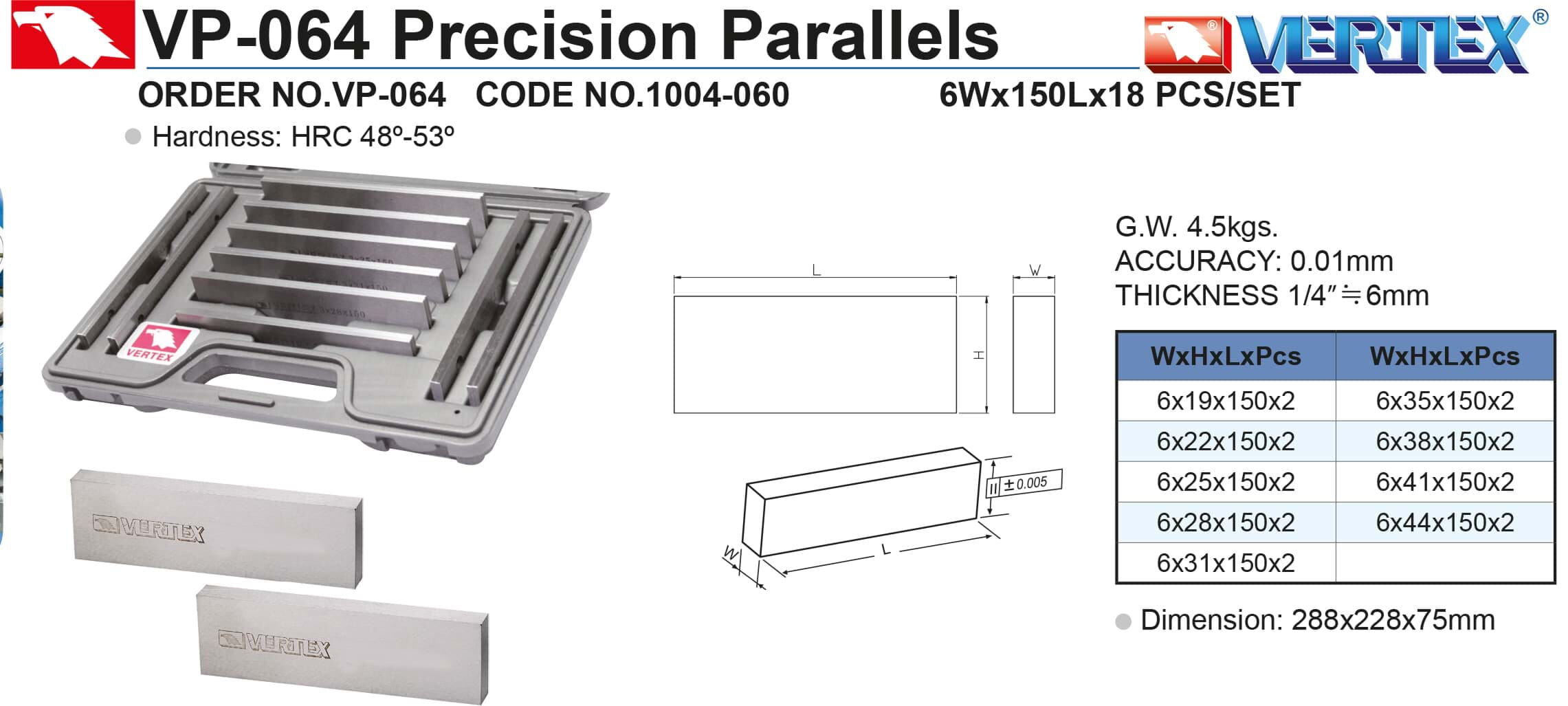

Technical data

• Article number: VP-064
• GTIN: 4061905087905
• Manufacturer: Vertex
• Dimensions: 288 x 228 x 75 mm
• Weight: 4.5 kg

Core specifications

• Accuracy: 0.01 mm
• Pieces per set: 18
• Length per shim: 150 mm
• Width range: 19–44 mm
• Thickness per shim: 6 mm

Materials & features

• Set type: precision parallel shims
• Contents: 2 × each width 19, 22, 25, 28, 31, 35, 38, 41, 44 mm
• Packaged as a matched set
• SKU: VP-064

FAQ

What level of accuracy can be expected from the set?
The set provides an accuracy of 0.01 mm, which supports repeatable fine adjustments and stable fixturing during setup and inspection tasks.

How many pieces are included and how are they arranged?
The VP-064 contains 18 pieces arranged as pairs across nine metric widths, each shim being 150 mm long to allow straightforward stacking and combined thickness control.

What are the individual shim dimensions?
Each shim is 150 mm long with a uniform thickness of 6 mm; widths range from 19 mm up to 44 mm in the supplied assortment.

Can the shims be stacked to achieve intermediate thicknesses?
Yes — the consistent thickness and paired widths enable predictable stacking to reach intermediate spacing requirements for alignment or inspection.

Is this set suitable for use in a production environment?
The VP-064 is intended for workshop and toolroom use where reliable, repeatable spacing is required; its organised set format supports rapid deployment within production procedures.

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
