150mm Parallel Gauge Block Set Ground, Hardened Alloy Steel, 18 Pieces - Vertex

Benefit from the combination of hardened, ground alloy steel, 0.01 mm accuracy and a versatile 18-piece range for reliable workholding; order the set directly via Metav Werkzeuge or consult our specialists for application advice.

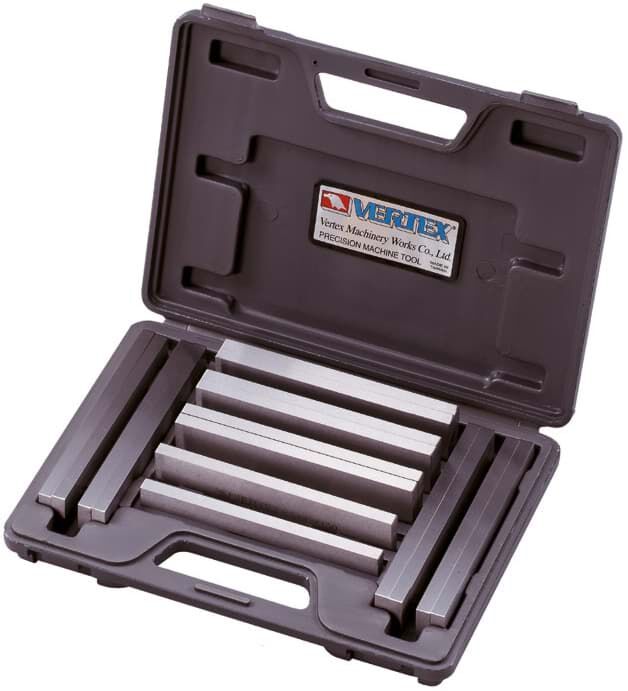

VP-118A Parallel Block Set (ground) by Vertex — hardened alloy steel, 18-piece

The VP-118A is a ground parallel block set designed for accurate levelling and stable clamping in machining and workshop applications.

• Hardened, ground alloy steel
• Accuracy of 0.01 mm for fine alignment
• Complete 18-piece set for versatile clamping
• Standard 150 mm length on each parallel

Consistent machining results through precision alignment

The set delivers repeatable alignment thanks to 0.01 mm accuracy, which reduces setup variation and shortens cycle times in batch work. Manufactured from alloy steel, each bar is hardened and subsequently ground, producing flat, parallel faces that keep tolerances stable under repeated clamping. In practice, this precision translates into fewer reworks and more predictable downstream processes, an important benefit for production environments that value throughput and part consistency.

Durable construction for everyday workshop use

A focus on robust materials and finishing makes these parallels a long-term asset. The ground finish resists wear and retains a consistent reference surface, so alignment does not drift with normal shop use. The construction supports frequent handling and simple cleaning without compromising the contact faces, which means less downtime for maintenance and more reliable fixture setups for milling, drilling and inspection stations.

Practical set configuration to simplify fixturing

Delivered as an 18-piece kit with standard 150 mm length parallels in a range of heights, the set covers common clamping scenarios without needing multiple separate purchases. The combination of sizes permits stacked arrangements and fine height adjustment for irregular raw stock, reducing the time spent searching for suitable support blocks. This pragmatic range is particularly useful for job shops and maintenance departments that require flexibility from a single compact set.

Built to integrate with workshop workflows

The parallels support both manual and machine-mounted setups and are well suited where stable workpiece support is required for precise machining or measurement. By offering a clear, verifiable specification and a compact set of options, the product helps technicians make faster fixturing decisions and maintain process quality. The result is greater confidence at the workbench and improved overall equipment effectiveness.

Contact Metav Werkzeuge for availability, technical advice and tailored recommendations for the VP-118A parallel block set — reach us at info@metav-werkzeuge.com or by phone on +49 2822 7131930 to discuss suitability for specific applications

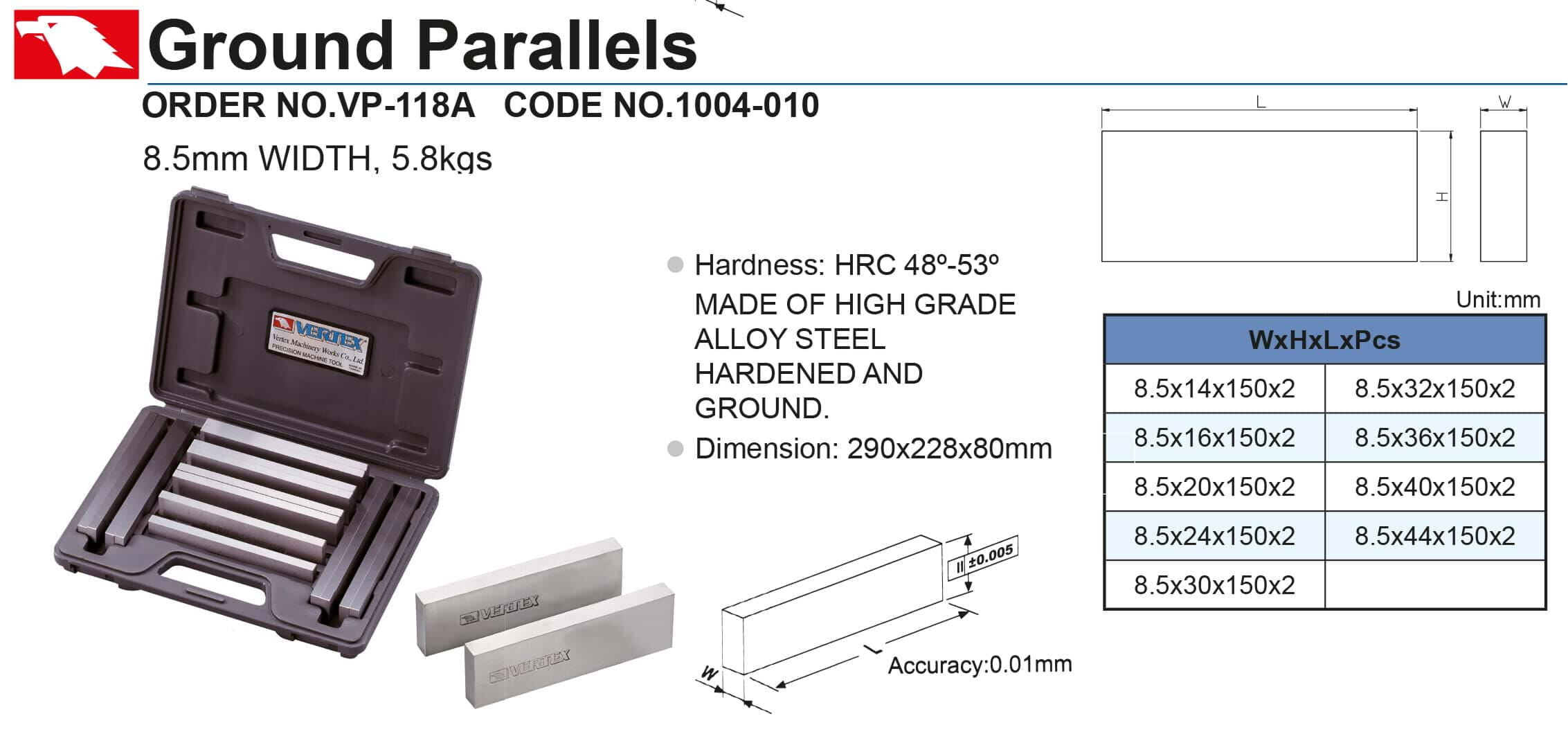

Technical data

• SKU: VP-118A
• GTIN: 4061905093432
• Manufacturer: Vertex
• EClass: 21170610

Core data

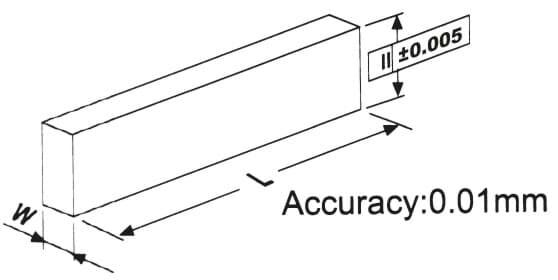

• Accuracy: 0.01 mm
• Weight: 5.8 kg
• Total pieces: 18
• Standard length: 150 mm

Materials & features

• Alloy steel, hardened and ground
• Ground finish (geschliffen)
• Set contents: 2x 8.5×14×150 mm, 2x 8.5×16×150 mm, 2x 8.5×20×150 mm, 2x 8.5×24×150 mm, 2x 8.5×30×150 mm, 2x 8.5×32×150 mm, 2x 8.5×36×150 mm, 2x 8.5×40×150 mm, 2x 8.5×44×150 mm

FAQ

What level of accuracy can be expected from the parallel blocks?
The VP-118A parallel block set provides an accuracy of 0.01 mm, ensuring tight alignment tolerances for precise fixturing and measurement tasks.

Which material are the parallels made from and how are they finished?
The parallels are made from alloy steel and are hardened and ground to give a durable, wear-resistant reference surface suitable for repeated workshop use.

How many pieces are included and what lengths are provided?
The set contains 18 pieces in total; each parallel has a standard length of 150 mm with a range of heights from 14 mm to 44 mm as listed in the set contents.

Are these parallels suitable for use in both hand and machine setups?
Yes. The ground faces and robust construction of the VP-118A make them suitable for manual clamping as well as for use in machine fixtures where stable support and repeatability are required.

Can the set be used for precise inspection tasks alongside machining?
The ground, hardened surfaces and 0.01 mm accuracy make the VP-118A appropriate for support during inspection procedures where a reliable datum is needed.

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
