150mm Parallel Gauge Set Ground, Hardened Alloy Steel, 0.01mm Accuracy - Vertex

Take advantage of the combination of high precision, hardened and ground alloy steel construction and a comprehensive 28-piece range to speed up machine set-up and fixture alignment; order the set directly via Metav Werkzeuge or consult our product specialists for application advice.

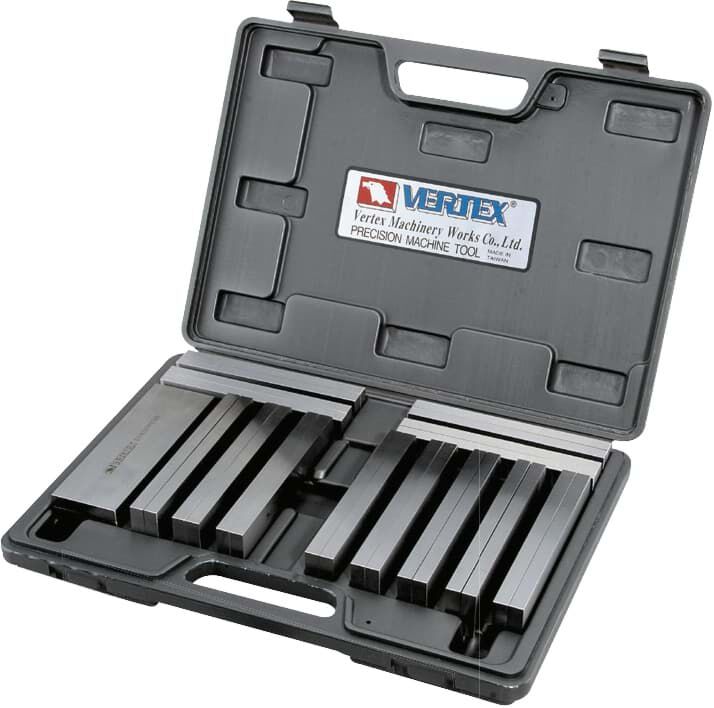

VP-128A parallel shim set by Vertex — hardened & ground, 0.01 mm accuracy

The VP-128A parallel shim set supplies a hardened, ground selection of parallels designed for precision fixturing and setup work in machine shops and toolrooms.

• Hardened, ground alloy steel construction
• High precision ±0.01 mm accuracy
• Complete 28-piece set, 150 mm length
• Robust 10.7 kg workshop set

Keep tolerances under control with reliable precision

The set is engineered to deliver consistent precision during clamping and alignment operations. With an accuracy of 0.01 mm, the collection of parallels allows repeatable shimming between machine table and workholding devices, reducing set-up time and scrap rates. The precisely ground faces ensure true contact and even pressure distribution, which means faster machine warm-up to production tolerances and more predictable results in serial work.

Built for everyday workshop use and long service life

Constructed from hardened and ground alloy steel, the components withstand the rigours of the shop floor while retaining flatness and surface finish. The substantial set weight and solid material choice contribute to stability when used under vises or alongside clamping fixtures. The finish minimises surface deformation during tightening, so integrity of the setup is preserved and frequent replacements are avoided, supporting uninterrupted production.

Versatile composition for a wide range of setups

The 28-piece set is organised to cover typical clearance and height requirements in fixturing: every piece measures 150 mm in length and comes in a mix of widths and thicknesses to bridge gaps and set exact heights quickly. The selection simplifies incremental adjustment and enables fine-tuning without improvised spacers. Because the set is grouped and graded by dimension, locating the right shim is efficient, helping reduce machine downtime between jobs.

Practical handling, storage and quality assurance

The parallels are supplied as a matched set to support orderly storage and rapid selection during changeovers. The ground surfaces resist fretting when paired with hardened tooling, and routine cleaning plus light oiling after use maintains performance. Metav’s European distribution centre acts as a quality filter for the market, ensuring that delivery and stock consistency meet industrial expectations, so workshops receive tools that perform to specification and last.

For purchasing or technical clarification on the Vertex VP-128A set, contact Metav Werkzeuge for tailored advice and reliable supply to your workshop bench

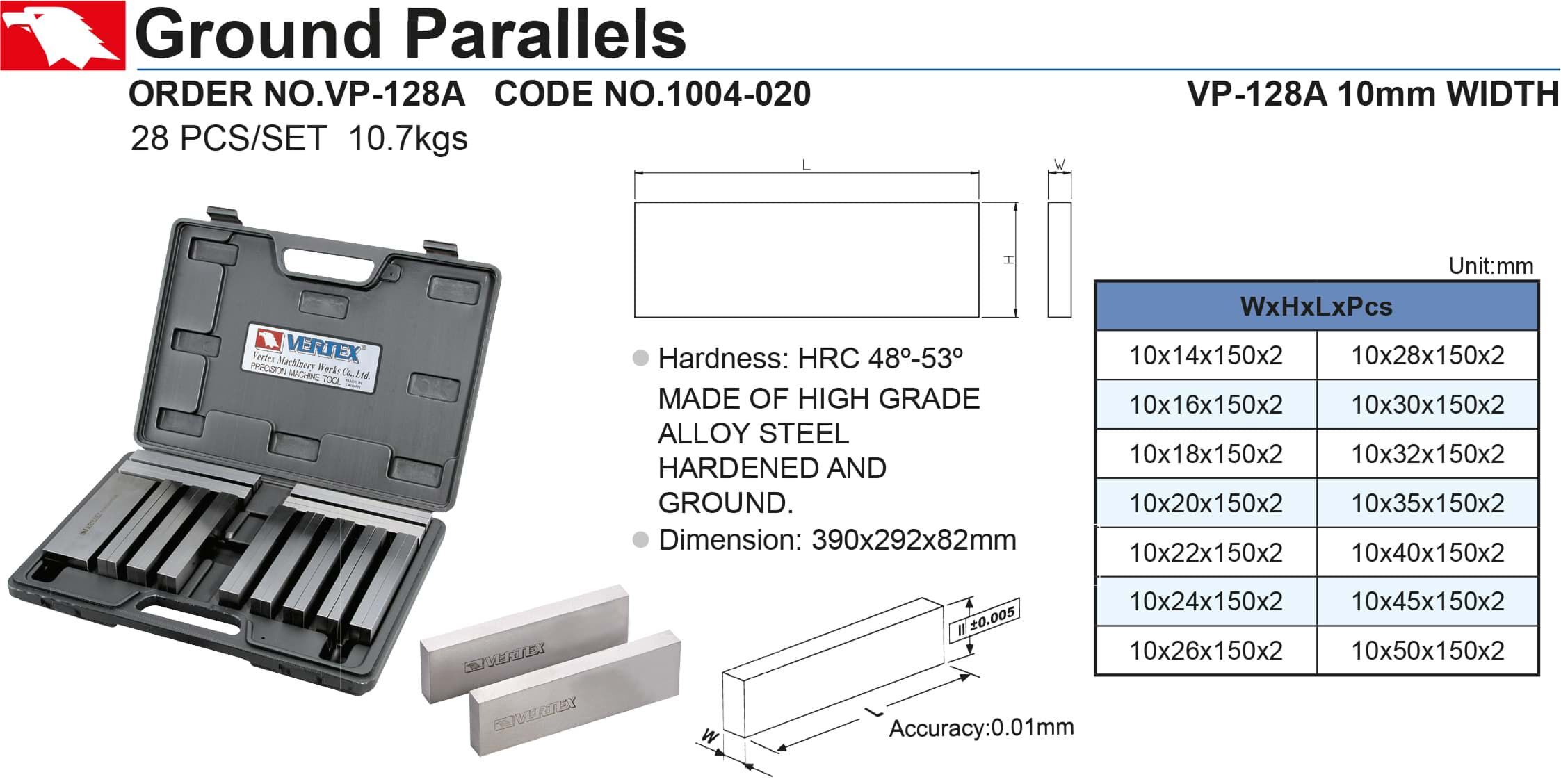

Technical data

• Article number: VP-128A
• GTIN: 4061905093715
• Manufacturer: Vertex

Core data

• Accuracy: 0.01 mm
• Weight: 10.7 kg
• Dimensions: 390 x 292 x 82 mm
• Pieces per set: 28
• Length per piece: 150 mm

Special features

• Material: hardened and ground alloy steel
• Set composition: 2x 10x14x150 mm, 2x 10x16x150 mm, 2x 10x18x150 mm, 2x 10x20x150 mm, 2x 10x22x150 mm, 2x 10x24x150 mm, 2x 10x26x150 mm, 10x28x150 mm, 2x 10x30x150 mm, 2x 10x32x150 mm, 2x 10x35x150 mm, 2x 10x40x150 mm, 2x 10x45x150 mm and 2x 10x50x150 mm
• Ground faces for uniform contact
• Suitable for fixturing and precision set-up

FAQ

What level of accuracy can be expected from these parallels?
The VP-128A parallel shim set from Vertex achieves an accuracy of 0.01 mm, making it suitable for precision fixturing and repeatable set-up tasks in toolrooms and production environments.

What material are the shims made from and how does that affect performance?
The set is made of hardened and ground alloy steel, which provides wear resistance and dimensional stability; the material choice supports reliable clamping without rapid surface degradation.

Which sizes are included in the set and how long are the parallels?
Contents include a graded selection from 14 mm up to 50 mm widths at 150 mm length per piece as listed in the technical data, arranged to offer fine incremental adjustments during set-up.

Are these parallels suitable for routine workshop clamping and precision measurement setups?
Yes, the design and finish of the VP-128A make the collection appropriate for both routine clamping and precision alignment tasks where true contact and minimal variation are required.

How should the parallels be stored to maintain their flatness and finish?
Store the parallels dry, in their organised set, and apply a light protective oil after cleaning; keeping them stacked or loose with contaminants can cause surface marks and reduce repeatability.

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
