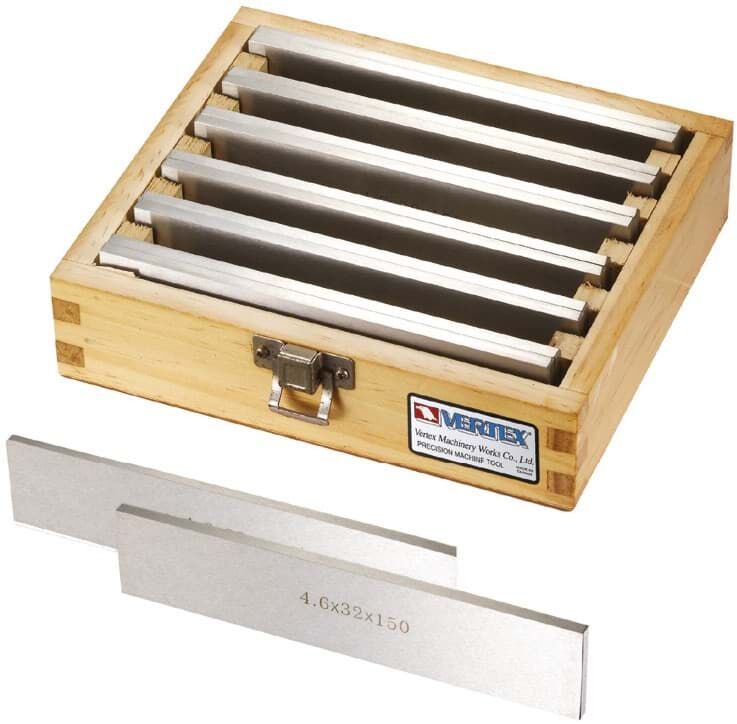

VP-146 Ground Parallels Set — precision-ground workshop parallels, Vertex

The VP-146 Ground Parallels Set is a precision-ground set for accurate workholding, measuring and setup tasks in machining and inspection environments.

• Ground finish with 0.01 mm accuracy
• Set of 12 parallels in graduated heights
• Made from S45C steel for dimensional stability
• Compact set weight approx. 3 kg for easy handling

Improved setup reliability through measurable precision

Thanks to a ground finish and a declared accuracy of 0.01 mm, this parallel set provides a stable reference for clamping and inspection jobs where repeatable alignment matters. The finely finished bearing surfaces reduce rocking and tilt when parts are elevated on parallels, which translates into fewer adjustments during machining sequences. The combination of tight tolerances and solid construction supports consistent datum references for layout, transfer and comparative measurement work, reducing rework and measurement uncertainty.

Practical composition that fits workshop routines

The kit contains 12 parallels in graduated sizes, enabling flexible stacking and shimming for a wide range of component heights. The set composition includes pairs of parallels across several widths, supplied in fixed lengths for straightforward use on vises and inspection plates. Graduated heights mean quicker set-up times when establishing parallelism or lifting parts for through-drilling and finishing; the modular arrangement replaces improvised shimming and speeds up repetitive tasks on the shop floor.

Durable material and compact handling for everyday use

Constructed from S45C steel and supplied as a compact kit weighing around 3 kg, the set balances wear resistance with manageable handling. The material choice provides dimensional stability under routine workshop conditions while the ground surfaces maintain flatness over extended use. Because the set is finished and matched, it supports both bench inspection and machining fixtures without additional preparation, helping to streamline both quality control procedures and small-batch production runs.

Contact Metav Werkzeuge in Emmerich for tailored advice on the VP-146 Ground Parallels Set or to request further technical details

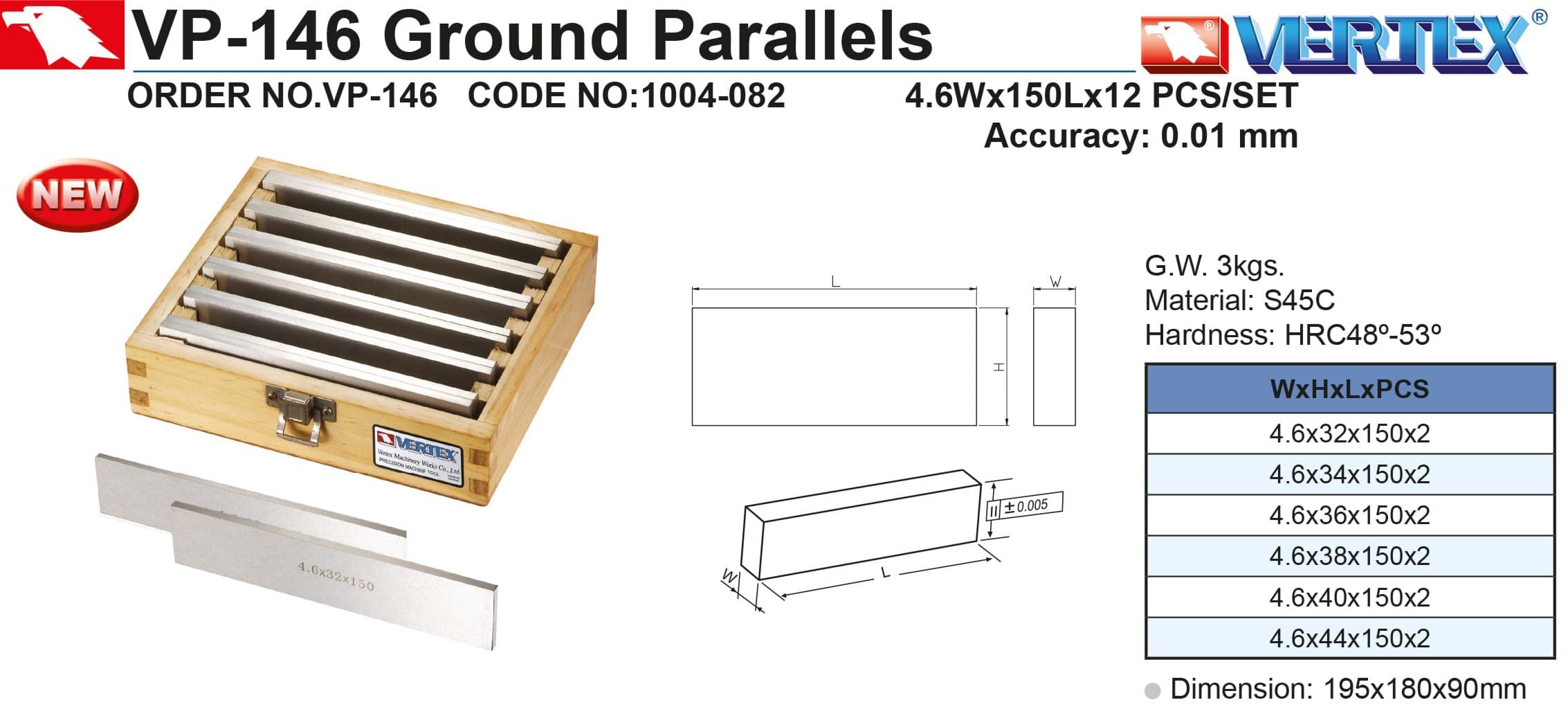

Technical Data

• SKU: VP-146
• GTIN: 4061905094057
• Manufacturer: Vertex

Core dimensions & accuracy

• Dimensions: 195 x 180 x 90 mm
• Accuracy: 0.01 mm
• Weight: 3 kg
• Pieces per set: 12

Materials & special features

• Material: S45C steel
• Ground finish (geschliffen)
• Includes: 2x 4.6x32x150 mm; 2x 4.6x34x150 mm; 2x 4.6x36x150 mm; 2x 4.6x38x150 mm; 2x 4.6x40x150 mm; 2x 4.6x44x150 mm

FAQ

What applications are the parallels designed for? The VP-146 Ground Parallels Set by Vertex is intended for workshop setup, clamping and inspection tasks where accurate parallel support and repeatability are required.

How does the stated 0.01 mm accuracy affect everyday use? An accuracy of 0.01 mm ensures that the parallels provide consistent datum surfaces for machining and measurement, reducing alignment errors and supporting reliable transfer and inspection operations with the VP-146 set.

What sizes are included in the set and how are they arranged? The kit contains 12 matched parallels in graduated widths and identical lengths (150 mm), supplied in pairs as listed in the technical data for flexible stacking and shimming.

Is S45C suitable for regular shop use? S45C offers robust mechanical properties and dimensional stability for routine workshop conditions; the ground finish on the VP-146 helps maintain flatness and wear resistance during standard usage.

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
