150mm Parallel Gauge Block Set, Ground, S45C Steel, Accuracy 0.01mm, 14 Pieces - Vertex

Take advantage of the combination of precision-ground surfaces, 0.01 mm tolerance, and a flexible 14-piece configuration to speed up set-up and secure repeatable alignment. Order the set directly via Metav Werkzeuge or consult our specialists if technical advice is required.

Parallel shim set VP-168 — precision-ground S45C shims, 14-piece set by Vertex

A precision-ground Parallel shim set VP-168 for accurate workholding, shimming and alignment in machine shops and toolrooms.

• Precision-ground with 0.01 mm tolerance
• Flexible 14-piece configuration for varied setups
• Manufactured from durable S45C carbon steel
• Stable total mass for slip-resistant placement

Make setup measurable with repeatable accuracy

The set delivers a measurable improvement in alignment thanks to its 0.01 mm accuracy on ground faces. This level of precision reduces trial-and-error during fixturing and shortens cycle time for part set-up. The precision-ground finish ensures parallel surfaces that sit flat and remain true under light clamping, providing consistent reference planes for tooling and inspection tasks. Measurable tolerances support quality control and reduce rework.

Flexible configuration for diverse clamping and shimming tasks

With a 14-piece set arranged in graduated thicknesses, the kit allows fine incremental adjustments when shimming or packing workpieces. Each bar is sized for modular stacking and rapid combination, enabling quick adaptation to different workpiece geometries. The assortment format improves workflow efficiency in fixtures and vices, while the solid construction supports repeated handling without dimensional drift. Use the set to simplify alignment, height matching and parallel spacing across a range of jobs.

Robust material and handling for daily workshop use

Made from S45C carbon steel, the components balance hardness and machinability for long service life in workshop environments. The overall mass of the set contributes to stability when placed in fixtures, minimising movement during manual operations. Ground faces resist deformation from normal clamping forces; routine cleaning and light oiling maintain surface condition. The construction suits regular industrial use and integrates easily into inspection benches and tool cabinets.

For precision alignment and reliable fixturing, order the Vertex VP-168 through Metav Werkzeuge or contact Metav Werkzeuge in Emmerich for expert setup advice and local supply

Technical data

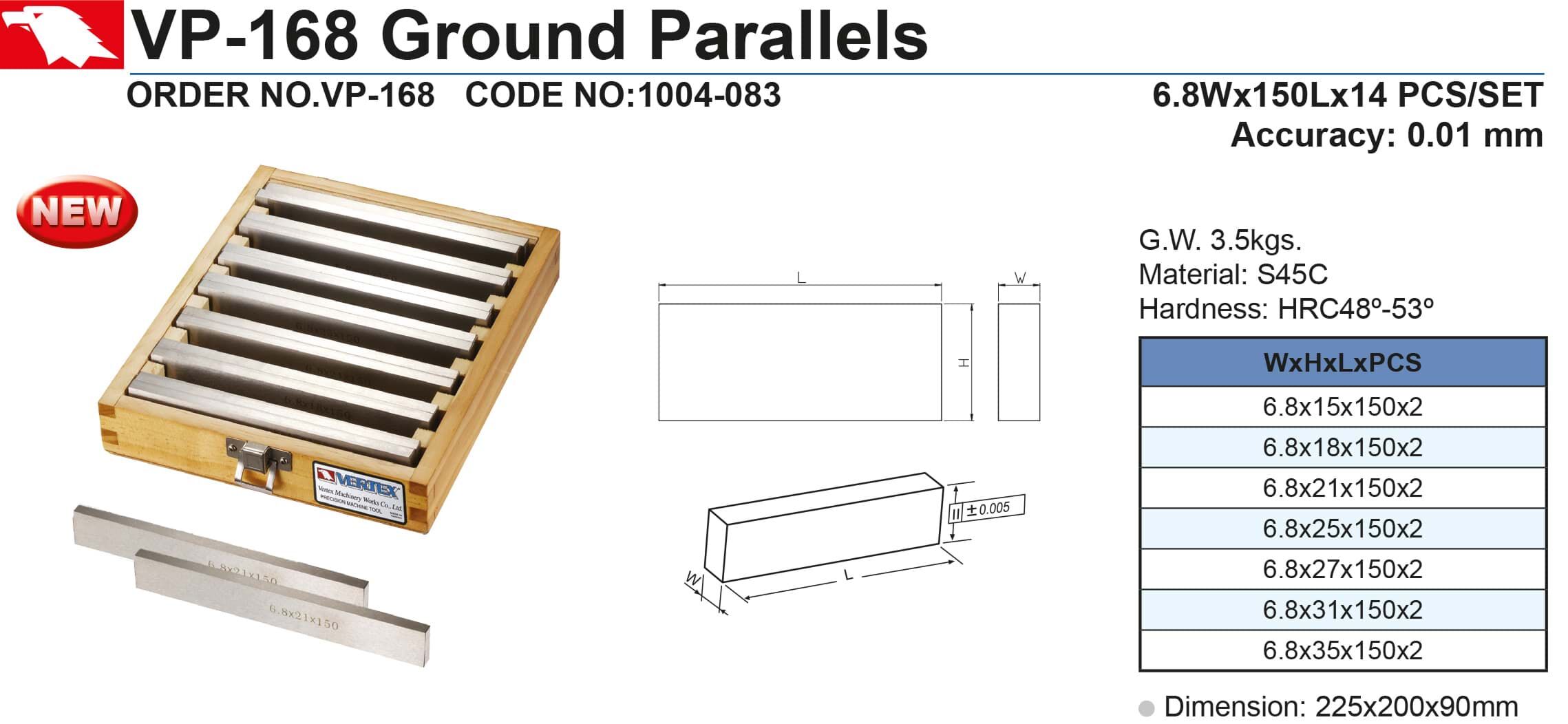

• Article number: VP-168
• SKU: VP-168
• GTIN: 4061905094064
• Material: S45C
• Weight: 3.5 kg
• Dimensions: 225 x 200 x 90 mm
• Accuracy: 0.01 mm
• Pieces per set: 14

Facts

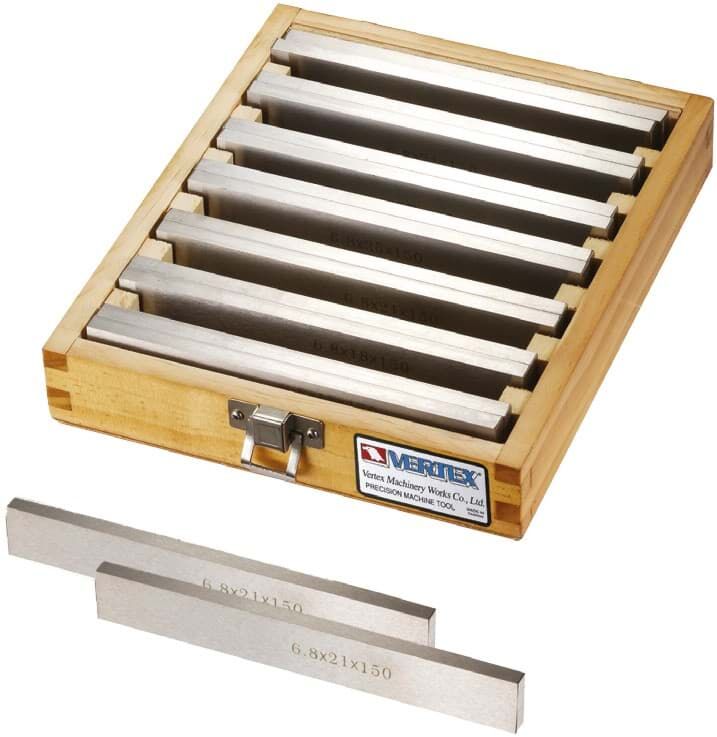

• Contents: 2x 6.8x15x150 mm
• Contents: 2x 6.8x18x150 mm
• Contents: 2x 6.8x21x150 mm
• Contents: 2x 6.8x25x150 mm
• Contents: 2x 6.8x27x150 mm
• Contents: 2x 6.8x31x150 mm
• Contents: 2x 6.8x35x150 mm

Special features

• Precision-ground surfaces
• Set for alignment, shimming and spacing
• Durable carbon steel construction
• Stable total weight for secure placement
• Manufactured by Vertex

FAQ

What tolerance can be expected from the parallel shims?
The Parallel shim set VP-168 is ground to an accuracy of 0.01 mm, providing consistent reference faces for precise fixturing and inspection.

Which material are the shims made of?
The set is manufactured from S45C carbon steel, chosen for a balance of toughness and dimensional stability under regular workshop use.

How does the 14-piece configuration support different tasks?
Graduated thicknesses in the 14-piece set allow incremental stacking and fine adjustment for shimming, height matching and aligning components in vices and fixtures.

Is the set suitable for inspection benches and toolrooms?
Yes; the ground faces and robust construction make the set suitable as a reference for inspection benches, toolrooms and repetitive fixturing tasks.

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
