Vertex VP-180 Tilting Clamping Table – 45° swivel, 132×185 mm work surface

The VP-180 tilting clamping table is a compact workholding device designed for precise angular positioning in milling, drilling and inspection tasks.

• Swivels 45° for angular clamping
• Compact table 132×185 mm
• FC25 cast iron body for stability
• Max load 6 kg for small workpieces

Stable base for repeatable precision

The VP-180 is built from FC25 cast iron, a material chosen for its excellent damping and dimensional stability. This construction reduces vibration during machining, which in turn preserves tool life and improves surface finish. The 132×185 mm top provides a defined clamping area that is easy to align on small milling machines or inspection benches; the low centre of gravity, ensured by a weight of 7.38 kg, keeps the unit secure under load. For users unfamiliar with material grades, FC25 refers to a grey cast iron grade commonly used in machine components where stiffness and vibration absorption are required.

Faster setups with accurate angular clamping

A 45° swivel capability allows angled operations to be completed without repeated repositioning of the workpiece, saving time and reducing cumulative alignment errors. The tilting mechanism is engineered for stable indexing so that once an angle is set it remains fixed under machining forces. With a max load of 6 kg, the device is suited to smaller components and precision fixtures where control and repeatability matter more than raw clamping capacity. The workholding concept reduces auxiliary operations and supports more efficient batch processing for small to medium series.

Compact, easy to integrate into existing workflows

At a height of 95 mm, the unit integrates smoothly into many machine set-ups and measuring stations without raising the centre of operation excessively. The compact footprint and predictable mounting interfaces simplify fixturing and allow the table to be combined with modular clamps or vices. Routine maintenance is straightforward: surfaces should be kept clean and light lubrication applied to the swivel joint to maintain smooth indexing. The design supports quick adoption in workshops seeking a reliable, cost-effective solution for angled clamping and inspection.

For compact, accurate angular clamping from Vertex, contact Metav Werkzeuge in Emmerich for tailored advice and ordering support via info@metav-werkzeuge.com or call +49 2822 7131930

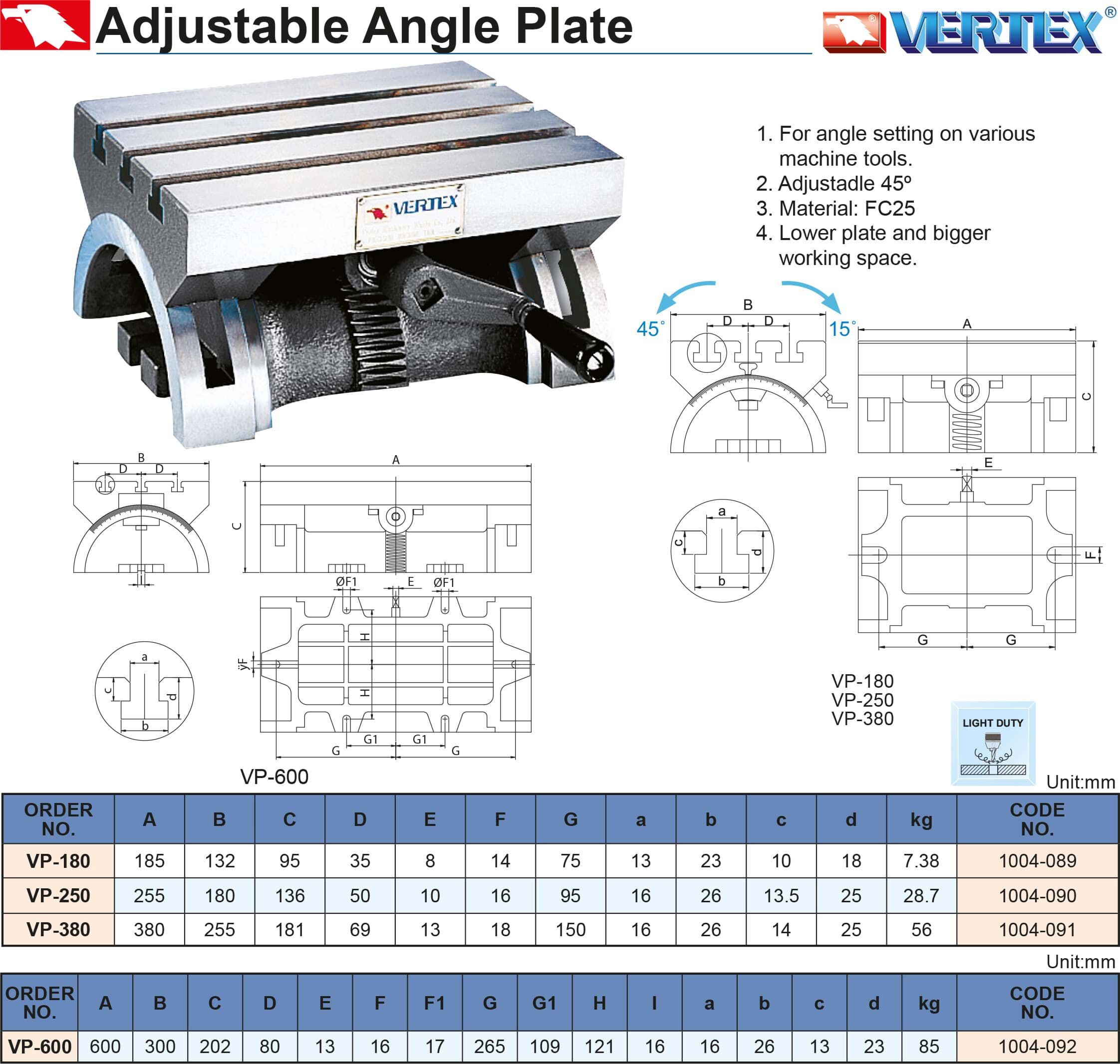

Technical data

• SKU: VP-180
• GTIN: 4061905084287
• ECLASS: 21020702

Core figures

• Weight: 7.38 kg
• Height: 95 mm
• Table surface: 132×185 mm
• Max load: 6 kg

Materials / Special features

• Material: FC25 cast iron
• Function: Swivels 45°
• Type: Tilting clamping table

FAQ

What is the maximum load capacity of the VP-180?
The VP-180 tilting clamping table has a maximum load capacity of 6 kg, suitable for small components and precision fixtures.

Which material is used for the body and why is it important?
The body is made of FC25 cast iron; this material provides vibration damping and dimensional stability, which improves surface finish and tool life during machining.

How large is the usable table surface?
The usable table surface measures 132×185 mm, providing a compact yet well-defined area for clamping small workpieces and fixtures.

Can the table be integrated into existing milling or inspection setups?
Yes, with a height of 95 mm and a compact footprint, the unit is designed for straightforward integration into many machine tables and inspection benches.

Is the swivel angle fixed or adjustable?
The clamping table swivels 45°, enabling angled machining operations without repeated repositioning of the workpiece.

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
