99.5x73x50mm Soft Jaws For VQC Vises - Vertex
€364.85
Product information "99.5x73x50mm Soft Jaws For VQC Vises - Vertex"
Precision soft jaws built for stable, protective clamping: compact dimensions and a substantial mass combine to reduce workpiece marking and improve repeatability. Benefit from quick integration with Vertex VQC vises and confident handling of delicate components — order the VQC-100FJ via Metav Werkzeuge or consult the Metav team for compatibility advice.
VQC-100FJ Soft Jaws for VQC vises — 99.5×73×50 mm, 2.97 kg (Vertex)
The VQC-100FJ soft jaws are designed to provide protective, adaptable clamping for VQC vises in precision machining and assembly applications
- Compatible with VQC vises
- Compact 99.5×73×50 mm profile
- Weight 2.97 kg for stable clamping
Increased protection for sensitive workpieces
Soft-contact clamping provided by these soft jaws reduces surface damage and the need for secondary finishing. The compliant clamping faces distribute force more evenly than hard-steel jaws, lowering the risk of localised deformation during tightening. For operations where appearance or dimensional tolerances matter, this protection translates into fewer rejects and less rework, improving overall process yield and saving operator time.
Compact footprint, greater bench flexibility
The small external dimensions of 99.5×73×50 mm make these jaws suitable where space is limited or multiple fixtures share a workbench. Their compact profile supports flexible fixturing without adding undue bulk to the vise setup, enabling quicker changeovers and simpler handling during assembly or measurement tasks. The mass of 2.97 kg helps maintain positional stability under typical clamping loads, contributing to consistent results across batches.
Seamless fit for VQC clamping systems
Designed specifically for compatibility with Vertex VQC vises, the VQC-100FJ integrates without modification, allowing straightforward replacement of standard jaws. This direct fit reduces downtime during tool changes and simplifies inventory management for workshops using the VQC range. Clear alignment features and matching mounting points ensure reliable seating and repeatable clamping behaviour in every cycle.
Robust service life that supports productivity
A focus on practical durability underpins the design of these soft jaws: stable contact during holding phases and reduced need for retightening lead to smoother production flow. By preventing damage to finished surfaces, the jaws indirectly preserve downstream processes such as coating, inspection and assembly. The result is a workholding accessory that supports efficiency while protecting product quality.
Contact Metav Werkzeuge to arrange supply of Vertex VQC soft jaws (VQC-100FJ) and receive tailored advice on integration and delivery from Emmerich — our consultants will confirm fitment and dispatch options
Technical Data
- Article number: VQC-100FJ
- GTIN: 4061905084256
- Brand: Vertex
Data
- Dimensions: 99.5×73×50 mm
- Weight: 2.97 kg
- eClass: 21029107
Special features
- Designation: Soft jaws
- Application: for VQC vises

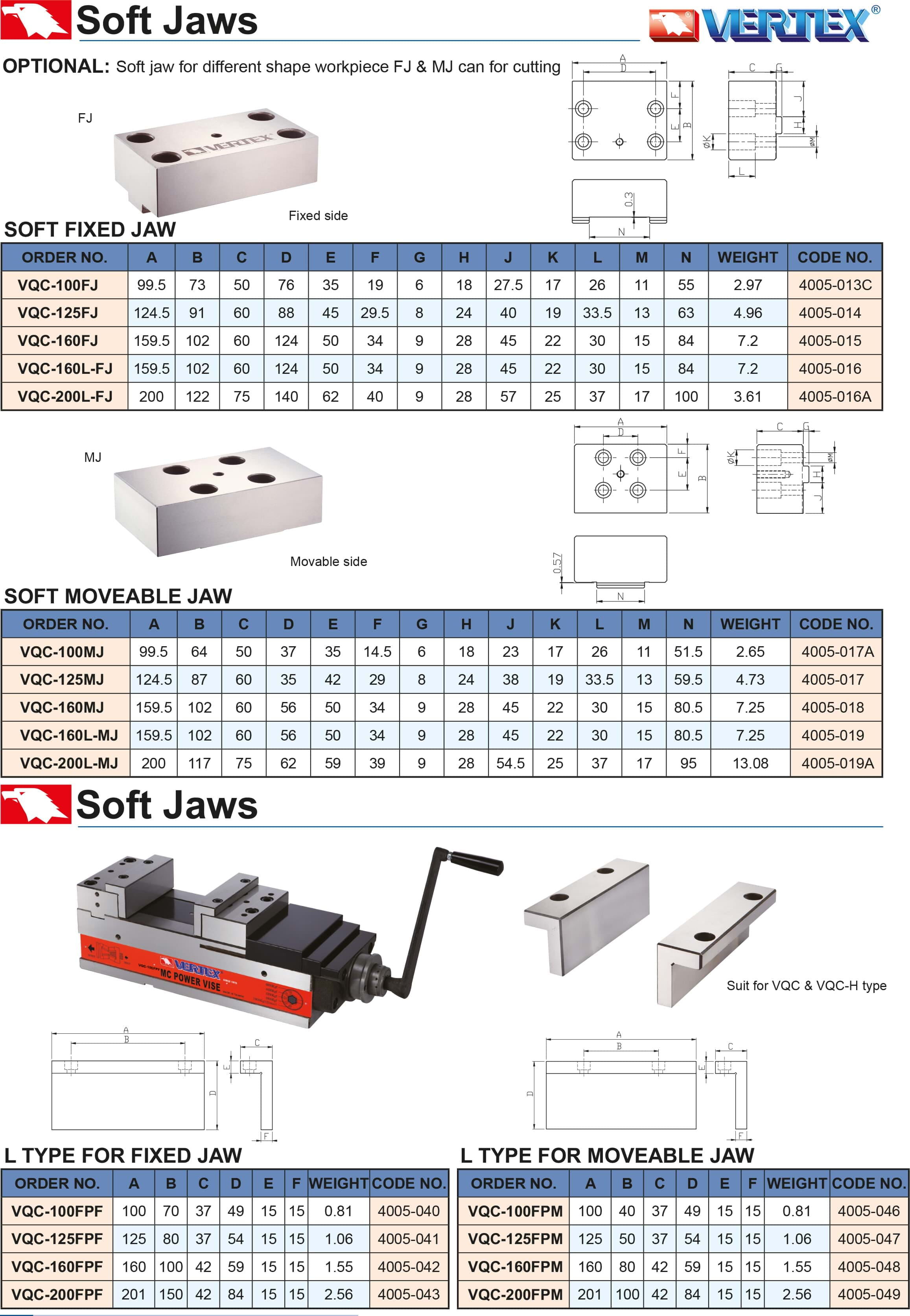

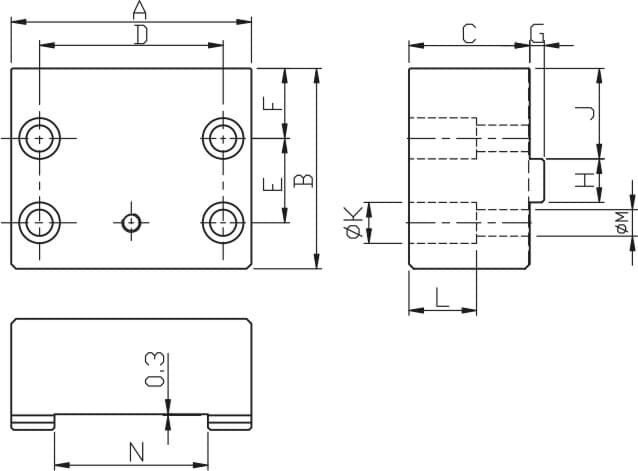

- Assets: Technical drawing and detailed images available
FAQ
What workpiece protection do the soft jaws provide?
The VQC-100FJ soft jaws protect sensitive surfaces by distributing clamping force and reducing point loads, which lowers the chance of marks and the need for corrective finishing.
Are these jaws compatible with all VQC vise sizes?
Compatibility is intended for VQC vises; the VQC-100FJ fits standard Vertex VQC mounting interfaces. Check the vise model to ensure full alignment.
Can the jaws be used for precision measurement setups?
Yes, the soft clamping surface supports measurement tasks by reducing distortion and offering repeatable seating for delicate components.
How does the weight affect clamping stability?
At 2.97 kg, the jaw mass contributes to steady contact and helps resist shifts during tightening, improving repeatability in machining cycles.
Is a modification required to fit these jaws to an existing vise?
No modification is generally required for Vertex VQC systems; the VQC-100FJ is designed for straightforward installation on the corresponding vise models.
Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
