0-85mm Vice With Quick Adjustment, Two-Axis Swivel, 700 Kgf Clamp Force, 100mm Jaw Height - Vertex

A compact mechanical vice that combines 700 kgf clamping force with a 0–85 mm opening and fast adjustment for two-direction movement; Order the Vertex VQW-80 vice directly via Metav Werkzeuge or ask our consultants if needed.

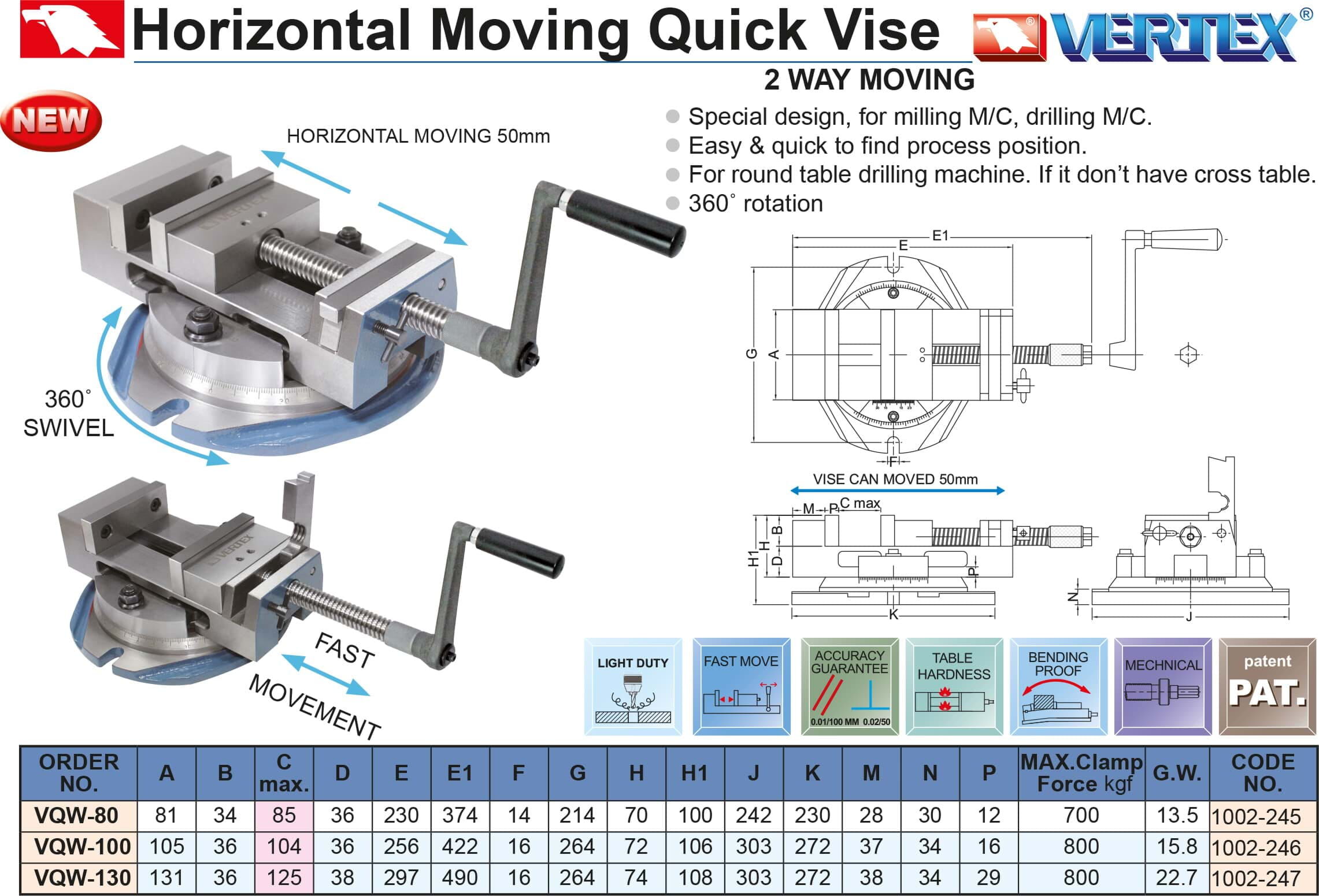

Vertex VQW-80 vice – Mechanical vice with quick-adjust and two-direction mobility

The Vertex VQW-80 vice is a mechanical workholding solution with quick-adjust function, designed for two-direction movement and reliable bench or machine mounting in workshops and small production environments.

• Quick adjustment for faster setup
• Movable in two directions for flexible clamping
• 700 kgf clamping force for secure workholding
• 0–85 mm jaw opening for varied workpieces

Maximise uptime with robust, high-force clamping

The VQW-80 delivers consistent clamping force rated at 700 kgf, ensuring stable fixation of components during machining and assembly. The combination of high clamping capacity and a 0–85 mm opening makes the vice suitable for a wide range of workpiece sizes, reducing the need for frequent re-fixturing. Built for repeatable performance, the unit contributes to shorter cycle times and fewer interruptions in daily production.

Flexible positioning for accurate multi-axis workholding

A quick-adjust mechanism and two-direction movement enable rapid repositioning of the jaws without extensive disassembly. This mechanical arrangement supports complex set-ups where varying clamping angles or lateral shifts are required. The vice’s structural mass, at 13.5 kg, and a nominal height of 100 mm help to dampen vibration and preserve machining accuracy, documented at 0.01 mm, so tasks that demand tight tolerances can be completed with confidence.

Practical workshop integration and maintenance benefits

Designed as a straightforward mechanical vice, the VQW-80 integrates easily into existing benches and fixtures and requires minimal servicing. The simple construction facilitates routine checks and lubrication, while the robust build reduces wear under regular use. As a compact solution for general-purpose workholding, it suits toolrooms and small series production where reliable, low-complexity equipment is preferred.

For secure, high-force clamping choose the Vertex VQW-80 vice — contact Metav Werkzeuge in Emmerich for specification checks and local supply via info@metav-werkzeuge.com or +49 2822 7131930

Technical Data

• Article number: VQW-80
• GTIN: 4061905085000
• Manufacturer: Vertex

Facts

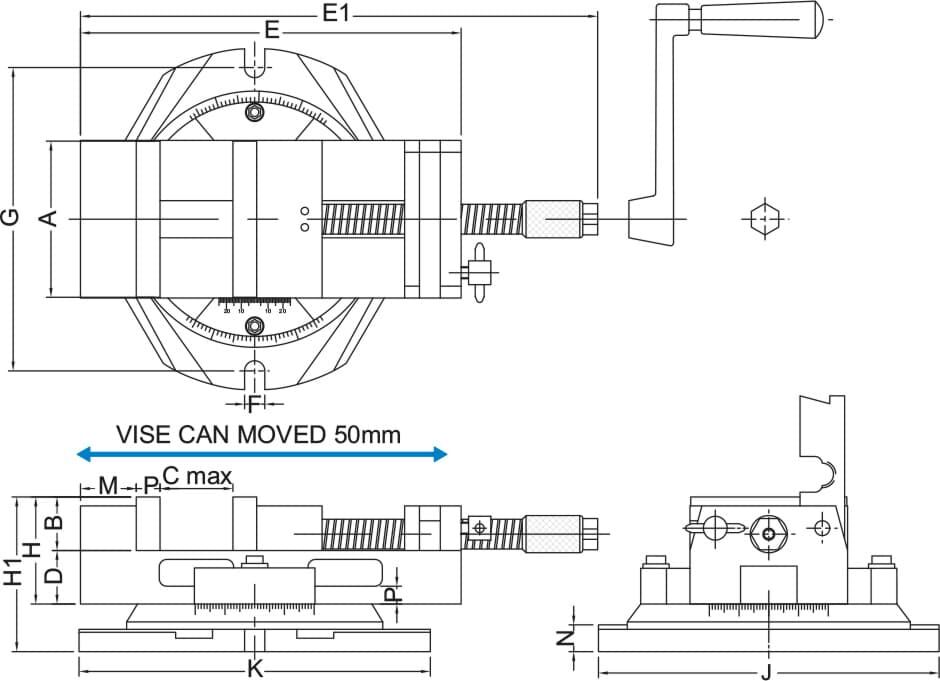

• Dimensions: 242x374mm
• Weight: 13.5 kg
• Height: 100 mm
• Clamping force: 700 kgf
• Jaw opening: 0–85 mm
• Accuracy: 0.01 mm
• Type: Mechanical

Special features

• Quick adjustment mechanism
• Movable in two directions
• Mechanical vice design
• SKU: VQW-80

FAQ

What clamping force does the vice provide?
The vice offers a clamping force of 700 kgf, ensuring secure fixation for machining and assembly operations with the Vertex VQW-80 vice.

Which jaw opening range is available?
The jaw opening ranges from 0 to 85 mm, allowing the vice to accommodate a broad spectrum of workpiece sizes in workshop applications.

Is the vice suitable for precision machining?
Yes. The vice is specified with an accuracy of 0.01 mm, making the Vertex VQW-80 vice suitable for tasks that require consistent positional accuracy.

Can the vice be repositioned quickly during set-up?
The quick-adjust feature and two-direction movement enable fast repositioning and flexible clamping configurations without lengthy disassembly.

What are the physical dimensions and weight of the vice?
The vice measures 242x374 mm, has a height of 100 mm and weighs 13.5 kg, providing stability for general workshop and production use.

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
