150mm Positioning Angle Fixture, Hardened Cast Steel, 0.01mm Accuracy, 3.8kg - Vertex
€174.93
Product information "150mm Positioning Angle Fixture, Hardened Cast Steel, 0.01mm Accuracy, 3.8kg - Vertex"
Take advantage of the combination of high-strength cast steel, ±0.01 mm accuracy and compact dimensions for reliable, repeatable fixturing in inspection and small-batch machining. Order the component directly via Metav Werkzeuge or consult our specialists for application support.
VR-6 angle plate — Vertex precision workholding with high-strength cast steel and 0.01 mm accuracy
The VR-6 angle plate is a compact, robust fixturing element designed for precision workholding in inspection benches and machine tables, offering stable positioning for small components and measurement setups.
- High-strength cast steel construction
- Precision accuracy ±0.01 mm
- Compact dimensions 150 x 115 x 126 mm
- Solid 3.8 kg for vibration damping
Reliable alignment that preserves measuring certainty
The angle fixture delivers consistent positional accuracy thanks to its ±0.01 mm accuracy, a level of precision that supports repeatable measurements and tight-tolerance machining. Built from high-strength cast steel, the unit combines material rigidity with thermal stability so that reference faces retain alignment during routine use. For workshops that perform frequent inspection cycles, the precise tolerances reduce the need for repeated realignment and streamline the measurement workflow. Technical features such as machined reference surfaces ensure compatibility with calibrated gauges and standard clamping hardware while preserving surface quality over many cycles.
Mass and compactness that improve setup efficiency
With external dimensions of 150 x 115 x 126 mm and a mass of 3.8 kg, the angle plate offers a balance between portability and stability. The unit’s weight increases contact pressure on the machine table or inspection plate, improving vibration damping and reducing chatter during manual positioning. Its compact footprint makes it suitable for smaller benches and tight fixtures, while the solid construction simplifies clamping arrangements and minimises the need for auxiliary supports. The compact design therefore shortens set-up time and supports efficient batch inspection without sacrificing the mechanical stability required for precision work.
Practical design for workshop integration and longevity
The component has been manufactured to integrate easily into existing workflows: machined datum faces are ready for immediate clamping and the robust casting resists deformation during normal workshop handling. The robust workholding nature of the plate makes it suitable for both inspection and light machining tasks where precise angular positioning is required. Minimal routine maintenance—cleaning and protection against heavy impact—keeps the part serviceable for years. Metav’s presence in Emmerich acts as a local quality filter for the European market, pairing product availability with technical advice so that selection matches the application and production requirements.
Contact Metav Werkzeuge today for tailored application advice or to secure the Vertex VR-6 angle plate for precision fixturing; email info@metav-werkzeuge.com or call +49 2822 7131930
Technical data
- SKU: VR-6
- GTIN: 4061905084041
- ECLASS: 21020601
Core specifications

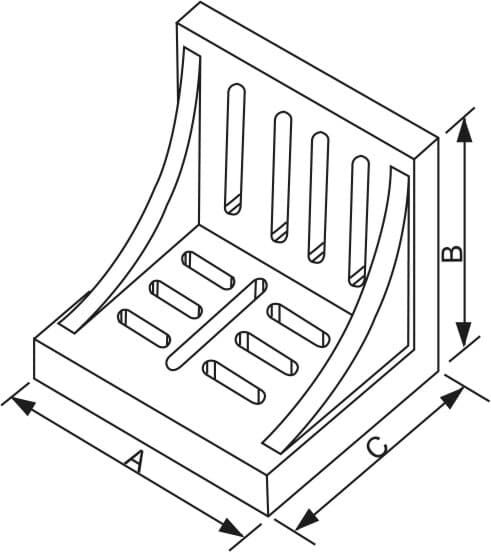

- Dimensions: 150 x 115 x 126 mm
- Accuracy: 0.01 mm
- Weight: 3.8 kg
Materials & features
- Material: high-strength cast steel
- Machined reference faces for precise positioning
- Compact, robust design for inspection and light machining
FAQ
What positional tolerance does the angle plate provide? The Vertex VR-6 angle plate guarantees an accuracy of ±0.01 mm, making the component suitable for precision measurement and fixture tasks where tight tolerances are required.
What is the plate made from and why does that matter? The unit is manufactured from high-strength cast steel, which provides rigidity and good vibration damping, ensuring stable reference faces during inspection and machining operations.
For which workshop tasks is this angle plate best suited? The angle plate is suitable for inspection benches, small machine tables and jigs where precise right-angle fixturing and stable workholding are necessary.
How should the component be maintained to ensure longevity? Routine maintenance for the VR-6 angle plate consists of keeping machined surfaces clean, avoiding severe impacts and storing the piece in a dry environment to preserve accuracy and surface condition.
Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
