102x126x150mm Angle Plate, High-Strength Cast Steel, 0.01mm Accuracy, 6.3kg - Vertex
€282.39
Product information "102x126x150mm Angle Plate, High-Strength Cast Steel, 0.01mm Accuracy, 6.3kg - Vertex"
Take advantage of precision and robust construction to secure repeatable right-angle setups on the shop bench; the combination of 0.01 mm accuracy and high-strength cast steel ensures long-term stability and reliable measurement references. Order via Metav Werkzeuge or consult our specialists for fast delivery and tailored advice.

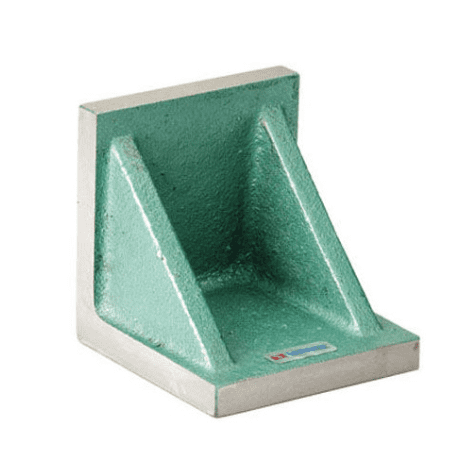

VRH-4 Angle Plate by Vertex — high-strength cast steel, 102 x 126 x 150 mm
VRH-4 is a precision angle plate designed to provide stable, perpendicular reference surfaces for inspection and setup tasks in metalworking and toolrooms.
- High-strength cast steel construction
- Accuracy 0.01 mm for precise alignment
- Compact footprint 102 x 126 x 150 mm
- Stable 6.3 kg mass reduces vibration
Reliable right-angle reference that keeps setups consistent
The VRH-4 angle plate delivers repeatable alignment thanks to its declared 0.01 mm accuracy, which corresponds to tight tolerances required in inspection and fine machining tasks. A reference plate with this level of precision reduces the need for repeated adjustments and re-measurements, improving throughput and lowering the risk of scrap. The measured flatness and perpendicularity act as an objective baseline for calibrations and setup procedures, so fewer process checks are necessary and machine time can be used more efficiently.
Durable construction for a stable working base
Manufactured from high-strength cast steel, the fixture is engineered to resist deformation under typical bench use. The substantial 6.3 kg mass dampens minor vibrations and helps maintain contact stability during measuring or marking operations. This robustness supports consistent results over time and reduces the impact of incidental knocks or tool contact, contributing to a longer service life and lower maintenance needs compared with lighter, less rigid alternatives.
Space-conscious design for versatile bench use
With an overall size of 102 x 126 x 150 mm, the unit occupies a compact footprint while still offering sufficiently broad faces for clamping, scribing and inspection. The geometry makes it suitable for constrained workbenches and allows multiple fixtures to be used together when larger assemblies require square references. The compact dimensions also simplify storage and transport within a busy workshop, enabling rapid reconfiguration of workspaces without compromising accuracy.
Integrates easily into quality workflows
As a stable perpendicular reference, the angle plate helps streamline common processes such as layout, inspection and component set-up. The solid construction and precise surfaces reduce the number of verification steps required during a production run, supporting faster changeovers and consistent part quality. Documentation and inspection protocols benefit from a measurable baseline, and the component's build quality aligns with standard shop metrology practices for dependable results.
Contact Metav Werkzeuge for a tailored recommendation on the Vertex VRH-4 angle plate and secure fast delivery from our Emmerich warehouse
Technical data
- SKU: VRH-4
- GTIN: 4061905085031
- EClass: 21170130
- Manufacturer: Vertex
Core specifications

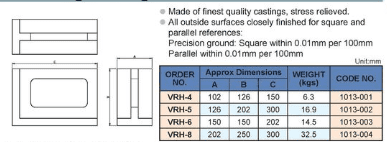

- Dimensions: 102 x 126 x 150 mm
- Weight: 6.3 kg
- Accuracy: 0.01 mm
Materials & images
- Material: high-strength cast steel
- Images: VRH-4-main.png, VRH-4-detail.png
FAQ
What tolerance can be expected from the VRH-4 angle plate?
The Vertex VRH-4 angle plate is specified with an accuracy of 0.01 mm, providing a reliable tolerance reference for inspection and setup tasks.
Is the VRH-4 suitable for use on a regular workshop bench?
Yes, the VRH-4 angle plate's compact footprint (102 x 126 x 150 mm) and 6.3 kg mass make it appropriate for standard benches while offering stable support for measuring operations.
What material is the angle plate made from and why does that matter?
The component is made from high-strength cast steel, which gives the plate dimensional stability and resistance to deformation, ensuring consistent perpendicular reference surfaces over prolonged use.
Can the VRH-4 be combined with other fixtures for larger workpieces?
The VRH-4 is designed as a modular reference element; multiple plates can be arranged together on the bench to create larger fixturing setups while maintaining precise right-angle references.
Who manufactures the VRH-4?
The VRH-4 is produced by Vertex and supplied with details suitable for integration into professional metrology and setup workflows
Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
