22500 Kg Shock Absorber M20x93L Thread, 200x160.5x191mm, 9.32kg - Vertex
€309.51
Product information "22500 Kg Shock Absorber M20x93L Thread, 200x160.5x191mm, 9.32kg - Vertex"
Take advantage of the combination of high load capacity, compact installation dimensions and robust mounting to reduce impact loads and extend machine service life. Order the unit directly via Metav Werkzeuge or consult Metav's specialists for tailored mounting advice.

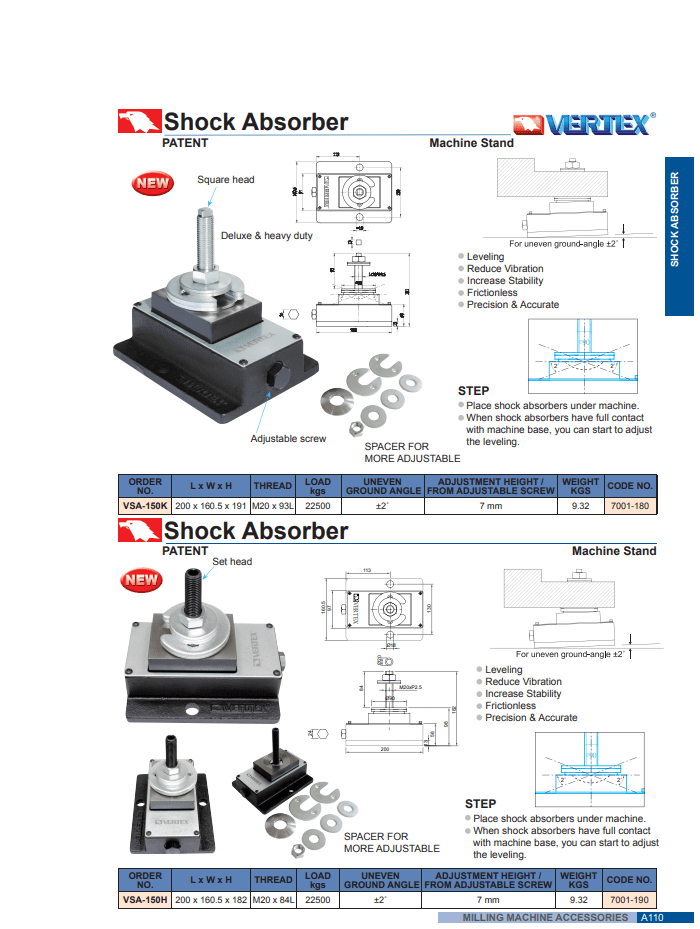

Vertex VSA-150K Shock Absorber — 22,500 kg load capacity, M20x93L thread
A heavy-duty shock absorber designed for industrial machinery and clamping applications, providing impact damping where high static loads and compact installation are required.
- High load capacity: 22,500 kg
- M20 x 93L threaded connection
- Compact size 200 x 160.5 x 191 mm
Longer service life through controlled impact absorption
The Vertex VSA-150K acts as a purpose-built damping element that reduces peak loads transmitted to frames and fixtures. With a high load capacity of 22,500 kg, impacts and dynamic shocks are dissipated, which lowers stress on bearings and welded joints and prolongs maintenance intervals. The result is a measurable reduction in unscheduled downtime and a more predictable component lifetime. For engineers, this translates into simplified load calculations and a clear basis for integrating damping into machine safety concepts.
Straightforward mechanical integration and secure attachment
Designed with a standard M20x93L threaded connection, the absorber offers a familiar mounting interface: M20 refers to a 20 mm metric thread diameter and 93 mm denotes the threaded engagement length. The compact footprint of 200 x 160.5 x 191 mm and a mass of 9.32 kg allow installation in confined spaces without compromising stability. Mechanical integration is facilitated by common tooling and fasteners, enabling robust clamping and repeatable alignment during assembly. The geometry supports both vertical and horizontal arrangements where axial damping is required.
Practical benefits for workshop and production environments
The device is engineered for continuous operation in industrial settings and complements clamping systems, presses and heavy jigs where impact mitigation is essential. The robust construction and compact form factor make the unit suitable for retrofit projects as well as new machine designs. Installation reduces vibration transmission to substructures and can improve process accuracy by stabilising tool and workpiece interaction. Delivery readiness and clear identification via SKU and GTIN support procurement and inventory tracking in production logistics.
Contact Metav Werkzeuge in Emmerich for application advice and to arrange supply of the Vertex VSA-150K shock absorber via info@metav-werkzeuge.com or +49 2822 7131930
Technical Data
- Article number: VSA-150K
- GTIN: 4061905083952
- Dimensions: 200 x 160.5 x 191 mm
- Weight: 9.32 kg
- Thread: M20x93L
Facts
- Maximum load: 22,500 kg
- ECLASS: 27291201
- SKU: VSA-150K
Special features
- Manufacturer: Vertex
- Product type: Shock absorber
- Suitable for integration in industrial machinery
FAQ
What maximum load can the shock absorber handle?
The Vertex VSA-150K is specified for a maximum load of 22,500 kg, making it suitable for heavy-duty damping tasks.
What does the thread designation M20x93L mean?
M20x93L indicates a metric thread with a 20 mm diameter and a 93 mm threaded engagement length for secure mechanical mounting of the VSA-150K.
Is the device suitable for retrofit into existing machines?
Yes, the compact dimensions and standard M20 thread allow the absorber to be retrofitted into many existing heavy machinery and clamping systems.
Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
