6mm Slot Bar Accessory for Precision Slot Head, 210mm Length - Vertex
€444.85
Product information "6mm Slot Bar Accessory for Precision Slot Head, 210mm Length - Vertex"
Combining a 6 mm slot profile with a stable 0.56 kg mass and a 210 mm length delivers steady, repeatable slotting performance for production environments; order the accessory directly via Metav Werkzeuge or consult our specialists for application advice.

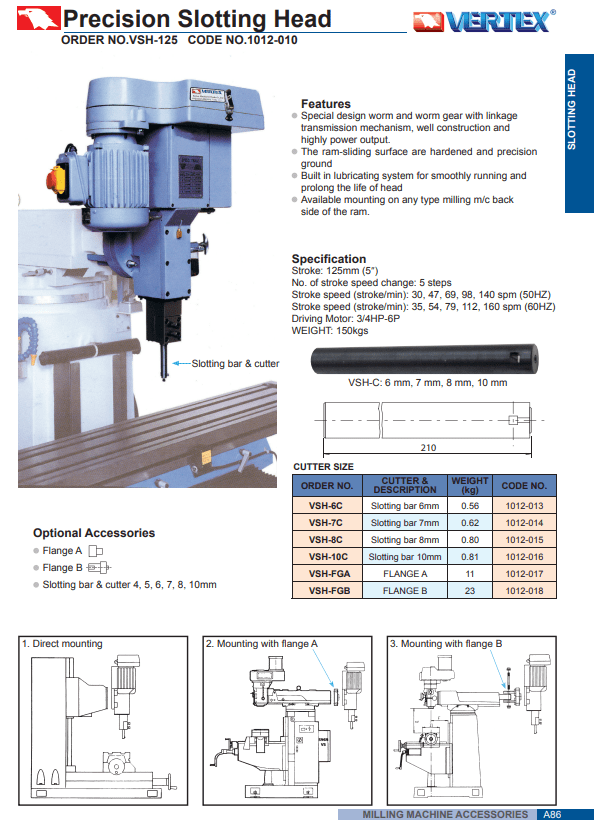

VSH-6C slot bar accessory by Vertex — 6 mm precision fit, 210 mm length
A VSH-6C accessory designed for precision slotting heads, providing a compact 6 mm slot profile for repeatable slotting and secure mechanical integration.
- Precision 6 mm slot bar
- Robust 0.56 kg construction
- Compatible with Vertex slotting heads
Consistent slotting accuracy for dependable results
The accessory supports precision slotting workflows by providing a defined 6 mm guided profile that stabilises the cutting interface. Fitted to a precision slotting head, the component reduces lateral play and helps maintain alignment across repetitive cycles. This results in fewer rework operations and improved first-pass yield, which is especially relevant in small-batch production and precision workshops. The design emphasises dimensional control, so tolerances are upheld even under frequent use, supporting higher throughput with consistent quality.
Built for mechanical stability and straightforward integration
Mechanical stability is achieved through a compact but substantial form factor; the 0.56 kg mass and 210 mm length balance rigidity with accessibility for typical machining set-ups. The bar is intended to be mounted to precision slotting heads where secure engagement and repeatability are essential. Installation is performed using standard fastening methods, so integration into existing toolheads is straightforward and setup times are reduced. The component’s form factor minimises vibration transfer and contributes to predictable tool behaviour, aiding in cycle-time optimisation and reducing maintenance intervals.
Improved inventory control and production reliability
As a standardised accessory with a clear SKU and GTIN, the unit simplifies spare-part management and procurement planning. The standardisation supports structured inventory policies and reduces machine downtime by enabling quick replacements. For workshops and production lines aiming to maintain uninterrupted operations, adopting uniform accessories enhances traceability and ensures compatibility across multiple machines. The measured, repeatable performance contributes to process reliability and supports a more efficient production flow.
For secure procurement of Vertex precision accessories such as the VSH-6C, rely on Metav Werkzeuge in Emmerich for expert advice and reliable dispatch to keep production running smoothly.
Technical data
- Article number: VSH-6C
- GTIN: 4061905084713
- Manufacturer: Vertex
Facts
- Weight: 0.56 kg
- Length: 210 mm
- Slot width: 6 mm
Special features
- Accessory for precision slotting head
- Category: Accessory
- SKU: VSH-6C
- Brand: Vertex
FAQ
What is the intended application of this accessory?
The VSH-6C is an accessory intended for use with precision slotting heads to provide a defined 6 mm slot profile for repeatable slotting operations.
What are the key dimensions and weight?
The component measures 210 mm in length, has a slot width of 6 mm and a weight of 0.56 kg as specified for the VSH-6C accessory by Vertex.
Is the accessory compatible with Vertex precision slotting heads?
Yes, the design of the VSH-6C matches Vertex precision slotting head interfaces and is intended to ensure secure compatibility and repeatable mounting.
Which identifiers should be used for ordering and stock control?
Use the SKU VSH-6C and GTIN 4061905084713 for clear identification and inventory tracking of this Vertex slot bar accessory.
Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
