25 mm Indexing Three-Point Workpiece Clamp 120x117x116mm 1° Readout - Vertex

The compact indexing head combines 1° indexing, a 25 mm mounting bore and a rugged 7.5 kg build to deliver repeatable angular positioning with minimal setup time. Benefit from precise, space-saving fixturing that speeds batch and prototype work — order via Metav Werkzeuge or consult the team for specification advice.

VSI-3 Indexing Head by Vertex — 25 mm mounting bore, 1° indexing

The VSI-3 is a compact parts indexing head designed for precise angular positioning in workshops and small production cells, suitable for fixturing, measurement and light machining tasks.

• 1° indexing increments
• 25 mm mounting bore
• Compact 120 x 117 x 116 mm footprint
• Robust 7.5 kg construction

Accurate angular positioning for repeatable setups

The VSI-3 offers 1° indexing, a mechanical step size that enables reliable division of a full rotation into repeatable angular positions. This degree step is displayed as a clear graduations value, which simplifies the selection of common indexing angles without digital aids. The result is improved repeatability during batch operations and reduced time spent on alignment checks. For operations that demand consistent angular locations — such as drilling patterns, inspection stages or light reaming — the precise step increments translate directly into fewer rejects and more predictable throughput.

Compact footprint that eases integration into fixtures

With external dimensions of 120 x 117 x 116 mm and a standard 25 mm mounting bore, the unit is purposely compact to fit tight fixture layouts and small machine tables. The small envelope supports efficient use of bench or machine table space while enabling straightforward mechanical coupling to existing spindles or adapters. This compactness reduces the need for complex fixturing and helps maintain clear access to the workpiece, making it suitable for both prototyping benches and limited-footprint production cells where space economy matters.

Solid mass and construction for stable operation

At 7.5 kg, the indexing head provides a substantial, vibration-damping mass that contributes to stable positioning under machining light loads. The noticeable mass and robust design reduce micro-movements during short machining cycles and measurement routines, increasing the quality of each indexed operation. The construction supports frequent cycle usage common in workshop environments, and the mechanical simplicity means maintenance is limited to routine checks and lubrication rather than frequent part replacement.

Straightforward handling for faster cycle times

The mechanical indexing principle of this head keeps operation intuitive and fast: once mounted via the 25 mm bore, indexing steps are set and locked with minimal tooling. This lowers setup complexity and shortens the time from first part to steady production. The device is particularly suitable where controlled angular positioning is required without the overhead of fully motorised rotary tables — a pragmatic balance of precision and operational speed that fits many small- to medium-scale machining and inspection workflows.

Choose Vertex quality for dependable indexing: contact Metav Werkzeuge in Emmerich for technical guidance and procurement of the VSI-3 indexing head to streamline angular positioning in workshop and small production applications

Technical data

• Article number: VSI-3
• GTIN: 4061905084973
• Designation: Parts indexing head (Teileapparat)
• Mounting bore: 25 mm
• Index increments: 1°

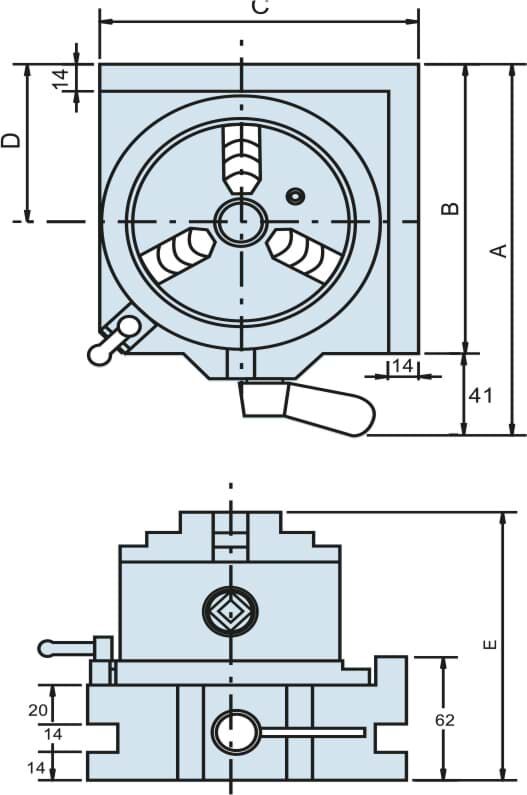

• Dimensions: 120 x 117 x 116 mm
• Weight: 7.5 kg

Facts

• Weight: 7.5 kg
• Dimensions (L × W × H): 120 x 117 x 116 mm
• Mounting bore diameter: 25 mm
• Index step: 1°

Special features

• Designation: Indexing head (Index)
• Manufacturer: Vertex
• eClass: 21020590
• SKU: VSI-3

FAQ

What indexing resolution does the VSI-3 provide?
The VSI-3 indexing head offers 1° indexing increments, enabling reliable division of the full circle into repeatable angular positions for machining and inspection tasks.

Which mounting interface is required for installation?
The unit uses a 25 mm mounting bore for attachment; the design allows straightforward coupling to compatible spindles or fixture adapters commonly found in workshop setups.

Is the VSI-3 suitable for light machining operations?
Yes, the VSI-3 indexing head (Vertex, SKU VSI-3) is designed for light machining and fixturing where precise angular positioning and mechanical stability are required.

How does the mass of the device affect performance?
The 7.5 kg mass improves stability and vibration damping during short machining cycles, which supports consistent positioning and better surface quality in repetitive operations.

Can the indexing head be used for inspection and measurement tasks?
The compact indexing unit is suitable for inspection and measurement workflows that require repeatable angular steps, offering a robust mechanical basis for comparative checks and staged measurements.

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
