0-290mm Milling Vise Mechanical 800 kgf Clamping Force, Cast Iron, 0.01mm Accuracy - Vertex

Benefit from cast iron rigidity, 800 kgf clamping force and a 0–290 mm opening for reliable workholding; these features support precise, repeatable milling and stable setup. Order the VSM-12 directly via Metav Werkzeuge or ask our consultants if needed.

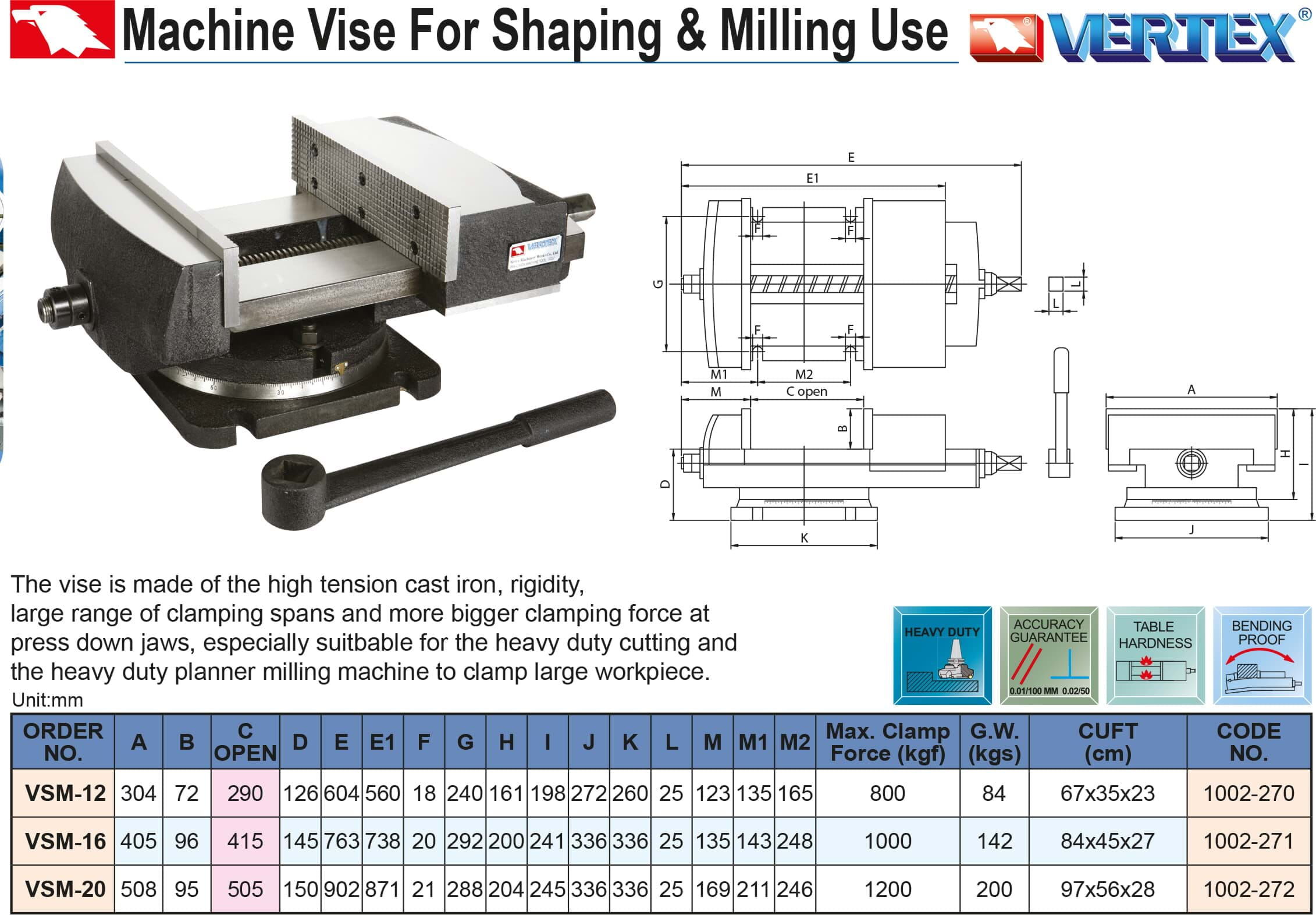

VSM-12 mechanical milling vice — 800 kgf clamping force, 0–290 mm opening (Vertex)

VSM-12 is a mechanical milling vice intended for secure workholding in production and toolroom milling, offering robust clamping and consistent positioning for repeatable machining operations

• 800 kgf clamping force
• Cast iron construction for stiffness
• 0–290 mm opening range
• Accuracy 0.01 mm

Consistent clamping that improves machining accuracy

The vice combines a cast iron construction with a high clamping force 800 kgf, delivering the rigidity required to reduce vibration and maintain tool engagement during milling. This structural stability translates into fewer reworks and tighter tolerances on finished parts. With a documented accuracy 0.01 mm, the unit supports applications where repeatable positioning is essential, such as precision component manufacture or small-batch production. The mechanical drive avoids electronic calibration, simplifying inspection routines and supporting predictable performance over long runs.

Flexible setup and reduced cycle times

A wide 0–290 mm opening allows accommodation of a broad range of workpiece sizes without frequent jaw changes, speeding up job changeovers and lowering setup time per operation. The compact footprint, at 304 x 604 x 198 mm, pairs well with many milling machines and table configurations, while the mass of 84 kg helps the vice resist movement under heavy cuts. The mechanical design supports straightforward fixturing and clamping adjustments, which benefits shops that prioritise quick, reproducible setups and efficient use of machine time.

Designed for lasting workshop use and easy integration

Built as a mechanical vice, the unit emphasises serviceability and robust function over complexity; routine maintenance is limited to inspection and lubrication of moving parts. The combination of durable materials and proven mechanics ensures a long service life in demanding environments. Supplied under the Vertex brand and identified as SKU VSM-12, the vice is suitable as a core element of a workholding strategy where dependability, repeatability and straightforward maintenance matter most.

Discuss the Vertex VSM-12 milling vice with Metav Werkzeuge for tailored clamping solutions and assured European supply from our Emmerich quality filter — email info@metav-werkzeuge.com or call +49 2822 7131930

Technical data

• SKU: VSM-12
• GTIN: 4061905083495
• Manufacturer: Vertex

Facts

• Material: Cast iron
• Clamping force: 800 kgf
• Opening: 0–290 mm
• Accuracy: 0.01
• Weight: 84 kg

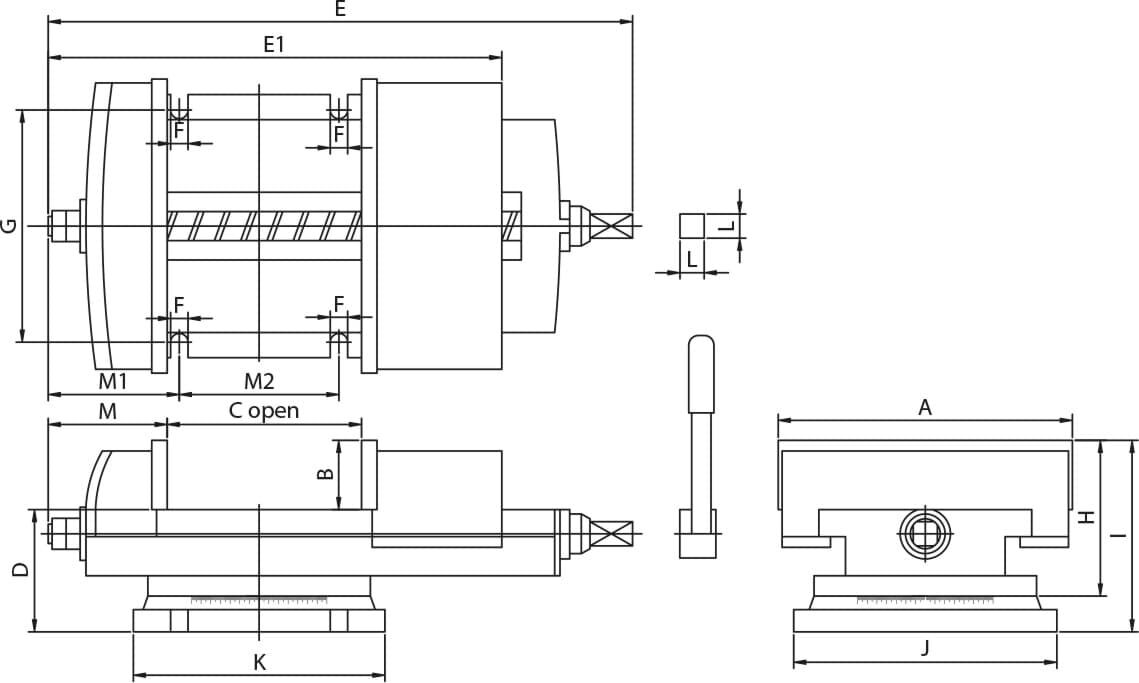

• Dimensions: 304 x 604 x 198 mm
• Type: Mechanical

Special features

• Robust cast iron body
• High clamping capacity for heavy workholding
• Suitable for production and toolroom milling
• Simple mechanical drive for low-maintenance operation

FAQ

What is the maximum workpiece width the vice can clamp?
The vice accepts workpieces up to a 0–290 mm opening range, allowing a wide variety of part sizes to be secured.

How precise is the positioning with this vice?
Positioning repeatability is specified at 0.01 mm, supporting precision milling and applications that demand consistent tolerances.

Is the VSM-12 suitable for heavy-duty milling?
The VSM-12, with its cast iron construction and 800 kgf clamping force, is designed to withstand heavy cuts and provide stable workholding in demanding milling operations.

Which manufacturer produces this milling vice?
This milling vice is produced by Vertex and is listed under SKU VSM-12 and GTIN 4061905083495.

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
