10mm Screw-In Cutter For APMT 0602 Indexable Inserts, M6 Thread, 2 Flutes - Teknik Makina

Combining a secure M6 screw mounting, a compact 10 mm cutting diameter and two cutting edges, this screw-in milling cutter delivers consistent, efficient steel machining and straightforward insert changes; order the part directly via Metav Werkzeuge or consult our specialists for application advice.

Screw-in milling cutter VT220TM by Teknik Makina — compact 10 mm diameter, M6 thread

The screw-in milling cutter VT220TM is designed for precision metalworking where a compact head and secure screw mounting are required, suitable for use with Korloy indexable inserts in workshop and production environments.

• Secure M6 thread for stable mounting
• 10 mm cutting diameter for compact machining
• Two cutting edges for efficient material removal
• Compatible with Korloy indexable inserts

Faster setup and dependable cutting performance for production runs

The screw-mounted head offers a stable M6 connection and a 15 mm thread height, which together reduce vibration and ensure repeatable positioning on the toolholder. This results in consistent cutting conditions and fewer rejects during series production. The compact 10 mm diameter focuses forces close to the spindle axis, allowing tighter access in confined geometries while maintaining a clean chip flow. The design is especially suited to steel machining where rigidity and repeatability are priorities.

Easy insert changes and low-maintenance handling to reduce downtime

A utilitarian fastening system using a Torx screw (M1.8×4.1) with a T6 key enables quick and secure insert replacement without specialised tooling. The cutter’s two-edged configuration simplifies reconditioning intervals and makes index changes fast, which translates into reduced machine idle time and higher overall equipment effectiveness. Clear, standardised fixing components mean maintenance can be executed reliably by trained workshop staff.

Compact design that supports versatility and workshop efficiency

With an overall length of 40 mm and a weight of approximately 0.01 kg, this insert-holding cutter keeps the centre of gravity close to the spindle, helping to preserve surface finish and tool life in fine machining tasks. The screw-in system suits a modular tool strategy: heads can be swapped quickly to adapt to different operations without changing the holder. Compatibility with Korloy indexable inserts broadens tooling choices and supports inventory rationalisation for production planners.

Contact Metav Werkzeuge for tailored advice on the Teknik Makina VT220TM screw-in milling cutter and arrange supply directly from Emmerich by phone +49 2822 7131930 or email info@metav-werkzeuge.com

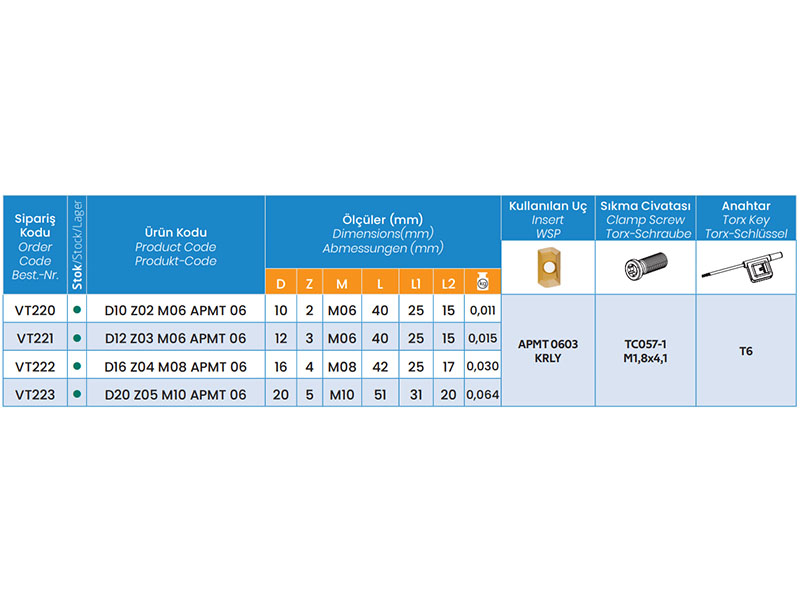

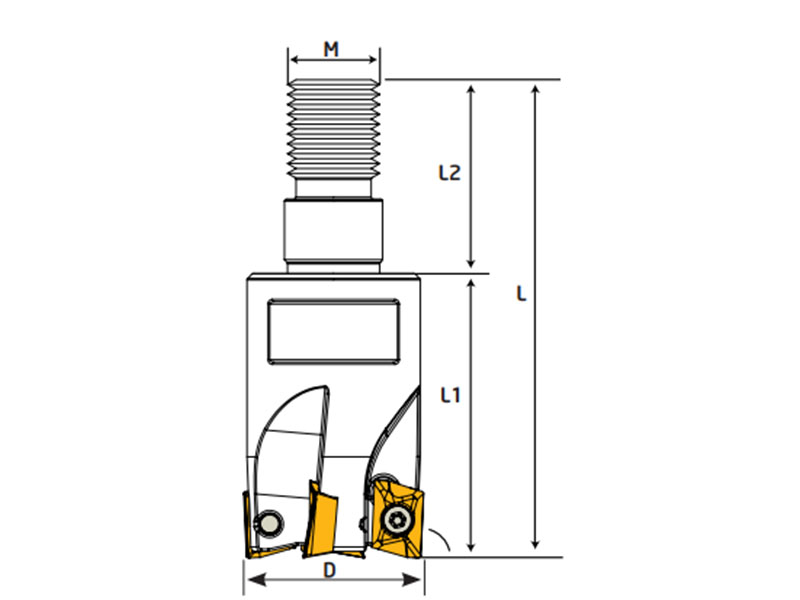

Technical data

• Article number: VT220TM

• Manufacturer: Teknik Makina

• Diameter: 10 mm

• Overall length: 40 mm

• Thread: M6

• Thread height: 15 mm

• Cutting edges: 2

• Weight: 0.01 kg

• Torx screw: M1.8x4.1

• Torx key: T6

• Compatible inserts manufacturer: Korloy

• Mounting type: screw-in cutter

FAQ

What insert types are compatible with this screw-in milling cutter?
The VT220TM is specified for use with Korloy indexable inserts and accepts standard APMT-style indexable inserts compatible with Korloy designs.

How is the cutter secured in the toolholder?
The cutter uses an M6 screw mounting with a 15 mm thread height for secure fixation; the insert is locked using the supplied Torx screw (M1.8×4.1) tightened with a T6 key.

Is the VT220TM suitable for steel machining?
Yes, the cutter’s compact geometry and rigid M6 connection make the VT220TM appropriate for demanding steel machining tasks where stability and repeatability are required.

Can the insert be changed quickly on the shop floor?
Insert replacement is fast and maintenance-friendly thanks to the Torx screw fastening system and standardised fixing components.

Does the cutter support versatile tool strategies in small batch production?
The compact design and screw-in mounting enable rapid head changes and flexible tooling setups, supporting small-batch and mixed-production workflows.

Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
