20mm Screw-In Face Mill For EPMT 0603 Indexable Inserts 3 Cutting Edges, 18mm Tooth Height, M10 Thread - Teknik Makina

Take advantage of a compact Ø20 mm cutting diameter combined with a robust M10 threaded shank and compatibility with EPMT 0603 indexable inserts for reliable, repeatable milling; order directly via Metav Werkzeuge or consult our specialists for tool selection.

VT231TM screw-in milling cutter by Teknik Makina – Ø20 mm, M10 thread for EPMT 0603 indexable inserts

The VT231TM screw-in milling cutter is a compact insert milling head designed for secure, repeatable machining with EPMT 0603 indexable inserts in light-to-medium industrial and workshop applications.

• Ø20 mm cutting diameter
• M10 threaded shank, 30 mm thread length
• Compatible with EPMT 0603 inserts (Hitachi)
• Three cutting edges, 93° cutting angle

Predictable cutting performance for consistent results

The insert milling head delivers stable chip engagement thanks to its three cutting edges and a 93° cutting angle, which together provide a near-square shoulder capability and even load distribution across the insert. This geometry reduces vibration and promotes consistent surface finish when performing slotting or face milling operations. For users unfamiliar with indexable tooling: the insert is a small, replaceable carbide plate that gives precise cutting geometry without the need to regrind the whole tool, lowering running costs and simplifying maintenance. The compact diameter also makes the cutter suitable for confined setups where controlled material removal is required.

Fast, secure clamping and straightforward replacement

A robust M10 threaded shank with a 30 mm thread length creates a strong mechanical connection to the toolholder, while the included fixing hardware — Torx M2.5×5.5 screw tightened with a T7 key — ensures the insert seat remains secure under load. The 18 mm insert pocket height provides reliable clamp support and adequate seating for the EPMT 0603 plates. These features reduce tool-change time and minimise downtime on the shop floor, since insert swaps are quick and do not require specialist equipment. The modest 48 mm overall length and low mass (0.07 kg) make handling and tool changes less cumbersome in compact machining cells.

Standardised compatibility and workshop practicality

Designed to accept EPMT 0603 indexable inserts, the milling head benefits from wide availability of insert grades and geometries, including options supplied by recognised manufacturers such as Hitachi. Standardisation simplifies inventory management and helps maintain productivity: a single cutter body accommodates a variety of insert grades for different materials and finishes. The tool’s design is aimed at professionals seeking a balance between ease of use and industrial robustness — ideal for maintenance workshops, toolrooms and production lines where predictable, repeatable performance is essential.

Contact Metav Werkzeuge GmbH for tailored advice on Teknik Makina’s VT231TM screw-in milling cutter and assistance with selecting the correct EPMT 0603 insert grade and toolholder; reach out via info@metav-werkzeuge.com or call +49 2822 7131930

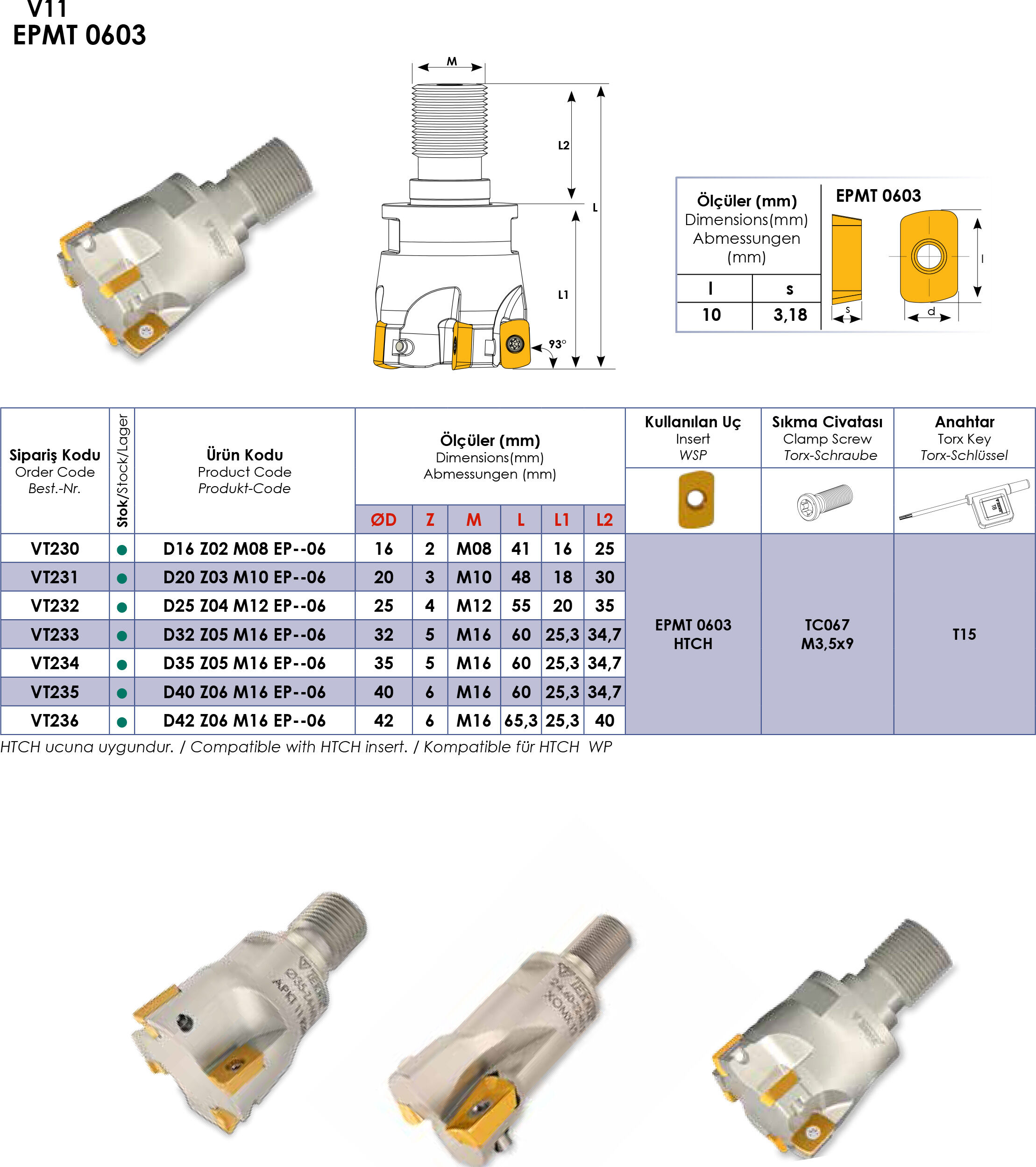

Technical data

• SKU: VT231TM
• Manufacturer: Teknik Makina

Facts

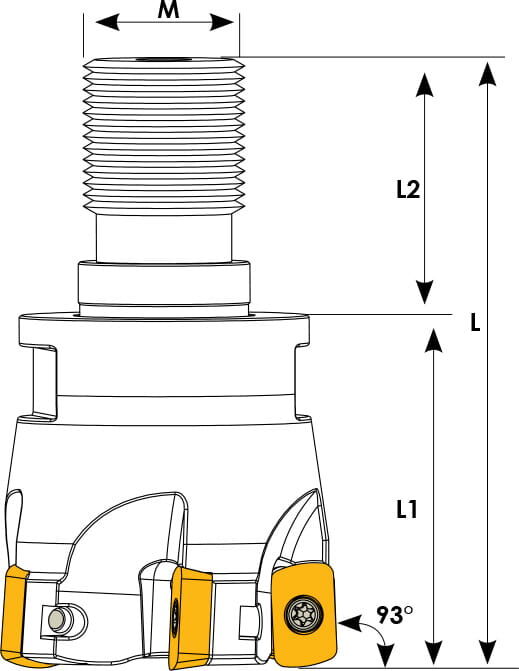

• Diameter: 20 mm
• Overall length: 48 mm
• Thread length: 30 mm
• Cutting edge height: 18 mm
• Number of cutting edges: 3
• Cutting angle: 93°
• Weight: 0.07 kg

Special features

• For EPMT 0603 indexable inserts
• Compatible insert manufacturer: Hitachi
• Thread: M10
• Fixing screw: Torx M2.5×5.5
• Torx key size: T7

FAQ

Which inserts fit this milling head?
The VT231TM accepts EPMT 0603 indexable inserts; common grades from Hitachi are compatible depending on the workpiece material.

What torque or key is required to secure the insert?
The insert is retained with a Torx M2.5×5.5 screw that is tightened using a T7 key; ensure the screw is seated firmly to avoid movement under load.

Is the tool suitable for shoulder milling and slotting?
Yes — the 93° cutting angle and three cutting edges provide reliable performance for near-square shoulder milling as well as slotting in light-to-medium operations.

How does the M10 thread benefit workshop use?
The M10 threaded shank with a 30 mm thread length gives a strong mechanical connection to standard toolholders, reducing the risk of loosening and improving repeatability.

What advantages come from using indexable inserts with this cutter?
Indexable inserts allow quick replacement when worn, lower tooling cost per cut and flexible selection of insert grades for different materials without replacing the entire cutter
