170mm Extension For Screw-In Cutter M16 Shaft Ø32mm, 28.7mm Cutter Opening - Teknik Makina

Take advantage of a robust extension that combines a secure M16 thread, a substantial 170 mm overall length and a 32 mm shaft for stable, extended machining operations — order the VT520TM extension directly via Metav Werkzeuge or consult our technical team for compatibility advice.

Extension for screw-in cutters VT520TM — Teknik Cutting Tools, M16 thread, 170 mm overall length

A VT520TM extension for screw-in cutters engineered to extend cutter reach while preserving rigidity for milling and finishing tasks in industrial and workshop environments.

• M16 thread for secure mounting
• 170 mm overall length for extended reach
• 32 mm shaft diameter for high stiffness
• Robust 1.26 kg construction for stability

Greater reach without compromising rigidity

Extending the toolholder length enables access to deeper or recessed workpieces; the VT520TM achieves this with a 170 mm overall length that increases reach while an oversized 32 mm shaft diameter maintains lateral stability. The combination of reach and stiffness reduces deflection during heavy cuts, which in turn improves dimensional consistency and prolongs cutter life. For workshops where space is limited or parts feature deep bores, this extension keeps the cutting geometry predictable and repeatable.

Secure connection and reliable compatibility

A precise M16 thread and a dedicated opening diameter of 28.7 mm for thread-in cutters ensure a firm mechanical union between extension and cutter. The 40 mm taper/cone length stabilises the seating geometry, reducing micro-movements that can generate chatter. This mechanical certainty supports higher feed rates and consistent surface finish, translating raw specifications into measurable productivity gains on the shop floor.

Practical handling and workshop benefits

Weighing 1.26 kg, the extension balances inertial mass for steady cutting without becoming unwieldy during tool changes. The solid construction supports robust clamping and repeatable repositioning, which speeds set-up and reduces rework. When combined with standard thread-in cutters, the extension brings productive versatility to milling cells and toolrooms, making it suitable for both prototyping runs and serial production where controlled extension is required.

Contact Metav Werkzeuge for a detailed fitment consultation for the Teknik Cutting Tools VT520TM extension and to arrange procurement; email info@metav-werkzeuge.com or call +49 2822 7131930

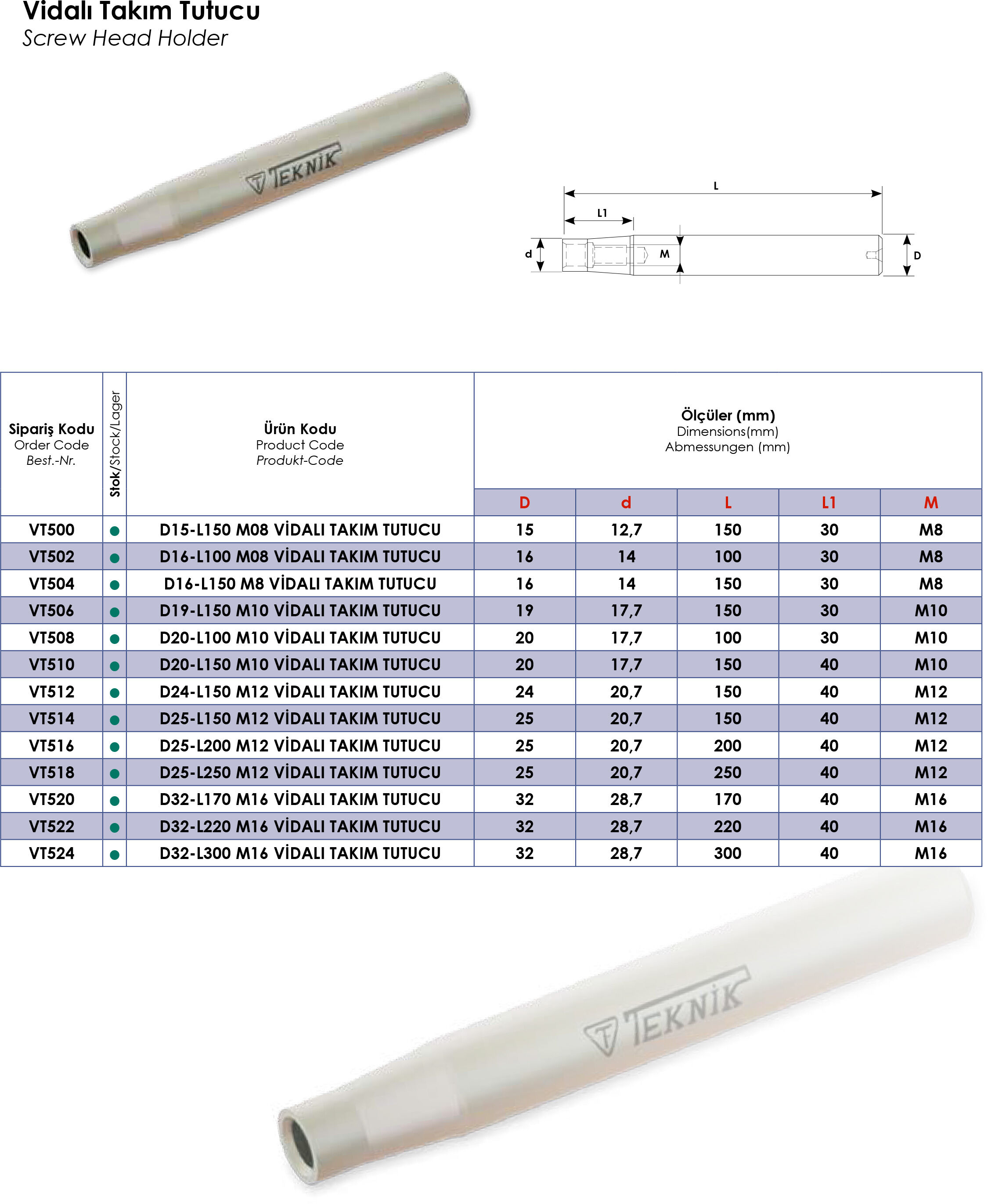

Technical data

• Article number: VT520TM
• Manufacturer: Teknik Cutting Tools
• ECLASS: 21189208
• ETIM: EC002219

Dimensions & weight

• Shaft diameter: 32 mm
• Cutter opening diameter: 28.7 mm
• Taper/cone length: 40 mm
• Overall length: 170 mm
• Thread: M16
• Weight: 1.26 kg

Design & features

• Extension for screw-in cutters (einschraubfräser)
• Secure M16 threaded connection
• Tapered seating for reduced runout
• Designed for industrial milling and finishing

FAQ

What is the primary purpose of this extension?
The VT520TM extension is designed to increase cutter reach while maintaining rigidity; it enables deeper machining with a secure M16 connection.

Which cutter shank sizes does the extension accept?
The unit features an opening diameter of 28.7 mm, intended for compatible thread-in cutters and standardised seating geometries.

How does the extension affect machining stability?
By combining a 32 mm shaft with a 40 mm taper, the extension minimises lateral deflection and helps preserve surface quality during longer reach operations.

Who supplies this extension and where can it be ordered?
The extension is supplied by Teknik Cutting Tools (SKU VT520TM) and can be procured or discussed via Metav Werkzeuge for fitment advice.

Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
